The Global Door Controls GAL series cylindrical levers are designed for heavy-duty residential and standard to heavy-duty commercial applications. They provide versatile functions to accommodate a wide range of door needs. A free-wheeling clutch mechanism comes standard, enhancing longevity by minimizing wear. Removable thru-bolts prevent lock rotation, ensuring a secure and reliable installation.
For heavy-duty residential & commercial applications
Steel body with zinc dichromate finish for corrosion resistance
Meets the performance standards of Grade 2, ADA and ANSI A156.2
Entry function secures exterior doors with key access from outside and thumb turn inside
Crafted from steel with corrosion-resistant zinc dichromate

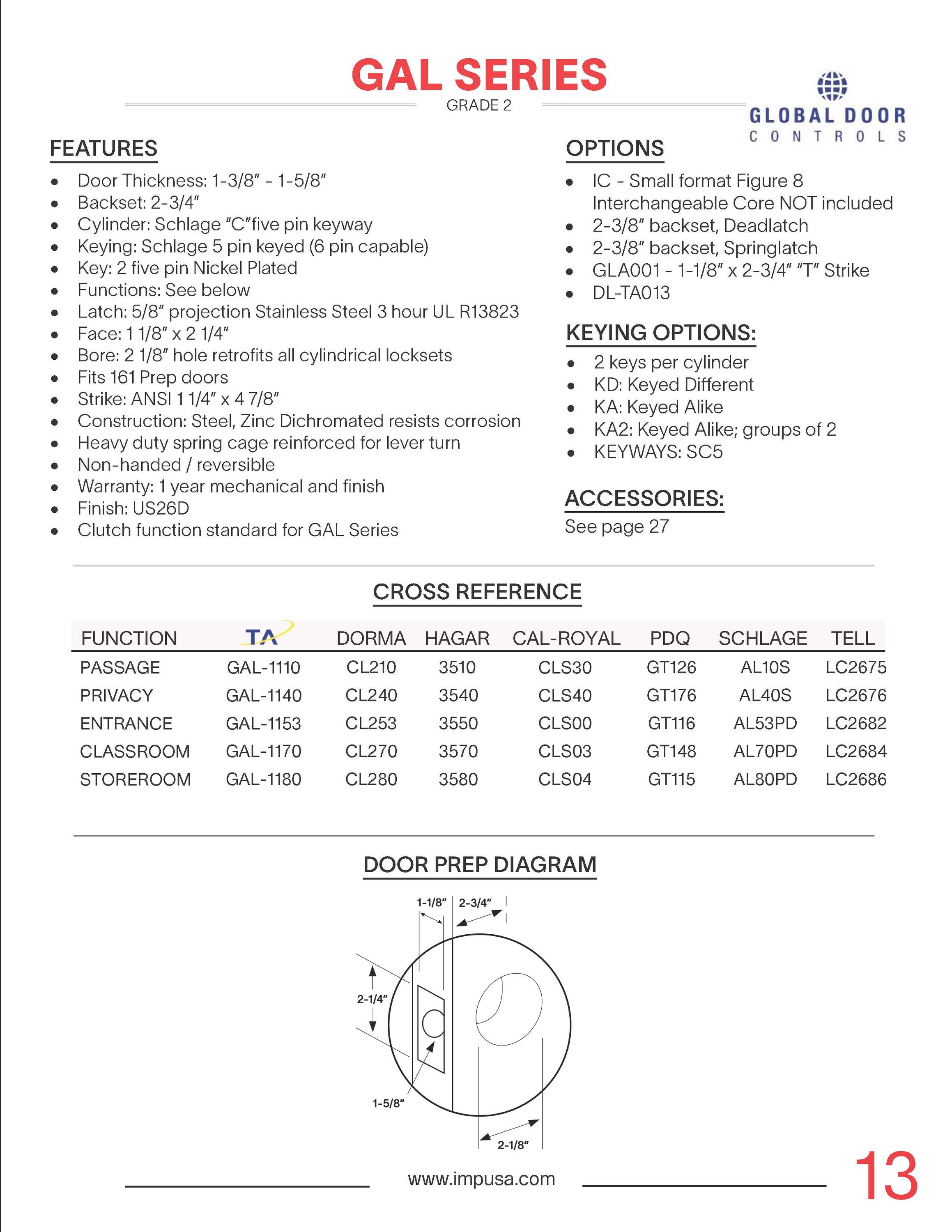

Door thickness: 1-3/8 in - 1-5/8 in, Backset: 2-3/4 in, Latch: 5/8 in projection
Bore: 2-1/8 in hole retrofits all cylindrical locksets, Strike: ANSI 1-1/4 in x 4-7/8 in, Face plate: 1-1/8 in x 2-1/4 in
Cylinder: Schlage “C” five pin keyway, Schlage 5-pin keyed, 6-pin capable; supplied with 2 nickel-plated keys
Heavy-duty spring cage reinforced for smooth lever turn, Comes non-handed / reversible, Certifications: UL listed R13823, ADA compliant
