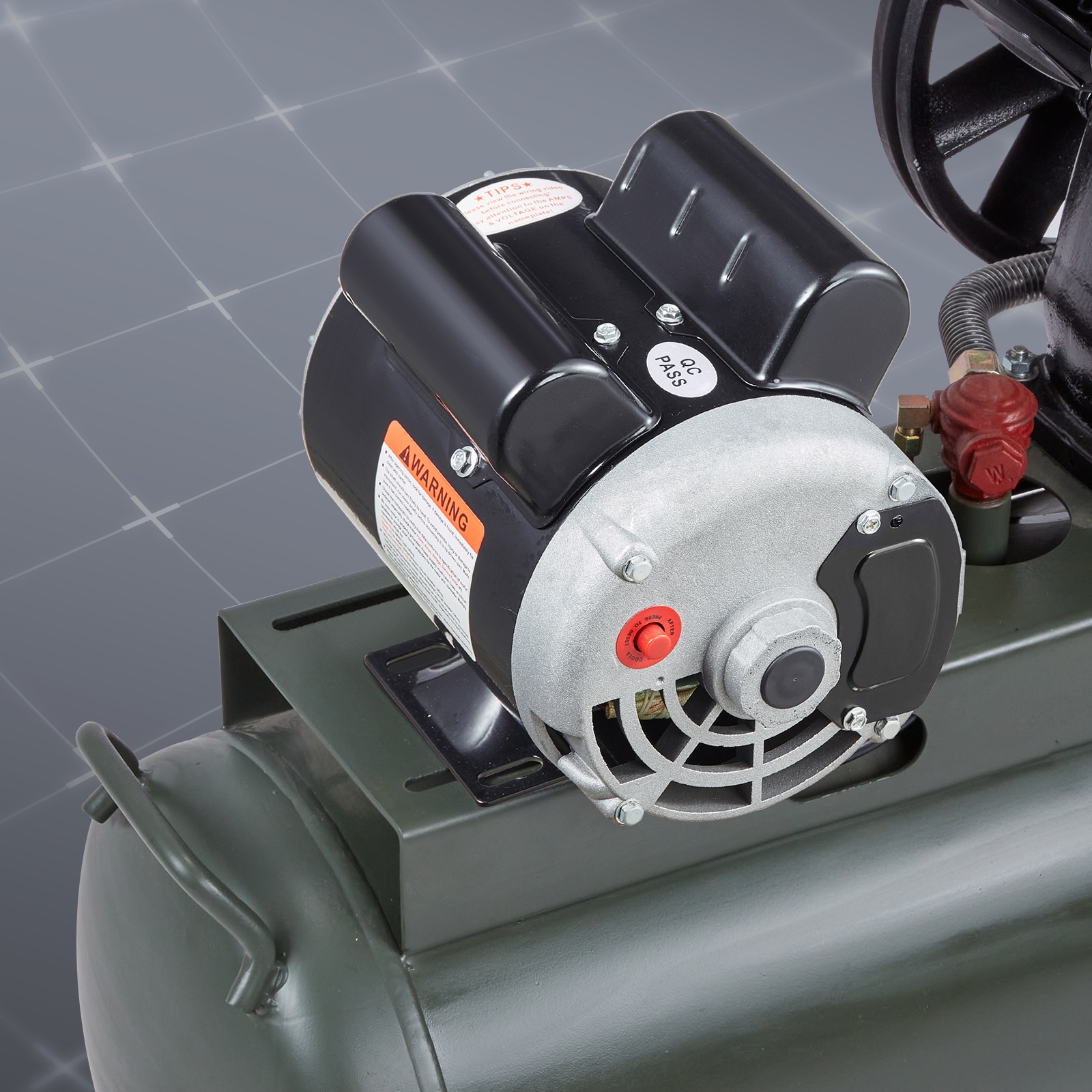

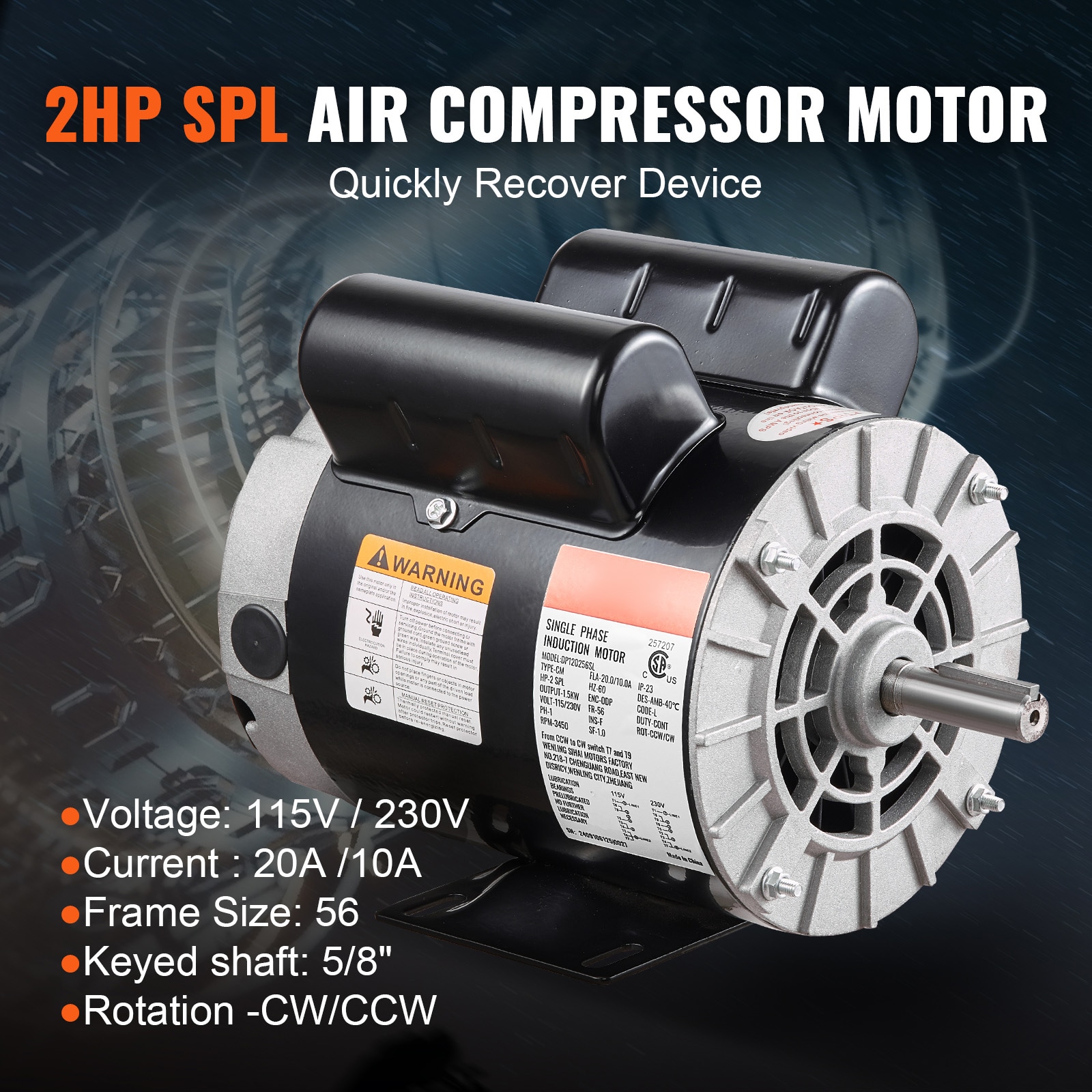

VEVOR Air Compressor Motor: Inject powerful energy into your air compressor with 2HP SPL compressor motor, 115/230V voltage, 20/10A current, 56 frame, 1.88 inch shaft length, 5/8 inch keyed shaft, CW/CCW dual rotation direction; A perfect addition to air compressors, industrial and commercial needs;; [Package Content] 1 x Air Compressor Motor

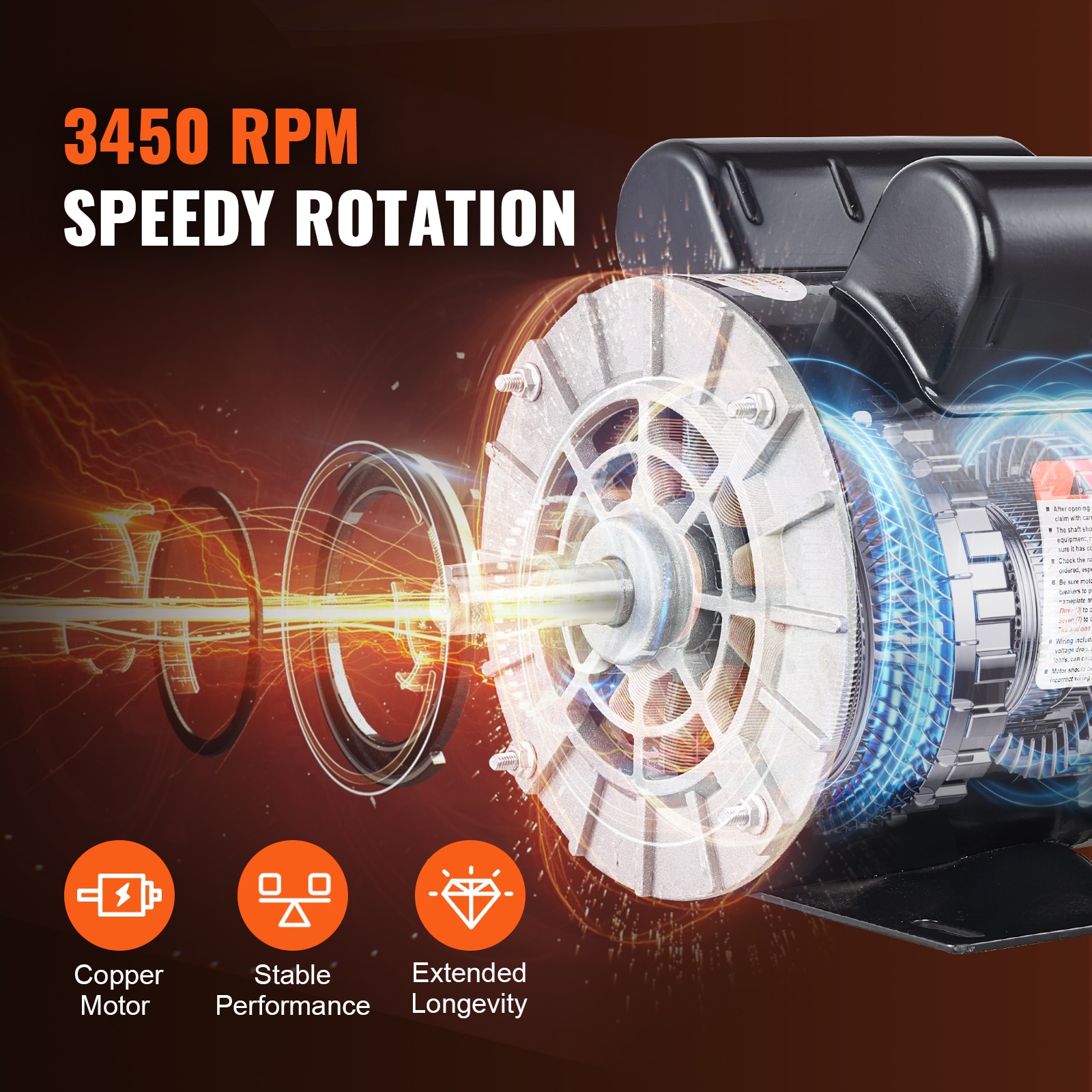

High Performance: 2HP SPL 3450 RPM, Single Phase, Full Load Amps: 20/10Amp, 115V/230V, SF: 1.0;
Frame Type: 56 Frame, 5/8" Keyed shaft, 1.88" Shaft length, 0.188" Keyway Size;
Open Drip-proof: Suggest using in clean and dry environments; Made of high-quality steel material, it can protect the engine, longer service life;

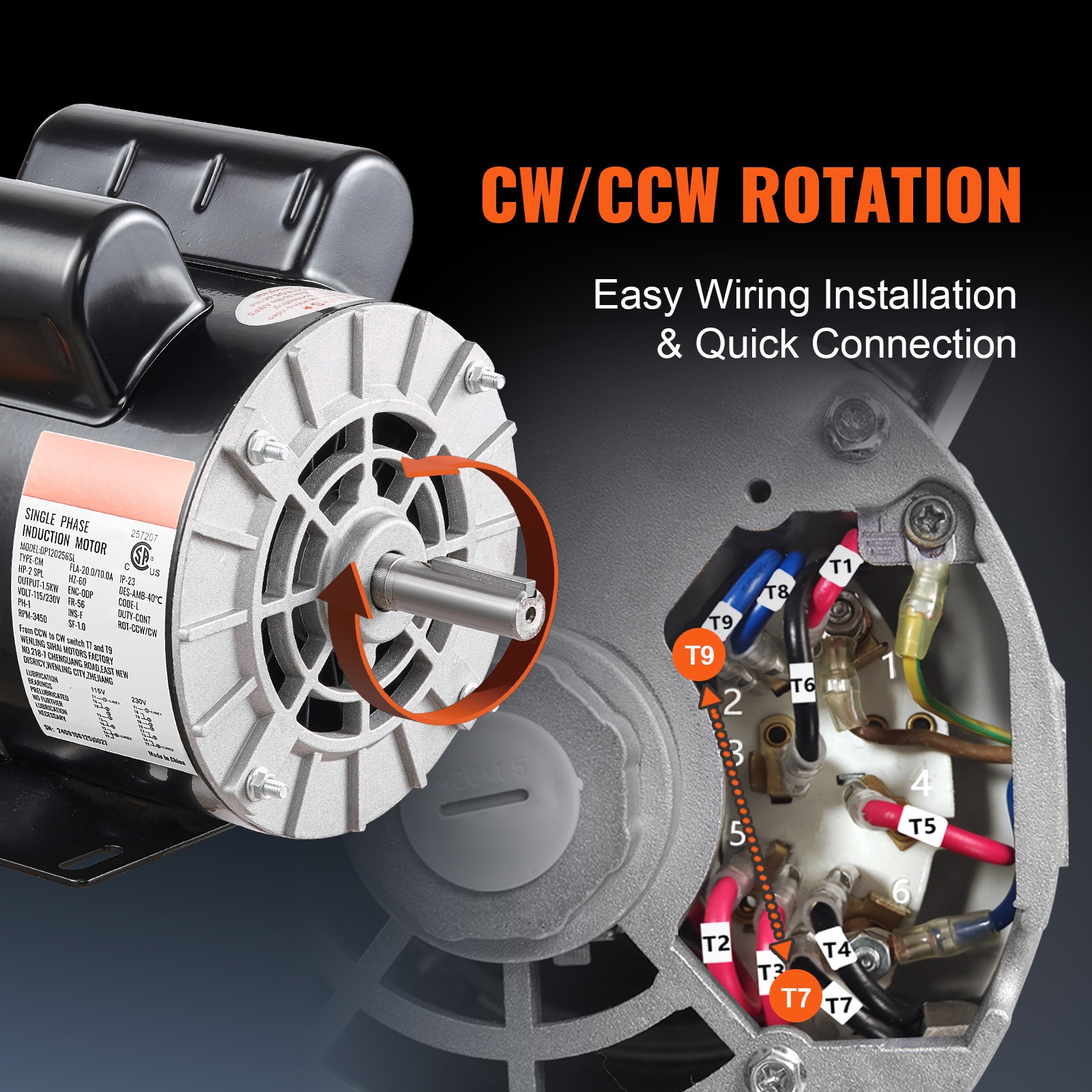

Dual Rotation Direction: Motor is Reversible for CW/CCW, provides easier wiring operations;

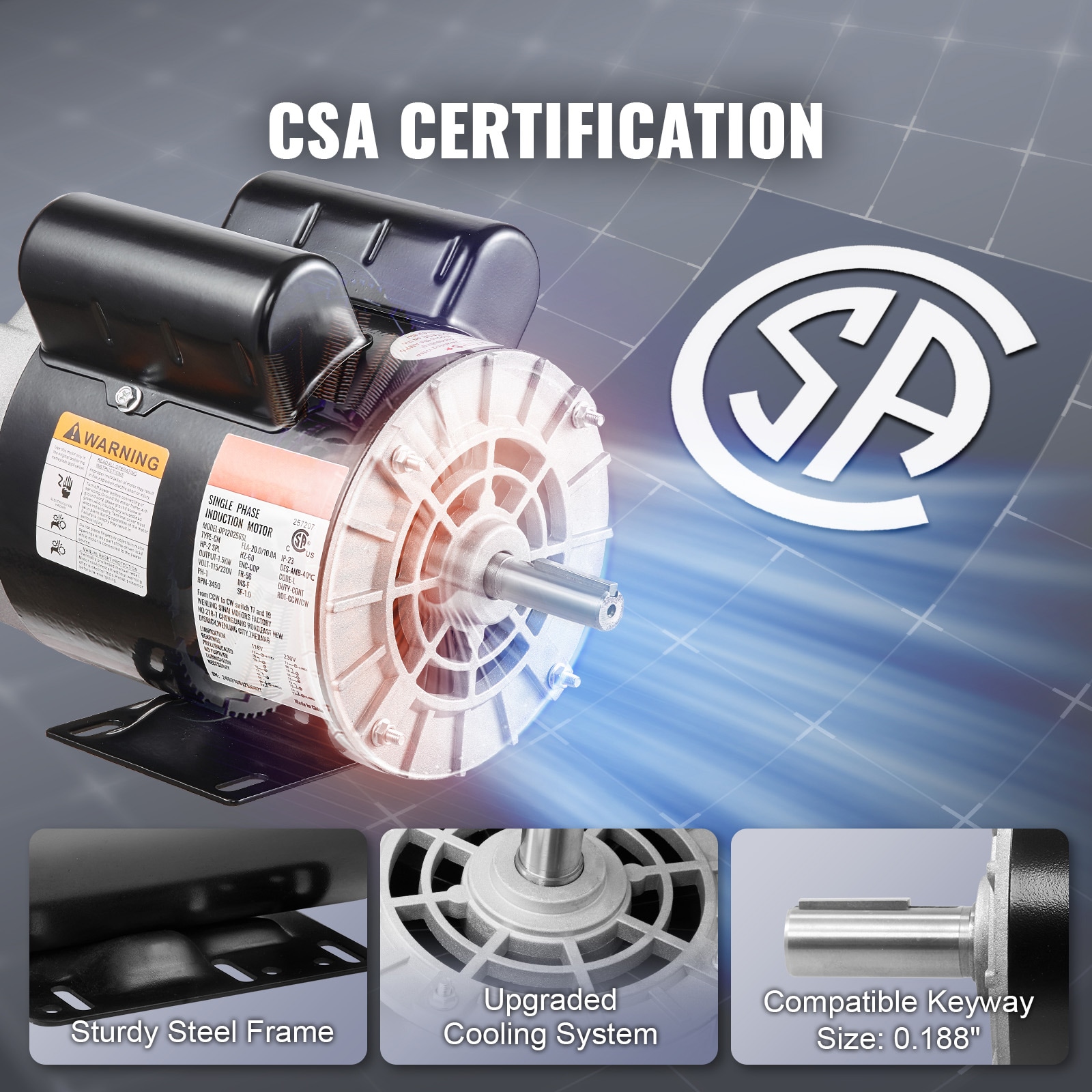

Safe & Durable: Tested with CSA certification; A sturdy steel frame, fast heat dissipation and compatible keyed shaft for longtime usage;

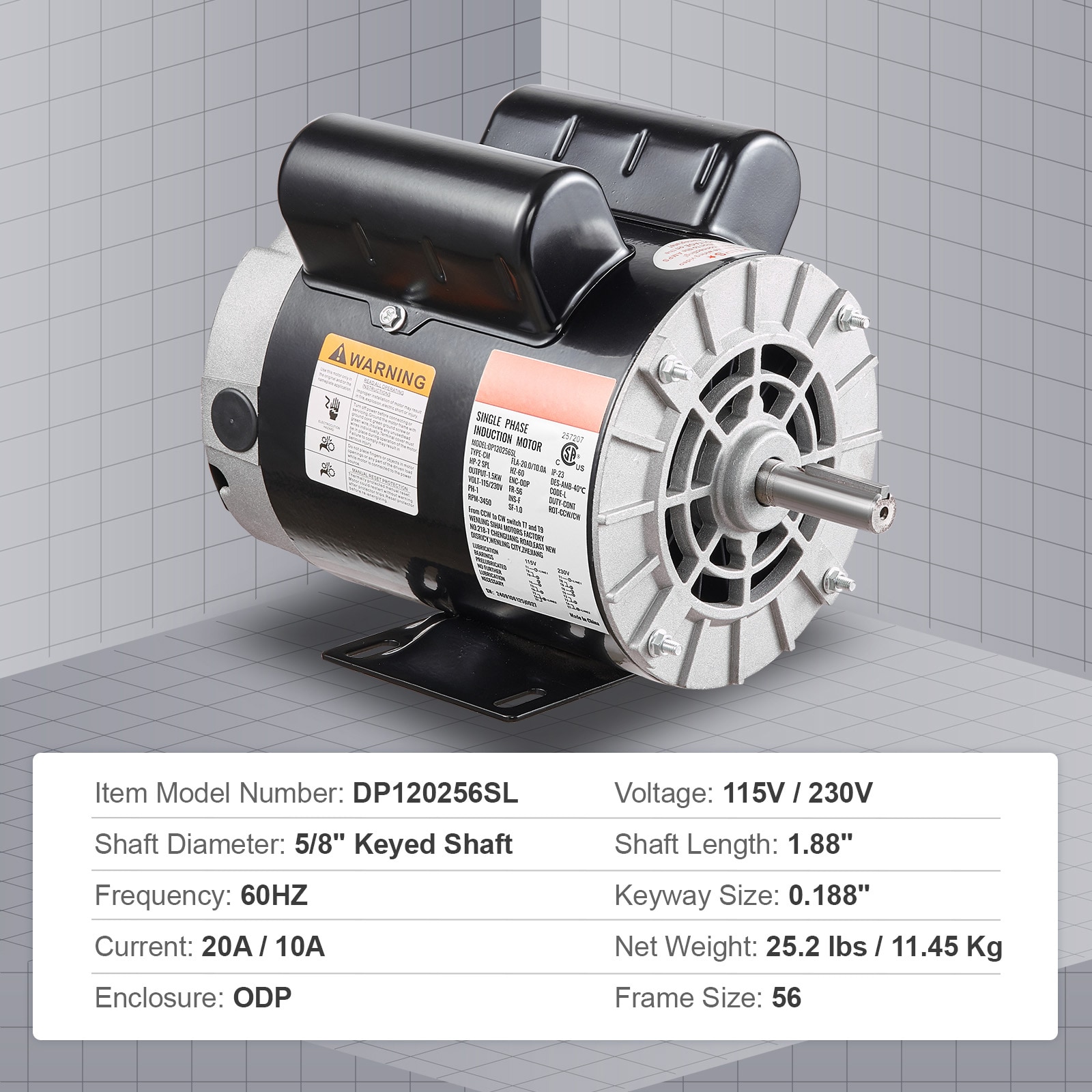

Specification: Item Model Number: DP120256SL; Voltage: 115V / 230V; Frequency: 60HZ; Current: 20 A / 10 A; SF: 1.0; Enclosure: ODP; Frame Size: 56; Shaft Diameter: 5/8" Keyed Shaft; Shaft Length: 1.88"; Keyway Size: 0.188"; Net Weight: 25.2 lbs / 11.45 kg
