What is this?
MPPT technology is a power electronics technology applied to solar panels and other power generation equipment. Its purpose is to keep these devices at the maximum power output point through program and circuit design to improve their output efficiency.
What will I get?

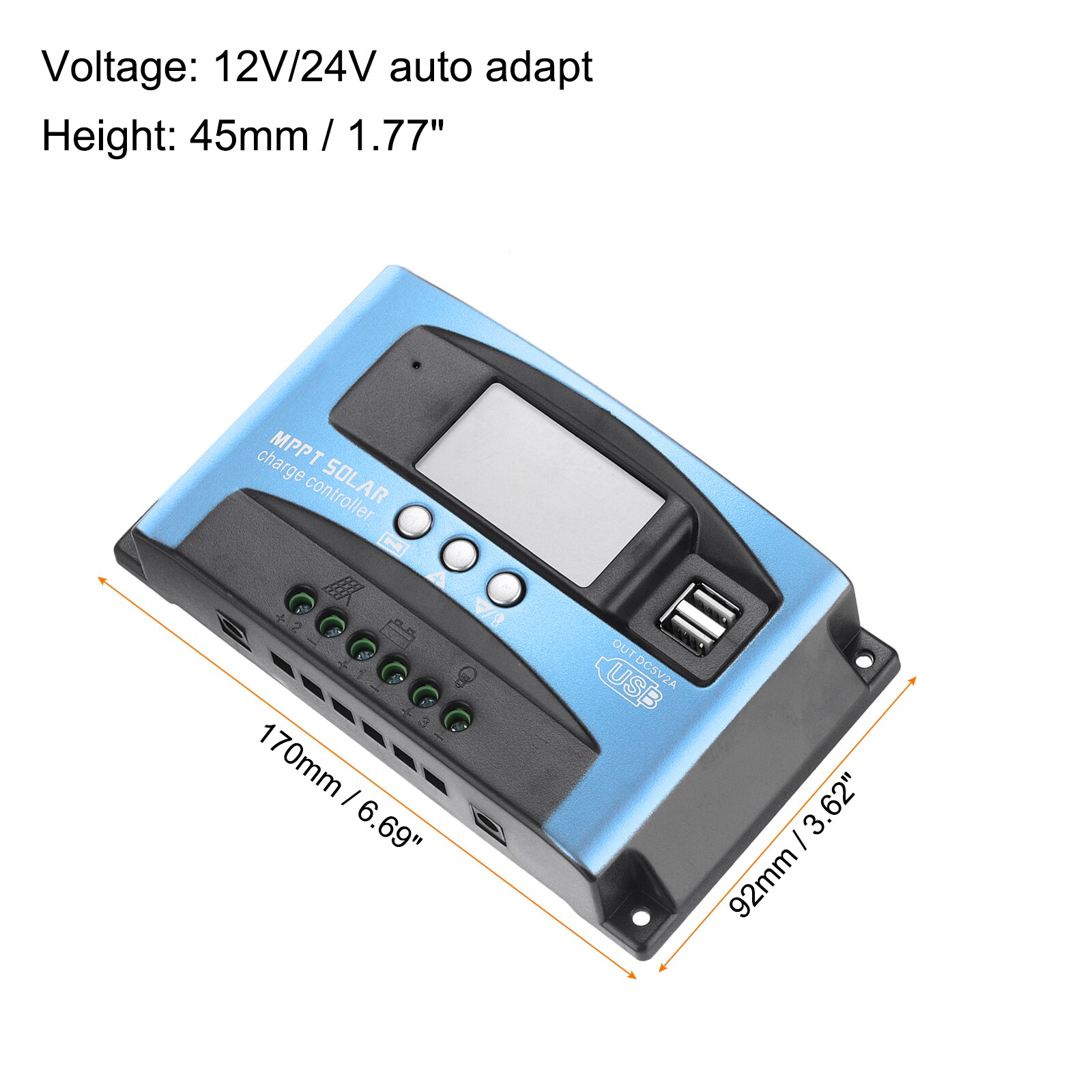

MPPT Solar Charge Controller
Voltage: 12V/24V auto adapt
Rated Charging Current: 50A
Discharge Current: 20A
Size: 170*92*45 mm
Operating Temperature: -35-80℃ / -31°F-176°F
Float Charge Voltage: 12V/13.8V 24V/27.6V
USB Output: 2 x 5V/2.5A Max
In the package of: 1 Pcs Solar Charge Controller
Are there any advantages of the product?
More Efficient: The solar charge controller has a built-in maximum power tracking program, which can significantly improve the energy utilization efficiency of the photovoltaic system.
LCD Display: The LCD display allows you to understand the status and data of the solar charge controller, making it convenient for you to switch modes and parameter configurations.
Reliable Protection: The solar charge controller has over-voltage, short circuit, overload, over-charge and over discharge protection functions. MPPT automatic two-way focus tracking charging, high charging efficiency.
How to use it?
The controller is 12V/24V automatic adaptation. When using the solar charge controller, connect the battery first, then connect the solar panel.
What should I notice?1. When using for the first time, please make sure the battery has enough voltage so that the controller can recognize the correct battery type.
2. Only use photovoltaic panels as a charging source, not DC or other power sources.
