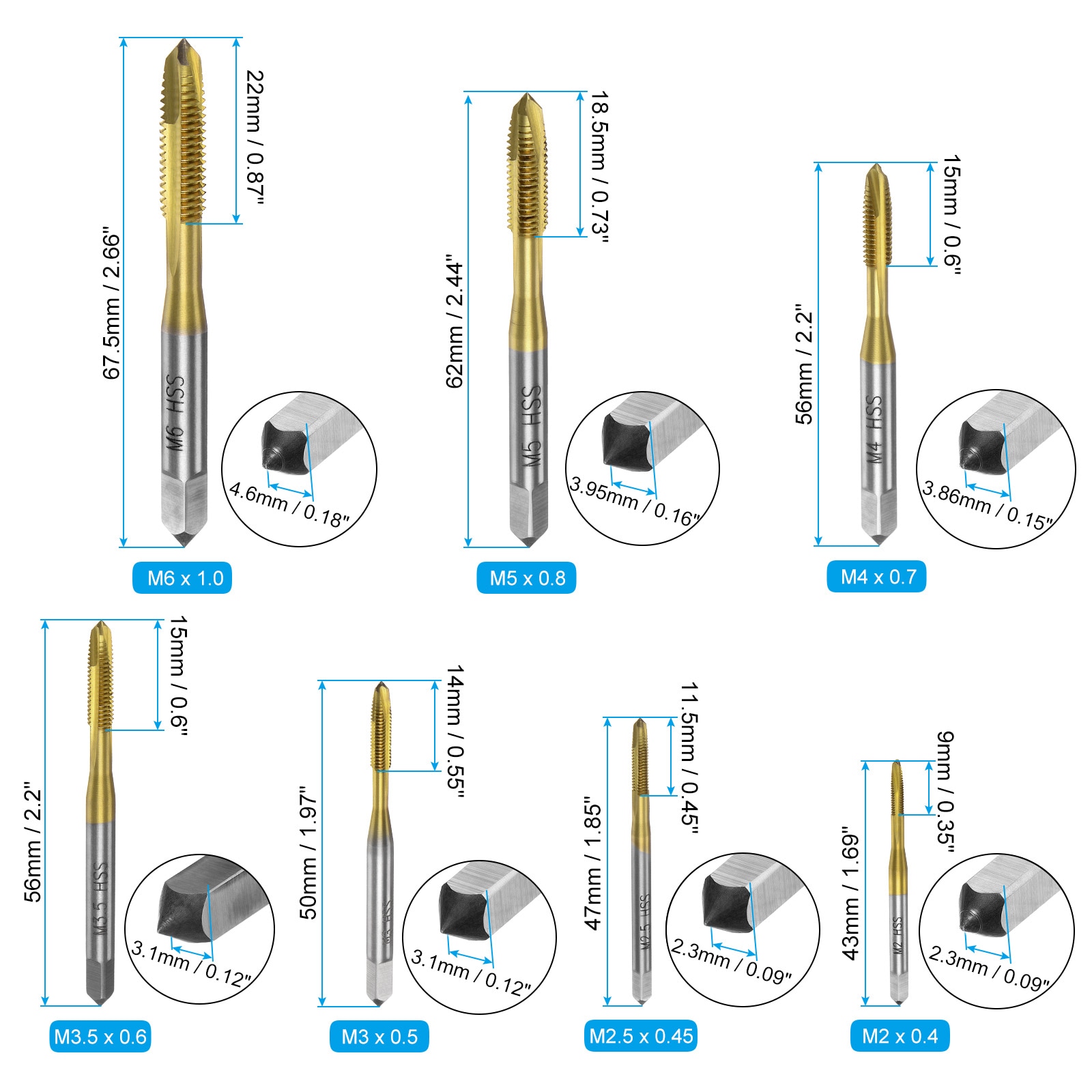

Thread Size: M2 x 0.4, M2.5 x 0.45, M3 x 0.5, M3.5 x 0.6, M4 x 0.7, M5 x 0.8, M6 x 1.0
Square Shank Width: 2.3mm / 0.09" , 2.3mm / 0.09", 3.1mm / 0.12", 3.1mm / 0.12", 3.86mm / 0.15", 3.95mm / 0.16", 4.6mm / 0.18"
Thread Length: 9mm / 0.35", 11.5mm / 0.45", 14mm / 0.55", 15mm / 0.6", 15mm / 0.6", 18.5mm / 0.73", 22mm / 0.87"
Total Length: 43mm / 1.69", 47mm / 1.85", 50mm / 1.97", 56mm / 2.2", 56mm / 2.2", 62mm / 2.44", 67.5mm / 2.66"
Material: HSS 6542 (High Speed Steel 6542)
Finish: Titanium Coated
1 Set (7pcs) x Spiral Point Thread Taps

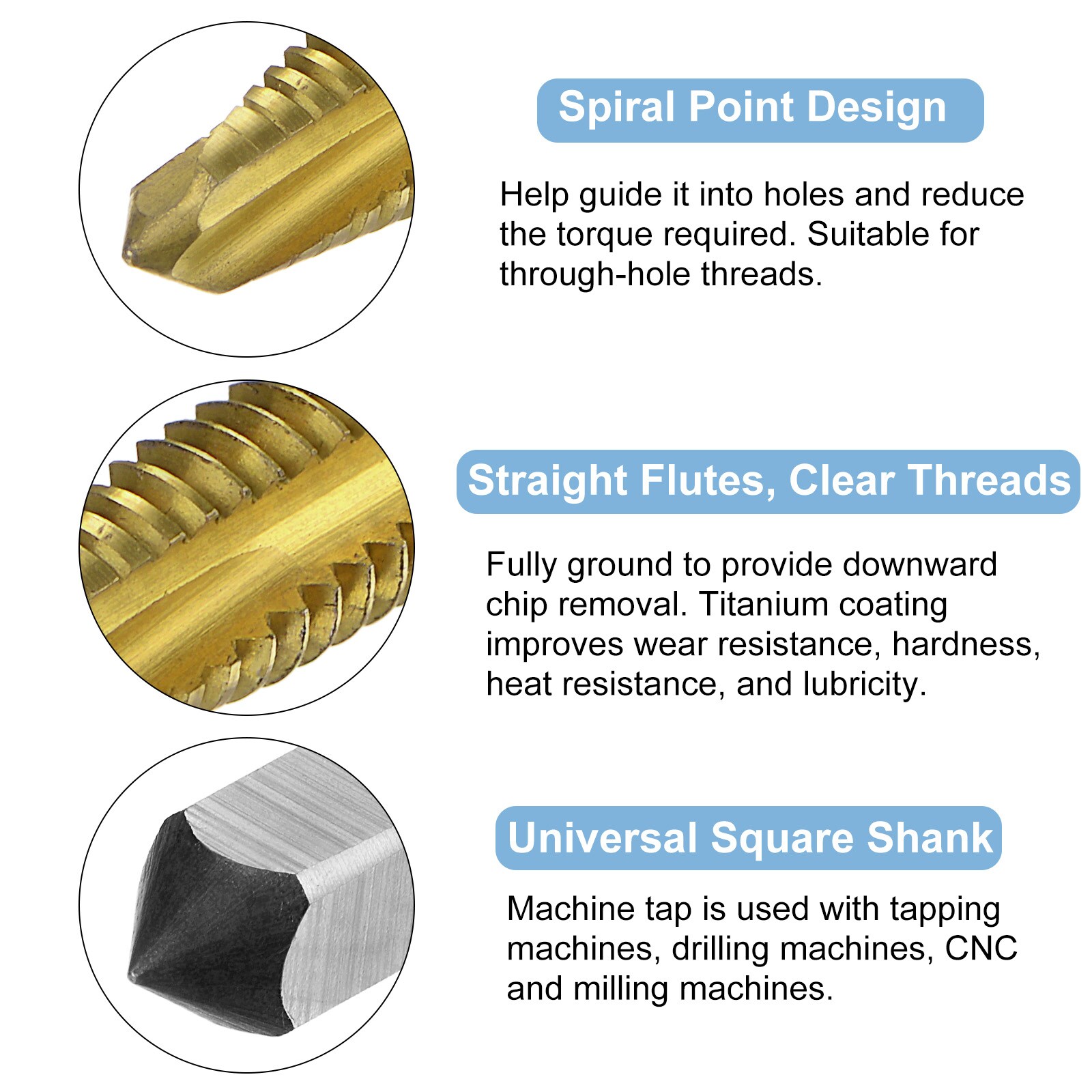

Metric thread tap features spiral point, plug chamfer, and right hand thread cutting with straight flutes for downward chip removal, and the point helps guide into the hole while reducing torque.
High-speed steel tapping tool offers high hardness and toughness for general purpose applications, with titanium coating for improved wear and fusion resistance and long service life.
Spiral point tap is suitable for through-hole threads and can be used for drilling and tapping stainless steel (below 30HRC), aluminum, die steel, ordinary steel, non-ferrous metals, and hard plastics.
Machine threading tap is used with drill presses, tapping machines, CNC, and milling machines, with tapping oil recommended for higher quality threads and more durable taps, and tapping depth should not exceed 1.5 times the tap diameter.

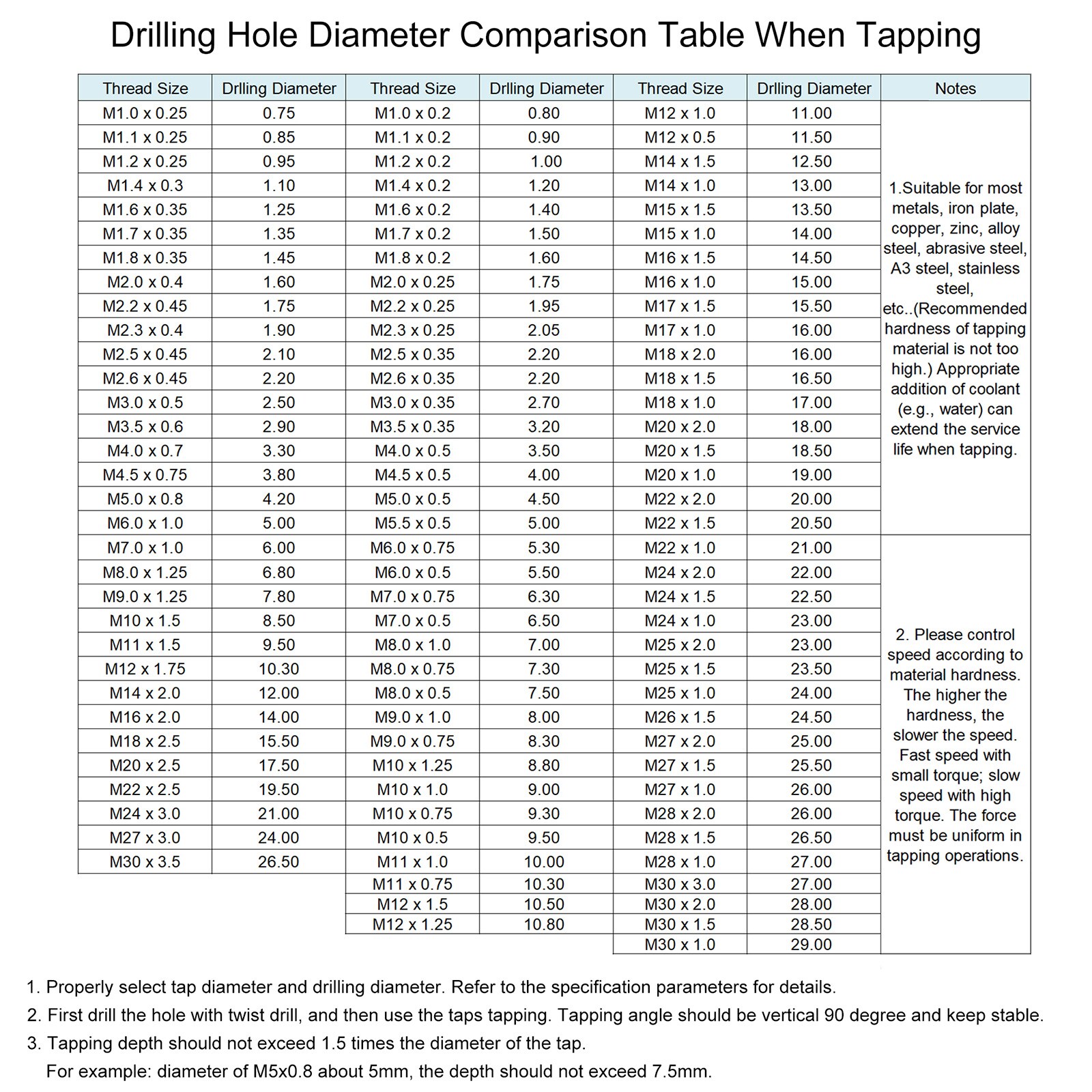

Machine taps are suggested for use with tap chucks with overload protection, not recommended for hand use or electric drill tapping; drill holes with a twist drill bit first, then tap with a thread tap at a 90-degree vertical and stable angle.
