Unique Bargains 12V 24V PIR Sensor LED Motion Sensor Adjustable PIR Probe for LED Light Strip Black
Item #7904071 |
Model #S25072801UX1085
Marketplace items sold by a third party are not eligible for Lowe’s offers.
We'll notify you once this item is back in stock.
PIR motion sensor switch is an infrared detection controller, using infrared detection mode to control the switch of the load. You can install the human body sensor in the appropriate environment according to the your needs. PIR sensor widely used in motion-activated lighting, kitchen cabinets, LED strip lighting, under-bed rail lighting, entrance lighting, etc.
What will I get?
Sensing distance: 5-8M
Operating voltage: 12-24V
Output current:<6A
Load power: 120W
Delay time: 1-10 minutes (adjustable)
Sensing angle: 120 degrees
Working temperature:-20-40 degree Celsius
Material: ABS

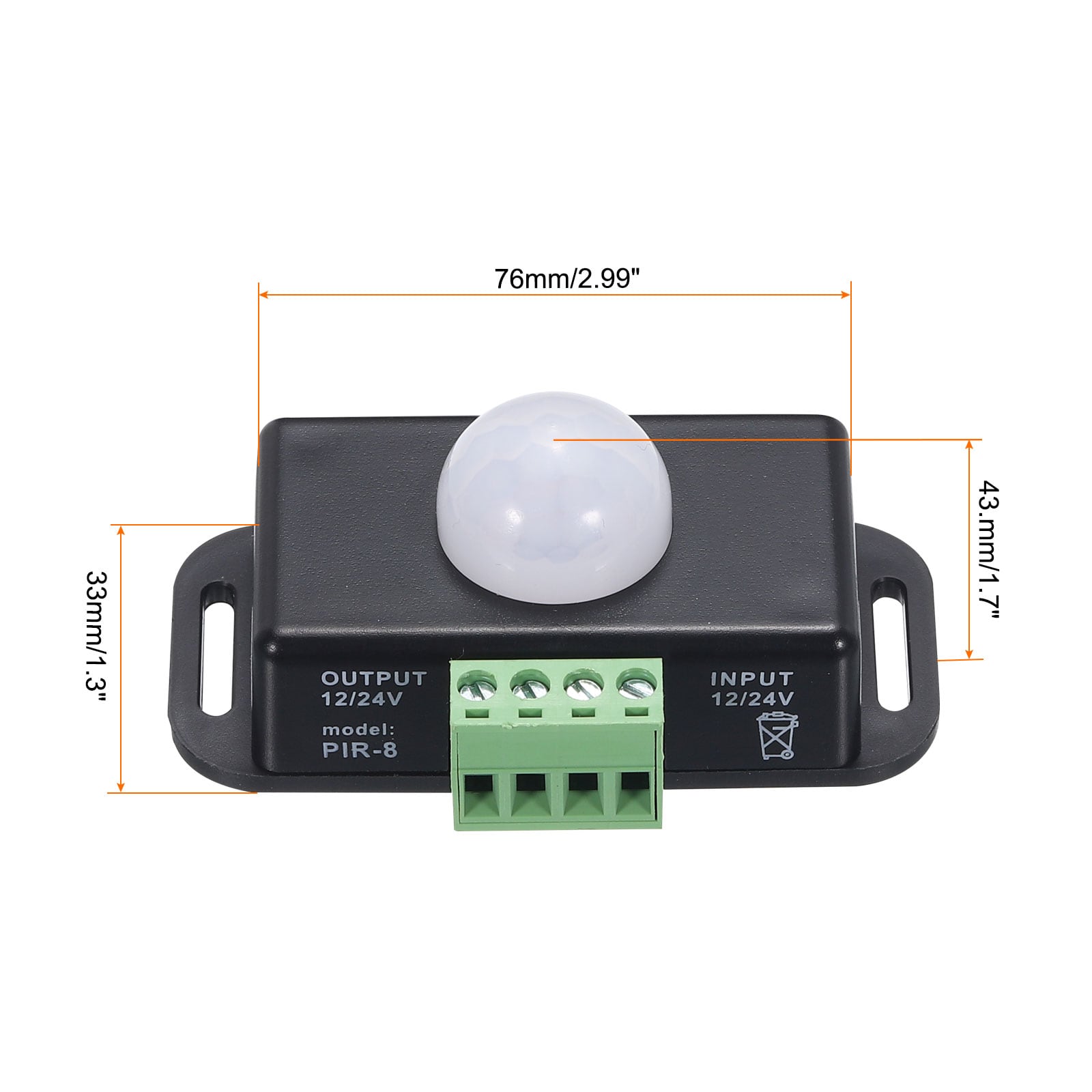

PIR Sensor :76mm x 33mm x 43.5mm/2.99inch x 1.3inch x1.7inch(L x W x H)
Color: Black
In the package: 1Pcs x PIR Switch

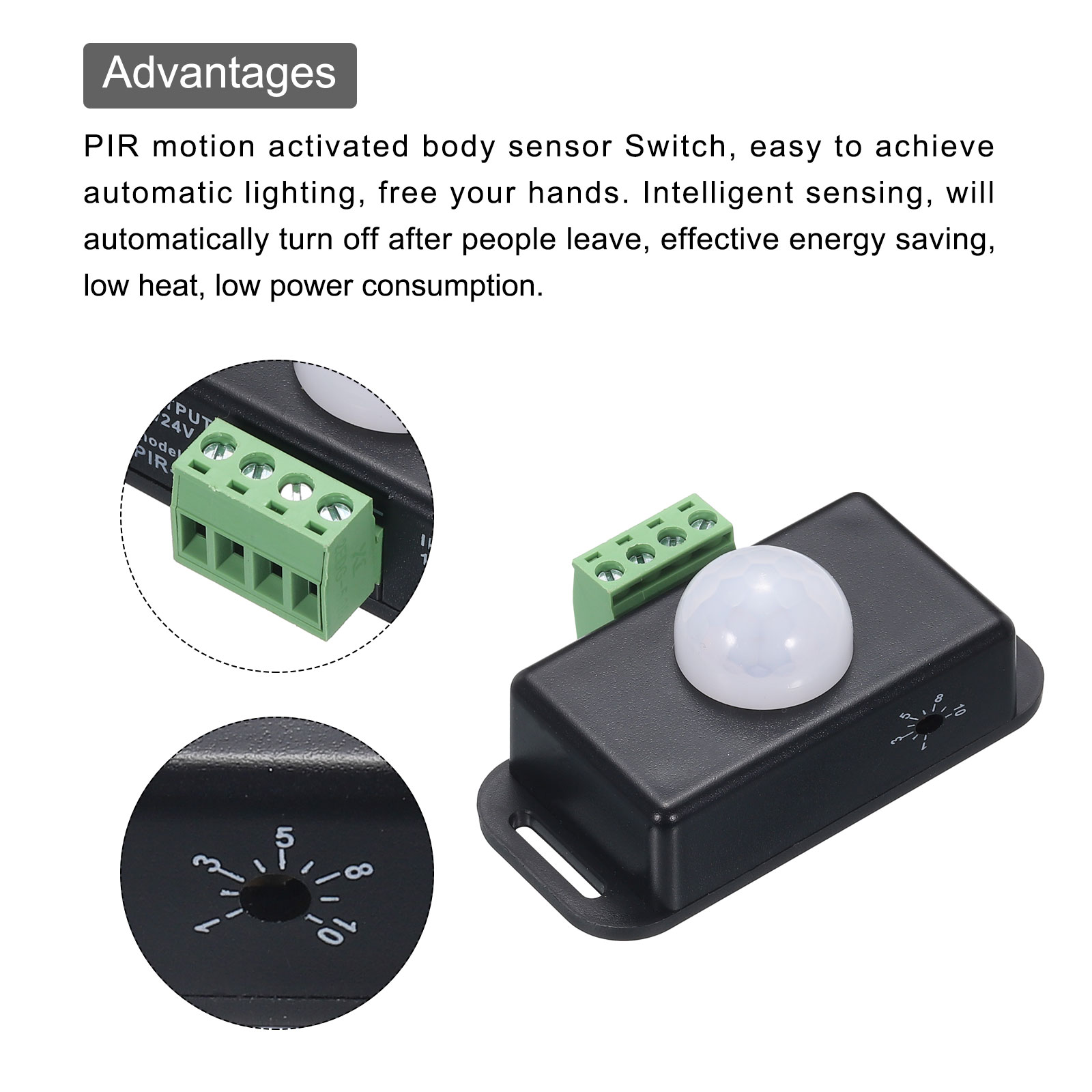

Is there any advantages of the product?
PIR motion activated body sensor Switch, easy to achieve automatic lighting, free your hands. Intelligent sensing, will automatically turn off after people leave, effective energy saving, low heat, low power consumption.
How to use it?
First connect the load cable, then connect the power cable, make sure there is no short circuit between the cables of the human infrared sensor switch, then power on the sensor switch and set the delay time.
What should I notice?
1. Install PIR Sensor switch, do not expose to sunlight or lights, and keep it away from air conditioners, refrigerators, heaters, and fireplaces.
2. PIR motion sensor detection range must not have partition screen, large bonsai, furniture or other isolated objects, so that infrared light can not enter.
PIR motion sensor switch is an infrared detection controller, using infrared detection mode to control the switch of the load; You can install the human body sensor in the appropriate environment according to the your needs; PIR sensor widely used in motion-activated lighting, kitchen cabinets, LED strip lighting, under-bed rail lighting, entrance lighting, etc.
Sensing distance: 5-8M,Operating voltage: 12-24V,Output current:<6A,Load power: 120W,Delay time: 1-10 minutes (adjustable),Sensing angle: 120 degrees,Working temperature:-20-40 degree Celsius
PIR motion activated body sensor Switch, easy to achieve automatic lighting, free your hands; Intelligent sensing, will automatically turn off after people leave, effective energy saving, low heat, low power consumption.
First connect the load cable, then connect the power cable, make sure there is no short circuit between the cables of the human infrared sensor switch, then power on the sensor switch and set the delay time.
Install PIR Sensor switch, do not expose to sunlight or lights, and keep it away from air conditioners, refrigerators, heaters, and fireplaces; PIR motion sensor detection range must not have partition screen, large bonsai, furniture or other isolated objects, so that infrared light can not enter.
