Siemens Boltshield FSPD 140-kA Indoor and outdoor Surge protective device

Name: Siemens Boltshield FSPD 140-kA Indoor and outdoor Surge protective device
Brand: Siemens
SKU: 5014357963
Rating: 4.7 (16 reviews)

Shop Siemens

4.7

$243.54 When you choose 5% savings on eligible purchases every day.

THIS ITEM IS OUT OF STOCK
We'll notify you once this item is back in stock.

Maximum Amperage: 140,000

36,000

60,000

100,000

140,000

Members save more.

Here are some similar items...

SiemensBoltshield FSPD 100-kA Indoor and outdoor Surge protective device

SiemensBoltshield FSPD 60-kA Indoor and outdoor Surge protective device

SiemensBoltshield 140-kA Indoor and outdoor Surge protective device

Square DHomeline Whole Home 50-kA Indoor and outdoor Surge protective device

Square DHomeline Whole Home 25-kA Indoor Surge protective device

GEWhole Home Surge 36-kA Indoor and outdoor Surge protective device

Square DQO Whole Home 50-kA Indoor Surge protective device

SiemensBoltShield QSPD 35-kA Indoor Surge protective device

Intermatic50-kA Indoor Surge protective device

Square DUniversal Whole Home 50-kA Indoor and outdoor Surge protective device

106

SiemensBoltShield QSPD 65-kA Indoor Surge protective device

Square DUniversal Whole Home 25-kA Indoor and outdoor Surge protective device

106

Square DUniversal Whole Home 80-kA Indoor and outdoor Surge protective device

106

Intermatic50-kA Indoor and outdoor Surge protective device

Eaton60-kA Indoor Surge protective device

Best Price. Guaranteed

Find a lower price on an exact item? We'll match it. Some exclusions apply.

Price Guarantee

FREE Returns

Return it in store or ship it back for free. Eligibility rules apply.

Return Policy

Pay Your Way

Credit card, PayPal or Buy Now, Pay Later options available at checkout. Your choice.

Payment Options

BoltShield FSPD140 replaces FirstSurge FS140. Surge protective devices (SPDs) provide the best protection from both externally and internally generated surges when located as close to the home's electrical panel as possible. The new Siemens BoltShield FSPD series of SPDs are economical and easy to install next to any brand of load center so that whole home surge protection can be obtained. FSPD140 is a Type 2 SPD providing 140kA of surge current protection per phase. NEMA 4X unit with a 3/4 inch side mounted nipple. Meets the 2020 NEC & 2023 NEC surge requirements

Protecting your home with 140kA surge current protection
Compatible with any brand residential load center
10 Year Standard Warranty - $100,000 equipment protection
Visual LED protection status indicators and audible alarm to notify homeowners when the SPD needs to be replaced
Externally mounted SPD - Easily mounts next to any load center
For use in 120/240V, Single Phase, 3-Wire Applications
200kA short circuit current rating; 20kA I-nominal rating
Provides all modes of protection (L-N, L-G, N-G)
UL Type 2 SPD, NEMA 4X enclosure for indoor/outdoor use

General
Enclosure Rating	NEMA 4X	Type	Surge protective device
SPD Type	Type 2	Use Location	Indoor and outdoor
Number of Leads	4	Connection Type	Next to load center mount
Wire Gauge	12-AWG	Series Name	Boltshield FSPD
Application	Residential	Color/Finish Family	Gray
Housing Material	Plastic	Manufacturer Color/Finish	Gray/Non-Metallic
Package Quantity	1

Dimensions
Depth (Inches)	3.06	Width (Inches)	7.95
Height (Inches)	2.75	Amperage	140000
Weight (lbs.)	1.38

Features
Surge Protection	ANSI/EEE	Voltage Protection Rating L-N	700-V
Short Circuit Current Rating	200kA	Voltage Protection Rating N-G	700-V
Nominal Discharge Current	20kA	Maximum Amperage	140,000
Maximum Continuous Operating Voltage	150 V	Weather Resistant	Yes
Coaxial Lines Protected	0	Response Time (Microseconds)	0.001
Line Protection	L-N-L-G-L-L-N-G	Water Resistant	Yes
Surge Current Protection Per Phase	140-kA	Indicator Light	Yes
Voltage Protection Rating L-G	700-V	Grounded	Yes
Voltage Protection Rating L-L	1200-V	Rating in Joules	0

Certifications
CA Residents: Prop 65 Warning(s)	No	Safety Listing	cULus safety listing

Warranty
Warranty	10-year

Miscellaneous
UNSPSC	39121600

Check out the Best Selling Whole House Surge Protectors on Lowes.com

Review

4.7 out of 5

16 Reviews

3 Star

2 Star

90% Recommend this product

Ratings may include incentivized customer reviews.

16 Customer Reviews

Sort By

Every Homeowner Should Have One

Would Recommend

Easy to install with clear directions. Thankfully haven’t had a surge yet but will update review if I do.

DIY ExpertApril 16, 2026
Verified PurchaserIncentivized

Was this Review Helpful ?

No instruction came with it, but you can go online

Would Recommend

Quality

MikeFebruary 16, 2026
Verified Purchaser

Was this Review Helpful ?

Siemens surge Protector

Would Recommend

Best surge protector with high amp capacity in the overall market

Santhosh VDecember 14, 2025
Verified PurchaserIncentivized

Was this Review Helpful ?

Useless installation instructions

Would Not Recommend

Poor installation instructions

homeownerApril 6, 2025
Verified Purchaser

Was this Review Helpful ?

Response from SIEMENS Product Expert

We apologize for the issue that you had with your Boltshield FSPD 140-kA Indoor and outdoor Surge protective device. We take great pride in the quali...

SIEMENS Product ExpertApril 7, 2025

SIEMENS

Here's how to install

Would Recommend

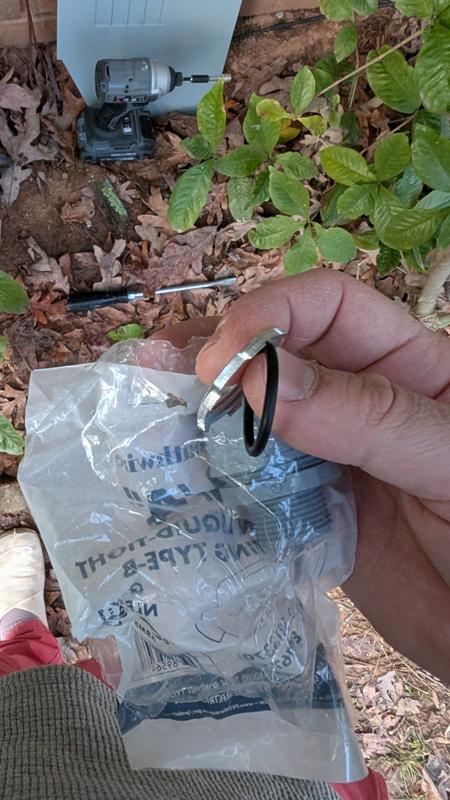

This surge protector is mounted via 3/4" knock-out to a surface-mounted breaker panel. It now comes with a lockring, though I swapped it for one from a southwire 3/4 "Nylon Liquid-Tight Fitting Type-B" which also had an o-ring. I had to use my knipex pliers to tighten said ring, as a flathead just wouldn't cut it. There are 5 wires. Well, technically 9, as the bigger black one with the white label on it actually houses 5 little ones for setting up an alarm system. I wouldn't know how to do that...

PytsDecember 30, 2024
Verified Purchaser

https://photos-us.bazaarvoice.com/photo/2/cGhvdG86bG93ZXM/9adfc33b-fc7f-5ba4-88e3-7e975722c75e

https://photos-us.bazaarvoice.com/photo/2/cGhvdG86bG93ZXM/c0aff1e8-900c-5e06-aed3-573bd56a9a5b

https://photos-us.bazaarvoice.com/photo/2/cGhvdG86bG93ZXM/49790f43-5291-5142-85a5-65cf4b62de1b

https://photos-us.bazaarvoice.com/photo/2/cGhvdG86bG93ZXM/be8fa85e-7c25-5832-94da-9421d3bafa16

https://photos-us.bazaarvoice.com/photo/2/cGhvdG86bG93ZXM/de52f08d-7ecb-528d-af47-1536b19d0211

Was this Review Helpful ?

Whole House Surge Protector

Would Recommend

I bought this since it had 140-kA or 140,000 amp protection. Designed to go into a Load Center knockout hole. I mounted mine vertically on the very top of the unit since beams were in the way. Two black wires, one white and one green/yellow ground. The two black wires connect to a tandem 20 amp breaker, that is, one black wire per each breaker. You want this tandem breaker to ensure you connect to both the A&B sides of the Load Center and will have both tripping together if something goes w...

PaulOctober 22, 2024
Verified Purchaser

https://photos-us.bazaarvoice.com/photo/2/cGhvdG86bG93ZXM/4dda0294-3bb1-5a80-8cee-70283f634825

Was this Review Helpful ?

Whole house surge protector

We purchased this surge protector after our neighborhood experienced a power brown out and power surges destroyed appliances. Research indicated this whole house surge protector was a good buy for protection offered. We hired an electrician to install it which went smoothly.

Bob BJanuary 30, 2024
Verified Purchaser

Was this Review Helpful ?

This product had great reviews.

So far so good I just installed it.

Ollie61January 13, 2024
Verified Purchaser

Was this Review Helpful ?
