Siemens 30 Amp Single phase (124V/240V) Fusible Indoor Safety Switch Disconnect
Item #12587 |
Model #LF211NU
120/240V, single phase, 2 wire, fusible safety switch
Quick-make, quick-break operating mechanism that ensures positive operation
Generous wiring gutters that meet or exceed NEC wire-bending space requirements
Visible blade, double-break switch action
Highly visible on/off indication

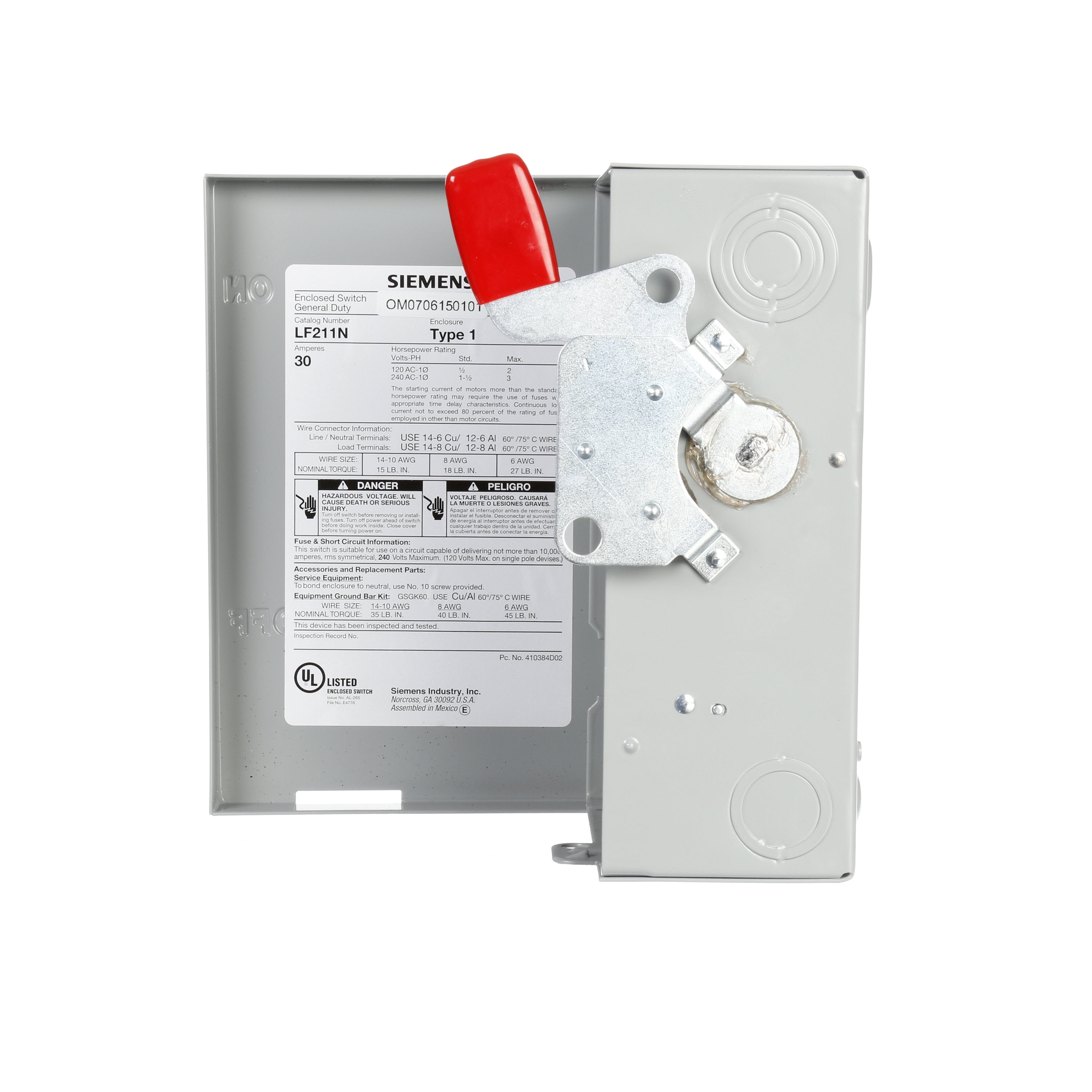

Single cover interlock; Side-hinged door that opens 180° for easier wiring
Unique enclosure design that adds rigidity and strength, its rolled edge prevents cuts and scrapes to conductors and to installer's hands

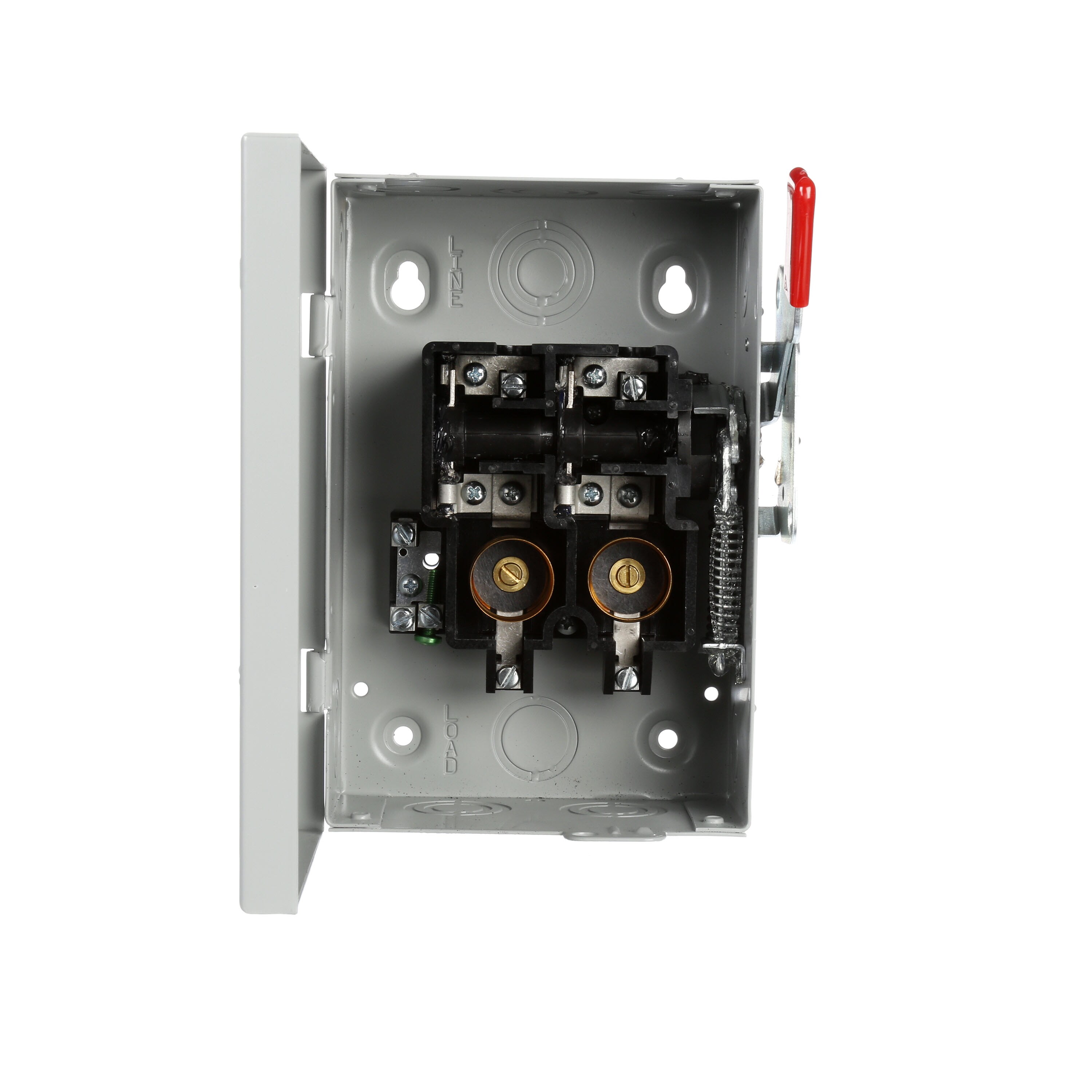

Switches accept Edison-base plug fuses (not included)
UL Listed, NEMA Type 1 Indoor Enclosure
General | |||
|---|---|---|---|
Color/Finish Family | Gray | Number of Poles | 2 |
Type | Safety switch | Fusible or Non-Fusible | Fusible |
Use Location | Indoor | Casing Material | Metallic |
Phase Type | Single phase (124V/240V) | ||
Compatibility | |||
|---|---|---|---|
Brand/Model Compatibility | Siemens | ||
Certifications | |||
|---|---|---|---|
CA Residents: Prop 65 Warning(s) | No | Safety Listing | UL safety listing |
Warranty | |||
|---|---|---|---|
Warranty | 1-year | ||
Dimensions | |||
|---|---|---|---|
Amperage | 30 | ||
Miscellaneous | |||
|---|---|---|---|
UNSPSC | 39121500 | ||
Check out the Best Selling Electrical Disconnects on Lowes.com
Ratings may include incentivized customer reviews.
Picture is not accurate
The picture is misleading. The actual Disconnect has Edison based fuse holders. My error in ordering. I should have looked closer at the model # which is for an edison based disconnect. I decided to keep it rather than returning the item. Edison based fuses are old school.
Verified Purchaser
Possible Deception.

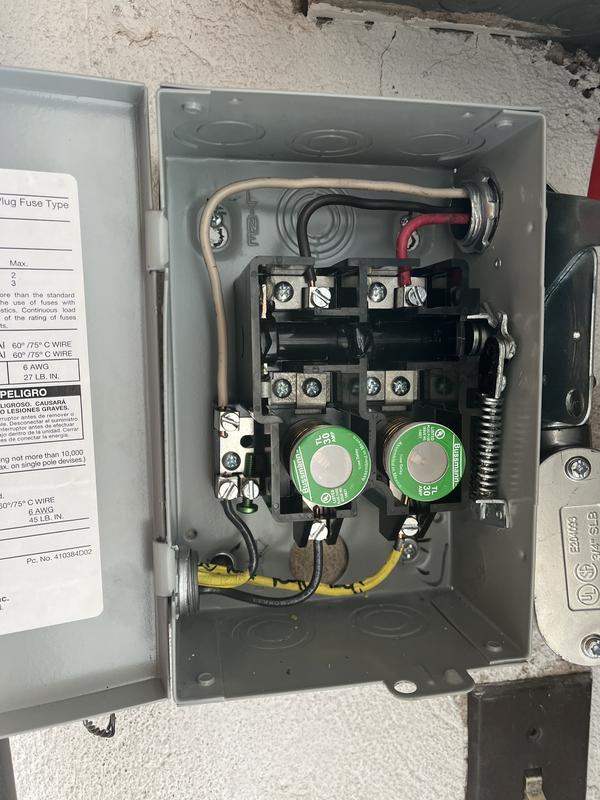

The product pictured with cylinder type fuses is not available. The nice red contact safety covers is not available. In fact the only thing that is available like the picture is the box and handle. The inside contactor and fuse type is not available. The older, substitute box that is available is ok. It uses an uncovered open contactor and plug fuses. Be careful and get the right size plug fuses. There are two different sizes of plug fuses. I still like the one that is available very much for th...
For me everything was fine
I like this product it’s old school and really easy to install
Verified Purchaser
Miss leading items
This is an hvac electical disconnect , on the advertising picture it shows a cartridge fuse type But when I got it in the mail it was a glass plug fuse type Not happy , waste of my time I retuned it back to lowes Jess
Verified Purchaser
Wasn't what I expected.
Had to return this disconnect to the store. The picture and description indicated this had cartridge type fuse holders when in fact, it came with screw-in fuse holders.
Verified PurchaserVerified Pro
Good Quality
Good price and does the job that I needed. The disconnect under load is quik and positive, well made.
Verified Purchaser
quality product
Lugs are a little to small for multiple hookups had to use pigtails
Verified Purchaser
