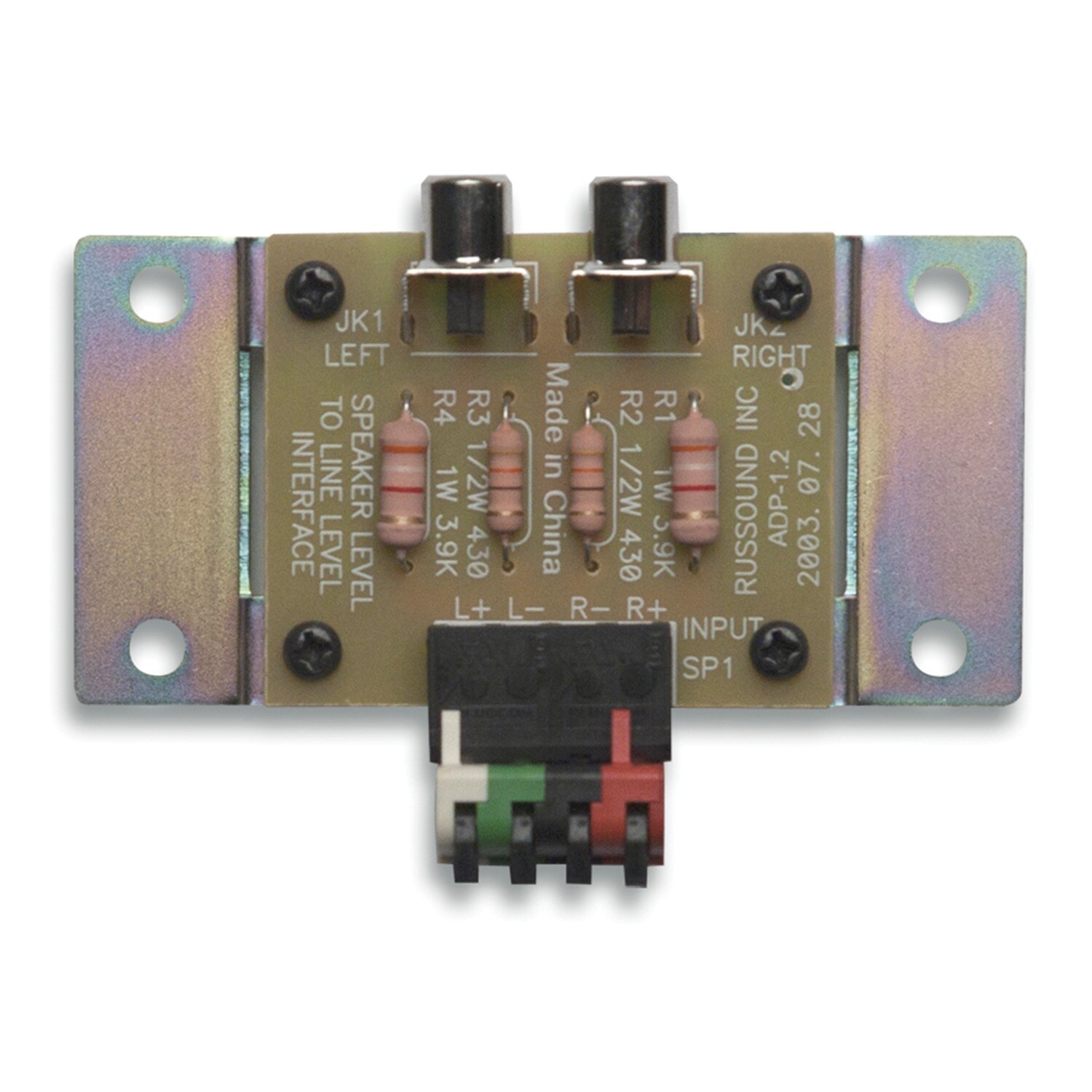

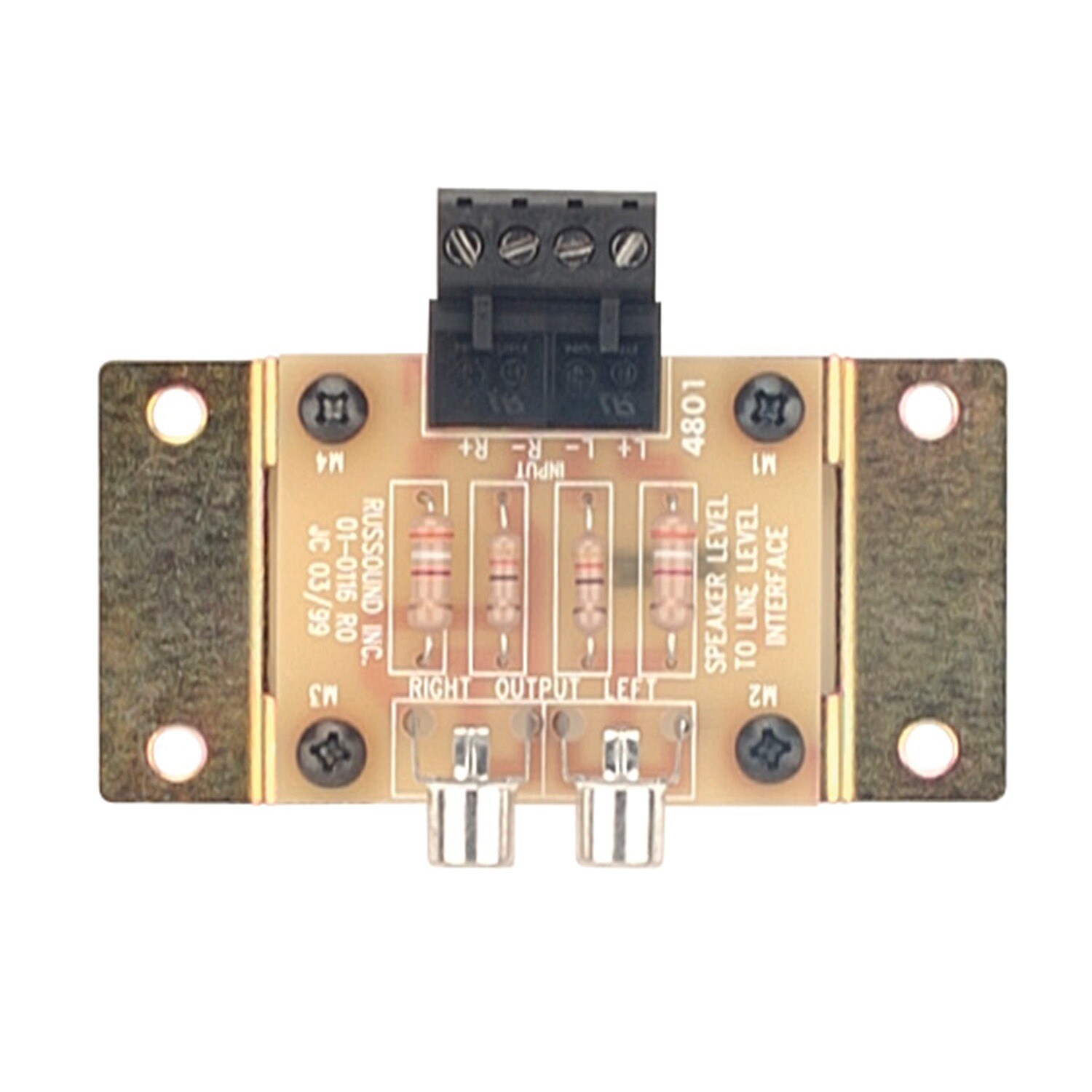

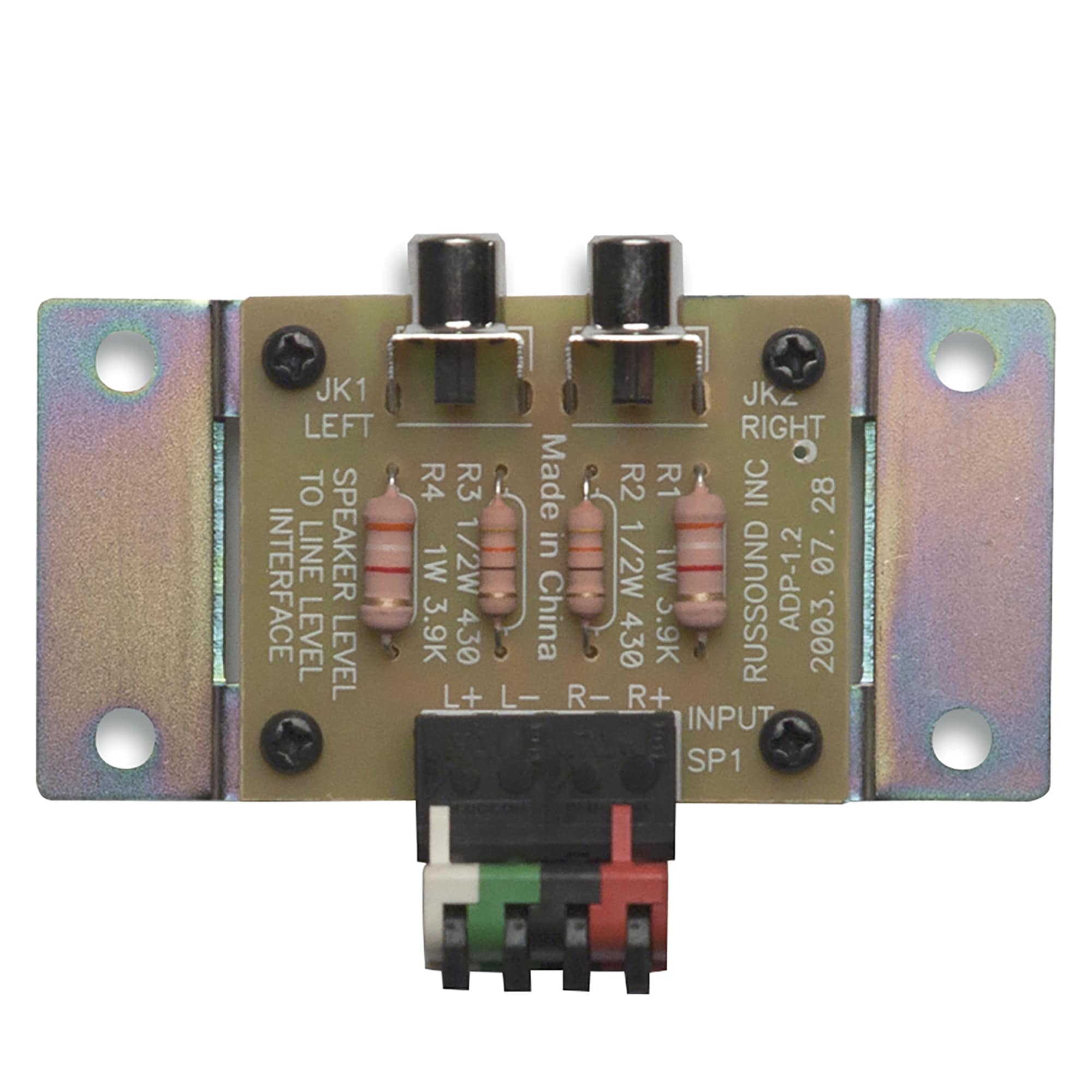

The Russound ADP-10.2 Speaker Level to Line Level Adapter attenuates speaker-level audio from a stereo receiver or amplifier to create a line-level signal. This line-level signal can then be fed to a high-powered amplifier for those applications requiring greater power. Mounting brackets are built in—be sure the bottom of the circuit does not rest against the mounting surface. This line level adapter is not for use with digital amps.
Attenuates speaker-level audio from amp/receiver to line-level audio
Connects between amp/receiver and high-powered amp
250 watts RMS per channel RMS, 500 watts max
Detachable, screwless color coded snap connectors make connections easier and more reliable
Accepts up to 14 gauge wire
RCA female output connectors
Recommended for use with CAA66 and MCA-66 (sold separately) to obtain line level outputs for zones without preamp outputs
Not for use with digital amplifiers
Dimensions: 20.5-in x 30.34 in
