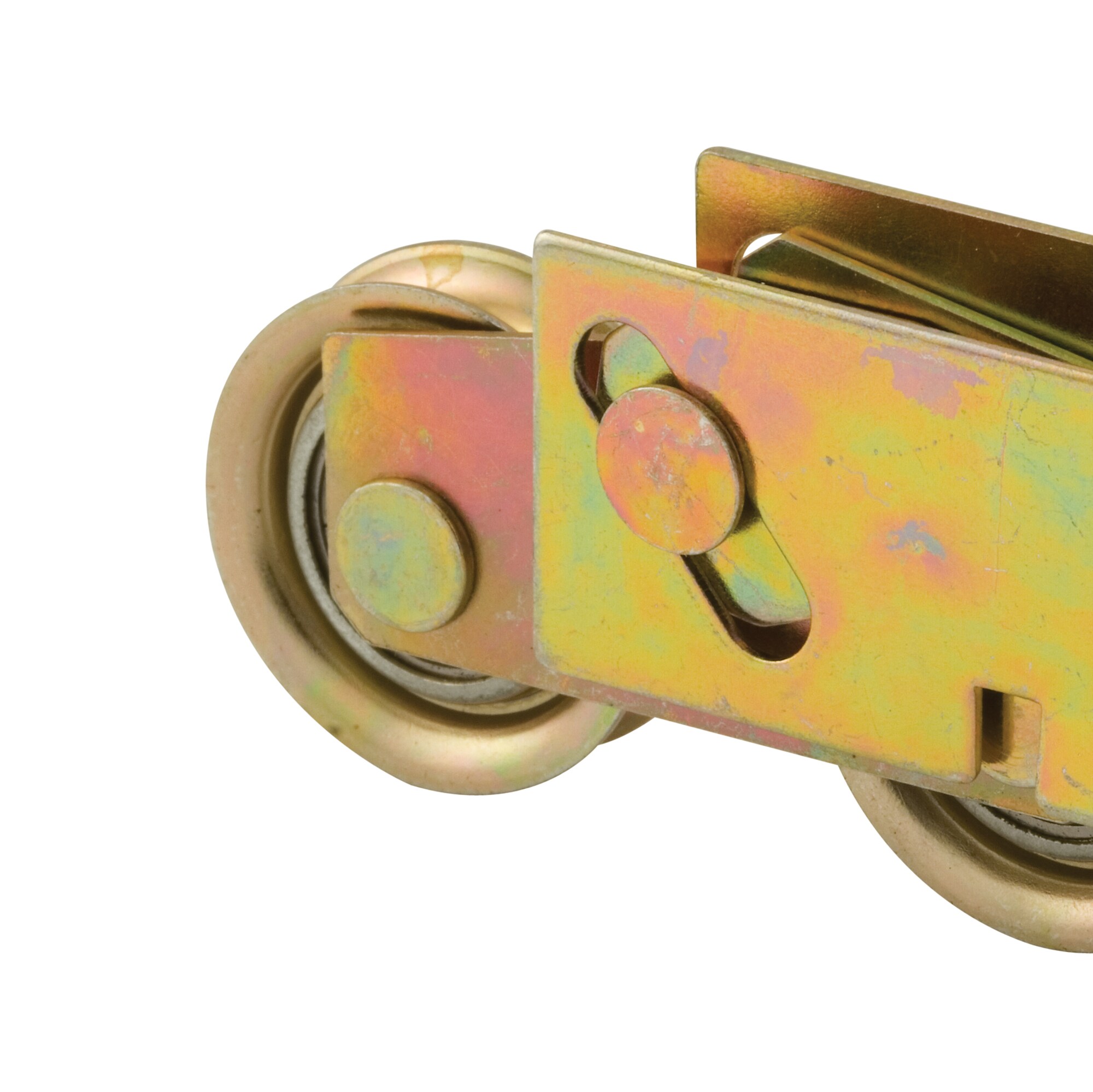

This is a steel tandem C-tab roller assembly with 1-1/4 in. steel ball bearing rollers. The C-tab fits around the corner screw and captured by the side stile and bottom rail as they are drawn together. The adjustable stamped steel housing is 11/16 in. wide with a flare width of 13/16 in., 1-1/16 in. tall and 3-1/8 in. long. Used by Pacific and a variety of other sliding patio door manufacturers.
Used by Pacific and a variety of other sliding patio door manufacturers
The C-tab fits around the corner screw and captured by the side stile and bottom rail as they are drawn together
1-1/4 inch concave tandem rollers
Stamped steel housing and roller

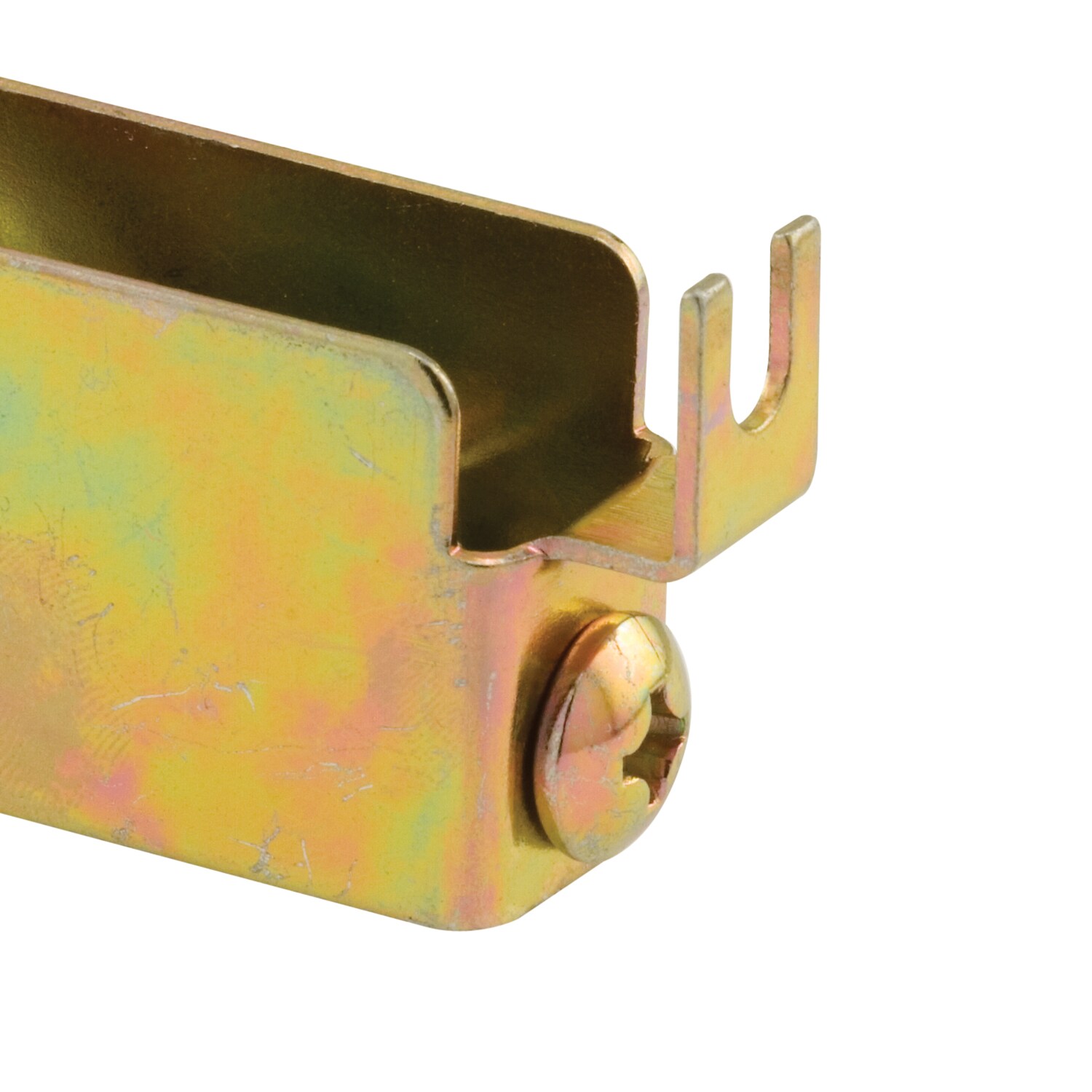

Rear adjusting screw
Mounting hardware included
A Phillips head screwdriver is required for installation

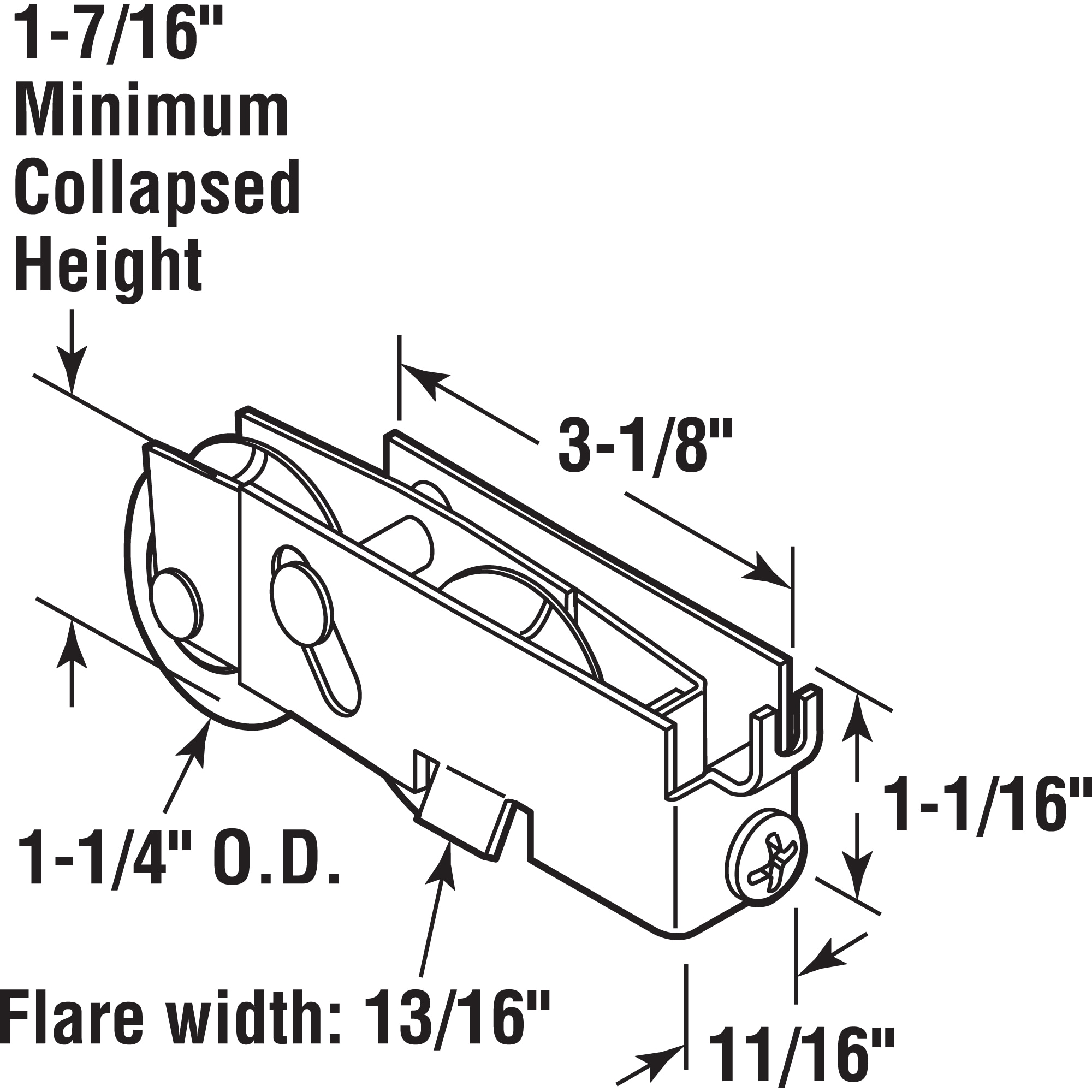

Please refer to the line art drawing for dimensions and compare with your needs before ordering (not universal)
