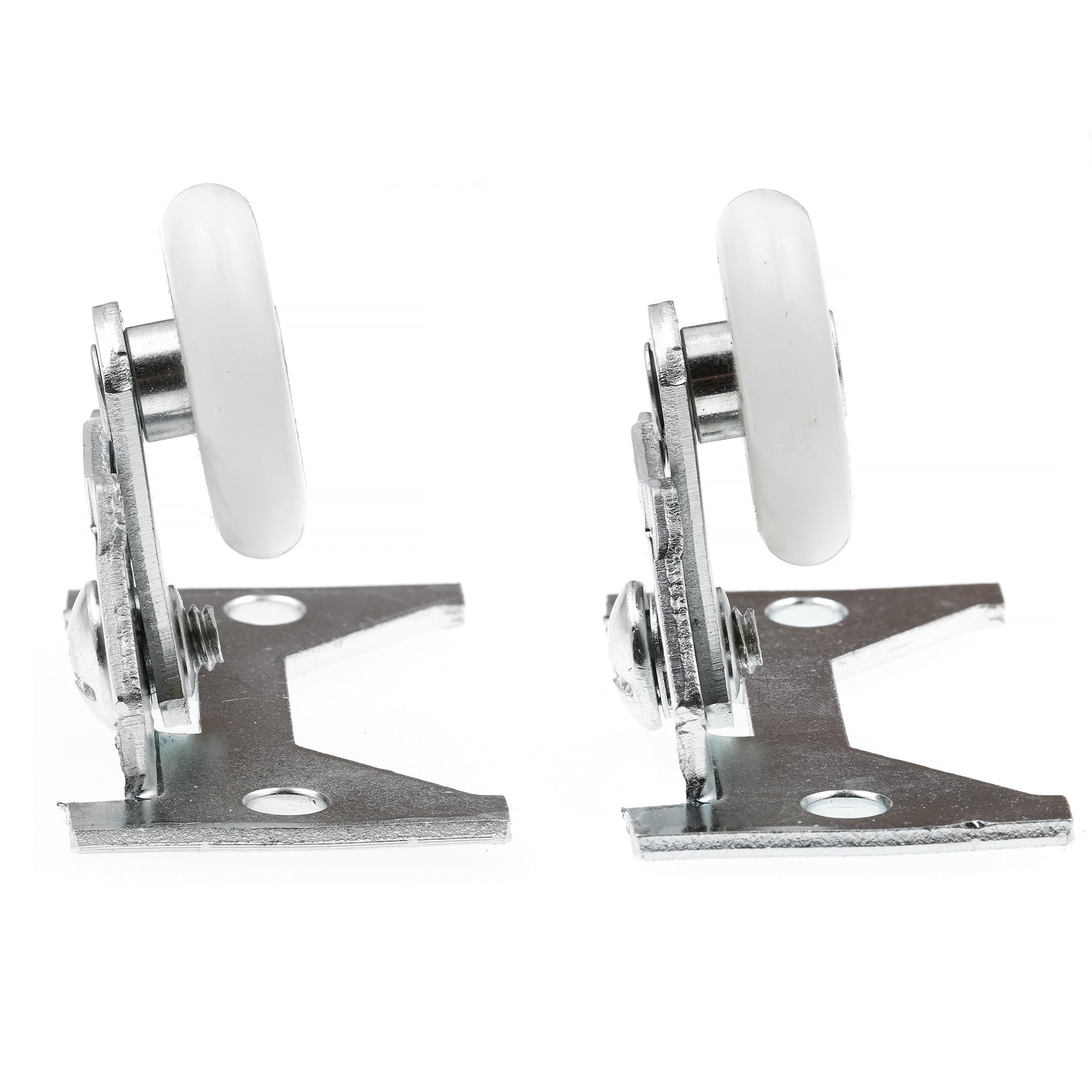

This pocket door roller assembly is constructed of a steel bracket housing, and it comes in a zinc colored finish. The bracket’s base measures 2-1/2 in. x 1-3/8 in., and the wheel has a maximum adjustment height of 2-1/4 inches. From the lowest setting, this roller assembly has a total adjustment travel of 5/16 inches. The wheel is constructed of durable plastic which provides for a smooth, long-lasting, quiet roll and it features steel ball bearings and a convex edge. This pocket door roller assembly mounts on the tops of sliding pocket doors, it is adjustable once installed, and it is used by a variety of pocket door manufacturers.

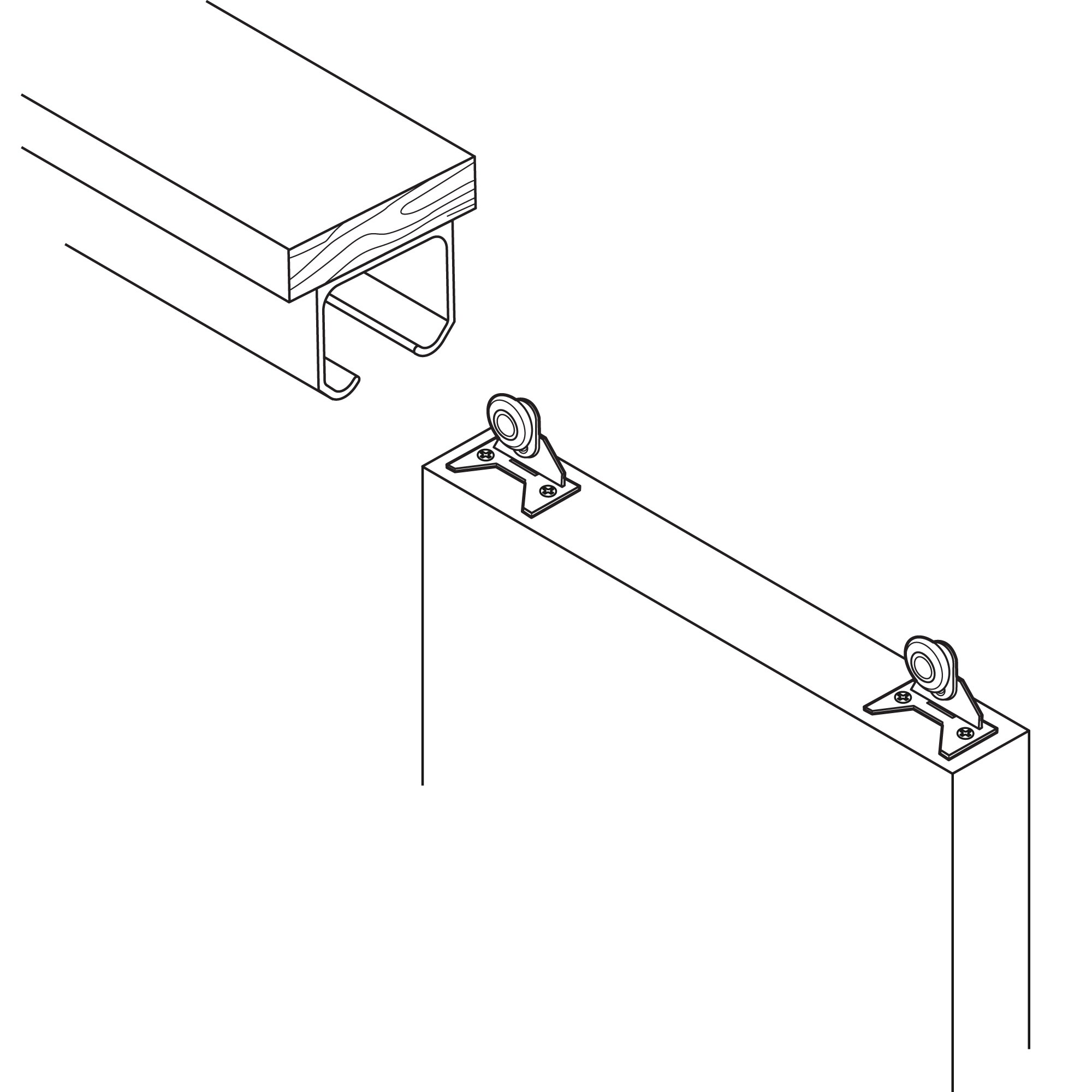

Used as a top roller assembly on pocket door systems, and designed to fit E-Z Guide
5/16 inch x 1-1/4 inch outside diameter on 2-1/2 inch x 1-3/8 inch base
Convex edge wheel (round edge) with a ride height adjustment of 1-13/16 to 2-1/4 inch
Constructed of a plastic wheel with steel ball bearings, assembled to a steel bracket housing

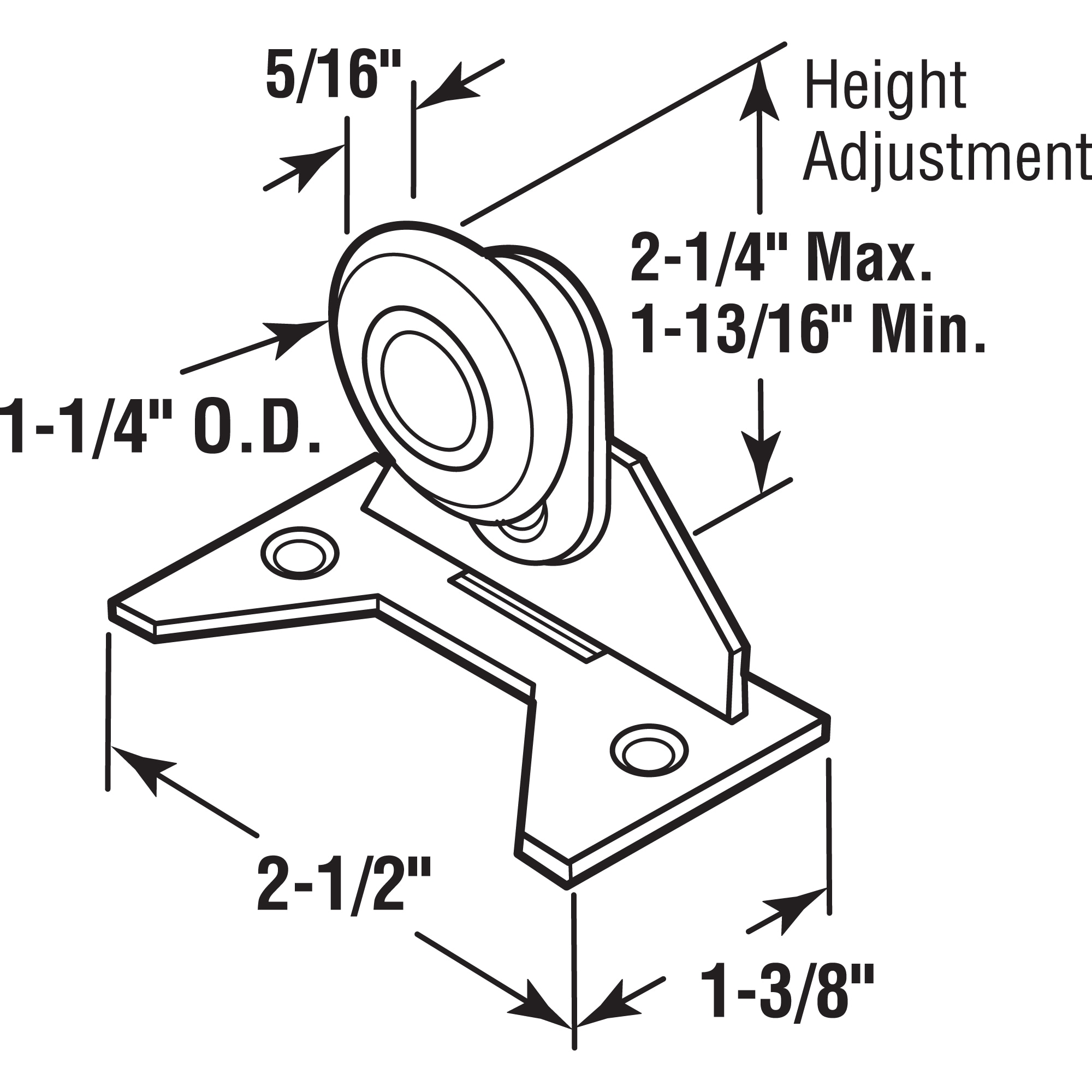

Please refer to the line art drawing for dimensions and compare with your needs item before purchasing (Not Universal)
