Outwater's Imported Single Wheel Series caster and tube insert kit gives steel tube furniture and equipment smooth, dependable mobility. The kit includes 4 swivel casters (all with side brakes) and 4 double star metal inserts sized for 1-1/2 in. outside diameter square tubing with a 16 or 18 gauge wall. Unlike single star inserts, the double star design sets deep inside the tube and grips the wall, so the inserts will not work loose as casters roll over thresholds, extension cords and uneven floors, and the external edges sit flush with the tube for a finished look. Each 2-1/2 in. soft rubber single wheel caster has a 3/8-16 x 1 in. threaded stem, a 3-1/16 in. mounting height and a 2-3/16 in. swivel radius, with a load capacity of 80 lbs. per caster (320 lbs. per set). Soft rubber wheel gives an easy, quiet roll and a cushioned ride, resists chemicals, water and steam and rejects floor debris. Nickel finish with a single ball bearing raceway and self-lubricating bearings. The side brake locks the caster when the piece needs to stay put. Inserts are not designed for iron pipe.
Complete kit includes 4 swivel casters (all with side brakes) and 4 double star threaded tube inserts; the 3/8-16 insert thread matches the caster stem.

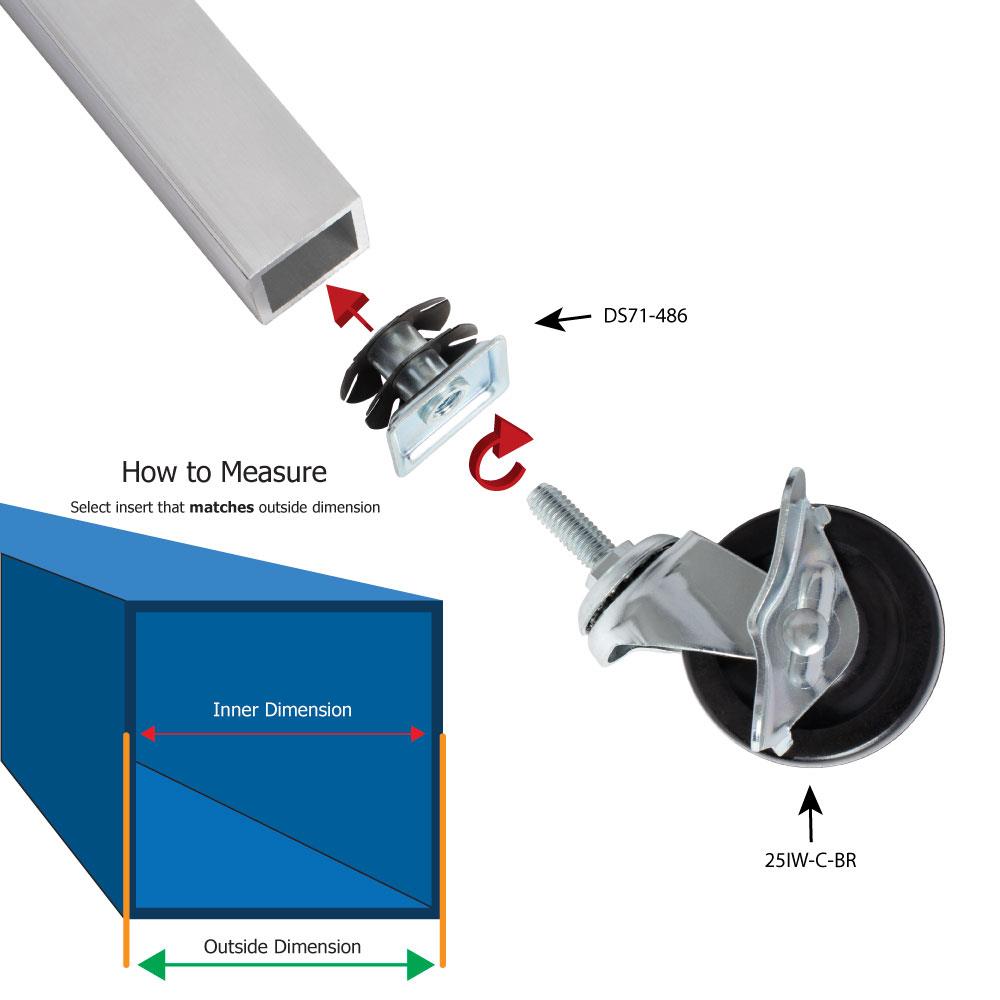

Inserts fit 1-1/2-inch outside diameter square steel tubing with a 16 or 18 gauge wall; not designed for iron pipe.
Double star design sets deep inside the tube and grips the wall, so inserts stay in place over thresholds, cords and uneven floors; external edges fit flush with the tube for a clean, finished look.

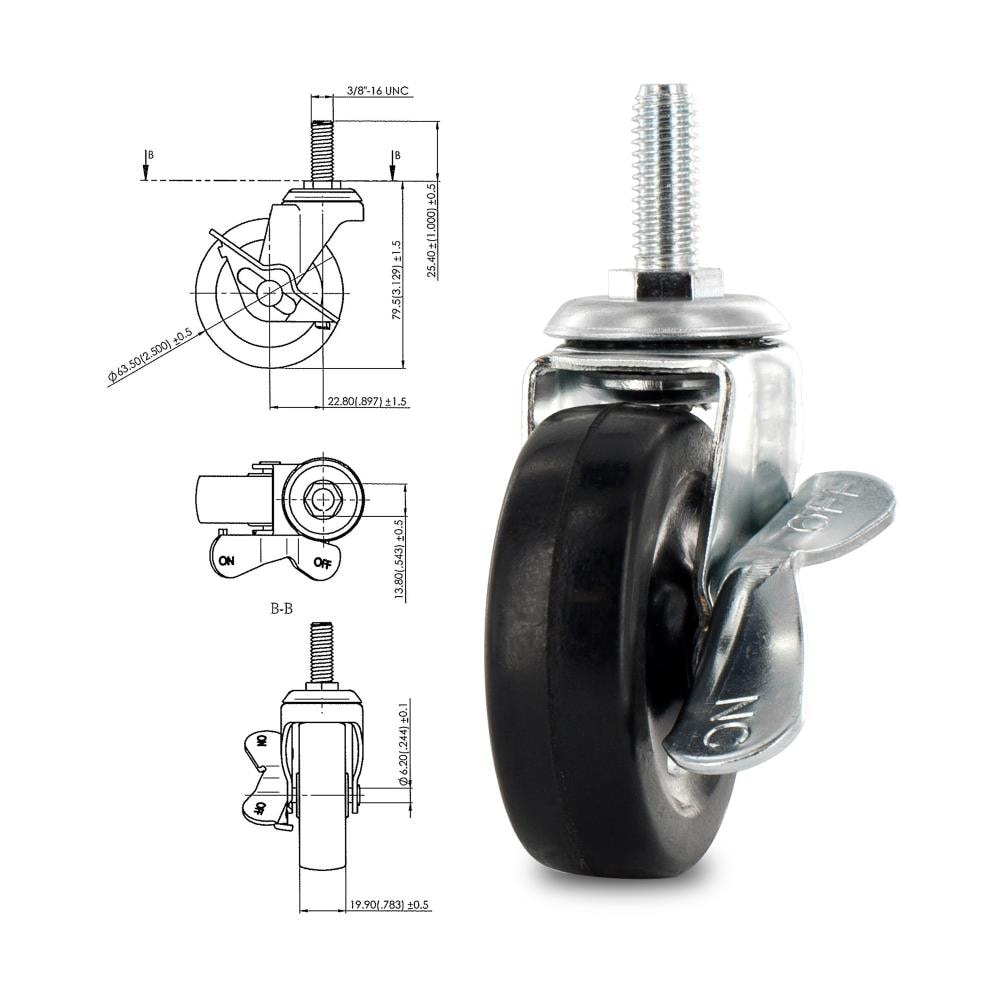

2-1/2-inch soft rubber single wheel caster with 3/8-16 x 1-inch threaded stem, 3-1/16-inch mounting height (4-1/8-inch overall height including stem) and 2-3/16-inch swivel radius.
Load capacity of 80 lbs per caster (320 lbs for the set of 4).
Soft rubber wheel gives an easy, quiet roll and a cushioned ride, resists chemicals, water and steam and rejects floor debris; nickel finish with a single ball bearing raceway and self-lubricating bearings.
Side brake locks the caster to keep the piece from rolling when parked.
Inserts are heat treated carbon steel with black oxide wings and a zinc plated base.
Well suited for tubular steel furniture, small displays, rolling racks and carts.
