Milescraft 1342 Euro Hinge Jig - Concealed Hinge Jig and Drilling Guide for Framed and Frameless Cabinets - Metal Drill Guide Produces Perfect Hinge Holes - 35 mm Forstner Bit Included
Item #4843000 |
Model #13420003

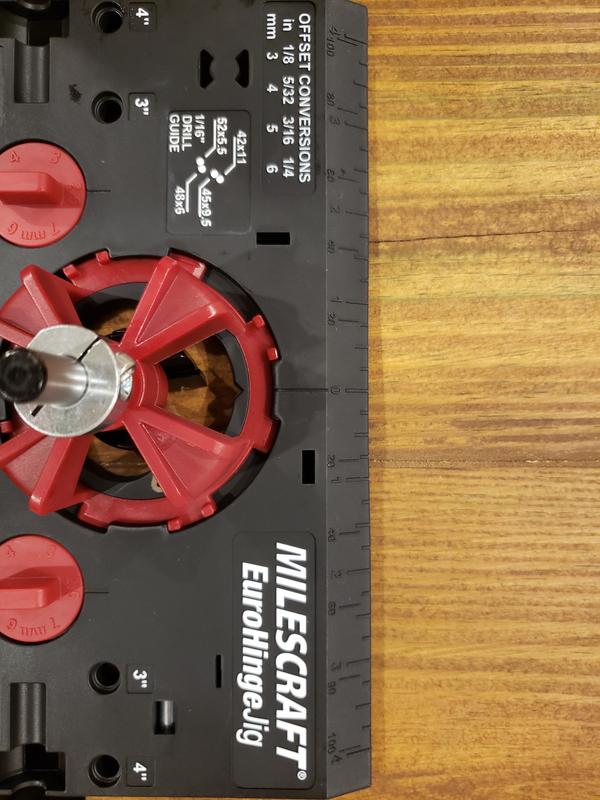

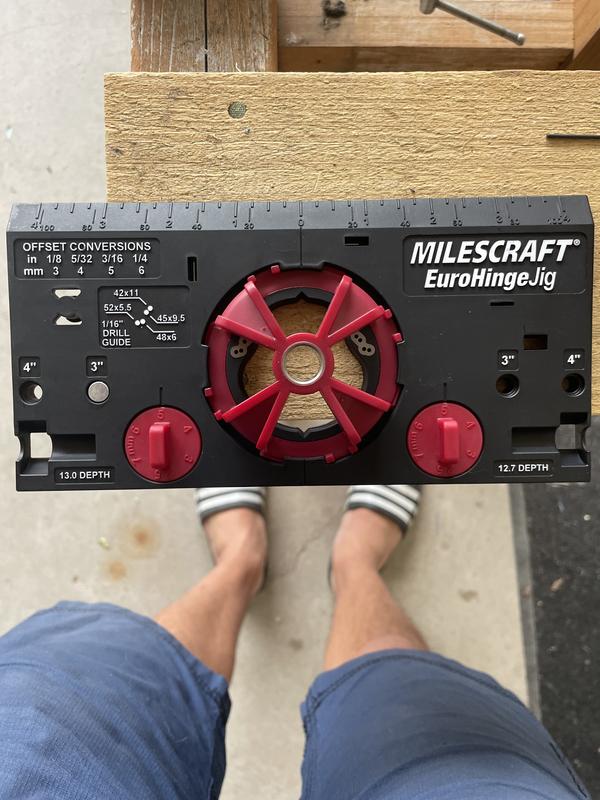

Two edge alignment knobs position the cup hole from the edge of the door, while the edge locator pin sets the distance from top/bottom

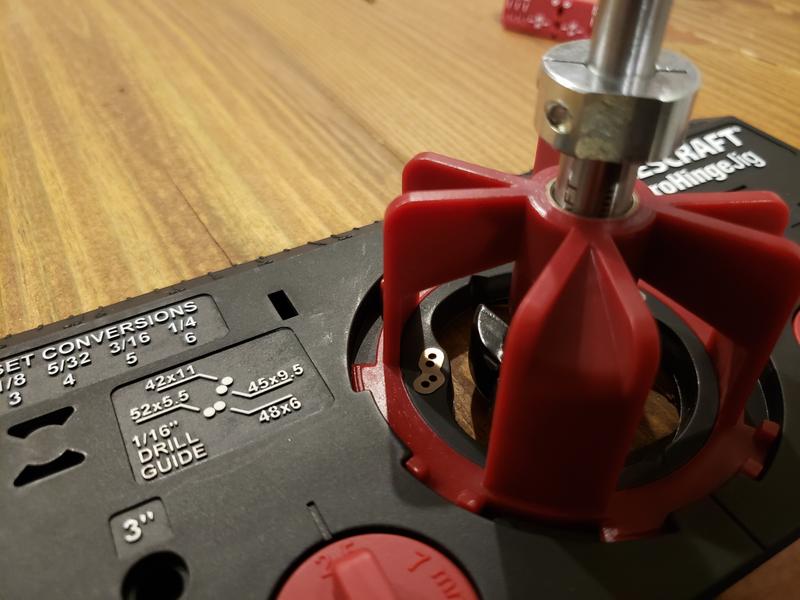

The drill guide with metal bushing locks into jig and creates a perfectly straight hinge cup hole

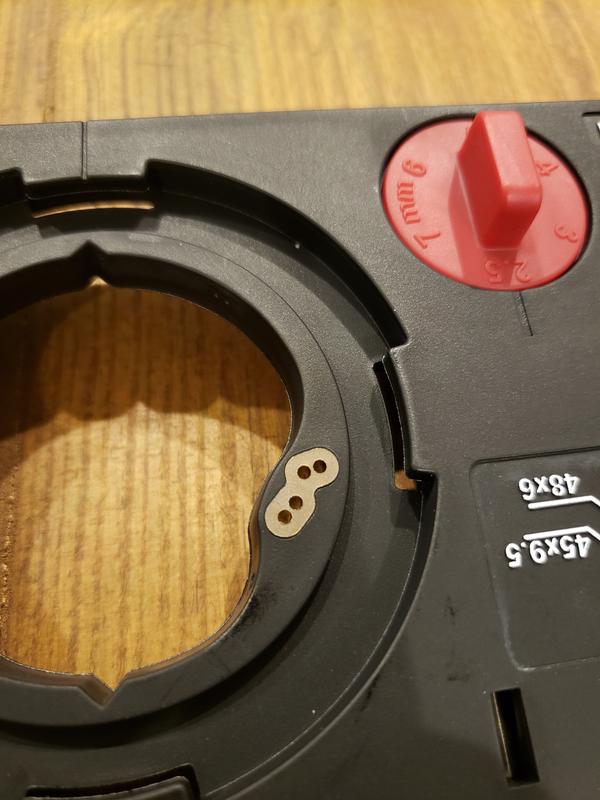

Guide bushings let you pre-drill pilot holes in four common locations, making sure hinges are straight and door closes true

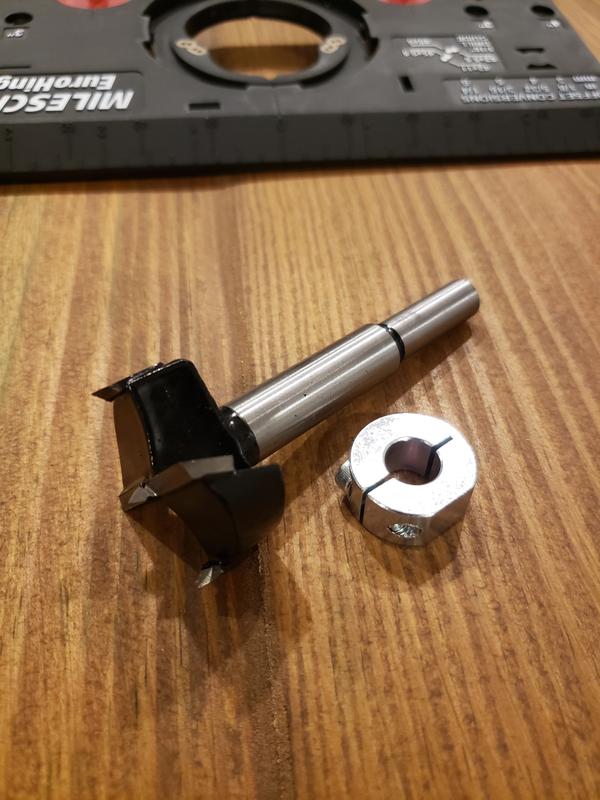

Easily set your cup hole depth on the included 1-3/8-in (35mm) carbide-tipped bit using the built-in depth setting fixtures

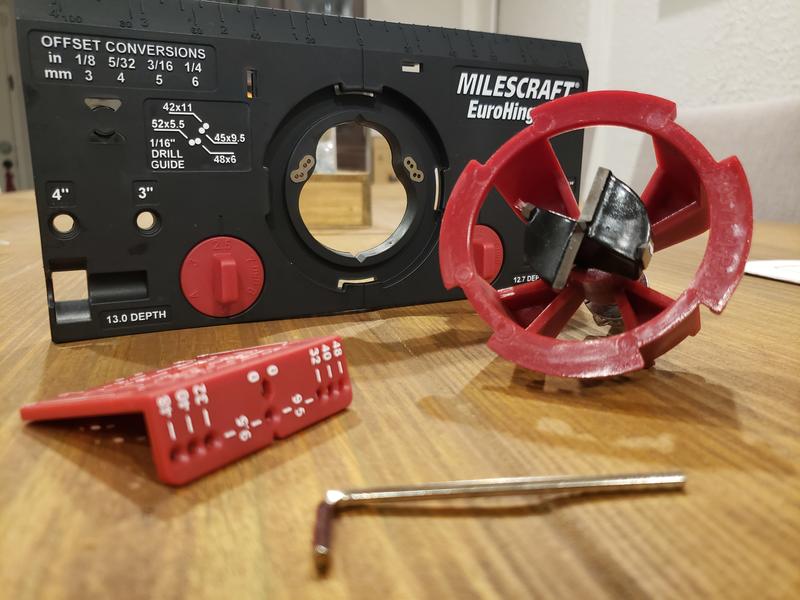

The hinge marking guide detaches from bottom of jig and allows you to transfer and mark center lines and hinge location to cabinet wall or frame
General | |||
|---|---|---|---|
Type | Drilling jig | Total Number of Pieces | 1 |
Certifications | |||
|---|---|---|---|
CA Residents: Prop 65 Warning(s) | |||
Warranty | |||
|---|---|---|---|
Warranty | 5-year limited | ||
Miscellaneous | |||
|---|---|---|---|
UNSPSC | 31162700 | ||
Check out the Best Selling Woodworking Tool Accessories on Lowes.com
Ratings may include incentivized customer reviews.
Customer Sentiment
Great gift
Works great
Verified Purchaser
Well worth purchasing one of these
I love that it makes installing hidden hinges a breeze
Verified Purchaser
Check your depth for accuracy.
Nice for the price,but the measurement for stop collar is not accurate. You need to check and set collar with a caliper.
Verified Purchaser
Great Jig
[This review was collected as part of a promotion.] Got this to use for re-doing the cabinetry in our kitchen and bathroom. We're not everyday carpentry people but wanted to do these ourselves. This came in handy for what we were doing and make it fairly painless! It has clear instructions on the tool itself and also includes the printed as well. Just not sure where to get a new bit if needed. Overall it worked great for our small projects.
From Milescraft
Hubby likes it
[This review was collected as part of a promotion.] Hubby likes it....he used it on a project he was working on at the time. Said it was exactly what he needed and it arrived at the perfect time in the project. Not entirely sure what he used it on but ok.
From Milescraft
Makes it easy!
[This review was collected as part of a promotion.] We just got done revamping the kitchen and WOW! this made life so much easier! I am so glad that I had this product and recommend it, highly! I am sure that you could get by without it, but why would you!!!???
From Milescraft
Top quality
[This review was collected as part of a promotion.] This is a top quality high performance tool. This product is done with high quality materials and is a great design. Everything is attached to the base that makes it excellent for storage after using. All the holes are metal reinforced, this is extremely important for the longevity of this product, othe companies use plastic guides or soft metals. The plastic used is high density extremely resistant. And the adjustments are well i...
From Milescraft
High quality
[This review was collected as part of a promotion.] This jig is very helpful especially when installing many hinges at a time. It is flexible enough to provide for several different configurations. The instructions took a bit of time to review but were clear and helpful. I would definitely not want to try to install these hinges without it.
From Milescraft
Amazing simplicity!
[This review was collected as part of a promotion.] This makes adding hinges to your cabinets so simple! First I want to make note of the packaging. If you cut along the two long sides and the top with a utility knife, everything stores nicely back in the plastic, because the bottom has a hinge and the sides have divots to clasp closed. I love it when I don’t have to worry about roaming pieces. If you are a handy person, this is super simple and straightforward. If not, there are instructions on...
From Milescraft
Practice a few times first
[This review was collected as part of a promotion.] These jigs are really useful. I don't make a ton of cabinetry b/c it takes so long but when I do, having setups like this allows for precision that I can't get on my own. It takes a few times to make sure you've making the right choices so I'd recommend practicing on some scrap pieces first to check depth, etc...overall, handy little tool to have especially if you have quite a few doors, drawers and such! Have fun.
From Milescraft
