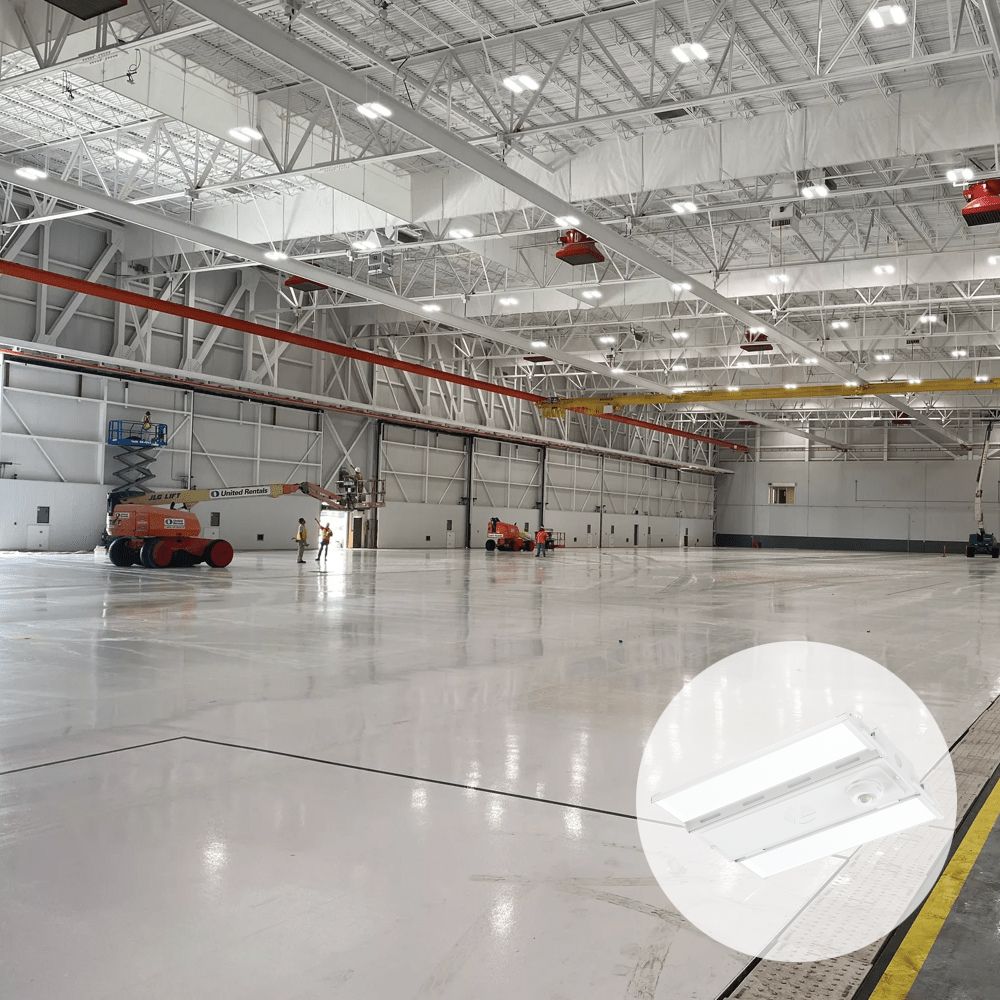

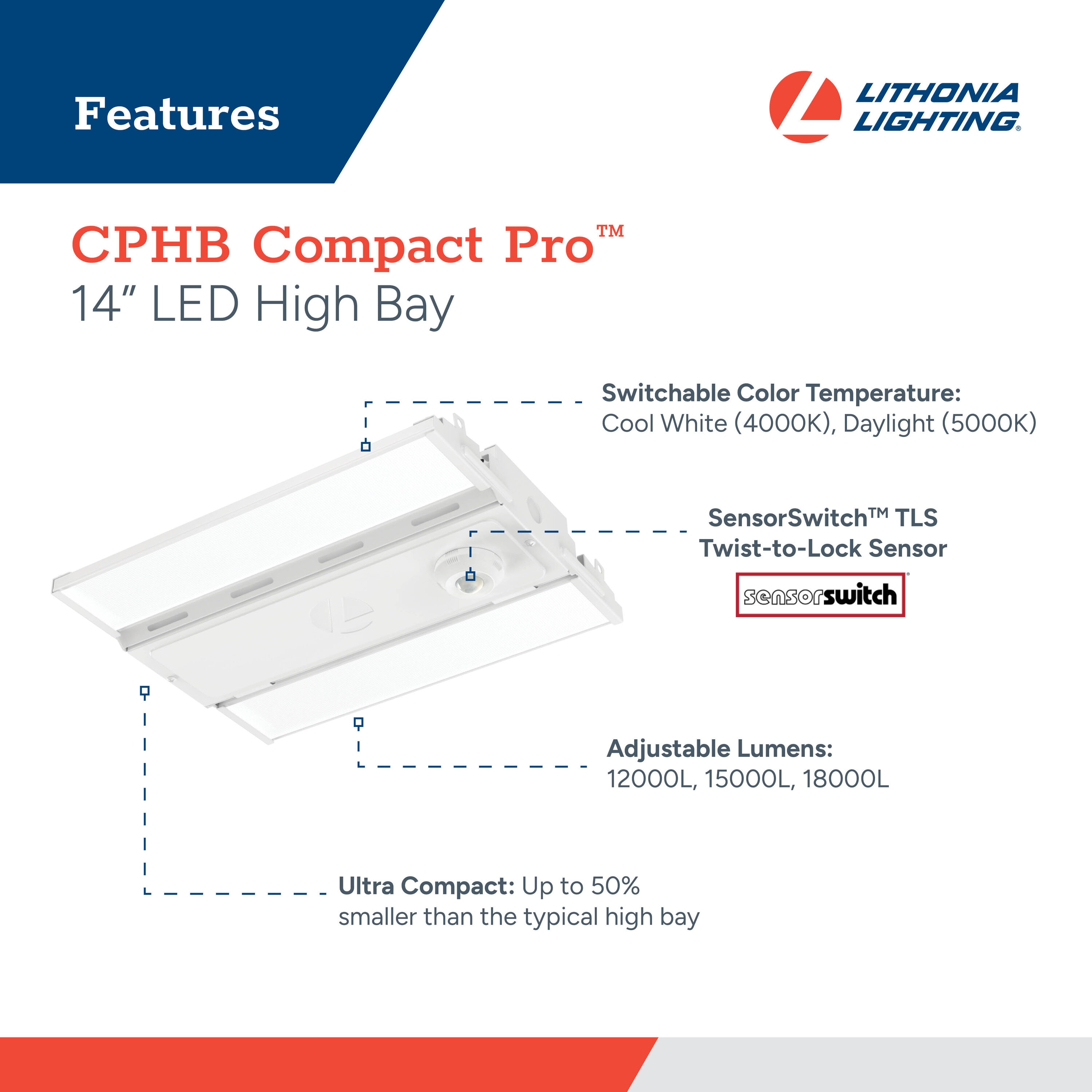

The Compact Pro High Bay by Lithonia Lighting (CPHB) is the budget-oriented high bay designed for contractors from the ground up. It’s the most compact high bay on the market, making it easier and quicker to install. Built with quality to last and performance to get the job done. The CPHB features adjustable lumen output (12000L, 15000L, 18000L) and switchable color temperature (4000K, 5000K) to customize the lighting settings during installation. The ultra compact and contractor friendly design allows for faster installation and clean up. The glare control lens minimizes glare and enables exceptional efficiency. Now available with the SensorSwitch TLS Twist-to-Lock Sensor designed to detect motion in spaces and adjusts the lighting levels based on the amount of natural daylight, optimizing energy usage (TLS included in packaging for field installation). For use in light industrial applications such as warehousing and other large indoor spaces with mounting heights ranging from 10' - permitted.
TECHNOLOGY: Adjustable Lumen Output (12000L, 15000L, 18000L) and Switchable White (4000K, 5000K) features allow for this panel to offer 6 configurations in 1 SKU
ENERGY SAVINGS: Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life, TLS delivering occupancy and daylight detection and providing energy savings of up to 38%
DESIGN: Ultra compact, glare control lens, with a contractor friendly design for faster installation and cleanup
RATINGS: CSA listed, Damp location listed, DLC 5.1 qualified, designed for ambient temperature ranging -40°C to 55°C
VOLTAGE: Standard MVOLT for 120-277 volts, Thermally protected driver standard with 0-10V dimming
HOURS OF LIFE: 70% lumen maintenance at > 100,000 hours
INSTALLATION: Includes V-hanger hardware brackets and 2-36” chain lengths; also suitable for mounting by chain, cable, surface-mount bracket, or hook monopoint; TLS mounts into CPHB with twist-to-lock toolless installation
BATTERY: Emergency battery pack available, sold separately
WARRANTY: 5-year limited warranty
