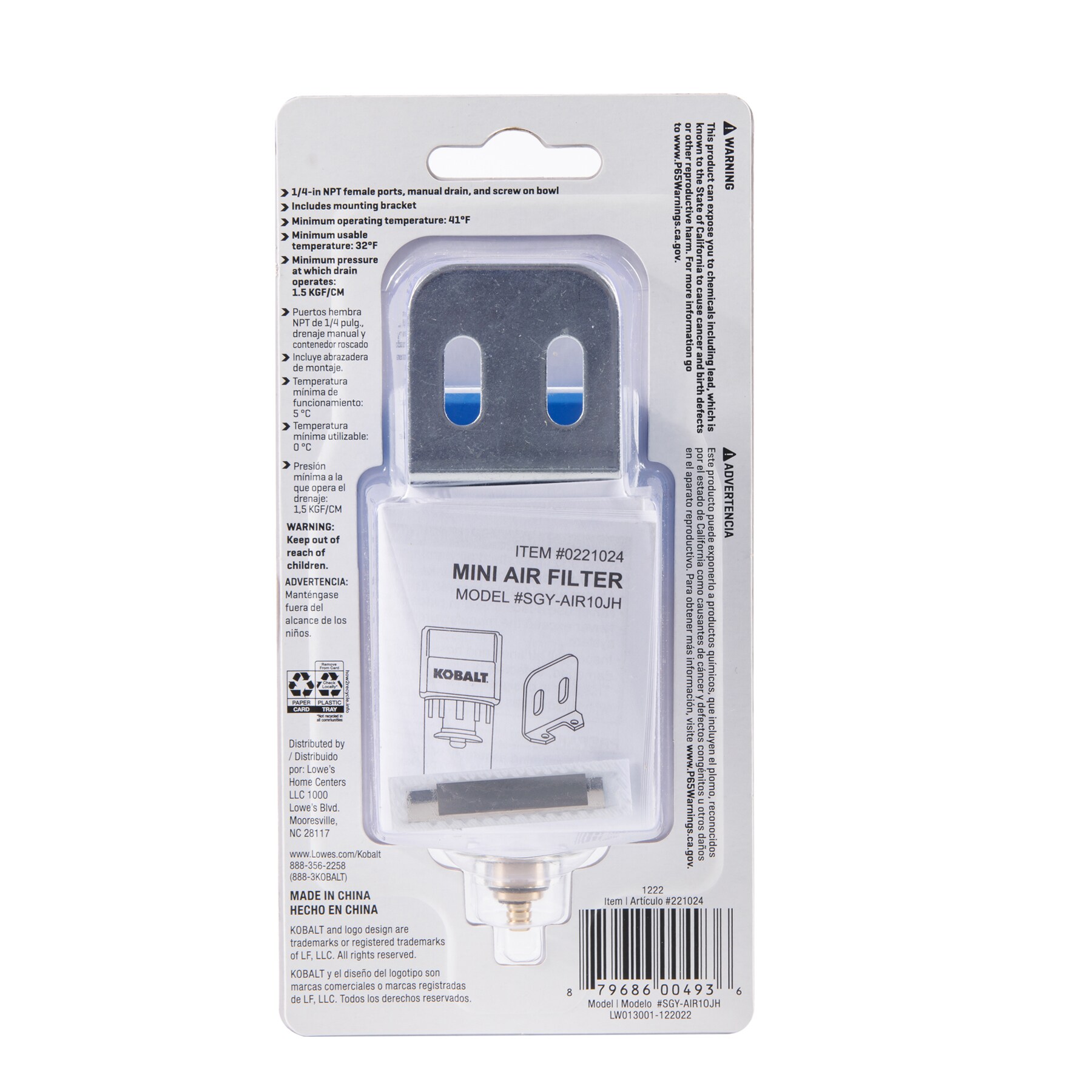

Kobalt 1/4-in Air Filter
Item #221024 |
Model #SGY-AIR10JH
This item is no longer sold on Lowes.com
Minimum operating temperature: 41 degrees F
Minimum usable temperature: 32 degrees F
Minimum pressure at which drain operates: 1.5 KGF/CM
22 SCFM flow at 90 PSI inlet 5 PSI pressure drop
64 SCFM maximum flow capacity at 90 PSI inlet
1/4-in NPT female ports, manual drain, and screw on bowl
Filter should be replaced at a pressure drop of 60% of the incoming air pressure
General | |||
|---|---|---|---|
Sub-Type | Air Filter | Material | Zinc alloy |
Type | Filter | Package Contents | 1/4-in Mini Air Filter |
Dimensions | |||
|---|---|---|---|
Size | 1/4-in | ||
Features | |||
|---|---|---|---|
Hose Included | No | Fittings Included | No |
Certifications | |||
|---|---|---|---|
ANSI Compliant | No | CA Residents: Prop 65 Warning(s) | |
Warranty | |||
|---|---|---|---|
Warranty | 3-year limited | ||
Miscellaneous | |||
|---|---|---|---|
UNSPSC | 27131600 | ||
Check out the Best Selling Air Compressor Accessories on Lowes.com
Ratings may include incentivized customer reviews.
Simple filter offering great protection for tools.

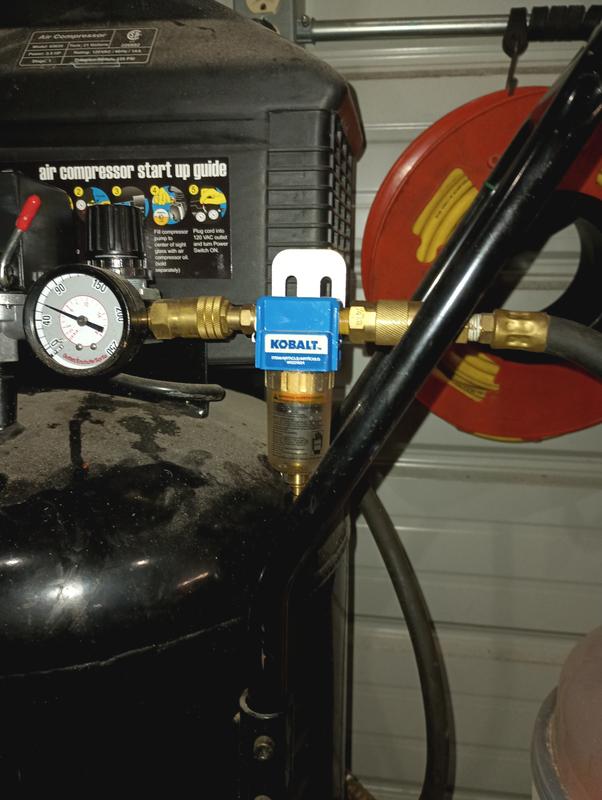

Good filter that will be used to replace the last one. The metal hanging clip is removable and was not needed in my application. It is easy to install and keeps moisture away from my air tools. The brass nozzle for draining water is an upgrade from a different big box stores plastic nozzle version that was bejng replaced.
I guess it'll do job it was recommended for.
Didn't get to use it yet.
Great
Works great for a small compressor
Poor quality. Stick to a name brand on this one.
The preasure regulation appears to work well. The drain is manual, condensate doesn't go down the drain tube as intended (sprays all over), and doesn't seal well when done. You have to really tug on the drain bib to get it to seal back up. I wouldn't buy it again.
Works may need to be bigger.
Decent price, sturdy, easy to setup, instructions can help. Only used once on hottest most humid day, it removed most but not all water in line, so should definitely work on normal days. I think a bigger air filter is needed for my 26 Gallon compressor.
better size than the bulker one that it replaced.
well made
worked for a while
mine is not really capturing any water and it's letting you go right through to my gun which is kind of irritating can find if the cartridge maybe just needs replaced or but can't find them online
