KAIWEETS insulation tester. 2500V Insulation Resistance Tester. Megohmmeter with PI/DAR. PASS/FAIL
Item #9250077 |
Model #KE2500
Marketplace items sold by a third party are not eligible for Lowe’s offers.
KAIWEETS builds dependable electrical test instruments for electricians, industrial maintenance teams, HVAC technicians, and contractors who need repeatable insulation diagnostics. The KE2500 digital insulation resistance tester combines five selectable test voltages, advanced insulation analysis, and AC/DC voltage and continuity functions for motors, transformers, cables, generators, panels, and industrial equipment.
Select 100V, 250V, 500V, 1000V, or 2500V DC test voltage and measure insulation resistance from 0.1MΩ to 200.0GΩ. The 2500V output and extended 200GΩ range provide coverage for demanding preventive maintenance and commissioning work, while the additional 100V range supports lower-voltage equipment.
Built-in Dielectric Absorption Ratio (DAR) and Polarization Index (PI) calculations help evaluate insulation condition over time. Set a resistance threshold for an immediate PASS or FAIL result, use the timer for repeatable test intervals, and save or recall readings for easier documentation. Data hold, max/min readings, and a backlit display help keep results visible in the field.
The same tester measures up to 750V AC, 1000V DC, and 200Ω continuity with an audible alert below approximately 50Ω. Rated CAT IV 600V and CAT III 1000V, the KE2500 includes test leads, alligator clips, eight AA batteries, and a carrying case. It is backed by a 3-year limited warranty and lifetime technical support.

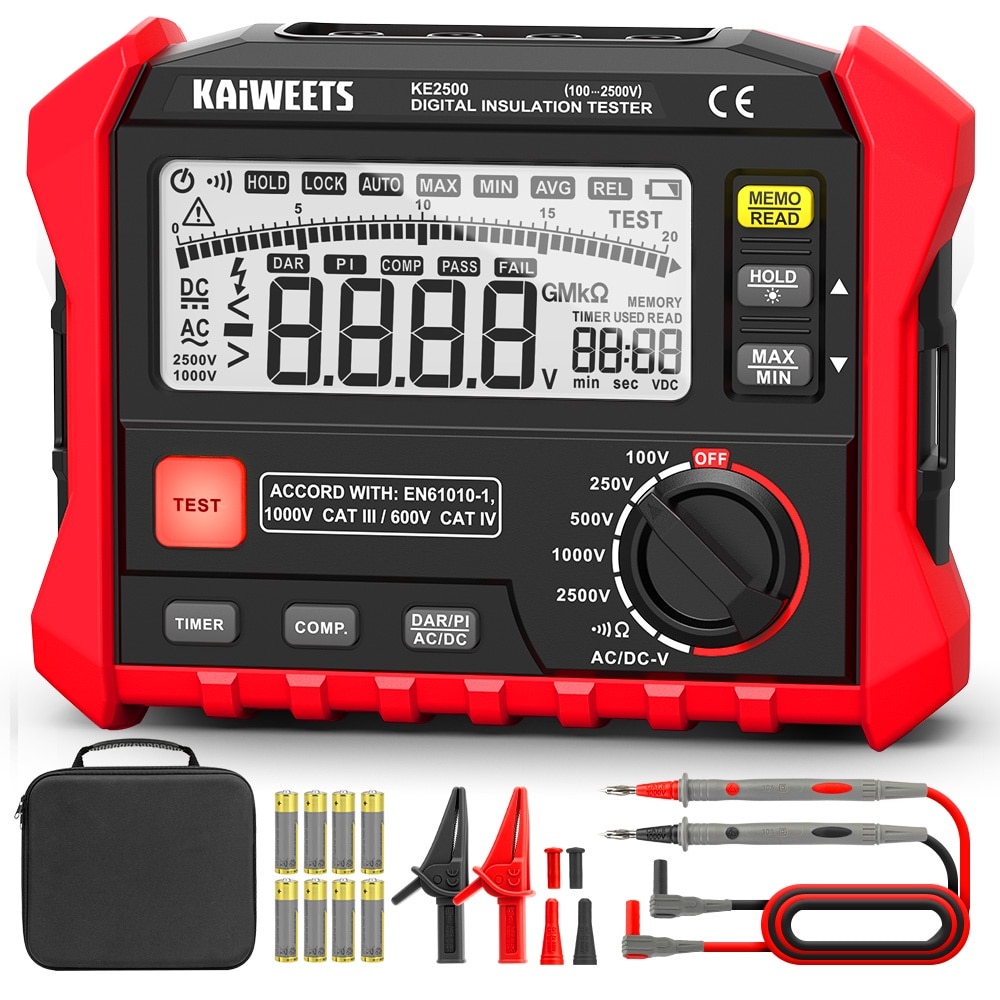

What's Included
• KE2500 Digital Insulation Resistance Tester ×1
• Test Leads ×2
• Crocodile Alligator Clips ×2
• 1.5V AA Batteries ×8
• Carrying Case ×1
• User Manual ×1
FIVE INSULATION TEST VOLTAGES - Select 100V, 250V, 500V, 1000V, or 2500V for motors, transformers, cables, generators, and equipment.
UP TO 200GΩ INSULATION RANGE - Measure from 0.1MΩ to 200.0GΩ for demanding industrial diagnostics and preventive maintenance.
AUTOMATIC DAR AND PI ANALYSIS - Built-in calculations help evaluate insulation condition and aging without separate stopwatch math.
PROGRAMMABLE PASS/FAIL - Set a resistance threshold for immediate verification during commissioning, service, and quality checks.
TIMED TESTING AND MEMORY - Run repeatable test intervals, then save and recall readings for easier maintenance documentation.
3-IN-1 ELECTRICAL TESTING - Measure insulation resistance, up to 750V AC or 1000V DC, and 200Ω continuity with one instrument.
FIELD-READY DISPLAY FEATURES - Backlight, data hold, max/min readings, and 15-minute auto shutoff support efficient testing.
CAT IV 600V / CAT III 1000V - IEC/EN 61010-1 design and double-insulated construction support demanding electrical work.
COMPLETE KAIWEETS KIT - Includes leads, alligator clips, eight AA batteries, a carrying case, and a 3-year warranty.
