Built for vehicle subwoofer systems, this 1-channel Class D monoblock amplifier supplies 3000-W RMS at 1 ohm and supports 1-ohm, 2-ohm, and 4-ohm loads. Low pass filtering, bass boost, and input sensitivity controls support system tuning. A remote bass knob with a 16.4-ft cable allows adjustment from the driver's seat. Its aluminum alloy chassis and built-in fan aid heat dissipation, while temperature, overcurrent, and overvoltage protection provide real-time feedback. Install the 8.7-in x 8.9-in x 2.6-in unit in a dry, ventilated trunk or cabin area with room around it, and add a fuse before use to protect wiring in a short circuit.
Power Output: The Class D monoblock design delivers 3000-W RMS at 1 ohm and has a listed peak power of 6000 W at 1 ohm for high-power car subwoofer systems
Load Flexibility: Support for 1-ohm 2-ohm and 4-ohm impedance provides wiring options for compatible 12-in or 15-in subwoofers and systems using multiple subs
Remote Adjustment: A bass level controller with a 16.4-ft cable supports flexible placement and lets the driver adjust bass volume from the driver's seat

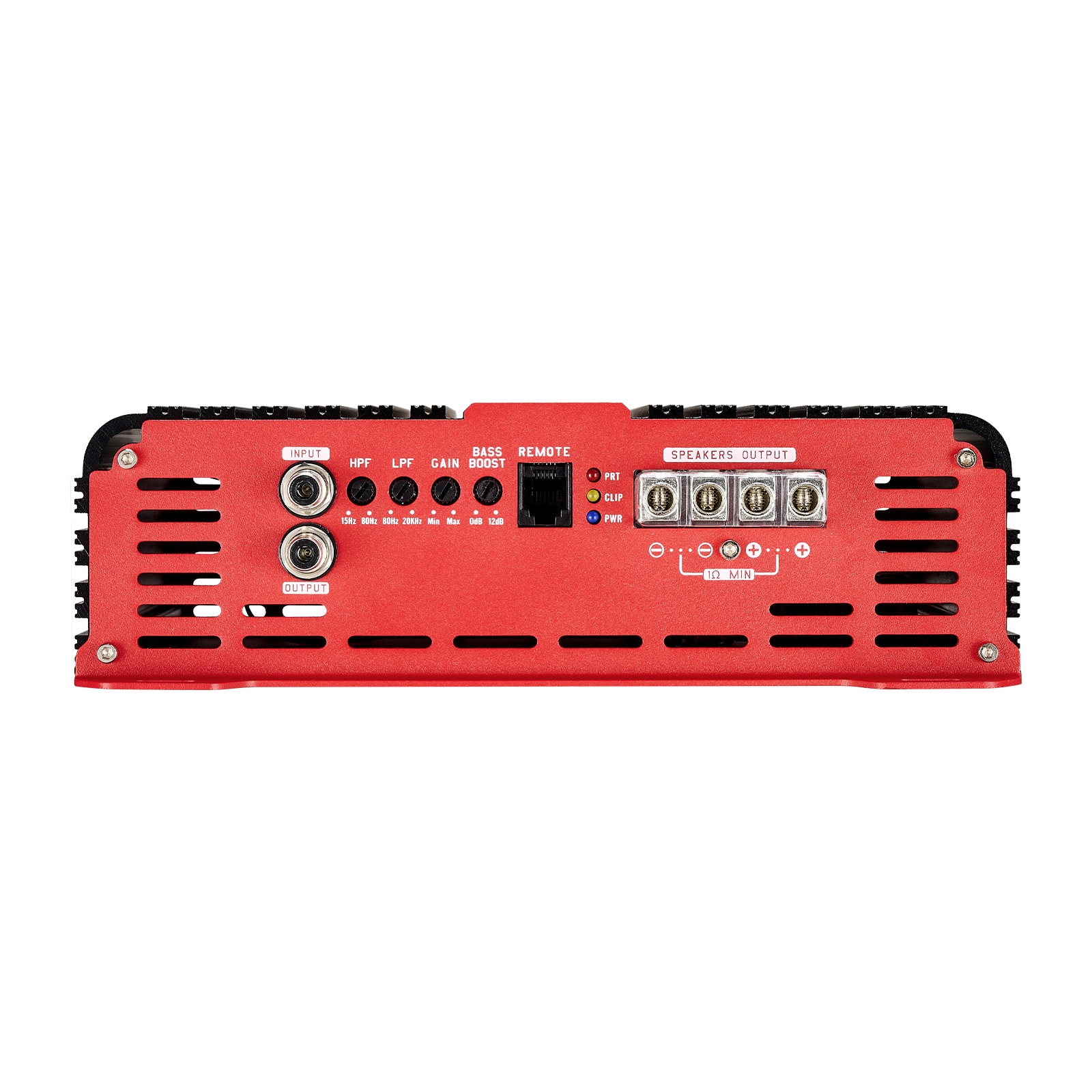

Sound Tuning: Panel controls include a low pass filter bass boost and input sensitivity so low-frequency impact and sound quality can be adjusted before driving

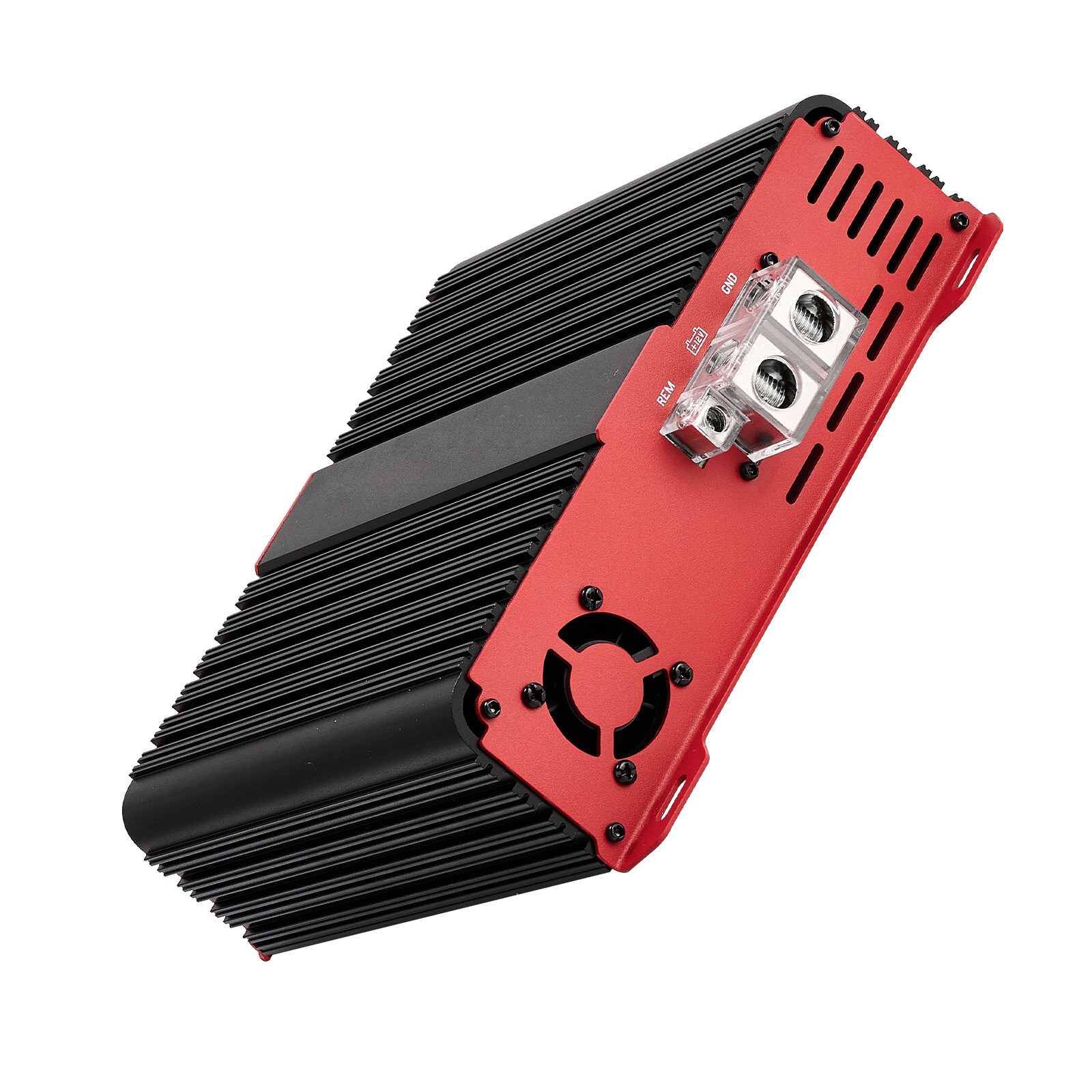

Thermal Management: An aluminum alloy chassis and built-in fan dissipate heat for stable long-term high-power output in a properly ventilated installation area
Specification: DC 9-16V voltage range; DC 14.4V rated voltage; 20 Hz-25 kHz frequency response; 54 dB SNR at 10 W; 78 dB SNR at maximum output
Installation Guidance: Place the amplifier in a dry well-ventilated trunk or cabin location with surrounding clearance and add a fuse before use to help protect wiring from a short circuit
Compact Footprint: Product dimensions of 8.7-in x 8.9-in x 2.6-in and a 6.9-lb product weight support placement behind a rear seat or in a trunk where space permits
Vehicle Application: The amplifier is described for sedans SUVs trucks and RVs and can connect to head units with RCA outputs or simplified audio systems through adjustable level input
