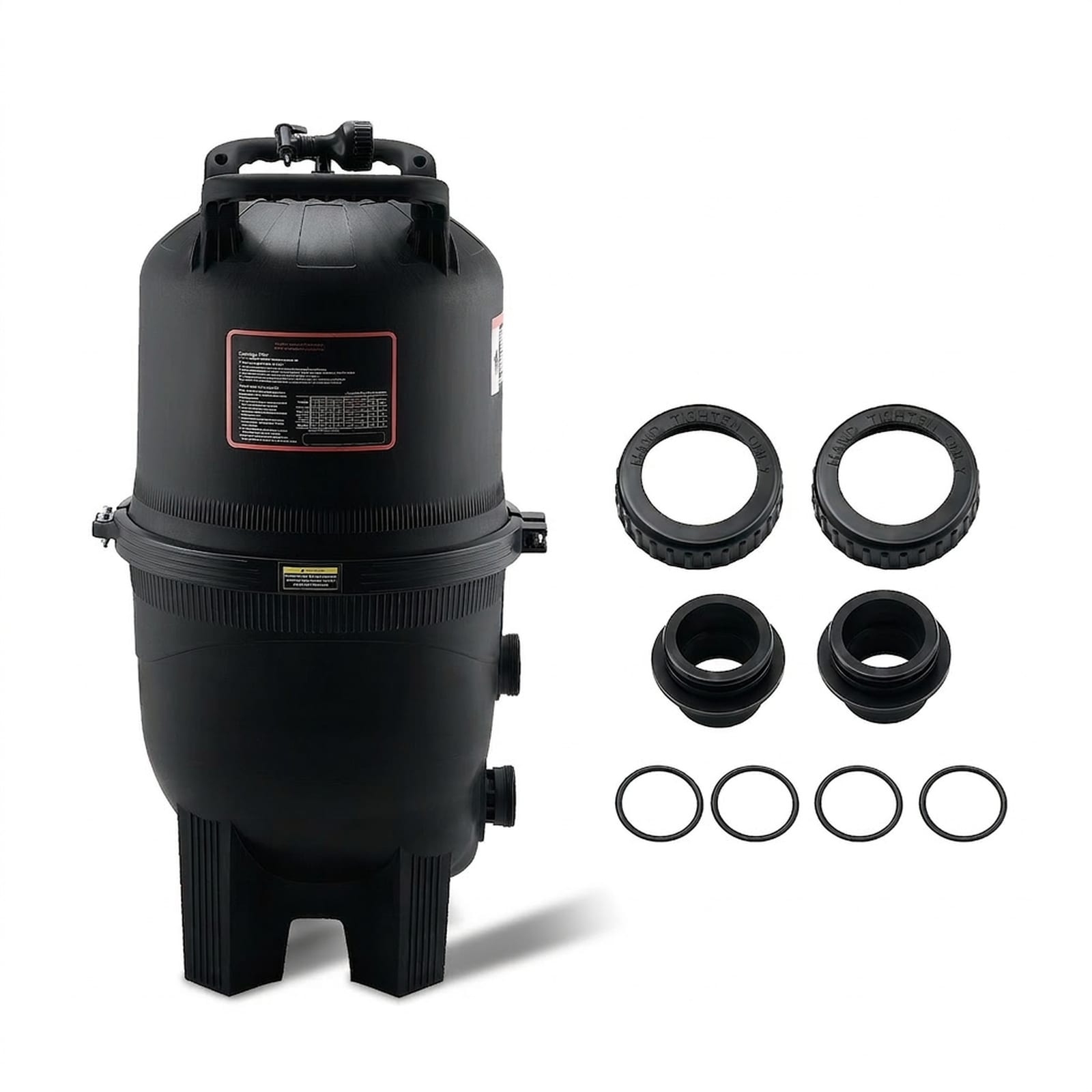

GIVIMO Cartridge Pool Filter System 425-sq ft Filter Area with 4 Lead-Free 50-Micron Pleated Cartridges PP Glass-Fiber One-Piece Leak-Proof Housing Pressure Gauge and Automatic Relief Valve 2-in Ports for Inground Above Ground Pools Hot Tubs and Spas

Filter Area: A 425 sq ft filter area handles pool water volumes from 128 to 192 cubic meters, which covers backyard pools as well as the heavier bather loads seen at hotels and schools

Cartridge Core: Four pleated cartridges made from lead-free filter paper trap particles down to 50 micron, and the high-density pleats add surface area so water stays clear between cleanings

Pressure Monitoring: A precise pressure gauge reports tank pressure in real time while an automatic relief valve at the top vents excess pressure, so a loaded cartridge shows up early instead of stressing the housing

Pool Types Served: Sized for inground and above ground swimming pools, this filtration system also serves hot tubs, spas, and inflatable pools at homes, hotels, and schools

One-Piece Housing: PP and glass fiber composite is die cast into a single seamless shell, removing the side seams that usually weep and shielding internal components from outside weather

Specification: Filter Area: 420-425 sq ft; Casing Material: PP + Glass Fiber; Filtration Precision: 50 micron; Number of Filter Cartridges: 4; Filter Cartridge Material: Lead-Free Paper; Inlet/Outlet Diameter: 2 in

Specification (cont.): Product Dimensions: 24.40 x 22.05 x 46.02 in / 620 x 560 x 1169 mm; Filter Cartridge Dimensions: 178 mm dia x 660.5 mm; Package Weight: 93.7 lb / 42.5 kg; Carton Dimensions: 23.6 x 23.6 x 48.0 in

Pump Pairing and Hookup: Matched to pumps in the 2.2 kW to 3 kW range, the tank goes live in three steps by anchoring it near the pool, joining the pump line to the inlet, then running the return line off the outlet with no specialized tools
