GIVIMO 3HP Air Compressor Electric Motor 230V 15.5-Amp 56 Frame 3450-RPM 5/8-in Keyed Shaft Single Phase Reversible CW and CCW Rotation for Compressor Replacement

Name: GIVIMO 3HP Air Compressor Electric Motor 230V 15.5-Amp 56 Frame 3450-RPM 5/8-in Keyed Shaft Single Phase Reversible CW and CCW Rotation for Compressor Replacement
Brand: GIVIMO
SKU: 5021150579
Price: 149.99 USD
Availability: InStock

Marketplace items sold by a third party are not eligible for Lowe’s offers.

Stepper number input field with increment and decrement buttons

Best Price. Guaranteed

Find a lower price on an exact item? We'll match it. Some exclusions apply.

Price Guarantee

FREE Returns

Return it in store or ship it back for free. Eligibility rules apply.

Return Policy

Pay Your Way

Credit card, PayPal or Buy Now, Pay Later options available at checkout. Your choice.

Payment Options

Restore full power to a belt-driven air compressor with this 3HP electric motor built as a direct replacement. The single-phase motor runs on 230V at 15.5 amps and turns at 3450 RPM on a standard 56 frame to match common compressor pumps for a straightforward swap. A 5/8-in keyed shaft with a 1.88-in length accepts standard pulleys and sheaves for a secure slip-free belt drive. Reversible wiring supports both CW and CCW rotation and ships set to CCW so it adapts to different compressor and equipment layouts.

3HP 230V Motor: A single-phase 3HP motor runs on 230V at 15.5 amps to drive belt-driven air compressors and shop equipment with steady power
3450-RPM Output: A 3450 RPM speed on a standard 56 frame matches common compressor pumps for a direct fit and reliable air delivery
5/8-in Keyed Shaft: A 5/8-in keyed shaft with a 1.88-in length accepts standard pulleys and sheaves for a secure slip-free belt connection

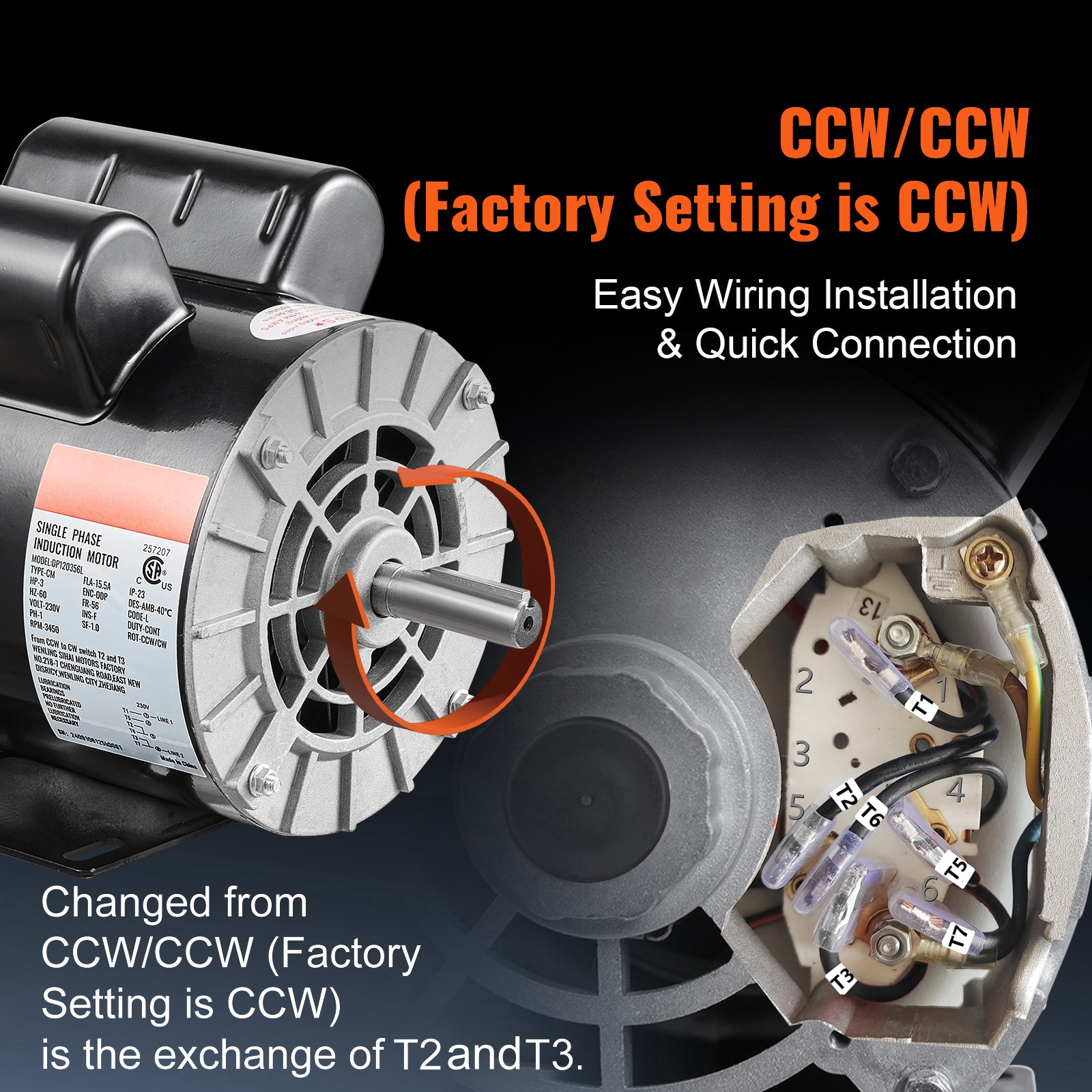

Reversible Rotation: The motor supports both CW and CCW rotation set at the factory to CCW so it adapts to different compressor and pump layouts
Durable Replacement Motor: A rugged cast build handles continuous shop duty and serves as a direct replacement for worn air compressor motors
Specification: Shaft Length: 1.88 in; SF: 1.0; Voltage: 230V; Frequency: 60HZ; Shaft Diameter: 5/8 in Keyed Shaft; Current: 15.5A; Net Weight: 29.3 lbs / 13.25 kg; Keyway Size: 0.188 in; Speed: 3450 rpm; Frame Size: 56; Reversible Design: Yes; Horsepower: 3 HP
