GIVIMO 1/6-HP 1075-RPM Condenser Fan Motor - 208 to 230-V 60-Hz 1.0-A Reversible CW and CCWSE OEM Standard Replacement Motor with CBB65 5-uF 370-V Explosion-Proof Capacitor - 1/2-in x 3.7-in Shaft 4-in Case 5.2-in Stud Pattern for OGD1016

1/6-HP Rated Output: A 120-W winding turns at 1075 RPM and draws 1.0 A from a 208-230 V 60-Hz supply, which is the plate rating an underperforming condenser fan needs to see again, with model OGD1016 named in the compatibility list

Reversible CW and CCWSE: Rotation runs either direction on the same unit, so one part number on the shelf answers calls that would otherwise wait on two separate motors being ordered for two opposite fan deck layouts

CBB65 Capacitor Supplied: An explosion-proof 5-uF 370-V run capacitor comes in the box, so the swap goes back together with matched capacitance instead of reusing the aged capacitor pulled off the motor that just failed

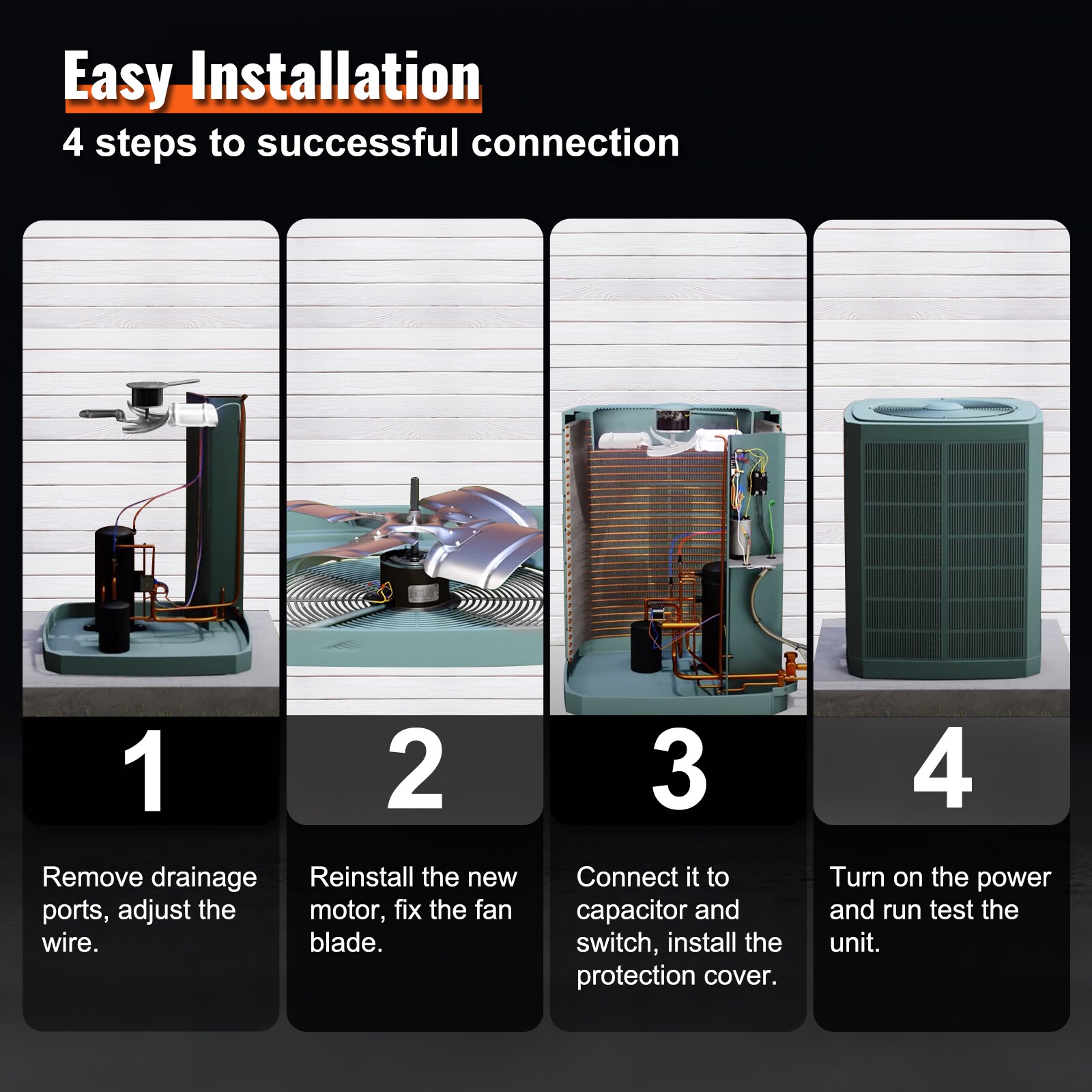

Outdoor Condenser Service: Aimed at HVAC technicians and property maintenance crews replacing a burned-out OEM fan motor in an air conditioning condenser or a comparable outdoor unit that runs through summer load cycles

Shaft and Stud Geometry: Mechanical stability comes from a 1/2-inch by 3.7-inch shaft, a 4-inch motor case and a 5.2 by 5.2-inch stud pattern, while the extended cable leaves slack for routing the leads to the control box

Specification: Horsepower: 1/6 HP; Power: 120 W; Rotational Speed: 1075 RPM; Voltage: 208-230 V; Frequency: 60 Hz; Current: 1.0 A; Rotation: CW and CCWSE reversible; Capacitor: CBB65 5 uF / 370 V

Specification (cont.): Shaft Diameter: 0.5 inch / 12.7 mm; Shaft Length: 3.7 inch; Motor Case Length: 4 inch; Stud Pattern: 5.2 x 5.2 inch / 132 x 132 mm; Product Weight: 9.04 lbs / 4.1 kg; Package Gross Weight: 9.6 lbs / 4.35 kg
