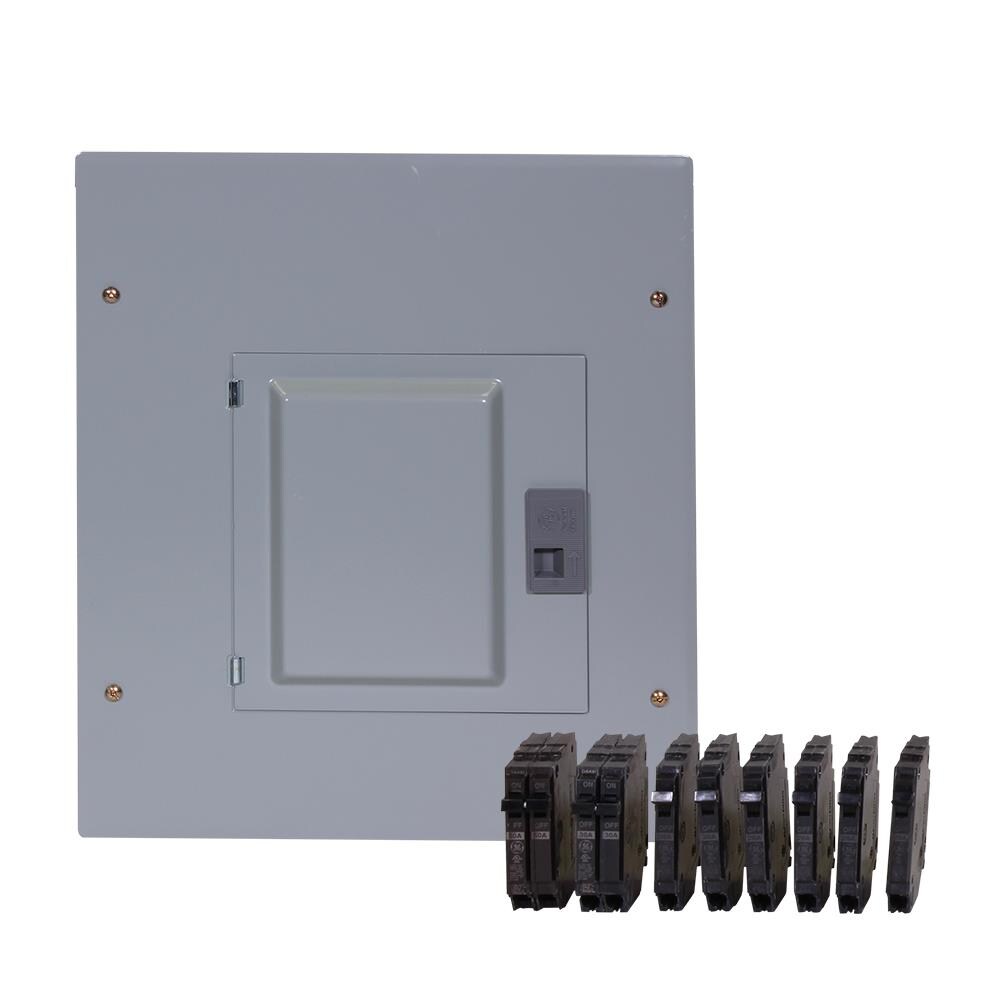

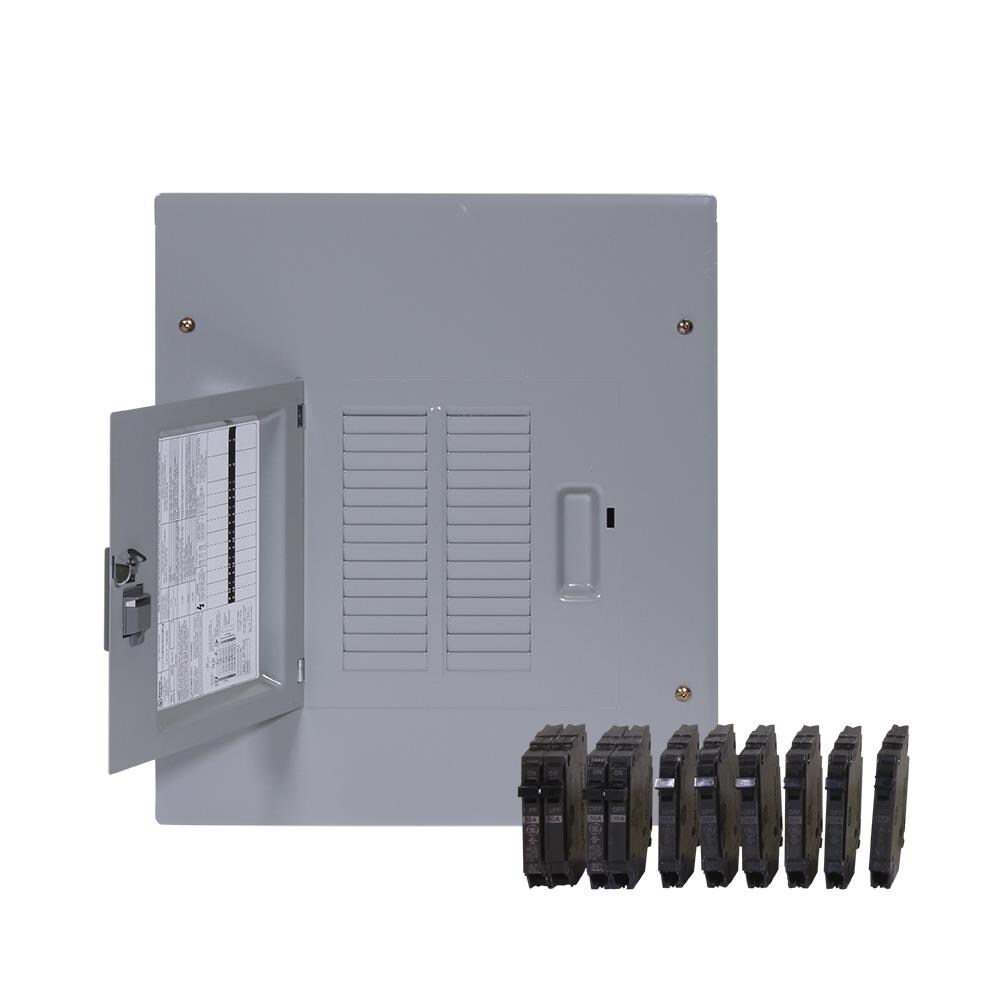

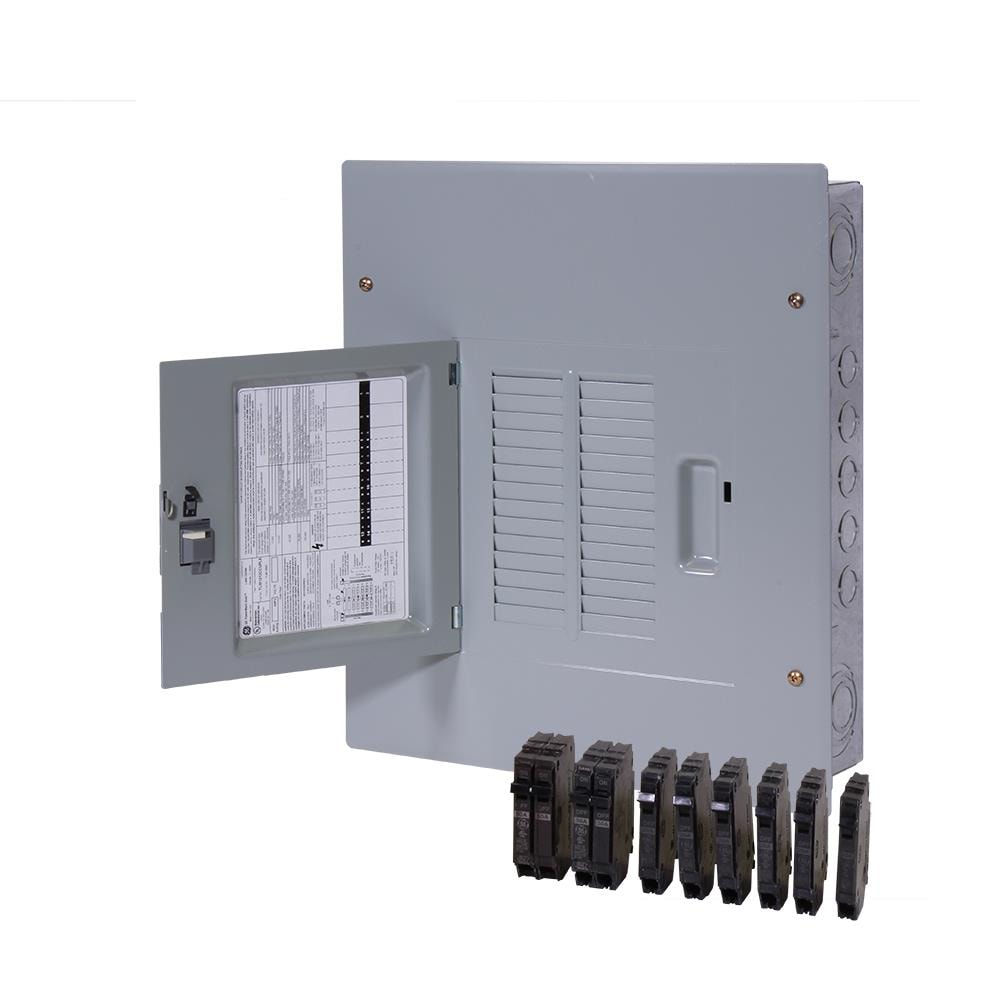

This value kit includes six 20 Amp Single-Pole, one 30 Amp Double-Pole, one 50 Amp Double-Pole THQP 1/2 in. Circuit Breakers. The load center includes a sturdy tin-plated copper buss bar and a galvanized box for increased durability and reliability. The one-piece interior removes and re-installs easily. Indoor NEMA 1 enclosure with combination surface/flush front. This load center is UL listed and ANSI Certified.
Indoor NEMA 1 enclosure
Main lugs are factory installed; convertible to main breaker
Includes 8 circuit breakers and equipment ground kit

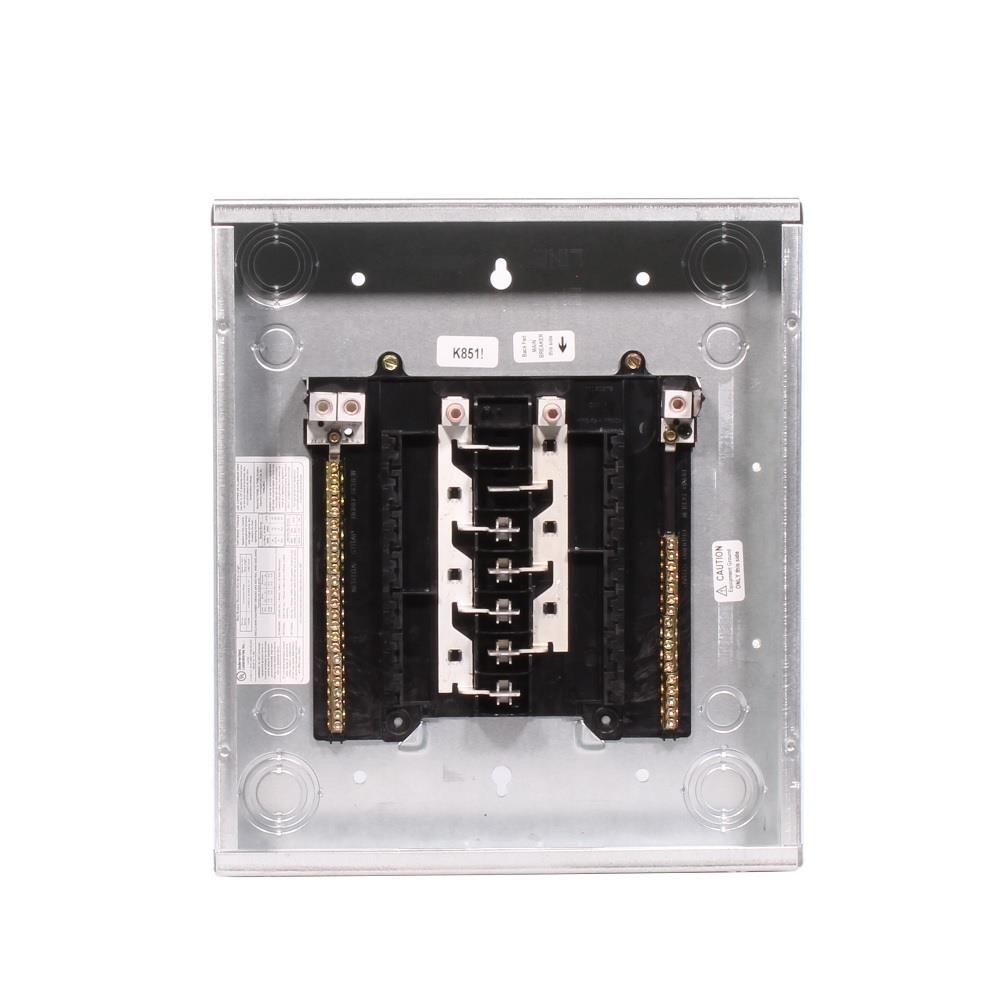

Rust-resistant galvanized box with highly conductive copper buss bar
Factory-installed main breaker, full-length neutral bars, top or bottom feed and self-adjusting, dead-front cover
Full-length neutral bars for faster and easier wiring with 100% split neutral holes on each side are rated for #14-4 wire
Compatible with GE THQL, THQP, GFCI, DFCI and AFCI circuit breakers
Single-phase, 3-wire, 120/240 VAC, 22,000 AIC rating
ANSI certified and UL Listed
