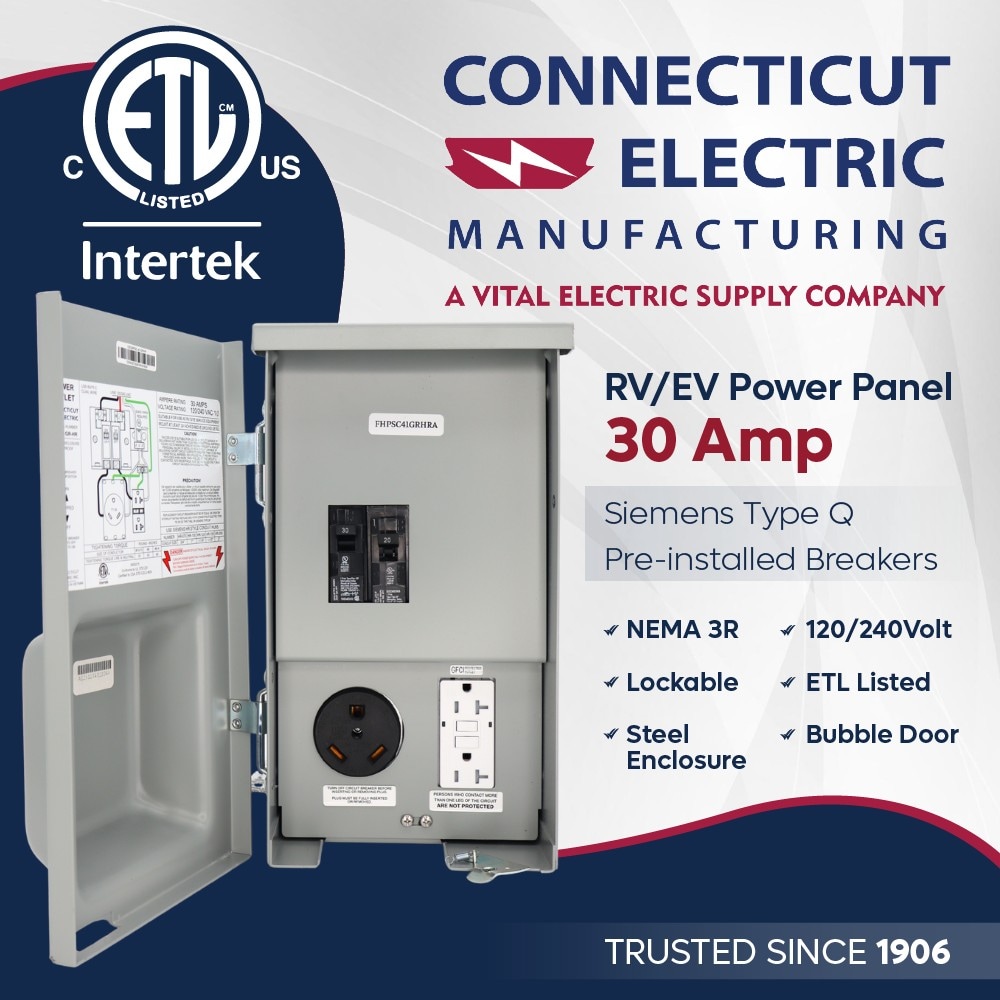

Perfect for the RV owner that stores a motor home, camper, travel trailer or pop-up trailer and wants electricity close by, especially for a heater that will help prevent moisture and mildew from forming. Panel includes a 30 amp receptacle and branch circuits: 1 pole, 20 amp and 1 pole, 30 amp as well as a 20 amp GFCI duplex receptacle. Safe and easy to install for the do-it-yourself because it is factory wired and completely assembled. The unique cover design allows the cord to be used when the door is closed.
The Connecticut Electric RV power Outlet features heavy-duty steel construction with a powder-coat finish in a 3R rainproof enclosure (outlets: NEMA 5-20R2 GFCI, TT-30 travel trailer receptacle: breakers-1P 20 amps 1P 30 amps)
TT-30R NEMA receptacle is 3 wire, rated at 30-Amp 125-Volt; 5-20R NEMA 3 wire receptacle is GFCI protected
Hub provision is provided for use with Siemens HR-style hubs

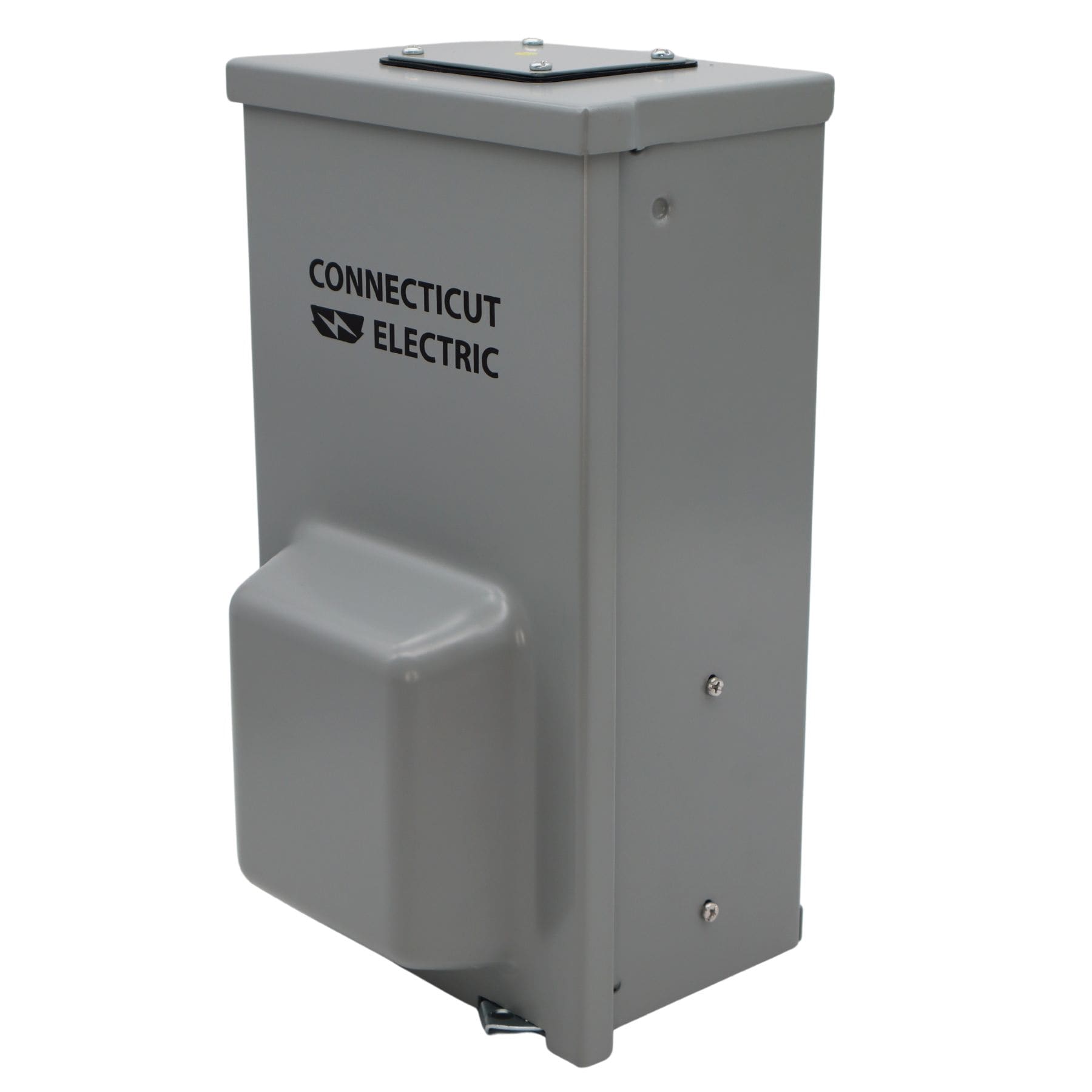

NEMA 3R rainproof enclosure has a lockable latch and the unique design allows the cord to be used with the door closed
Lugs are suitable for either aluminum or copper wire
RV/EV Panel
