The Anqtovp AI-770K automotive multimeter engine analyzer combines engine testing and electrical measurement in one handheld True RMS DMM. It measures RPM tach from 60 to 12000, pulse width from 0.1 to 10ms, duty cycle from 1.0 to 99.0%, and dwell angle from 0 to 90.0° for 4, 5, 6, and 8 cylinder engines. RPM measurement requires the optional AI-705A Inductive Clamp, which is not included. For electrical troubleshooting, the meter measures DC voltage from 0.01mV to 1000V, True RMS AC voltage from 0.01mV to 750V, and DC or AC current from 0.1μA to 20A. It also measures resistance from 0.1Ω to 60MΩ, capacitance from 1pF to 60mF, and temperature from -4°F to 1832°F.
Anqtovp AI-770K measures RPM tach from 60 to 12000, pulse width from 0.1 to 10ms, duty cycle from 1.0 to 99.0%, and dwell angle from 0 to 90.0° for 4, 5, 6, and 8 cylinder engines
Measure DC voltage from 0.01mV to 1000V, True RMS AC voltage from 0.01mV to 750V, DC or AC current from 0.1μA to 20A, resistance from 0.1Ω to 60MΩ, capacitance from 1pF to 60mF, and temperature from -4°F to 1832°F

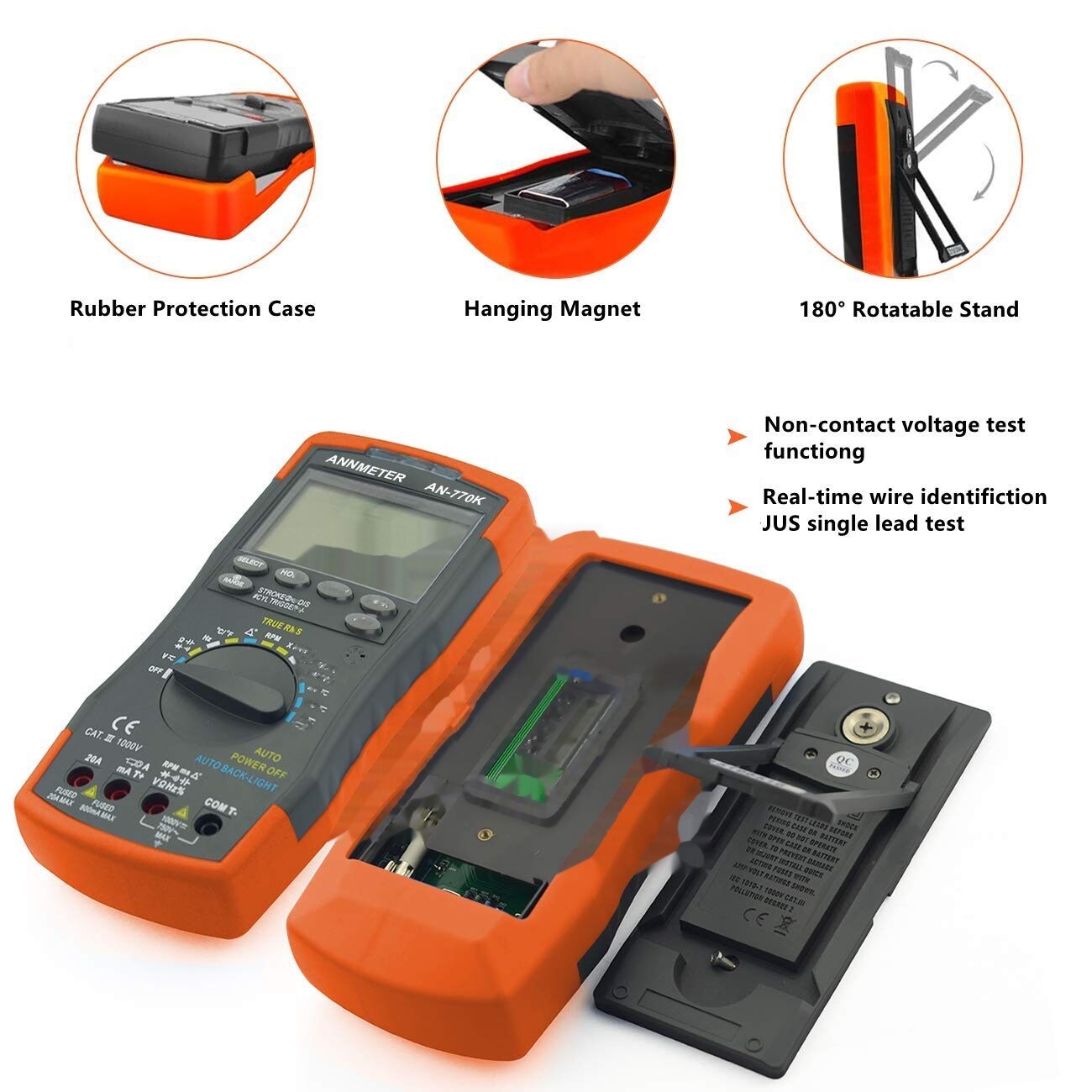

The 6000 count LCD includes an auto-backlight sensor, auto-zero, auto-polarity, auto-range, an OL over-range indicator, and readings at 3 readings per second for convenient measurement viewing
Additional functions include non-contact AC voltage detection, data hold, Max and Min measurements, PeakHold for capturing AC voltage or current peaks, diode testing, continuity buzzer, and frequency testing
The handheld True RMS multimeter includes test leads, a temperature probe, and a portable ammeter and voltmeter carrying case for automotive troubleshooting and electrical testing in a garage or workshop
The meter measures 9.13 x 5.16 x 0.94 inches and weighs 12.32 ounces, while the package measures 9.1 x 5.2 x 0.9 inches and weighs 1.4 pounds for shipping and storage reference
