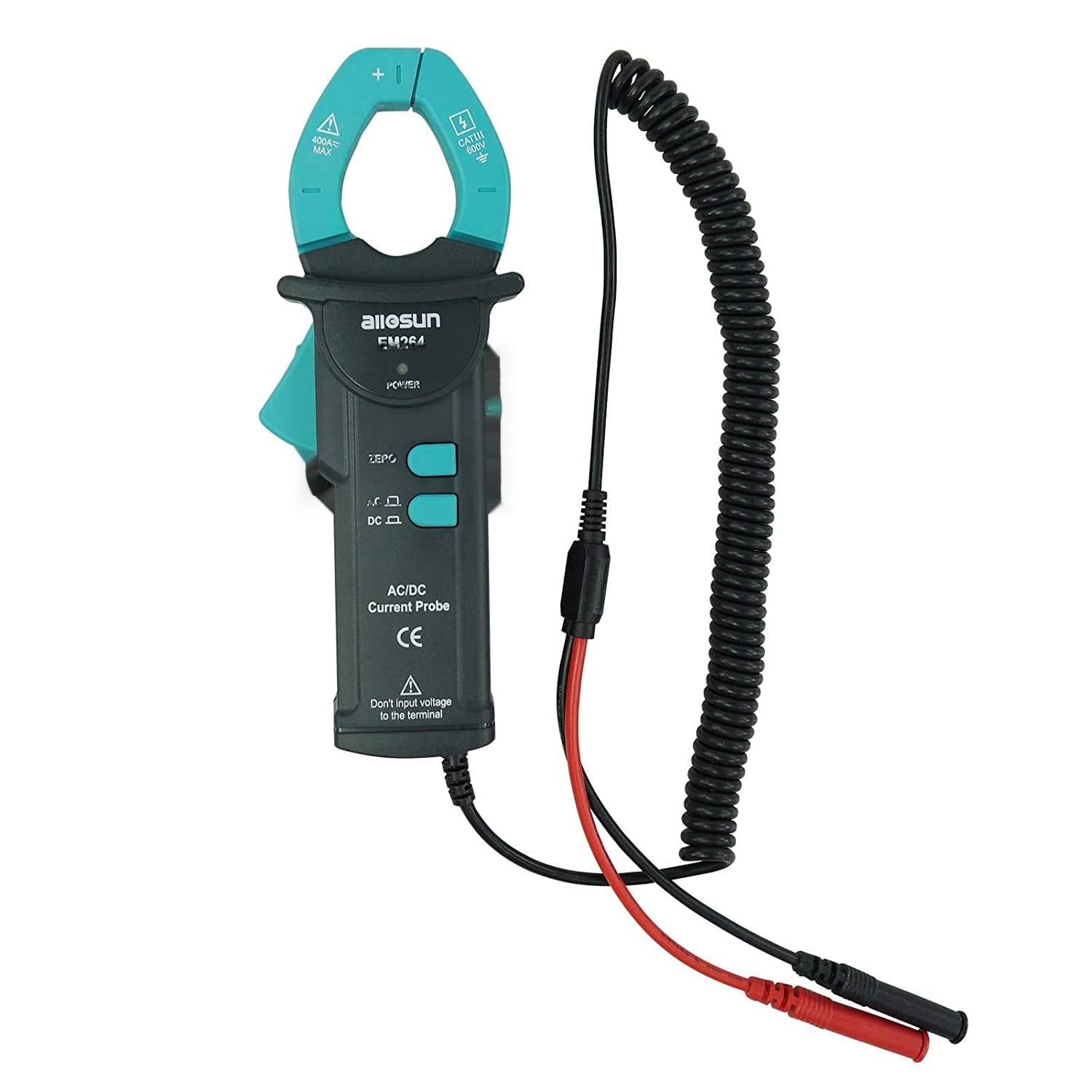

The Anqtovp AC DC clamp meter is a handheld current tester designed for measuring AC and DC current without interrupting the conductor circuit. Its Hall Effect sensor supports measurements up to 400A, with a stated overload capability of 600A. True RMS conversion is included for the specified current-testing function, while the dual-range sensitivity provides 10mV/A on the 40A range and 1mV/A on the 400A range. The stated accuracy is ±2.5 percent .The 33mm jaw opening accommodates conductors up to ∅28mm. Trigger-operated jaws allow the conductor to be enclosed for non-contact current testing, and the CAT III 600V rating, tactile barriers and double insulation are specified for the meter. The unit also provides polarity detection and is identified with CE certification in the supplied product information.For DC measurements, one-touch zero calibration is designed to eliminate DC drift errors. The green and red LED status alert operates at the specified threshold of ≤7.5V, and the dual OFF positions support switching the tester off during storage. The dedicated range switch and AC or DC mode selection make it possible to configure the meter for the selected current type. A 0-400mV DC voltage output allows connection with other third-party multimeters, and current can be calculated using the Reading divided by Sensitivity formula.The compact handheld format is suited to tight spaces and is specified for environments from 0°C to 40°C. Suggested uses include HVAC service, automotive diagnostics, industrial circuit checks, electrical troubleshooting, motor maintenance, factory quality assurance and energy audits. The casing is wipeable for routine cleanup. The tester measures 8.5 x 4.37 x 1.89 inches and weighs 11.99 ounces. The package measures 8.5 x 4.4 x 1.9 inches and weighs 0.75 pounds.
Measure AC and DC currents up to 400A with Hall Effect sensor technology True RMS conversion 600A overload capability dual-range sensitivity and stated accuracy of ±2.5
Use the 33mm jaw opening for non-contact testing of conductors up to ∅28mm without circuit interruption with tactile barriers double insulation and CAT III 600V rating
Select AC or DC mode and use one-touch zero calibration to address DC drift while the green and red LED alert operates at the specified threshold of ≤7.5V
Connect with third-party multimeters through the 0-400mV DC voltage output then use the dedicated range switch and Reading divided by Sensitivity formula for current calculations
Use the trigger-operated jaws and compact handheld design for HVAC work automotive diagnostics industrial circuits electrical troubleshooting motor maintenance factory QA and energy audits
The tester measures 8.5 x 4.37 x 1.89 inches and weighs 11.99 ounces while the package measures 8.5 x 4.4 x 1.9 inches and weighs 0.75 pounds
