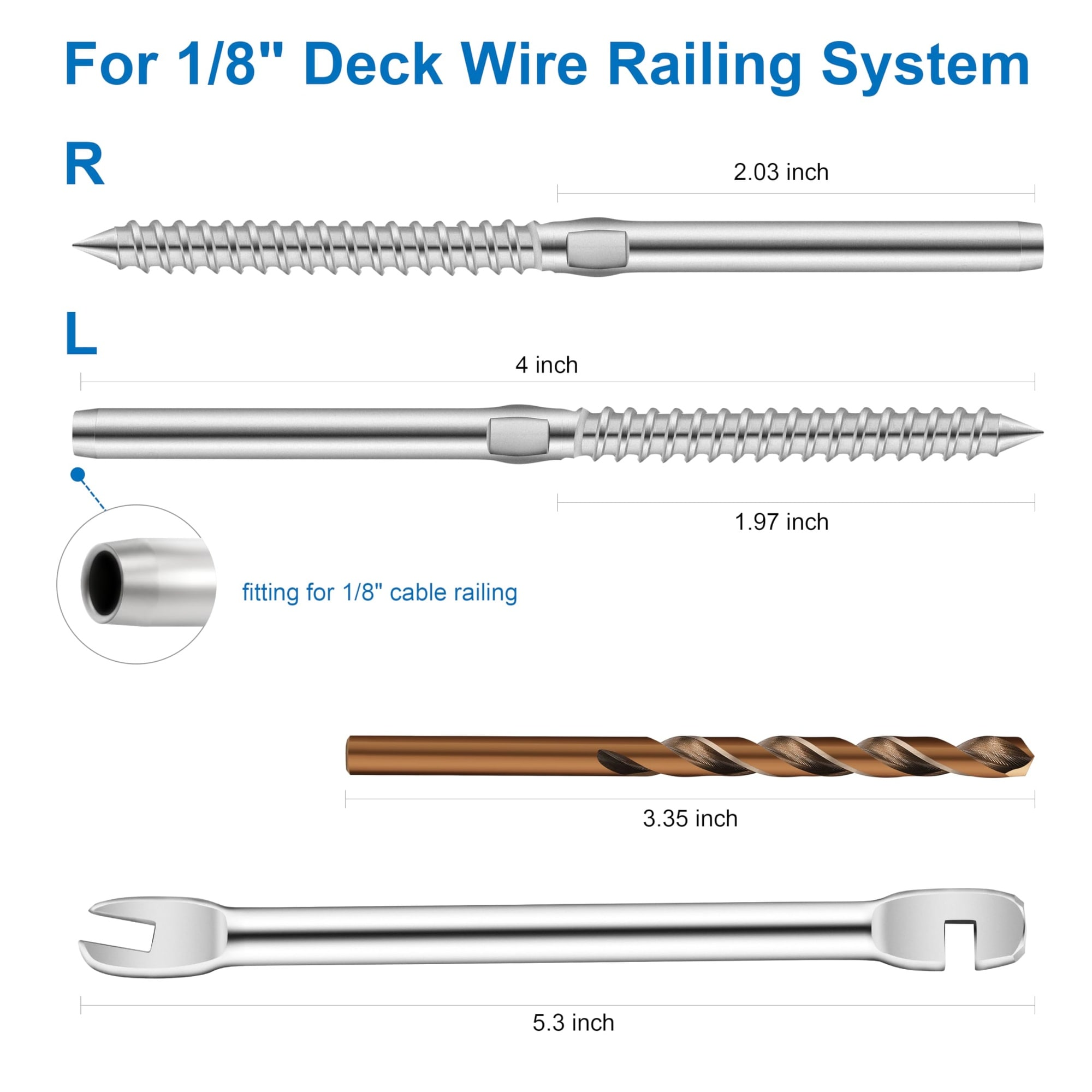

Build a cable railing project for wood posts with this 60-piece swage lag screw set. The package contains 30 left handed swage lag screws and 30 right handed swage lag screws, along with 2 spanner multi tools and 2 drill bits. The system is suited to straight, stair or angled sections and can be used for indoor or outdoor applications including staircases, balconies and decking areas. It is designed for 2 x 2, 4 x 4 and 6 x 6 inch wood posts and works with other brands' 1/8 inch stainless cable and cable railing kits. The hardware is made from T316 marine grade stainless steel. Source specifications identify high tensile strength, anti-fatigue strength, weatherproof construction and strong resistance to rust and corrosion, making the hardware suitable for coastal installations. The cable railing system requires hardly any maintenance. Right and left handed thread versions rotate in the same direction as the cable is tightened, helping prevent twisting or damage to the cable during adjustment. Size details include a 2 inch thread length, 1/4 inch thread diameter, 1/5 inch drilled hole, 1/8 inch hole size, 4 inch overall length and 1.57 inch hole depth. The listed pull-out value is 580 kg. To install, thread the threaded end into the wood post to adjust cable tension. Do not tension the cable railing too much. The included reinforced wrenches help with the work, and the installation recommendation is to use two people. These swage lag screws require a special swaging tool to secure them on the wire. The package measures 6.1 x 4.1 x 1.5 inches and weighs 970.69 g. These are package measurements and weight. The set provides left and right handed swage lag screws plus the listed tools and drill bits for planning a DIY wood post cable railing project.
Use the swage lag screw system for straight stair or angled sections of indoor or outdoor cable railing on staircases balconies and decking areas
For 2 x 2 4 x 4 and 6 x 6 inch wood posts with a 2 inch thread length 1/4 inch thread diameter and 4 inch overall length
T316 marine grade stainless steel provides high tensile strength anti-fatigue strength and resistance to rust and corrosion for coastal installations
Right and left handed threads rotate in the same direction to tighten 1/8 inch stainless cable without twisting or damaging the cable
Adjust cable tension by threading the lag screw into the wood post use two people and a special swaging tool and avoid overtensioning the cable

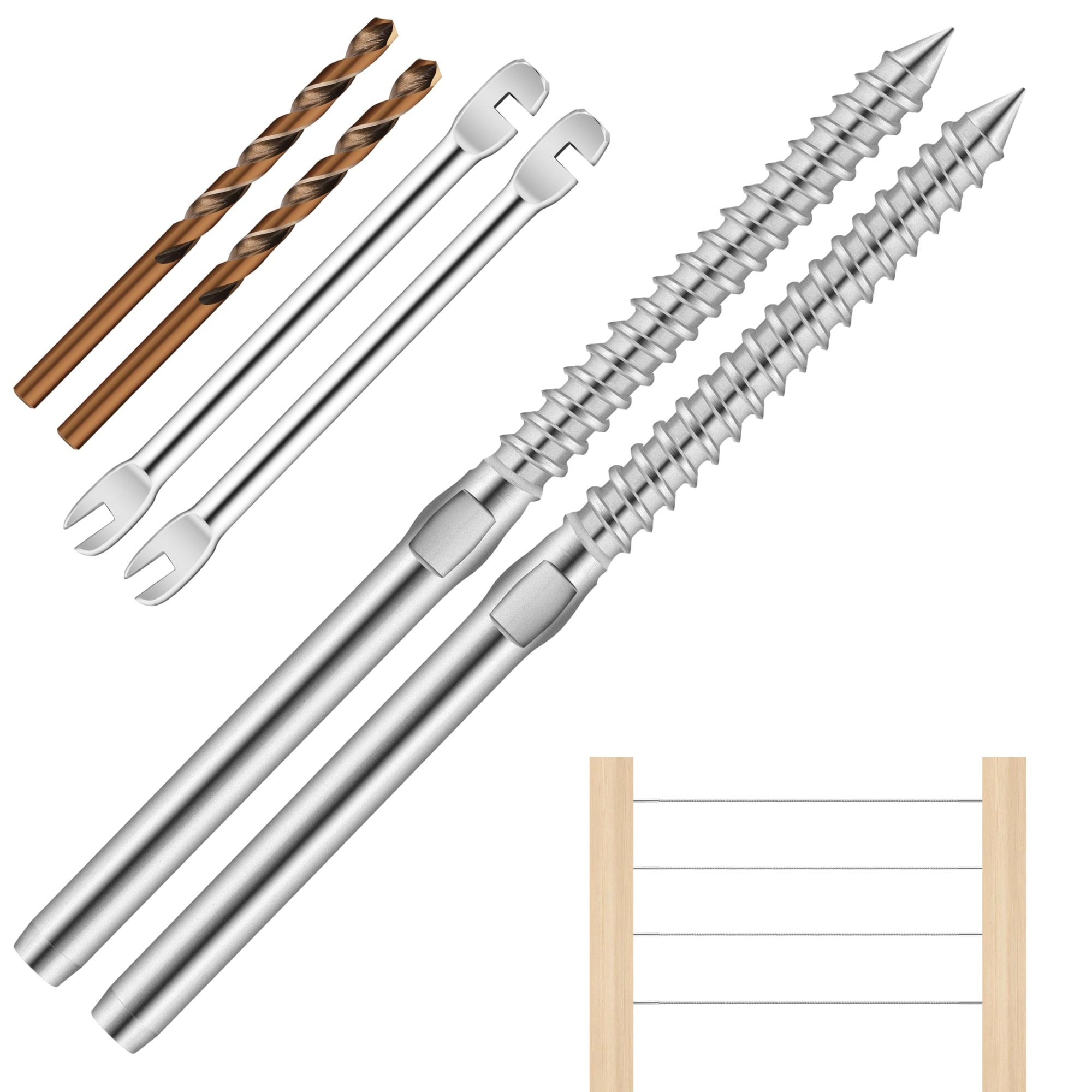

Package includes 30 left swage lag screws 30 right swage lag screws 2 spanner multi tools and 2 drill bits with a 970.69 g package weight
