Wagner Flexio Sprayers
Collection Items
SUCCESSWhen should I expect to get my items?
See availability by item
Items Included in this Collection
Item #875374 |
Model #0529091
Sprays up to 12X faster than a brush, covering an 8x10 wall in less than 5 minutes
Stationary base with 11.5 foot air hose keeps weight off your hand for improved comfort during extended use with integrated storage in the base
Ideal HVLP paint and stain sprayer for interior and exterior projects such as walls, decks, fences, furniture, and cabinets
Variable speed X-Boost turbine sprays unthinned latex and oil-based paints, stains, urethanes, and paint-and-primer coatings directly from the can
Fully adjustable settings including flow control, spray pattern, spray width, and variable speed for precision painting
iSpray nozzle delivers fast, even coverage on large surfaces like walls, ceilings, and siding
Detail Finish nozzle provides a smooth, fine finish for cabinets, furniture, trim, and detailed work
Lock-N-Go technology allows quick material changes and easy cleanup
Access Wagner+ via QR code for product registration, how-to guides, manuals, and more
General | |||
|---|---|---|---|
Collection/Series Name | Flexio 5000 | Pump Type | Turbine |
Type | Stationary | Cup Material | Plastic |
Power Source | Electric | Cup Fed | Yes |
Package Quantity | 1 | Direct Syphon | No |
Grade | Residential | Material Flow Control | No |
Use Location | Indoor/Outdoor | Number of Turbine Stages | 2 |
Airflow (CFM) | 0 | Airflow Control | No |
Housing Material | Plastic | Needle Type | Round |
Dimensions | |||
|---|---|---|---|
Depth (Inches) | 16.5 | Maximum Hose Length Capability (Feet) | 11.5 |
Height (Inches) | 15 | Minimum Fan Pattern Width (Inches) | 4 |
Hose Length (Feet) | 11.5 | Weight (lbs.) | 14.86 |
Maximum Cup Capacity | 48-oz | Width (Inches) | 13.5 |
Maximum Fan Pattern Width (Inches) | 10 | ||
Features | |||
|---|---|---|---|
Adjustable Pattern Control | No | Multi-Directional Spray | Yes |
Adjustable Spray Pattern | Yes | Pressure Rating (PSI) | 0 |
Built-In Hose Swivel | No | Battery(s) Included | No |
Cordless | No | Number of Spray Tips Included | 0 |
Flow Rate (GPM) | 0 | Project Size | Medium |
Lowe's Exclusive | No | ||
Warranty | |||
|---|---|---|---|
Warranty | 1-year limited | ||
Certifications | |||
|---|---|---|---|
CA Residents: Prop 65 Warning(s) | Safety Listing | ETL safety listing | |
Compatibility | |||
|---|---|---|---|
For Use with Stains | Yes | For Use with Walls | Yes |
For Use with Latex Paints | Yes | For Use with Floors & Ceilings | Yes |
For Use with Oil Paints | Yes | For Use with Woodworking Projects | Yes |
For Use with Doors | Yes | For Use with Furniture & Cabinets | Yes |
For Use with Acrylic Paints | Yes | For Use with Decking | Yes |
For Use with Lacquers | No | For Use with Fencing | Yes |
For Use with Water-Based Paints | Yes | For Use with Oil-Based Stains | Yes |
For Use with Elastomerics | No | Use with Material Flash Point (Degrees) | 100 |
For Use with Urethanes and Varnishes | Yes | For Use with Primer | Yes |
Miscellaneous | |||
|---|---|---|---|
UNSPSC | 31211900 | ||
Ratings may include incentivized customer reviews.
What Customers Are Saying
The paint sprayer is generally well-received, with users praising its ease of use, versatility, and ability to deliver a smooth, professional-looking finish. Key positives include a lightweight and well-balanced design, compatibility with a variety of paints, and adjustable nozzles and spray patterns for different projects. Many customers report significant time savings and high-quality results. However, some users experienced issues with clogging or inconsistent spray patterns, requiring frequent cleaning and adjustments. Overall, the product is considered a capable and valuable tool for DIY and small to medium-sized projects.
Customer review summary generated by AI, including incentivized reviews.I love it
I have a Graco airless prosumer grade painter but it is really too much to get out for smaller projects. I read up on various smaller sprayers and settled on this one. It works great. Sprayed exterior semi-transparent stain with it and then clear coat over the stain. It did a great job. I haven't done paint yet but I see no reason it will not do well if I follow the directions.
Verified Purchaser
Easy to use

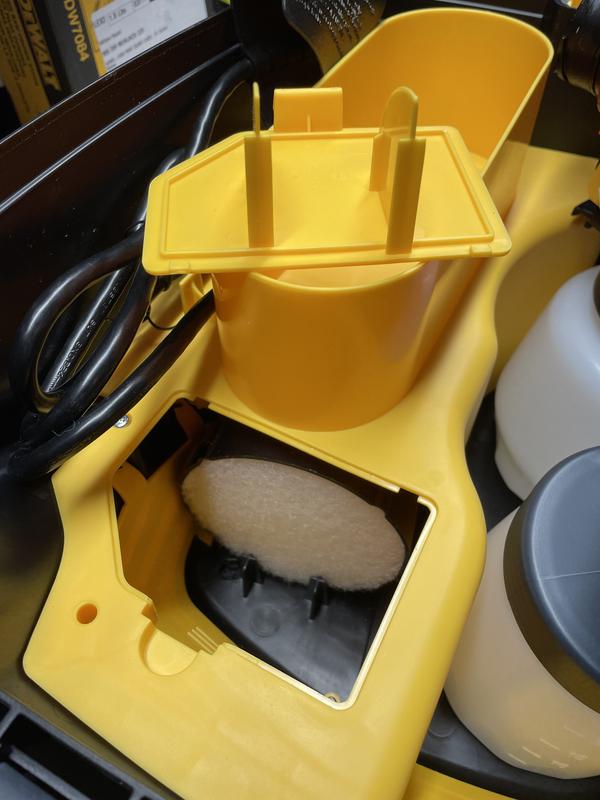

Very straight forward to set up and use. Biggest thing to get used to is your hand movement. It does take practice I wish the air intake filter was located on the outside of the unit. It would be easier to get out and there would be less dust and urethane mist getting into the storage unit.
From wagnerspraytech.com
The Good and the Bad
I did a lot of research prior to buying this sprayer, and I’m glad I bought it. But there are a few things about it that bug me, and since I didn’t see them listed in any other reviews, I’ll list them here. (Wagner, pay attention.) This wasn’t available in my local Lowe’s, so I had to order it. It arrived via FedEx in a few days, in good condition. I really like that it has a nice hard case to store everything in. The case is also the blower unit that makes the air that sprays the paint, and ...
Capability Misrepresented
I purchased the Flexio 5000 specifically for a crib project I was building for our first grandchild. The non-toxic crib paint specifically instructed not to thin the paint. Since the Flexio 5000 has this line in the documentation "It has the flexibility to spray indoors and out with the power to spray unthinned latex paint and stains with full coverage" I purchased the sprayer. Neither one of the guns would spray the paint properly. I ended up with spatters and what looked like a popcorn ce...
From wagnerspraytech.com
Hello PrayingMantis, Thank you for contacting Wagner Spray Tech. We are so very sorry to learn that you experienced difficulties with your Wagner FLE...
Awesome sprayer
First of all I need to say I hate to paint. I’ve tried other sprayers, rollers, brushes…and I decided to try the flexio 5000. I am so happy I did. Actually read the directions, followed them and went to work. Incredible results and so little time and that includes the cleanup. The only way it could have been easier is if I just sat and watched someone else do it. If you are on the fence about this, just go get one. You’ll never look back and maybe never grab a brush again!
From wagnerspraytech.com
Hello Marty62, Thank you for your five-star review! We are thrilled to learn that you are a fan of your Wagner FLEXio 5000 sprayer! We appreciate your...
Works great!
So far it's working great. I considered a more professional system, but the cleaup on thiose things are terrible. The Flexio 5000 is really easy to clean. I used the fine finish gun (it comes with two guns), with Sherman Williams Gallery paint on my kitchen cabinets. They look great. The Gallery paint is already thinned for use in HVLP gun. It's very expensive, but a perfect match for this system.
Hello Alan,
Thank you for your five-star review! We are thrilled to learn that you are a fan of your Wagner FLEXio 5000 sprayer. It sounds as ...
Flexio 5000 .....Two days using my first spray gun
Painted a stairwell to the basement plus walls and drop ceiling in our 34' rec room. Surface prep, hanging plastic, covering flooring and whatever you leave in the room is pretty time consuming. Read the manual 3 or 4 times. It's a big deal. YouTube videos are helpful for learning and procedures...like cleaning. I primed and painted all surfaces with latex products. Thinning was not necessary. I disassembled the nozzle and used Dawn and hot water for cleanup. I immerse these parts and fl...
From wagnerspraytech.com
Thank you for your review.
great so far
I recently purchased the Flexio 5000 for both outside and furniture spraying. It has provided great results. Check out some of the many videos online for suggestions. My input is get a measuring cup. The 2 or 3 paints I have used are water based and work better with a 5-10% dilution. Also get a viscosity checking cup. After 10% dilution the time to empty the viscosity cup went from a minute to just under 30 seconds. It sprays much better after diluting. I have successfully sprayed several cabin...
From wagnerspraytech.com
Hello Chuck in AZ, Thank you for your five-star review! We are thrilled to learn that you are a fan of your Wagner FLEXio 5000 Sprayer! You are corr...
Great sprayer!
I love my Flexio 5000. I bought a Home Right Super Max Finish first so I’m going to make some comparisons between them. The Flexio sprays a super nice and beautiful finish. I find the Home Right has more of a tendency to sputter paint. I use Wise Owl acrylic enamel and Behr primer. I do strain every time. I love how easy the Flexio is to clean! It seriously cleans up so fast. The Home Right is a bit of a pain and takes forever to get paint out of places! The Home Right has a top fo...
From wagnerspraytech.com
Great Sprayer Value for Money
I bought this about a month ago to spray paint some furniture. It was easy to set up and after playing around to thin the paint properly and adjust the air flow, the spray quality was excellent. I was able to spray the pieces well quickly and achieve a uniform finish. The sprayer was really easy to clean for the next coat. I also love how everything fits into what is essentially the base of the sprayer for easy storage. This was a great purchase for me.
From wagnerspraytech.com
Hello Marc C, Thank you for your five-star review! We are thrilled to learn that you are a fan of your Wagner FLEXio 5000 Sprayer! How great that yo...
Thanks for your review. Only one correction. The Detail Finish nozzle does have material flow control in the form of a knob on the trigger that restr...
