Graco Magnum X7 Airless Paint Sprayer and Tip Extension Kit














Item #295433 |
Model #262805
Sprays unthinned paint and a variety of other coatings
Adjustable spray speed to suit whatever your project demands
Great for indoor/outdoor projects like fences, decks or house
Just right for DIY Homeowners and Remodelers looking for more power and mobility when tackling larger projects
Ideal for projects up to 15 gallons in size, allowing you tackle multiple projects every year
Fully adjustable pressure control to give you ultimate control to spray paints or stains unthinned at any pressure
Flexible Suction Tube allows you to spray directly from a 1 or 5-gallon paint bucket
Supports up to 100 ft of paint hose to reach peaks or second stories and leave your sprayer in one place without diminishing performance
Supports 12 TrueAirless Spray Tips giving you the flexibility to complete a number of projects with ease
General | |||
|---|---|---|---|
Collection/Series Name | Magnum X7 | Pump Type | Piston |
Series Name | Magnum X7 | Filter Type | 30-mesh |
Type | Stationary | Gun Trigger Type | 4-finger |
Power Source | Electric | Cup Fed | No |
Grade | Residential | Direct Syphon | Yes |
Use Location | Indoor/Outdoor | Spray Gun Material | Metal |
Airflow (CFM) | 0 | Material Flow Control | Yes |
Housing Material | Plastic | ||
Dimensions | |||
|---|---|---|---|
Depth (Inches) | 19.5 | Minimum Fan Pattern Width (Inches) | 4 |
Direct Syphon Capacity | 1-5 gallon | Minimum Tip Size (Inches) | 0.009 |
Height (Inches) | 36.75 | Tip Size | 0.015-in |
Hose Length (Feet) | 25 | Tip Size Code | 515 |
Maximum Fan Pattern Width (Inches) | 10 | Weight (lbs.) | 26 |
Maximum Hose Length (Feet) | 100 | Width (Inches) | 15.5 |
Maximum Hose Length Capability (Feet) | 100 | Battery Amp Hours | 0 |
Maximum Tip Size (Inches) | 0.017 | Diameter of Hose Included | 1/4-in |
Features | |||
|---|---|---|---|
Actual Gallons per Minute | 0.31 | Multi-Directional Spray | Yes |
Adjustable Fan Pattern Control | Yes | Pressure Rating (PSI) | 3000 |
Adjustable Spray Pattern | Yes | Pump Replaceable | No |
Battery(s) Included | No | Spray Gun Filter | Yes |
Built-In Hose Swivel | No | Variable PSI | Yes |
Cordless | No | Voltage (Volts) | 110 |
Engine Horsepower | 0.625 | Wheeled | Yes |
Flow Rate (GPM) | 0.31 | Project Size | Large |
Compatibility | |||
|---|---|---|---|
For Use with Stains | Yes | For Use with Walls | Yes |
For Use with Latex Paints | Yes | For Use with Floors & Ceilings | Yes |
For Use with Oil Paints | Yes | For Use with Woodworking Projects | Yes |
For Use with Doors | Yes | For Use with Furniture & Cabinets | Yes |
For Use with Acrylic Paints | Yes | For Use with Decking | Yes |
For Use with Lacquers | No | For Use with Fencing | Yes |
For Use with Water-Based Paints | Yes | For Use with Oil-Based Stains | Yes |
For Use with Elastomerics | No | Use with Material Flash Point (Degrees) | 100 |
For Use with Urethanes and Varnishes | Yes | For Use with Primer | Yes |
Certifications | |||
|---|---|---|---|
CA Residents: Prop 65 Warning(s) | Safety Listing | ETL safety listing | |
Warranty | |||
|---|---|---|---|
Warranty | 1-year limited | ||
Miscellaneous | |||
|---|---|---|---|
UNSPSC | 31211900 | ||
Ratings may include incentivized customer reviews.
What Customers Are Saying
The Graco LTS 17 Magnum paint sprayer is a versatile and effective tool for both DIY and professional painting projects. Many users praised its ease of use, consistent spray pattern, and time-saving capabilities, allowing them to efficiently paint large areas. The sprayer also works well with a variety of paint types without clogging. However, some users noted that the setup and cleanup process can be more involved, requiring thorough cleaning and maintenance. A few customers also experienced issues with the sprayer not working properly or developing problems after limited use.
Customer review summary generated by AI, including incentivized reviews.Did not disappoint
So far so good! I was literally on the fence on multiple different types of machines and debating between three different Grecos and I’m not disappointed in this at all and my decision. It’s very easy to set up and granite. I’ve only had it for a month or so, and have only been working on staining offense. Could you easily go with the Grayco five of course, but I wanted something that had wheels just to make it easier for me to move around it’s not heavy and gets the job done. Let’s just hope i...
Verified Purchaser
Good Value
This airless sprayer works very well and is pretty simple to operate. Cleaning is pretty straightforward and probably as easy as it can get. The frame is completely plastic. Most photos I saw during my research showed a metal handle, but mine is plastic. It seems pretty sturdy and should hold up well. My only concern is that every time I pulled the trigger to spray, a small blob of paint shot out first, kind of off to the side. Once I sprayed over it, it seemed to be okay. Maybe a different tip ...
From magnum.graco.com
Highly Recommend
Purchased to apply multiple coats of house paint (40 gallons) on some 1600 sq ft of cedar fence. Anticipating 40-year life span of fence. Unit easy to use, pressure dial-in for fan spray very easy. Lost prime once, regained in less than 30 seconds. Still using 515 tip, purchased 517 tip as back-up. First airless sprayer. Own and have used air sprayers (external and internal mix tips) to paint several vehicles, as well as house shutters. Lots less overspray issues with airless unit. Highly recomm...
From magnum.graco.com
Great sprayer for the price.
I've used several different airless sprayers over the years. Borrowed from friends, rentals etc. This is the first airless sprayers I have owned. Worked just as well as any other I have used. Zero problems. My project took about 5 hours to spray out; painting a large barn. No clogs and easy to move around the job site.
From magnum.graco.com
Fast and Easy

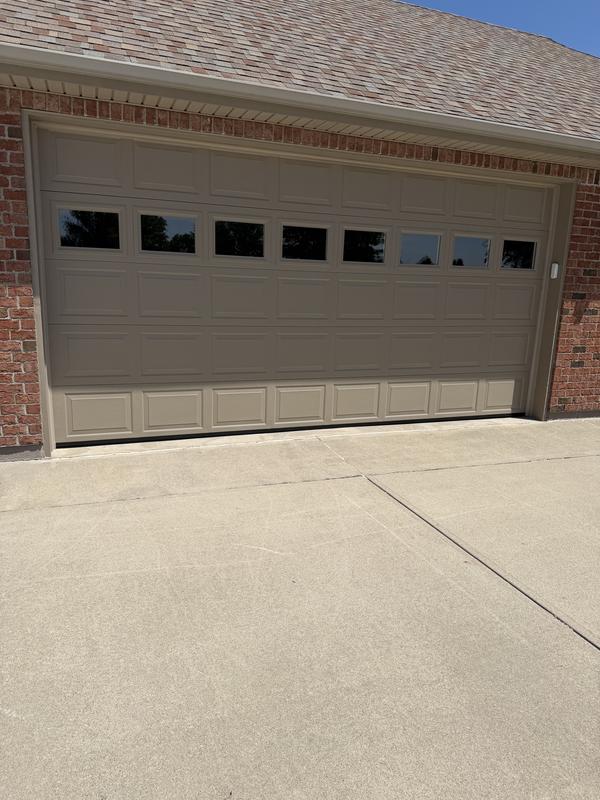

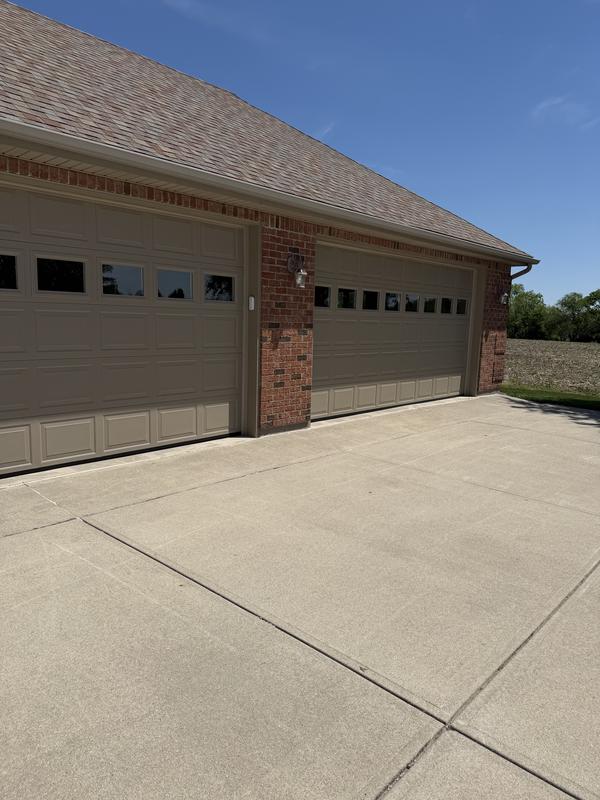

This was my first attempt to paint with my Graco since the purchase. The instructions were pretty clear and easy to follow. I did however encounter a small problem. The waste that occurred while priming seemed excessive. I painted 4 steel garage door and they turned out great
From magnum.graco.com
Great product!
Finished using with my kitchen walls and ceiling. I've never used a sprayer of any kind and choose Graco by watching reviews on YouTube, and reading reviews from Google. There is definitely a learning curve to using one but overall I am very impressed. Once you get the hang of it you can really lay the paint down quickly and smoothly. I purchased the Magnum X7 with the plan to paint the entire kitchen, I have a fence,(child containment system) that is very long, and the house needs painting as...
From magnum.graco.com
Good Investment

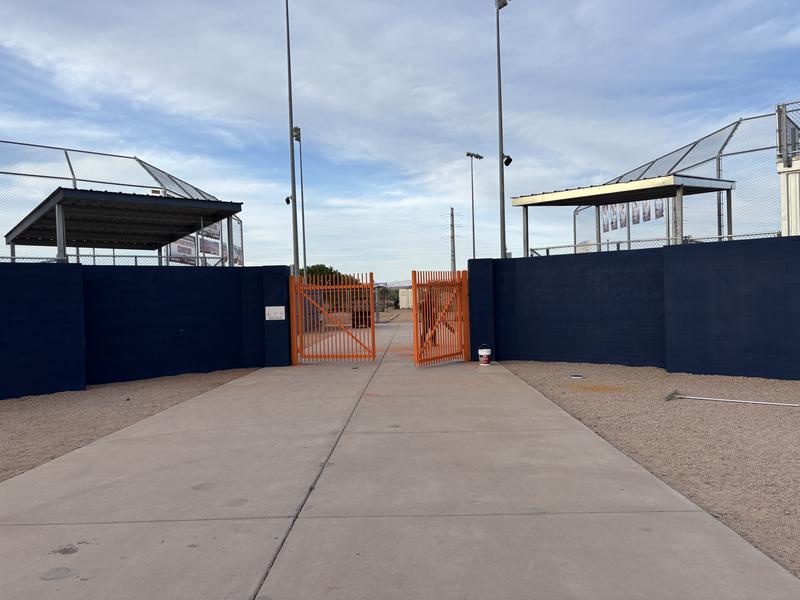

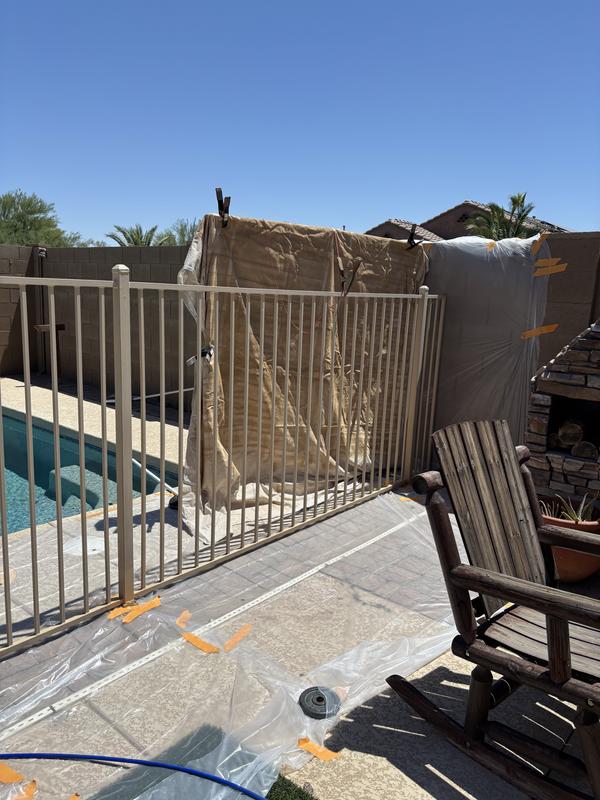

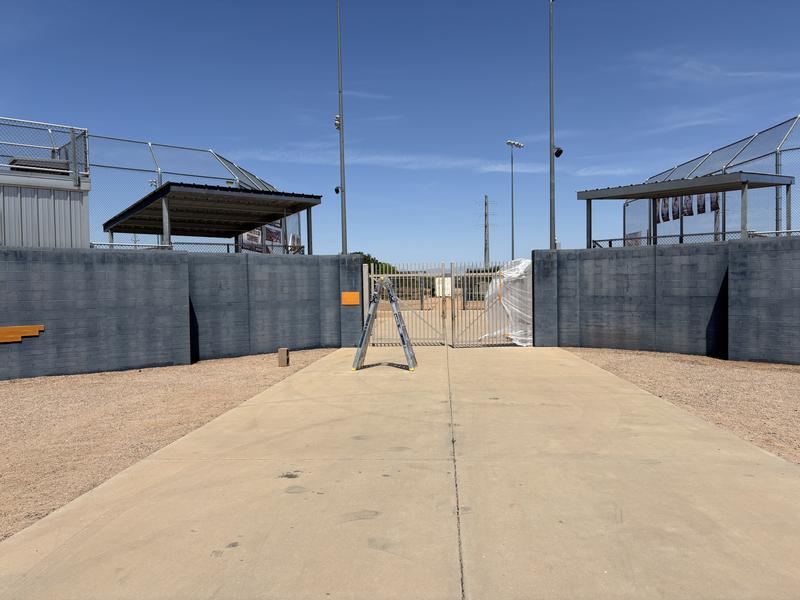

I have had this for 2 weeks. Originally purchased to donate time painting a high school softball stadium. Knowing other projects I had at my house, renting would offset the cost of purchasing. Painted 2 60’ by 10 foot tall concrete entrance walls and a gate. We transitioned easily to paint foul poles and scoreboard legs. Was easy to figure out, following the directions which I don’t normally do!!! That was definitely important and very easy to do. I then took it home to paint a metal pool fenc...
From magnum.graco.com
Great Product with a learning curbe
After spraying 30 gallons of PVA primer, followed by 2 gallons of interior paint, there is definitely a learning curve. Not sure if it’s the gun or the user, but I continue to struggle with “spittle” and wish I could find a definitive solution.
From magnum.graco.com
Great little airless for a homeowner.
Great little airless for a homeowner. (Many years ago I wasa painting contractor.) Added another 50’ of house, 3’ whip, and 4’ extension wand. Kept up spraying latex primer then SW Emerald exterior satin with minimal thinning. Kept up very well with a 515 tip—but I had to slow down for desired coverage thickness. A 517 tip made it run all out but it never pulsed or surged—and it stopped pumping immediately when not spraying. Pressure was easy to fine tune to the product and measured down a ve...
From magnum.graco.com
Simple setup and use
I bought this item after a careful and lengthy review of paint sprayers. This one stood out for its ease of use and sale item. Right out of the box, it was easy to set up and did the job. A few things I'd like to see changed are: the hose could be longer, and managing the hose can be a challenge, especially high up on a ladder. A swivel attachment would make it so much more manageable. Lastly, moving the sprayer can be a challenge when a 5-gallon sprayer is used. I feel that if the unit were a b...
From magnum.graco.com
