Graco Graco X7 APP Pro Sprayer Bundle














Item #295433 |
Model #262805
Sprays unthinned paint and a variety of other coatings
Adjustable spray speed to suit whatever your project demands
Great for indoor/outdoor projects like fences, decks or house
Just right for DIY Homeowners and Remodelers looking for more power and mobility when tackling larger projects
Ideal for projects up to 15 gallons in size, allowing you tackle multiple projects every year
Fully adjustable pressure control to give you ultimate control to spray paints or stains unthinned at any pressure
Flexible Suction Tube allows you to spray directly from a 1 or 5-gallon paint bucket
Supports up to 100 ft of paint hose to reach peaks or second stories and leave your sprayer in one place without diminishing performance
Supports 12 TrueAirless Spray Tips giving you the flexibility to complete a number of projects with ease
General | |||
|---|---|---|---|
Gun Trigger Type | 4-finger | Type | Stationary |
Spray Gun Material | Metal | Filter Type | 30-mesh |
Cup Fed | No | Grade | Residential |
Direct Syphon | Yes | Pump Type | Piston |
Material Flow Control | Yes | Power Source | Electric |
Airflow (CFM) | 0 | Use Location | Indoor/Outdoor |
Collection/Series Name | Magnum X7 | Series Name | Magnum X7 |
Housing Material | Plastic | ||
Dimensions | |||
|---|---|---|---|
Diameter of Hose Included | 1/4-in | Tip Size Code | 515 |
Maximum Hose Length Capability (Feet) | 100 | Depth (Inches) | 19.5 |
Direct Syphon Capacity | 1-5 gallon | Height (Inches) | 36.75 |
Minimum Tip Size (Inches) | 0.009 | Weight (lbs.) | 26 |
Maximum Fan Pattern Width (Inches) | 10 | Width (Inches) | 15.5 |
Minimum Fan Pattern Width (Inches) | 4 | Hose Length (Feet) | 25 |
Maximum Hose Length (Feet) | 100 | Maximum Tip Size (Inches) | 0.017 |
Tip Size | 0.015-in | Battery Amp Hours | 0 |
Features | |||
|---|---|---|---|
Actual Gallons per Minute | .31 | Project Size | Large |
Built-In Hose Swivel | No | Voltage (Volts) | 110 |
Multi-Directional Spray | Yes | Pressure Rating (PSI) | 3000 |
Spray Gun Filter | Yes | Flow Rate (GPM) | 0.31 |
Variable PSI | Yes | Adjustable Spray Pattern | Yes |
Adjustable Fan Pattern Control | Yes | Engine Horsepower | .625 |
Pump Replaceable | No | Cordless | No |
Battery(s) Included | No | Wheeled | Yes |
Compatibility | |||
|---|---|---|---|
For Use with Latex Paints | Yes | For Use with Furniture & Cabinets | Yes |
For Use with Oil Paints | Yes | For Use with Decking | Yes |
For Use with Oil-Based Stains | Yes | For Use with Fencing | Yes |
For Use with Primer | Yes | For Use with Acrylic Paints | Yes |
For Use with Urethanes and Varnishes | Yes | For Use with Lacquers | No |
For Use with Doors | Yes | For Use with Water-Based Paints | Yes |
For Use with Walls | Yes | For Use with Elastomerics | No |
For Use with Floors & Ceilings | Yes | Use with Material Flash Point (Degrees) | 100 |
For Use with Woodworking Projects | Yes | For Use with Stains | Yes |
Certifications | |||
|---|---|---|---|
CA Residents: Prop 65 Warning(s) | Safety Listing | ETL safety listing | |
Warranty | |||
|---|---|---|---|
Warranty | 1-year limited | ||
Miscellaneous | |||
|---|---|---|---|
UNSPSC | 31211900 | ||
Ratings may include incentivized customer reviews.
What Customers Are Saying
The Graco LTS 17 Magnum paint sprayer is a versatile and effective tool for both DIY and professional painting projects. Many users praised its ease of use, consistent spray pattern, and time-saving capabilities, allowing them to efficiently paint large areas. The sprayer also works well with a variety of paint types without clogging. However, some users noted that the setup and cleanup process can be more involved, requiring thorough cleaning and maintenance. A few customers also experienced issues with the sprayer not working properly or developing problems after limited use.
Customer review summary generated by AI, including incentivized reviews.D.I.Y. Airless Sprayer
We have similar sprayer at work and wanted one for myself, for painting side jobs, so I'm familiar with product and operations. Right out of the box and feed line in 5 gal bucket of paint, i was painting effortlessly. I bought extension wand,longer hose and extra spray gun screen to get my sprayer the extra accessories to help me spay better. Will explore sprayer tips as an option for spray patterns and materials. A+ product
From magnum.graco.com
Terrific Airless Paint Sprayer!
Great airless paint sprayer! Nice even coat everytime. Assembly and clean up couldn't be easier.
Verified Purchaser
Mostly great

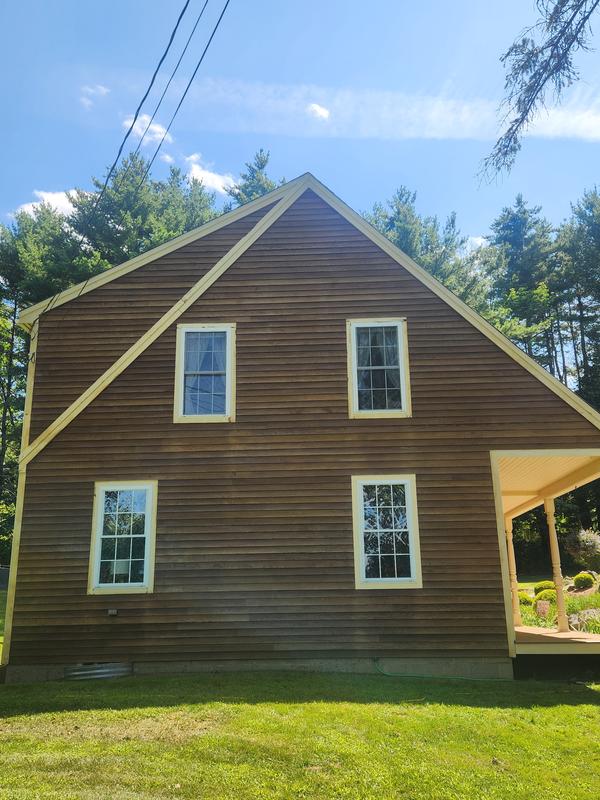

I am delighted with the X7 operation after just completing the staining of one side of my house. I'm a little disappointed while learning the operation on you tube, that older units used to have a chrome metal handle instead of the flimsy plastic tube and also a longer power cord instead of the 1ft length now. The sprayer tubing is extremely stiff and difficult to control when compared to my 3000psi pressure washer tube. I'm surprised there is not more flexible tubing option.
From magnum.graco.com
New Tool
Used twice, worked perfectly so far. Clean up for oil based coatings, fence stain for me, takes a bit longer but still easy enough. Have personally not had any issues with priming or spraying and the sprayer made insanely quick work of both sides of about 120 ft. of new wood fence. Next attempt will be the wife's office inside the house. Happy so far!
Verified Purchaser
Graco Magnum X7. Best choice
I’m not a painter but prefer doing my own work. I checked and asked around which airless sprayer are the best. Graco came out on top. Started shopping around for sprayer for personal use and found Magnum X7 to fit my needs. Did my first spray on some metal railing. I was pleasantly surprised how easy and how nice it came out. Should have got one long time ago. Sure beats roller and brush. Thanks Graco.
From magnum.graco.com
Simple cleanup and set up
This was the first time I had used a sprayer like the X17; I usually use gravity-fed sprayers. It worked amazingly and was easy to clean. During setup, I had very few challenges, and cleanup was pretty easy. It took me longer to set up and clean up than it did to paint 18 1" x6" x 16' wood planks (boards). I am still learning the sprayer and how to reduce paint waste during spraying operations, but that will come with time and practice.
From magnum.graco.com
Easy Peasy
I bought this airless sprayer about 6 weeks ago. I hate to paint, but this sprayer made it easy. I used it for the first time yesterday, and stained 150 feet of cedar fence, board on board in one day. Both sides! It was pretty simple to get it ready to spray and once I got a rhythm going it went pretty smooth. I’m a first timer with an airless sprayer, but I would definitely recommend this product.
From magnum.graco.com
Sprayer worked fantastic

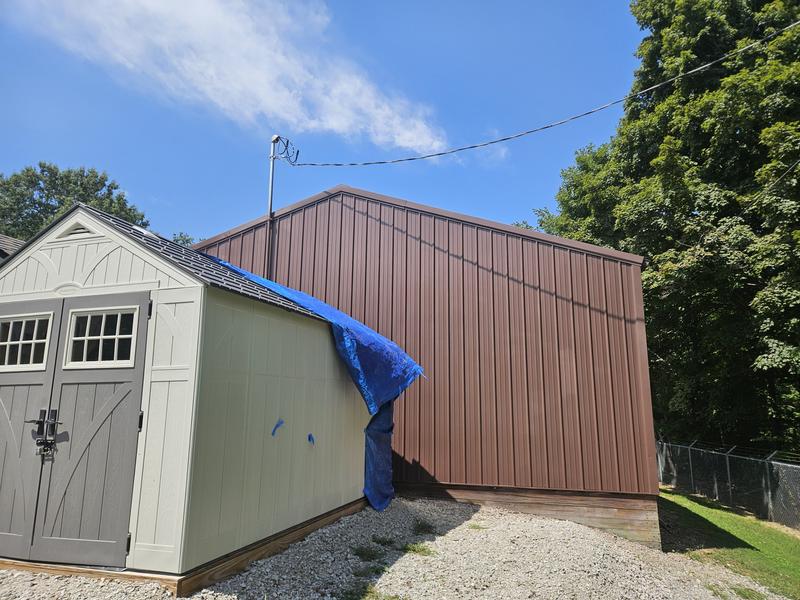

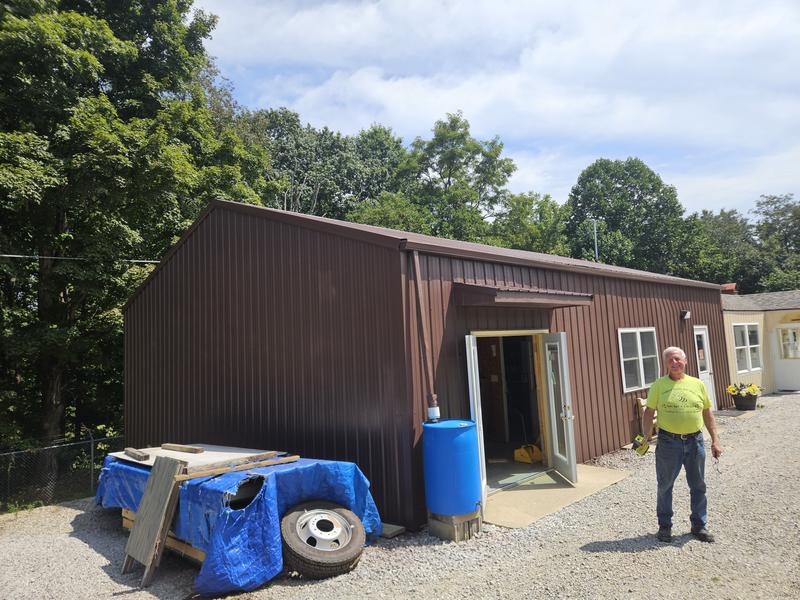

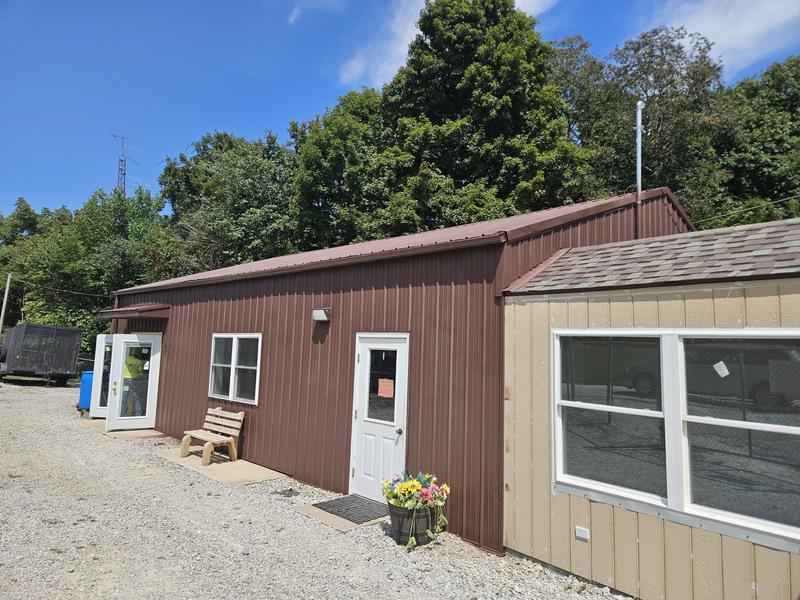

I just finished up spray painting a Morton building and using my new sprayer for the first time. It working fantastic and was so simple to set up and worked fantastic! Could be more pleased.
From magnum.graco.com
Way quicker and fun to use!

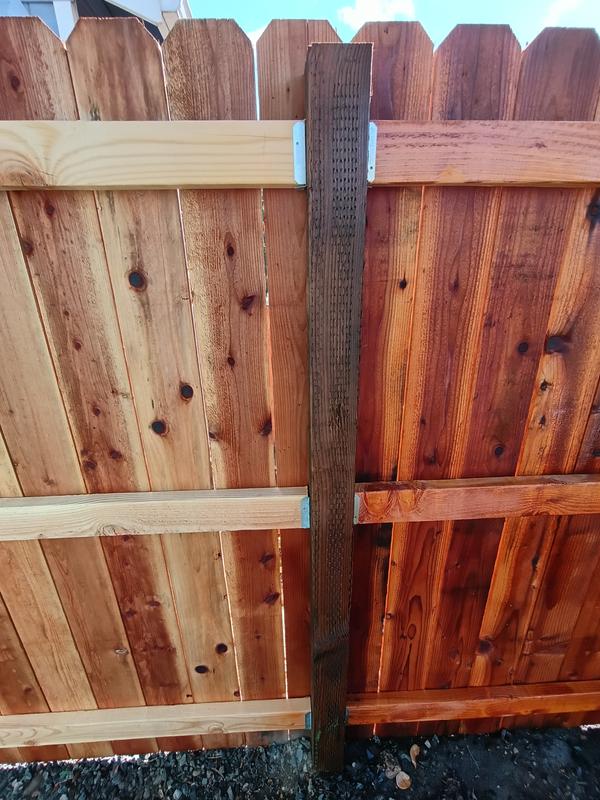

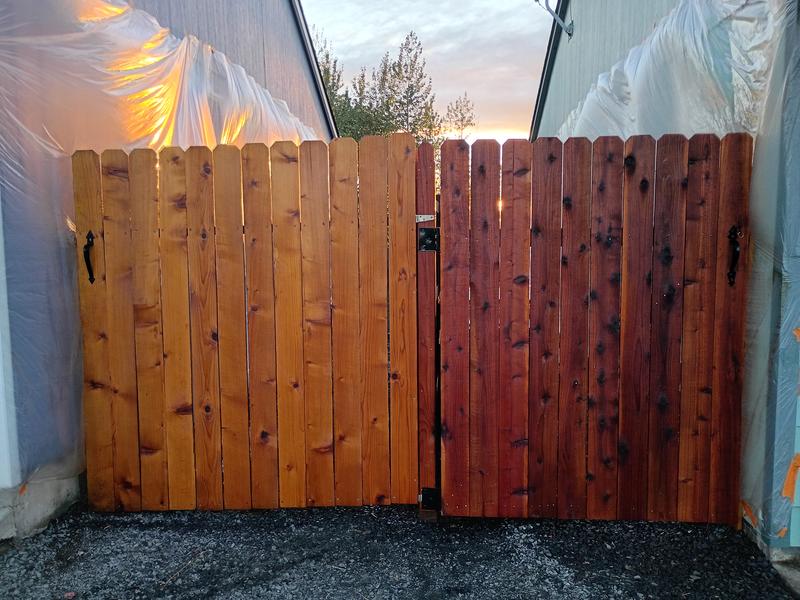

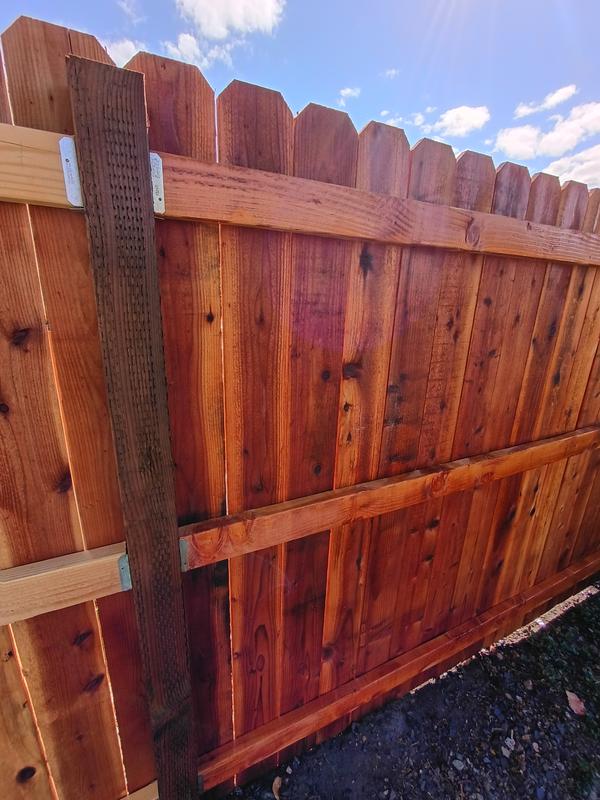

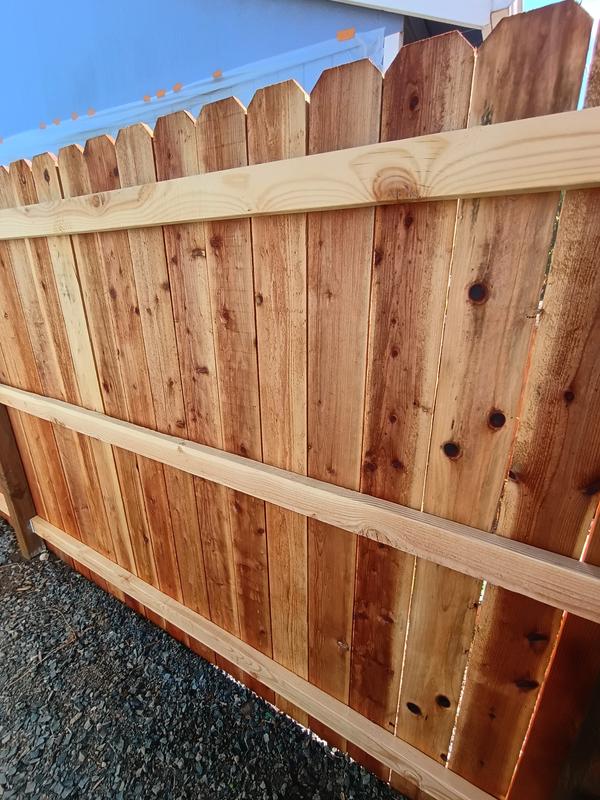

Just got done staining my fence and I love this sprayer! It was a little hard at first to go through all the steps to get it working properly it once I did it was awesome!
From magnum.graco.com
Game Changer for Large Fences — Fast, Powerful, an

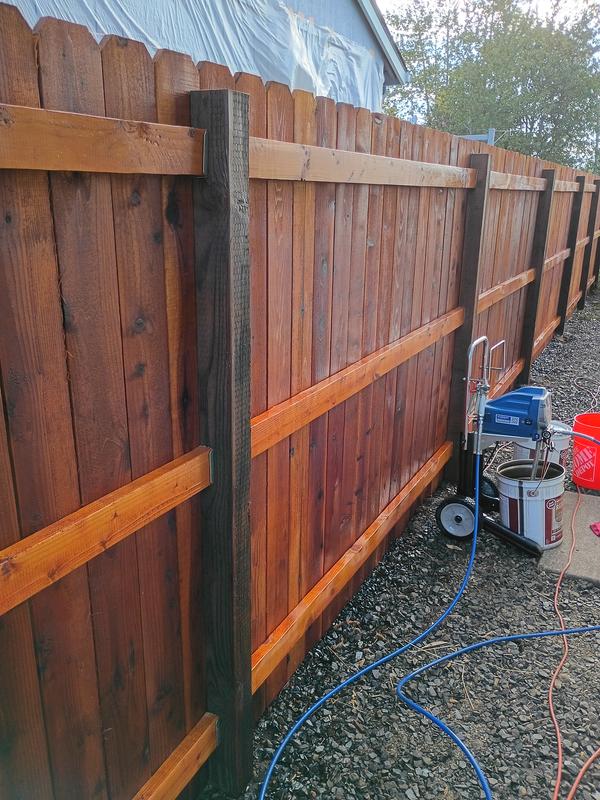

I recently used the Graco Magnum X7 to paint 300 yards (900 feet) of fencing, and it absolutely smashed my expectations. By swapping out the stock hose for a larger 100-foot hose, I was able to knock out the entire raw painting time in just 7 hours.The combination of the X7’s power and the longer hose meant I barely had to move the actual machine or the heavy 5-gallon paint buckets. I could just walk the line and keep a steady, continuous pace. Even with 100 feet of line, the sprayer maintained ...
Verified PurchaserVerified Pro
