CRAFTSMAN 54-in Gas Zero Turn Riding Lawn Mower Z5800 & Accessories Bundle
Collection Items
When should I expect to get my items?
See availability by item
Items Included in this Collection
Item #2593138 |
Model #CMXGNAM211704
Powerful engine: Powered by a reliable 24 HP Kohler® 7,000 twin-cylinder engine
Adjustable lap bar: Easy to operate 3-way adjustable lap bar allows you to work more efficiently
Comfort: Rubber foot pad provides a smoother ride with less vibration
Increased traction control: 20x8/11x6 Turf Master® tires offer excellent traction without damaging your yard
Durable: 54-in stamped steel deck holds up against tough obstacles.
Cut-and-sew seat: High-back seat provides comfort and support to make sure the job gets done right
Warranty: 3-year limited product manufacturer warranty and 5-year frame warranty
Engine disclaimer: Engine power ratings are as certified by the engine manufacturer as actual operating power may vary
See the Parts and Attachments section below and the parts diagram in the images section for all the correct CRAFTSMAN® mowers parts and accessories
General | |||
|---|---|---|---|
Blade Engagement Type (PTO) | Electric | Power Source | Gas |
Deck Type | Stamped | Seat Type | High-back |
Drive Type | Rear wheel drive | Series Name | Z5800 |
Engine Type | V-twin | Start Type | Turn key start |
Number of Deck/Anti-Scalp Wheels | 3 | Transmission Type | Dual hydrostatic |
Oil Filter Type | Spin-on | Type | Zero-turn riding lawn mower |
Dimensions | |||
|---|---|---|---|
Cut Width (Inches) | 54 | Minimum Cutting Height (Inches) | 1.5 |
Engine Oil Capacity (oz.) | 65 | Overall Length (Inches) | 85 |
Front Wheel Size | 11-in | Overall Width with Deck (Inches) | 62 |
Fuel Capacity (Gallons) | 3.5 | Rear Wheel Size | 20-in |
Maximum Cutting Height (Inches) | 3.75 | Weight (lbs.) | 865 |
Features | |||
|---|---|---|---|
Ammeter | No | Engine Series | Kohler 7,000 |
Bagger Capable | Yes | Front Axle | Fabricated steel |
Bagger Included | No | Grease Fittings | Yes |
Charger Included | No | Headlight(s) | No |
Cruise Control | No | Lowe's Exclusive | Yes |
Deck Gauge | 13 | Maximum Forward Speed (MPH) | 7 |
Discharge Location | Side | Maximum Reverse Speed (MPH) | 3.5 |
Engine Brand | KOHLER | Model Description | Craftsman 54-in with Kohler ZTR |
Engine Displacement (Cu. Centimeters) | 724 | Mulching Capable | Yes (kit sold separately) |
Engine Horsepower | 24 | Number of Blades | 3 |
Engine Oil Included | Yes | Operator-Controlled Mow-in-Reverse | No |
Compatibility | |||
|---|---|---|---|
Attachment Compatible | Rear | Recommended Yard Size | 2 to 3 acres |
Matching Bagger (Item #) | 1136141 | Replacement Belt OEM Part Number | 954-04329A |
Matching Mulch Kit (Item #) | 5216233 | Replacement Blade OEM Part Number | 742P05086 |
Recommended Terrain Type | Flat with obstacles | ||
Warranty | |||
|---|---|---|---|
Warranty | 3-year limited | ||
Miscellaneous | |||
|---|---|---|---|
UNSPSC | 21101700 | ||
Ratings may include incentivized customer reviews.
What Customers Are Saying
The mower is generally well-received, with customers praising its performance, maneuverability, and power. It cuts grass efficiently and provides a smooth, even cut, even on inclines. The mower is described as having a sturdy construction, reliable engine, and easy-to-use controls. However, some customers have reported issues with the transmission, flat tires, and the blade flying off. A few users also noted the lack of an hour meter and fuel gauge as drawbacks. Overall, the mower appears to be a capable and well-designed zero-turn mower that meets the needs of many homeowners with medium to large-sized yards.
Customer review summary generated by AI, including incentivized reviews.Customer Sentiment
A beast of a machine!
So far this mower is a beast! My old commercial Scag 60" deck drive broke after 17 years, and I mow over 4 acres at one time in the foothills of East Tennessee, I have very diverse typography and uphill and downhill sideways, you name it, very challenging. I'm quite impressed with this Craftsman mower, and put it through some extremely difficult tasks, grass over 2ft tall and rough terrain. The easy deck lift/lowering is easy and great for me, being only 5'2, no more foot pedal lift. It has a ve...
Verified Purchaser
Check it over
Got it home, saw no owners manual. Oh well, just downloaded it from online. Went out the next morning to try it out. Filled it with gas. Called for 1.9 quarts of oil. Let it settle,checked the dipstick, too much, went to drain a little bit out found out the oil plug was only in one turn. It was already leaking out.. If I wouldn’t have put too much in and went to drain some back out, I would’ve never saw that and I’m sure that plug would’ve fell out and I would’ve ruined that motor. Wouldn’t. st...
Why Craftsman - MADE IN USA
The frame is built solid. It definitely needs an articulating front axel. There are no grease fittings on the front wheel spindles nor the blade spindles. They both should have them. Sealed bearings only go so far. They need to use stainless steel bolts in the entire deck. I replaced all mine before even using it. Mows fast but if the grass is too high,(over 4") it leaves an unmowed strip on the right center of the swath, so go slow in higher grass. If you kick the blades in gear at idling spe...
Verified Purchaser
Hello. Thank you for taking the time to provide your feedback. Your feedback is valuable as we take into consideration every piece of feedback that w...
Good Zero Turn mower.
Im still getting use to cutting with it. First zero turn i ever own.
Verified Purchaser
Right Tractor for the Right Job
Everything I Expected from Craftsman. 24 horsepower, quick start, excellent on fuel consumption with accessories for every task. Mower runs strong and easier to operate than expected.
Verified Purchaser

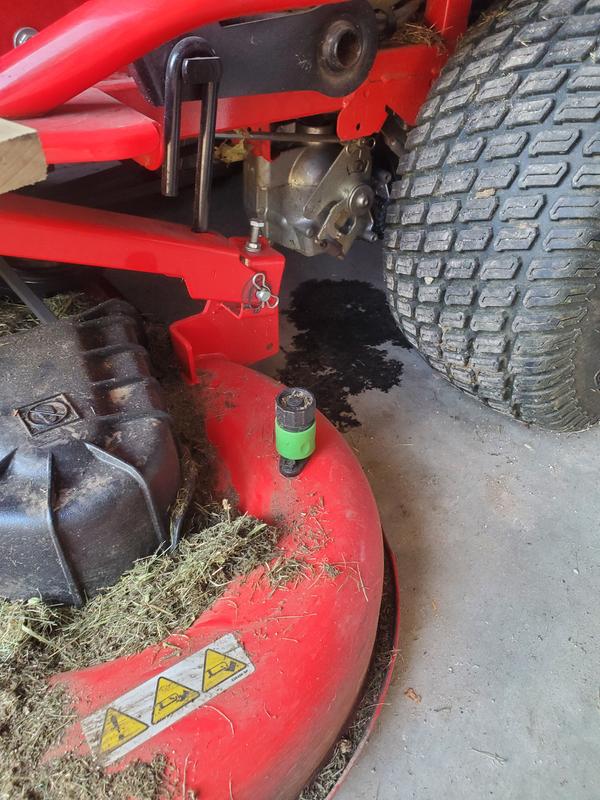

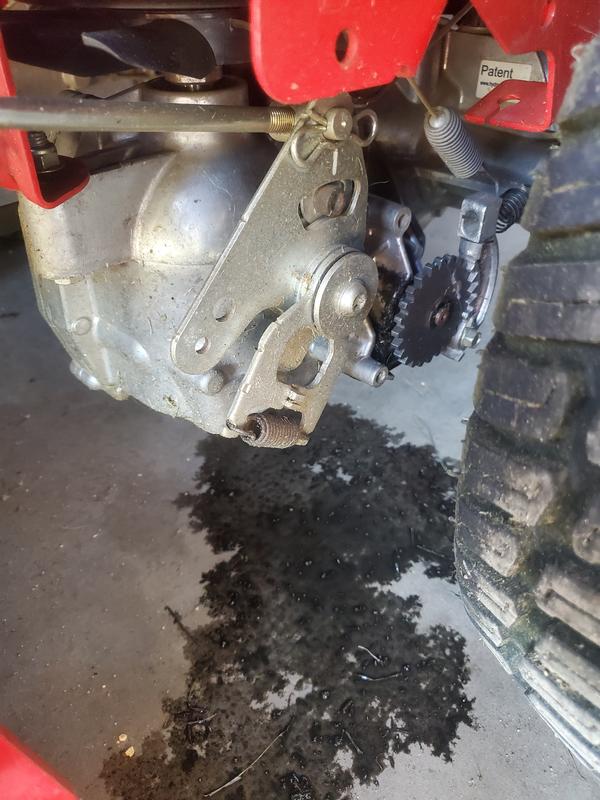

Hydro Transmission Leak - DO NOT BUY!
I purchased my Craftsman zero turn mower about 2 years ago and the area I live in only allows seasonal mowing for the spring and summer. I bought this mower with high hopes. I love Craftsman and dad and grandma owned all Craftsman but this mower has destroyed this tool tradition for me. Recently, my LH transmission has started leaking and left a large puddle of oil in my garage. I even purchased the additional warranty and it still was not repaired when I contacted Lowes Protection Plan's about ...
Hi. We're sorry to hear about the issues you are experiencing with your equipment. We recommend contacting one of our Authorized Serviced Centers...
no traction
the mower, everything seems good except haven't been able to lower the trimmings gaurd and on very little inclined rear end slides loses traction, been really pondering about returning and try something different or just invest in maybe some different tires idk, but haven't had it long. isn't going to work at my house in its current setup
We're sorry to hear about the issues you are experiencing with your CRAFTSMAN equipment. We recommend contacting one of our Authorized Service Ce...
It's a great machine and a very good value.
This machine appears to be of very high quality, and it certainly is priced right. It came ready to crank up and start mowing with the addition of fuel only. I read the owner's manual to learn how to operate it and had no trouble starting it and mowing without any prior experience with this type of mower. It is very powerful and easy to get onto the operation of it. It runs over an hour on a tank of gas while cutting about an acre of grass. I highly recommend it. An 83 year old retiree.
Verified Purchaser
Worth every penny!!!
I wanted to updrade from my T8000 42" rider to a large deck zero turn. The Z5800 54" meet all of my needs, including set budget. The online sale experience was great and the scheduled delivery was excellent. It arrived with a no start but after some tinkering, it has started without any issues everything since. I wish it had an hours meter and possibly a fuel guage but, i am living it so far.
Verified Purchaser
Blade belt probably will break almost immediately
Bought this mower the other day, I was told by the salesman that they were having problems and returns because the blade belt broke with minimal usage, but otherwise a good mower. After about twenty minutes of use, sure enough the belt broke, tried to take the mower back for repair or replacement, same day, I had purchased the last one they had, so no replacement, repair would take two to three weeks. I did however purchase the protection plan, and was told if I called them that they would eit...
We're sorry to hear about the issues you are experiencing with your equipment. Please contact us directly at 1-855-971-2271 or email craftsmansup...
