VELUX TGR 10-in x 48-in Polycarbonate Self-flashing Galvanized steel Tubular Skylight
Item #5995055 |
Model #TGR 010 1000
Features a high-impact polycarbonate dome for hurricane-prone areas
Designed to be installed on shingle roofs with a pitch between 14-60 degrees
48-in of tube length with kit (two elbows and one 24-in extension)
99% reflective tube is ideal for longer tube lengths of up to 20-ft with additional ZTR 010 extensions (sold separately) as needed
Features VELUX Flexi Loc system designed to connect tubes without screws and reduce installation time
The one piece low profile metal flashing is easy to install and provides an integrated look with the roofline
Lights a room up to 200 sq-ft and is ideal for smaller spaces
Product does not comply with Colorado's Water & Efficiency Standards (requires U-factor ≤ 0.50) and is intended solely for non-residential applications
General | |||
|---|---|---|---|
Color/Finish Family | Gray | Glass Insulation | Non-insulated |
Frame Color/Finish | Gray | Exterior Material | Galvanized steel |
Series Name | TGR | Flashing Material | Glavanized steel |
Glass Type | Polycarbonate | Skylight Dome Type | Polycarbonate |
Installation Type | Self-flashing | Type | Rigid |
Dimensions | |||
|---|---|---|---|
Diameter (Inches) | 10 | Rough Opening Width (Inches) | 12.5 |
Length (Inches) | 48 | Maximum Roof Pitch (Degrees) | 60 |
Rough Opening Height (Inches) | 15.75 | ||
Features | |||
|---|---|---|---|
Flashing Included | Yes | Solar Night Light Included | No |
Hardware Included | Yes | U-Factor | .5 |
Minimum Roof Pitch (Degrees) | 14 | Solar Heat Gain Coefficient (SHGC) | .51 |
Certifications | |||
|---|---|---|---|
CA Residents: Prop 65 Warning(s) | ENERGY STAR Certified South/Central Zone | No | |
ENERGY STAR Certified North/Central Zone | No | ENERGY STAR Certified Southern Zone | No |
ENERGY STAR Certified Northern Zone | No | ||
Warranty | |||
|---|---|---|---|
Warranty | 10-year limited | ||
Compatibility | |||
|---|---|---|---|
For Use with Metal Roofing | No | For Use with RV Roofing | No |
For Use with Flat Roofing | No | For Use with Shingled Roofing | Yes |
Miscellaneous | |||
|---|---|---|---|
UNSPSC | 30171800 | ||
Check out the Best Selling Tubular Skylights on Lowes.com
Ratings may include incentivized customer reviews.
What Customers Are Saying
The sun tunnels provide bright, natural lighting that significantly improves the illumination in homes, especially in previously dark areas. Customers are generally satisfied with the installation process and the increased openness and light the product brings. While a few users experienced minor issues, the majority are highly pleased with the performance and quality of the sun tunnels.
Customer review summary generated by AI, including incentivized reviews.Excellent addition to our home
Added light where there was darkness in our townhome. Saw how much they improved a friends home and the sun tunnels we added made a huge improvement in the home. Recommend!
From whyskylights.com
Installed by Upper Edgee in Chino Valley Az

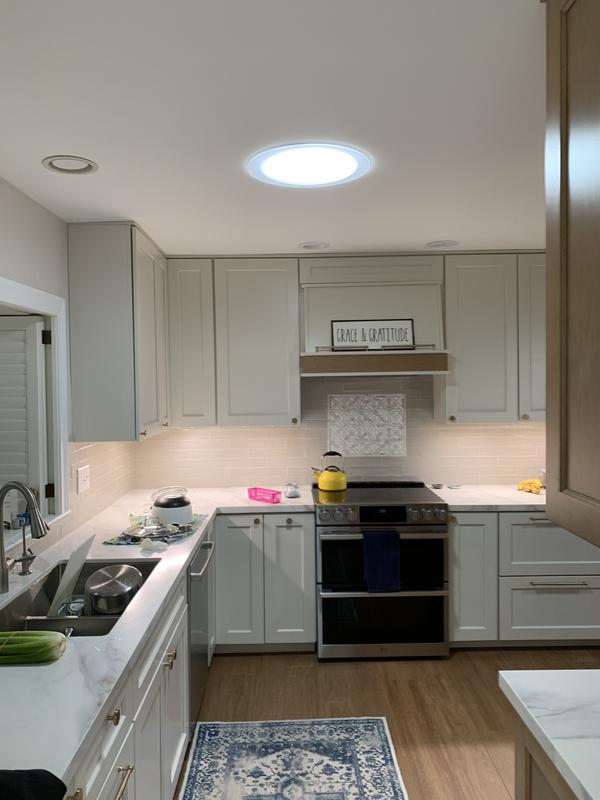

My Sun Tunnel was installed in my kitchen and my closet. I absolutely love them, especially the one in my closet. I can see everything so much better. It was pitch dark before and now it looks like heaven. You can't go wrong with these. They are worth every penny
From whyskylights.com
Fantastic light!
I just purchased 2 sun tunnels from Rob Little at upper edgee property services with installation. They are fantastic! The light we get is amazing! I highly recommend this product!
From whyskylights.com
Bugs inside; difficult to clean and put together.
I have had these sun tunnels for 9 years; I love the sun in my dark kitchen and hallway, but they are a pain to take apart, clean, and put back together! Bugs gather inside the tunnels, visible from below, and unsightly. Taking the frame off (twisting it) and replacing it is a nightmare. The design is ridiculous. There must be a better way to take these apart and replace (magnets, perhaps?) I need advice on how to update these or replace them. I would not recommend them as they are. I wou...
From whyskylights.com
Cold Weather Climate - ABSOLUTE GARBAGE!
Adds a great amount of light, that part is accurate. If you live in a cold weather climate, DO NOT install one of these! Even if you properly integrate the interior end of the tube and seal the vapor barrier and tube application (Which directions do not call for by the way) you will have a small fish bowl in your ceiling due to condensation. The two cheap, thin, pieces of plastic that terminate the tube on the interior, do not prevent the transfer of conditioned air into the tube. Once it meets ...
From veluxusa.com
We appreciate your detailed feedback, particularly regarding the condensation problem in cold weather climates. While our Sun Tunnel Skylights are des...
flies
I had a sun tunnel installed a few years ago and unfortunately it is now full of dead flies and I cannot remove the cover to clean it, have email vellum with no joy.
From veluxusa.com
We would love to help you resolve this issue and ask that you call us directly. 1-800-888-0361 if in the USA. For the United Kingdom, please dial 01...
Hello. I have a sun tunnel skylight. It is lovely during the day, but at night I wish it was very dark. How could I and what could I cover this device with and during the day take it down? Thank you.
From veluxusa.com
If you have a VELUX 14-inch Sun Tunnel Skylight with rigid tubing, consider a Daylight Controller, as seen on this link: https://www.veluxusa.com/prod...
Great love it
About a year ago we had the Sun Tunnel installed and love it. Unfortunately, last week we needed to replace the entire roof and the diffuser was lost during reinstalling the tunnel. Can someone tell me how and where I can get another 10 inch diffuser?
From veluxusa.com
Replacement parts can be purchased from a local VELUX dealer or you can reach out directly to VELUX customer service at 800-888-3589. Thank you.
Highly Recommend
Yes. Had one installed in my foyer coming in from the garage. An area with very little windows. Unreal how much light it gives off.
From whyskylights.com
Enhanced
I bought this a week ago and already it has enhanced the whole kitchen area whereas before I had to turn on the lights.
From veluxusa.com
1 Questions
1
Answer
Sorry for the delayed response. We would be happy to speak with you about how to remove the components to clean bugs in your sun tunnel. In 2018, we a...
