At a Glance
Tinted Glass
For Metal RoofsFor Shingled RoofsVELUX 21-in x 45-3/4-in Fixed Deck mount Aluminum Skylight with Laminated Low-E argon Glass
Item #317859 |
Model #FS C06 2004
Qualifies for a 10-year installation warranty when installed with EDL M08 flashing on a shingle roof with a pitch between 14° and 85°, EDW M02 on a tile roof, or EDM M02 on a metal roof (flashing kits are sold separately)
Features Clean, Quiet and Safe LowE3 laminated glass with a Neat® glass coating that keeps your skylight cleaner, reduces unwanted outside noise, and comes with a 10-year hail warranty against glass breakage
Consists of double paned argon gas filled LowE3 glass that provides excellent energy performance for year round comfort, plus the added safety of laminated glass, which building codes require for out of reach applications
Order VELUX EDL C06 flashing if you have a shingle, shake, or slate roof, or VELUX EDW C06 flashing if you have a tile roof, or VELUX EDM C06 flashing if you have a metal roof
General | |||
|---|---|---|---|
Color/Finish Family | Gray | Glazing Type | Laminated |
Frame Color/Finish | White | Glass Tint | Yes |
Glass Type | Tempered glass over laminated glass | Interior Frame Material | Woodbase |
Installation Type | Deck mount | Exterior Material | Aluminum |
Glass Insulation | Low-E argon | Skylight Style | Fixed |
Dimensions | |||
|---|---|---|---|
Actual Height (Inches) | 4.5 | Glass Thickness | 5/16-in |
Actual Length (Inches) | 48.75 | Outside Frame/Curb Height (Inches) | 46.25 |
Actual Length Measurement | 48-3/4-in | Outside Frame/Curb Width (Inches) | 21.5 |
Actual Width (Inches) | 24 | Rough Opening Height (Inches) | 4.5 |
Actual Width Measurement | 24-in | Rough Opening Length (Inches) | 45.75 |
Clear Opening Height (Inches) | 42.94 | Rough Opening Width (Inches) | 21 |
Clear Opening Size (W x H) | 18-3/16-in x 42-15/16-in | Weight (lbs.) | 46.8 |
Clear Opening Width (Inches) | 18.19 | Clear Opening Sq. Ft. | 5.42 |
Common Size (L x W) | 45-3/4-in x 21-in | Maximum Roof Pitch (Degrees) | 85 |
Features | |||
|---|---|---|---|
Actual Height Measurement | 4-1/2-in | Remote Control Included | No |
Clear Opening Height Measurement | 42-15/16-in | Rough Opening Height Measurement | 4-1/2-in |
Clear Opening Sq Ft | 5.42 | Rough Opening Length Measurement | 45-3/4-in |
Clear Opening Width Measurement | 18-3/16-in | Rough Opening Width Measurement | 21-in |
Flashing Included | No | Screen Included | Yes |
Hardware Included | Yes | Shade/Blind Included | No |
Minimum Roof Pitch | 14 | U-Factor | 0.44 |
Outside Frame/Curb Height Measurement | 46-1/4-in | UV Protection % (Percentage) | 99.9 |
Outside Frame/Curb Width Measurement | 21-1/2-in | ||
Compatibility | |||
|---|---|---|---|
App Compatibility | No | For Use with RV Roofing | No |
Smart Compatible | No | For Use with Shingled Roofing | Yes |
For Use with Metal Roofing | Yes | For Use with Tile/Clay Roofing | No |
For Use with Flat Roofing | No | ||
Certifications | |||
|---|---|---|---|
CA Residents: Prop 65 Warning(s) | ENERGY STAR Certified South/Central Zone | Yes | |
ENERGY STAR Certified North/Central Zone | Yes | ENERGY STAR Certified Southern Zone | Yes |
ENERGY STAR Certified Northern Zone | Yes | ||
Warranty | |||
|---|---|---|---|
Warranty | 10-year limited | ||
Miscellaneous | |||
|---|---|---|---|
UNSPSC | 30171800 | ||
Check out the Best Selling Skylights on Lowes.com
Ratings may include incentivized customer reviews.
What Customers Are Saying
The skylights are generally viewed as high-quality products that provide excellent performance and value, with many customers satisfied with the increased natural light, energy efficiency, and aesthetic improvements. However, some customers have reported issues with leaks and condensation, particularly with older models, as well as challenges finding compatible replacement parts. A few customers also noted a green tint to the glass that did not match the advertised appearance. With proper installation and maintenance, the skylights can provide long-lasting performance and transform the lighting and ambiance of a home.
Customer review summary generated by AI, including incentivized reviews.Are made better now than they used to be
I put in 16 skylights in my poolroom back in 99, within five years they were starting to rot out. I replaced two of them when no one would help me out. Was told they had to be at least 15 degrees angled, mine are 13. The two I replaced are still in very good shape the others are falling apart. I was told the calk to seal the glass was changed at some time ago and that is why the newer ones don't leak. Now I have to change the rest of them at my own expense since no one would help me out before.
From veluxusa.com
Peace of mind is priceless
Love our skylights, cheerful daylight clouds, admiring the moon at night. No leaks during heavy rain and winter snow. May install solar blinds to reduce sun streaming in room. Undecided but still have that option.
From whyskylights.com
Replacement skylights

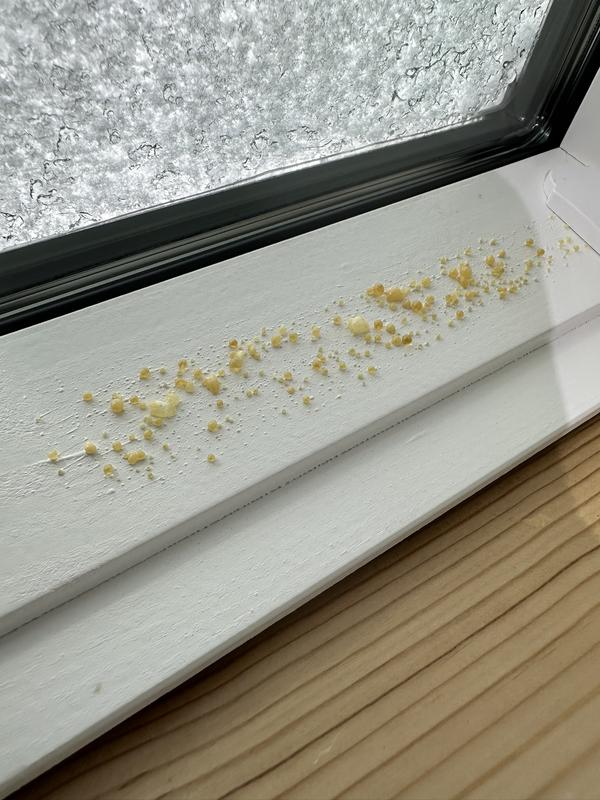

We had all 8 of our older Velux skylights replaced due to some leaking issues around the flashing. Love the look and function of them..... until we found that there is sap or something oozing out of the wood frame. Contacted support, and waiting on an answer as to how to proceed
From whyskylights.com
I sincerely apologize for the delay in responding to your message. I was pleased to see that the Technical Support Team was able to help you resolve t...
See The Light!
Purchased two fixed skylights to replace two older ones that had deteriorated. The difference in the amount of light showing through is fantastic.
From whyskylights.com
no replacement parts available
when the glass breaks you have to buy the whole 9 yards to get the part you need.
Verified Purchaser
Please call VELUX directly @ 1-800-888-3589 about your skylight parts needs. VELUX can help you determine what is needed/available and the best ...
Solar Blinds and Better Sound-quieting Upgrade
We bought these two months ago to replace our 20 year old Velux Skylights. The new ones have the Solar blinds with the wall mounted remote control that is synced to both of them. The new ones are even quieter than the old ones when it is raining hard outside. Very nice upgrade.
From whyskylights.com
Gives lots of light to the livingroom
Have had them a month and very happy with them and the light thy have brought into the house
From whyskylights.com
Wold not use anything but Velux.
Installed a year ago. Great look and is low maintenance. Replaced 21-year-old Velux units.
From whyskylights.com
Great skylight
[This review was collected as part of a promotion.] My skylights were replaced 5months ago and they are just perfect.
From whyskylights.com
Replaced 6 venting skylights, all had blown seals, with 6 Fixed skylights. They are beautiful and a study in simplicity.
From whyskylights.com
