For Flat RoofsFor Metal RoofsFor Shingled RoofsVELUX TZR 14-in x 64-in Insulated glass Curb mount Aluminum Tubular Skylight
Item #3648661 |
Model #TZR 014 2A00
This model features Wildfire Glass designed to adhere to California's strict building codes, including Wildfire Urban Interface
Fireproof tempered diamond wire flat glass allows it to pass an ASTM E108 Class A Burn Brand Test
Perfect for residential developments where local ordinances do not allow dome-shaped tubular skylights
For installation on site-built curb, which allows it to be installed on flat or low slope roofs (0-60 degrees)
64-in of tube included (two 12-in elbows, one 24-in extension, and one 16-in top collar adapter)
99% reflective tube is ideal for longer tube lengths of up to 20-ft with additional ZTR 014 extensions (sold separately) as needed
Tile roof flashing kit (ECW 014Z) is available and sold separately
Features VELUX Flexi Loc system designed to connect tubes without screws and reduce installation time
Compliant with Colorado's Water & Efficiency Standards (U-factor ≤ 0.50) for residential applications
General | |||
|---|---|---|---|
Color/Finish Family | Gray | Glass Insulation | Low-E argon |
Frame Color/Finish | Gray | Exterior Material | Aluminum |
Series Name | TZR | Flashing Material | Aluminum |
Glass Type | Tempered glass over tempered glass | Skylight Dome Type | Insulated glass |
Installation Type | Curb mount | Type | Rigid |
Dimensions | |||
|---|---|---|---|
Diameter (Inches) | 14 | Rough Opening Width (Inches) | 14.5 |
Length (Inches) | 64 | Maximum Roof Pitch (Degrees) | 60 |
Rough Opening Height (Inches) | 14.5 | ||
Features | |||
|---|---|---|---|
Flashing Included | No | Solar Night Light Included | No |
Hardware Included | Yes | U-Factor | 0.45 |
Minimum Roof Pitch (Degrees) | 0 | Solar Heat Gain Coefficient (SHGC) | .35 |
Certifications | |||
|---|---|---|---|
CA Residents: Prop 65 Warning(s) | ENERGY STAR Certified South/Central Zone | No | |
ENERGY STAR Certified North/Central Zone | No | ENERGY STAR Certified Southern Zone | No |
ENERGY STAR Certified Northern Zone | Yes | ||
Warranty | |||
|---|---|---|---|
Warranty | 10-year limited | ||
Compatibility | |||
|---|---|---|---|
For Use with Metal Roofing | Yes | For Use with RV Roofing | No |
For Use with Flat Roofing | Yes | For Use with Shingled Roofing | Yes |
Miscellaneous | |||
|---|---|---|---|
UNSPSC | 30171800 | ||
Check out the Best Selling Tubular Skylights on Lowes.com
Ratings may include incentivized customer reviews.
What Customers Are Saying
The product provides bright, natural lighting that significantly improves the illumination in homes, even in previously dark areas. Many customers are highly satisfied with the quality and performance of the skylights, describing them as "life-changing." The installation process is also praised for its efficiency and professionalism. While a few customers experienced minor issues like condensation or water leaks, the vast majority of users are extremely pleased with the product and would recommend it.
Customer review summary generated by AI, including incentivized reviews.Bugs inside; difficult to clean and put together.

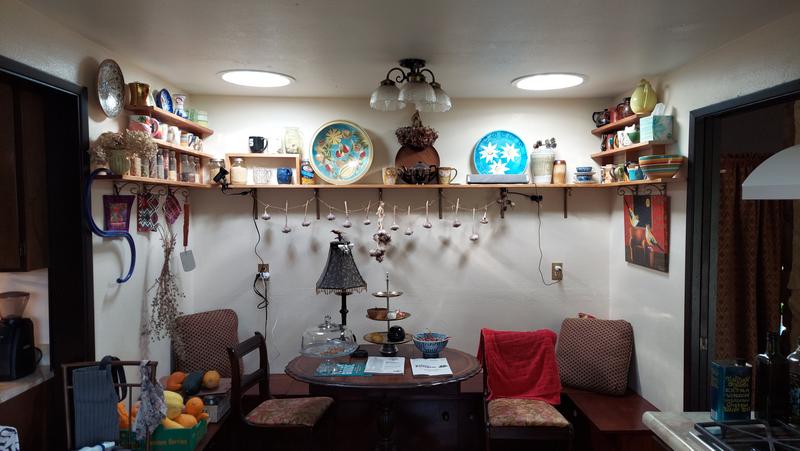

I have had these sun tunnels for 9 years; I love the sun in my dark kitchen and hallway, but they are a pain to take apart, clean, and put back together! Bugs gather inside the tunnels, visible from below, and unsightly. Taking the frame off (twisting it) and replacing it is a nightmare. The design is ridiculous. There must be a better way to take these apart and replace (magnets, perhaps?) I need advice on how to update these or replace them. I would not recommend them as they are. I wou...
From whyskylights.com
Cold Weather Climate - ABSOLUTE GARBAGE!

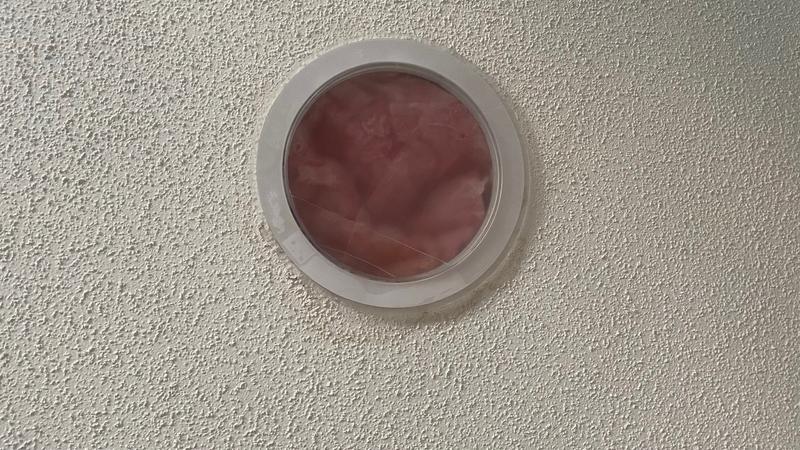

Adds a great amount of light, that part is accurate. If you live in a cold weather climate, DO NOT install one of these! Even if you properly integrate the interior end of the tube and seal the vapor barrier and tube application (Which directions do not call for by the way) you will have a small fish bowl in your ceiling due to condensation. The two cheap, thin, pieces of plastic that terminate the tube on the interior, do not prevent the transfer of conditioned air into the tube. Once it meets ...
From veluxusa.com
We appreciate your detailed feedback, particularly regarding the condensation problem in cold weather climates. While our Sun Tunnel Skylights are des...
flies

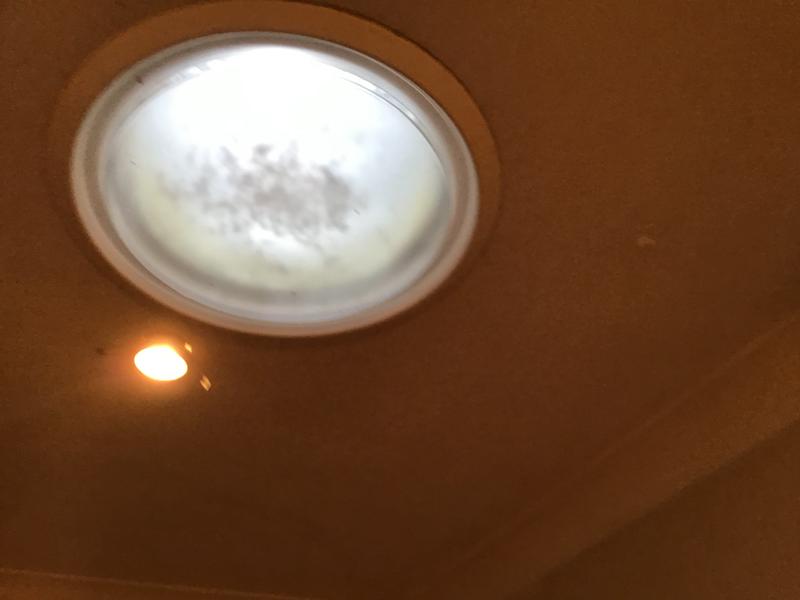

I had a sun tunnel installed a few years ago and unfortunately it is now full of dead flies and I cannot remove the cover to clean it, have email vellum with no joy.
From veluxusa.com
We would love to help you resolve this issue and ask that you call us directly. 1-800-888-0361 if in the USA. For the United Kingdom, please dial 01...
Great love it
About a year ago we had the Sun Tunnel installed and love it. Unfortunately, last week we needed to replace the entire roof and the diffuser was lost during reinstalling the tunnel. Can someone tell me how and where I can get another 10 inch diffuser?
From veluxusa.com
Replacement parts can be purchased from a local VELUX dealer or you can reach out directly to VELUX customer service at 800-888-3589. Thank you.

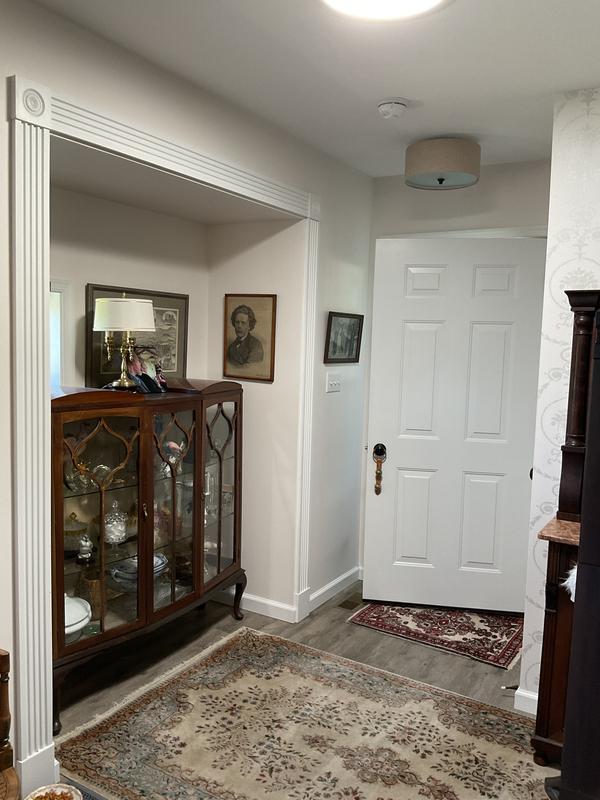

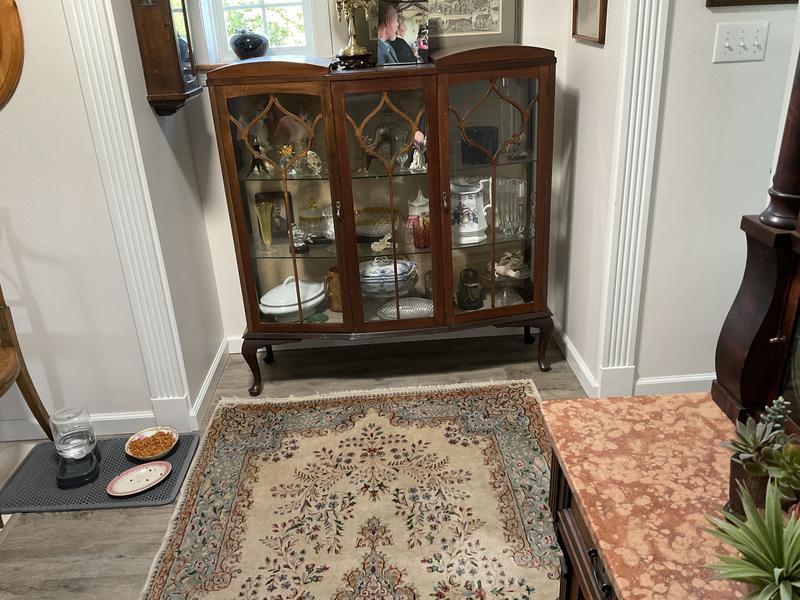

Highly Recommend

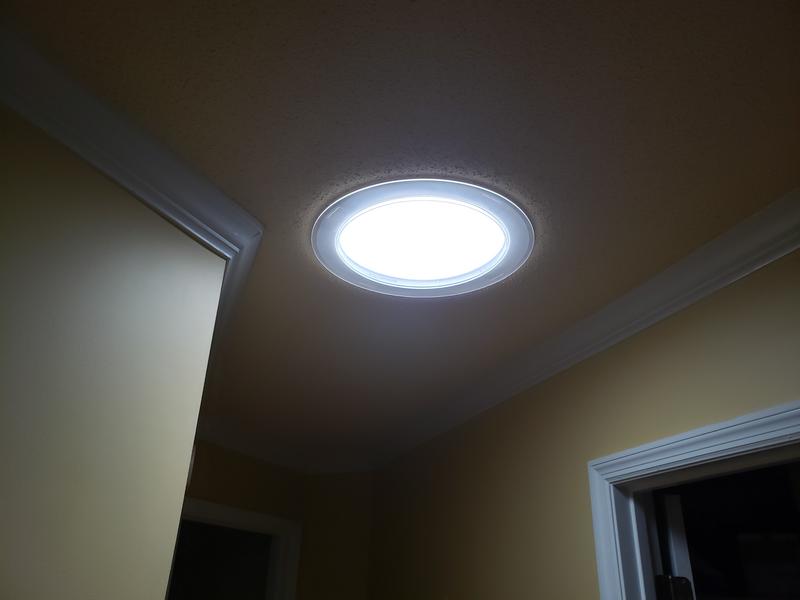

Yes. Had one installed in my foyer coming in from the garage. An area with very little windows. Unreal how much light it gives off.
From whyskylights.com
Don't turn the bottom ring more than you have to.
This has been installed for about six years now. Getting the bottom ring aligned with the three tabs is a bit of hunt and peck. Perhaps due to the home aging, ours got jammed and you can't see the alignment. I finally removed it with a little silicone spray and put tiny Sharpie marks on the edges and ceiling to show me when the tabs are aligned for removal. And you don't need to turn them more than a few degrees to secure it. Don't over-rotate! The light is great. Its like having a 200 watt b...
From veluxusa.com

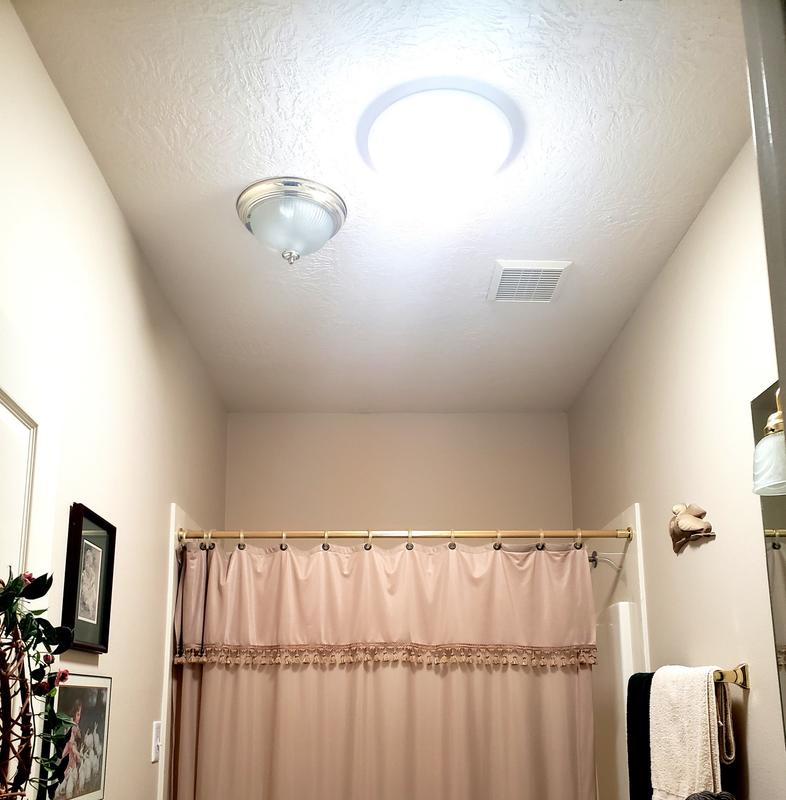

Best purchase we’ve ever made.

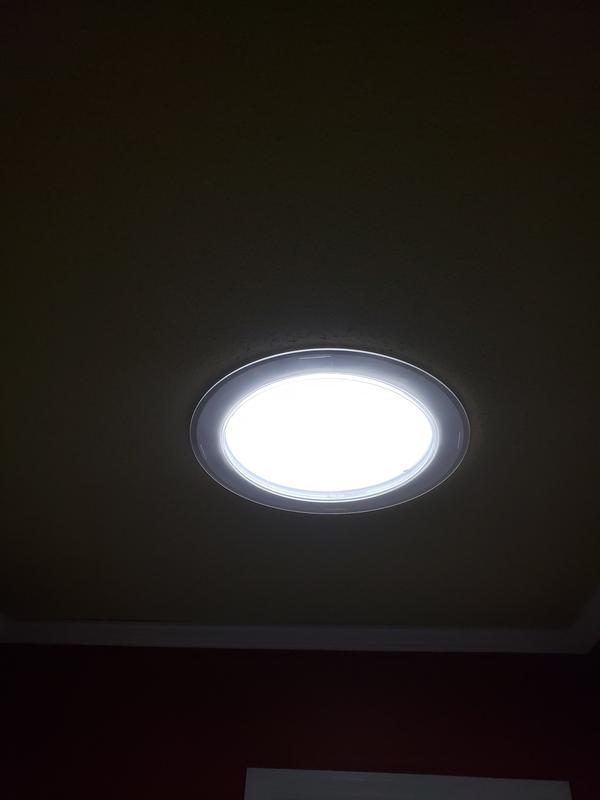

We bought this 4 years ago for a bathroom without a window. It’s the best purchase we’ve ever made. When someone goes in the bathroom they are always looking for the switch to turn the ‘light’ off.
From whyskylights.com
22 years and still working great.
We had 3 of the rigid sun tunnels put in over 22 years ago. They are still working great. Love them, especially on cloudy days. Works on starry nights as well.
From veluxusa.com
Wow

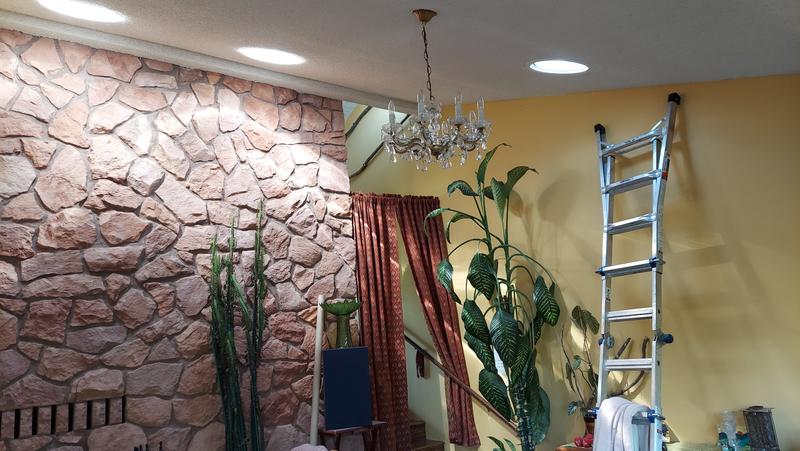

The upper deck was super dark. Now the natural light has made a huge difference. Wow
From whyskylights.com
Simple way to bring in lighting!
Only issue is the flashing! Cause is a dorm so water will flow in from the side. Normally side flashing are covered by composition shingles so tend to forget to do better seal.
From veluxusa.com
