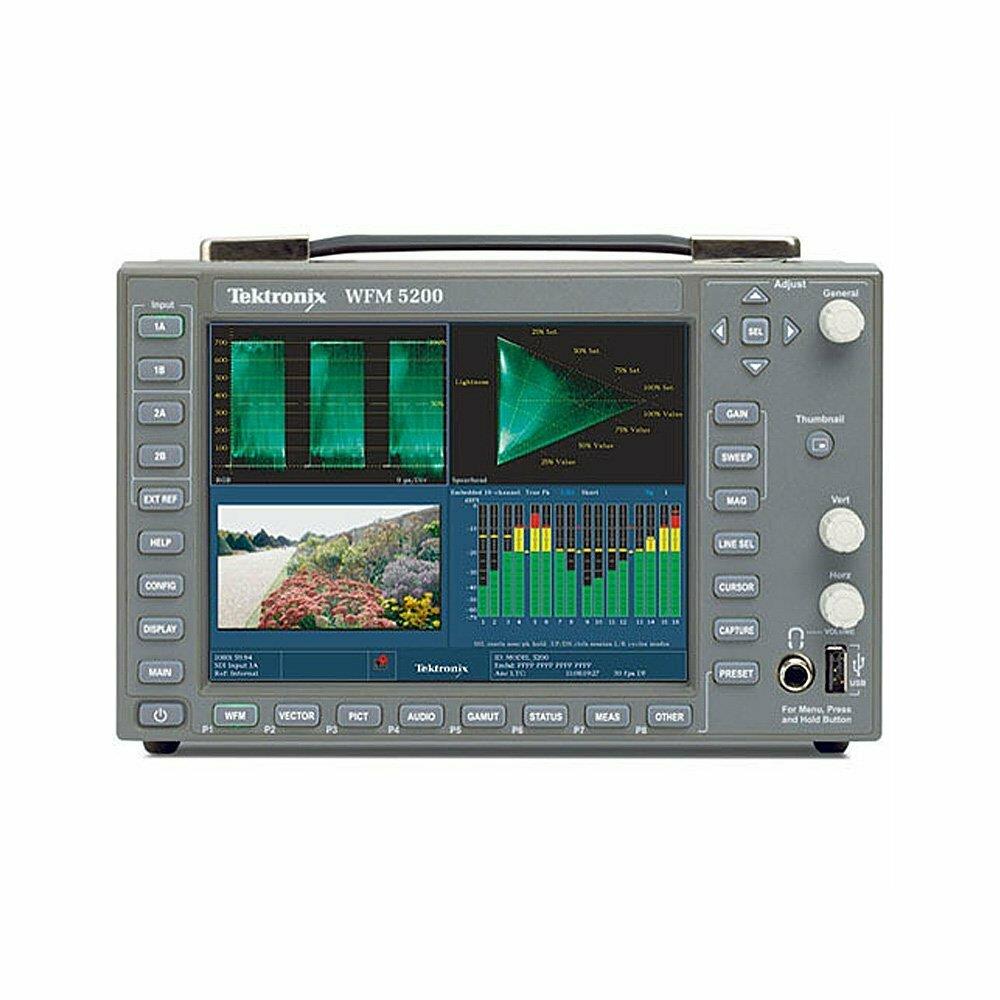

AUD Internal Option Upgrade-16 Channel Digital AES-EBU Embedded Audio Analysis If you are already the proud owner of a Tektronics WFM5200 Waveform Monitor and you need to add 16 channel embedded AES audio monitoring including Multichannel Surround Sound Display then the WFM520UP-AUD option is what you need! This is a post sale upgrade option only. The WFM5200 with Option AUD provides high-quality digital filtering and oversampling to insure precise, reliable, and repeatable audio measurements. The instrument provides 16-channel embedded digital audio monitoring with Audio Bars, Lissajous Displays, Surround Display, and a front-panel headphone port for easy compliance verification of digital audio without the need for an additional piece of equipment. Flexible mapping of the embedded audio inputs to the audio bar displays allows for a variety of audio mixes to be supported from multiple stereo signals to surround and stereo support. The Surround Sound display provides intuitive graphical representation of channel interaction in a surround sound system. The Bars display provides indication for faults, audio levels, and provides indication of the presence of a Dolby format. The flexible Lissajous display allows the selection of any two audio channels. The Dolby metadata can be monitored within the instrument using the Dolby Status display that gives an in-depth view of VANC Dolby metadata that complies with the SMPTE 2020 standard. The user can also choose to monitor Dolby E guardband timing information from one of the embedded audio channels. Features4-pin XLR DC Power Input with AC Power Adapter for both AC/DC OperationFour SDI Inputs with Multiformat, Multistandard SupportTektronix-patented Diamond and Arrowhead Displays for Color Gamut Compliance MonitoringStereoscopic 3D Video Displays for Camera Alignment and Production/Post-productionComprehensive Data Monitoring Option DATA helps to Quickly Resolve Difficult Content Quality and Reliability
4-pin XLR DC Power Input with AC Power Adapter for both AC/DC Operation
Four SDI Inputs with Multiformat, Multistandard Support
