Schluter Systems 240-volt Radiant Ditra-Heat-E-HK 124.1-ft x Warming wire 37.5-sq ft
Item #809512 |
Model #DHEHK24038
NOTE: Heating cable cannot be shortened or altered to fit, please verify length before ordering
For use with Ditra-Heat uncoupling membranes and Ditra-Heat thermostats
Cable length is 124.1 ft plus an approximately 7 ft cold lead
Coverage area is 37.5 sq ft
240-Volt cable, total power is 475-Watts, current is 2 Amps
Produces virtually zero electromagnetic fields
No return to thermostat required
Self-levelers are not needed to encapsulate the cables making installation quicker and easier
For interior applications
General | |||
|---|---|---|---|
Manufacturer Color/Finish | Grey | Type | Warming wire |
Series Name | DITRA-HEAT-E-HK | Package Quantity | 1 |
Dimensions | |||
|---|---|---|---|
Length (Inches) | 1489.2 | Common Length Measurement | 124.1-ft |
Width (Inches) | 0.188 | ||
Features | |||
|---|---|---|---|
Coverage (Sq. Feet) | 37.5 | Volts | 240-volt |
Installation Location | Above subfloor | Wattage (Watts) | 475 |
Compatibility | |||
|---|---|---|---|
Compatibility | Schluter Ditra Heat | For Use with Hardwood | No |
Wi-Fi Compatibility | No | For Use with Laminate | Yes |
For Use with Vinyl | No | For Use with Tile | Yes |
Certifications | |||
|---|---|---|---|
CA Residents: Prop 65 Warning(s) | No | ||
Warranty | |||
|---|---|---|---|
Warranty | 15-year limited | ||
Miscellaneous | |||
|---|---|---|---|
UNSPSC | 30161700 | ||
Check out the Best Selling Underfloor Heating on Lowes.com
Ratings may include incentivized customer reviews.

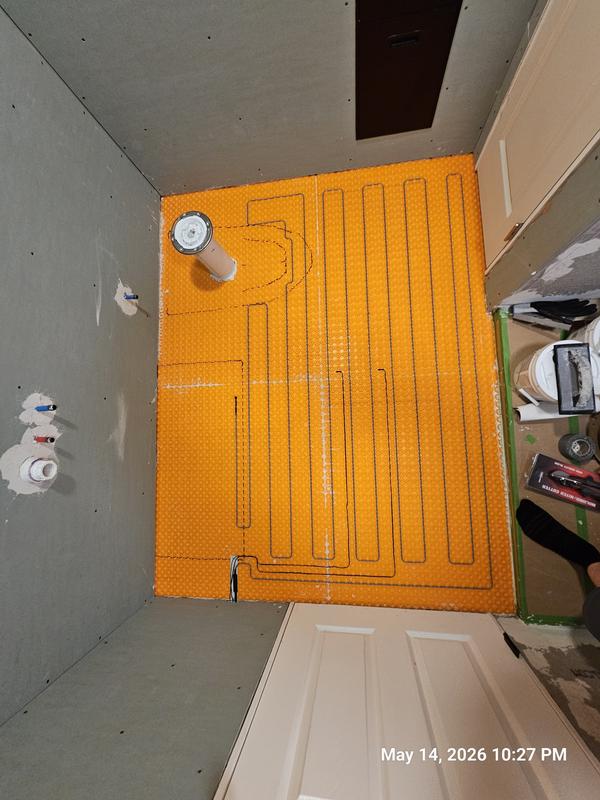

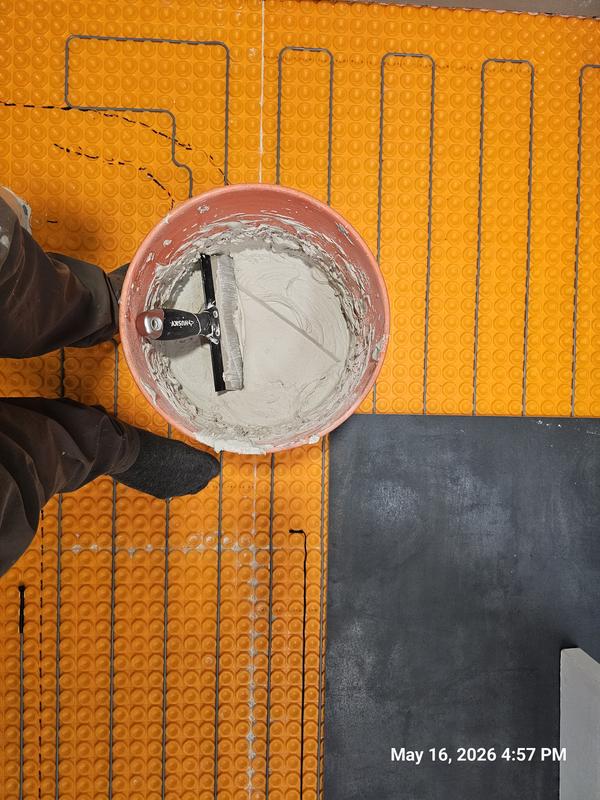

Installing is like a game of real life snake
I haven't turned my heating system on yet, but installing it was easy in principle. It snapped nicely into the mats. Make sure that you take very exact measurements. I had done a few rows of 2-3-2 spacing by the kitchen sink because I wanted it to be warmer but then I was about 6 ft short of cable by the refrigerator. I ended up needing to take up about half of the cable. I had laid down and just run 3-3-3- spacing to make sure that I had enough cable to cover the entire floor.
From 120-volt Radiant Ditra-Heat-E-HK 212.9-ft x Warming wire 64.4-sq ft Verified PurchaserIncentivized
Easy to use
Very DIY friendly. I hired an electrician to connect romex to my panel and then was able to handle all the rest on my own. Worth spending a little extra money for a superior product.
From 120-volt Radiant Ditra-Heat-E-HK 169.8-ft x Warming wire 51.4-sq ft Verified PurchaserIncentivized
Calculate prior to buying
Use schluters website tool to estimate the length you will need for the wire. You cannot cut! There are various patterns that you can lay this down so make sure you calculate correctly.
From 120-volt Radiant Ditra-Heat-E-HK 240.2-ft x Warming wire 72.7-sq ft Verified PurchaserIncentivized
Good under the floor heating system.
Good under tile heating system. Gets the floor warm, but not enough to heat the whole room. Ensure you test the resistance before and after the intall to make sure it did not break while tiling. Also this only works the the Schluter thermostat.
From 120-volt Radiant Ditra-Heat-E-HK 70.5-ft x Warming wire 21.3-sq ft Verified PurchaserIncentivized
Accurately determine the length needed.
We found this easy to work with and mostly straightforward to use.
From 120-volt Radiant Ditra-Heat-E-HK 336.9-ft x Warming wire 101.9-sq ft Verified PurchaserIncentivized
Well packaged and arrived within a week
Exactly as advertised, with all of its contents provided in the manufacturers sealed box
From 120-volt Radiant Ditra-Heat-E-HK 141.1-ft x Warming wire 42.7-sq ft Verified PurchaserIncentivized
Choosing Heated Flooring is not difficult.
Lowe’s selling Schulter items and shipping quickly, made this quality item an easy install.
From 240-volt Radiant Ditra-Heat-E-HK 176.3-ft x Warming wire 53.3-sq ft Verified Purchaser
Good wire for floor heating
Not much to review. Wire is good quality. Applied easily. Pricey but worth the peace of mind.
From 120-volt Radiant Ditra-Heat-E-HK 275.5-ft x Warming wire 83.3-sq ft Verified PurchaserIncentivized
Need to know about electricity.
I love how easy this product is to install. Lowe's had the cheapest price too.
From 120-volt Radiant Ditra-Heat-E-HK 169.8-ft x Warming wire 51.4-sq ft Verified PurchaserIncentivized
8 Questions
1
Answer
1
Answer
1
Answer
1
Answer
1
Answer
1
Answer
1
Answer
will lowes install the ditra heat and porcelain tile if i buy from lowes?
Anonymous on February 5, 20190
Answers
