At a Glance
Argon Gas Insulated
Screen Included
Tiltable SashRELIABILT 3500 Series 31-3/4-in x 73-1/2-in White Exterior White Interior Vinyl Replacement Double Hung Window Low-E argon Double Pane Glass with Grids (Half Screen Included)
Item #407415 |
Model #3500DH3167340001
Get It Installed
You'll buy materials after the consultation.
The RELIABILT 3500 Series is a top-tier performing window positioned as a mid-level replacement Series
Features the highest quality, maintenance-free vinyl, a reinforced frame, all-welded frame and sash corners, and insulated glass for reduced condensation and better energy efficiency
Both sashes tilt in for easy cleaning, and both operate smoothly with an integrated, full-length, slim-line lift rail on each sash as well as a constant force coil balance system
Standard manufacturer warranty includes a transferable Limited Lifetime Warranty on vinyl materials and parts, 25-year accidental glass breakage warranty, and a lifetime prorated warranty against seal failure (see actual warranty for details)
Designed for replacement applications, the window installs easily with included head expander, sill angle and 3 jamb adjusters
Window comes standard in white and includes an extruded half screen; additional sizes, factory mulling, glass, grid, screen, laminated and vinyl colors, and warranty options are available; see local sales associate for available custom options
DP-35 rated (Design Pressure rating) standard with options to upgrade to a DP-50 rating
Features energy-efficient Low-E glass to help reflect the sun’s heat away from your home in the warm summer months and to keep the warmth inside your home during the colder winter months, as well as the added thermal efficiency of Argon insulating gas
Features a 5/8-in contoured grid pattern between the glass panes to enhance the style and appearance of your home without creating the extra cleaning complexities of grids outside the panes
General | |||
|---|---|---|---|
Color/Finish Family | White | Glass Insulation | Low-E argon |
Exterior Color/Finish | White | Glazing Type | Double pane |
Hardware Color/Finish | White | Number of Locks | 2 |
Interior Color/Finish | White | Glass Strength | Single strength |
Series Name | 3500 Series | Screen Type | Fiberglass mesh |
Project Type | Replacement | Tilt Mechanism | Flush |
Frame Material | Vinyl | Screen Frame Type | Extruded |
Lock Type | Cam | Grid Type | Between the glass |
Paintable | No | ||
Dimensions | |||
|---|---|---|---|

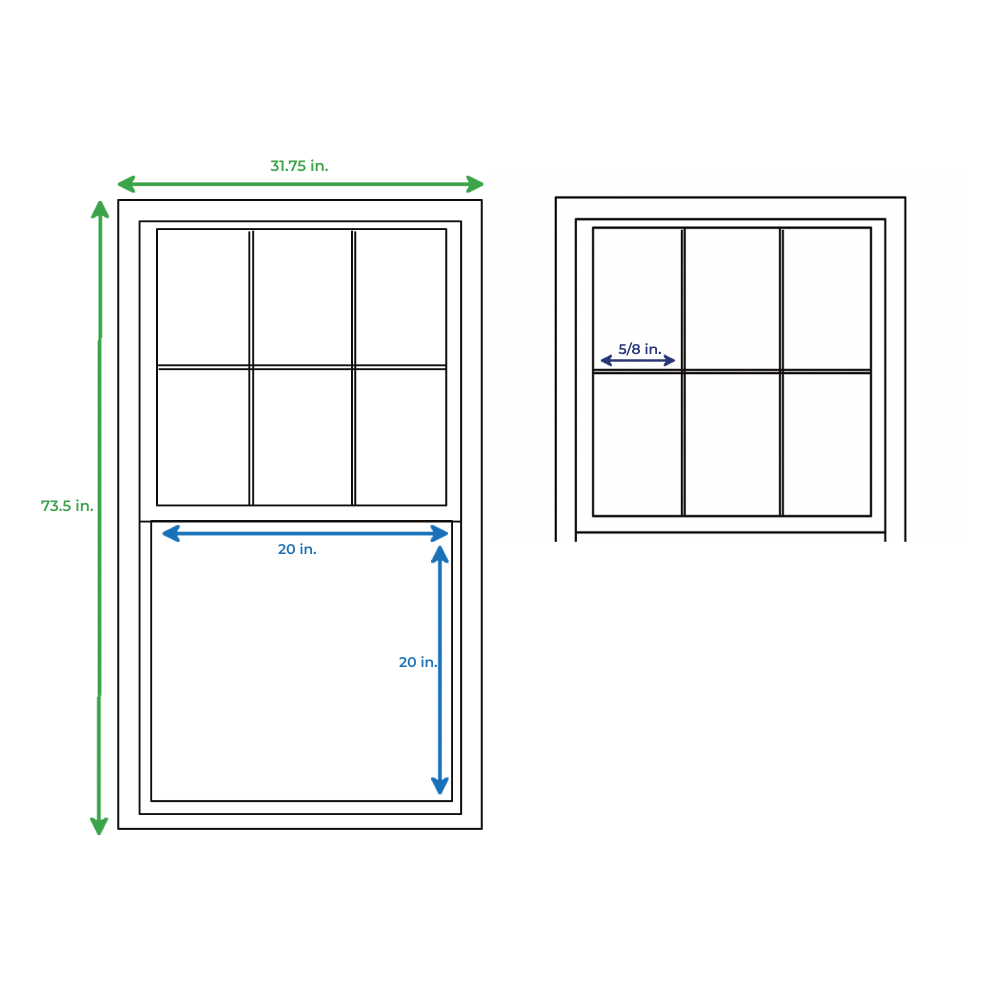

Actual Size (W x H) | 31-3/4-in x 73-1/2-in | Jamb Depth Measurement | 3-1/4-in |
Clear Opening Size (W x H) | 20-in x 20-in | Rough Opening Size (W x H) | 32-in x 73-3/4-in |
Common Size (W x H) | 32-in x 74-in | Weight (lbs.) | 51 |
Grid Width | 5/8-in | Clear Opening Sq. Ft. | 5.29 |
Features | |||
|---|---|---|---|
Argon Gas Insulated | Yes | Impact Resistant | No |
Balance System | Constant force | Insect Screen Included | Yes |
Clear Opening Sq Ft | 5.29 | Lowe's Exclusive | Yes |
Design Pressure (DP) Rating | 35 | Obscure Glass | No |
Frame Profile | Beveled | Screen Included | Half |
Grid Included | Yes | Solar Heat Gain Coefficient (SHGC) | .19 |
Grid Pattern | 1h x 2v | Tilting | Yes |
Grid Profile | Contoured | Ventilation Latches | Double |
High Altitude Rated | No | Wood Jamb Extension | None |
Certifications | |||
|---|---|---|---|
CA Residents: Prop 65 Warning(s) | No | Meets CA Forced Entry Requirements | No |
ENERGY STAR Certified North/Central Zone | No | Meets Title 24 | No |
ENERGY STAR Certified Northern Zone | No | Meets Wildland Urban Interface | No |
ENERGY STAR Certified South/Central Zone | No | Miami Dade Approved | No |
ENERGY STAR Certified Southern Zone | Yes | Sound Transmission Control (STC) Rated | No |
Florida Product Approved | Yes | Texas Department of Insurance Approved | Yes |
Hurricane Approved | No | U Value | .31 |
Warranty | |||
|---|---|---|---|
Warranty | Limited lifetime | ||
Miscellaneous | |||
|---|---|---|---|
UNSPSC | 30171600 | ||
Check out the Best Selling Double Hung Windows on Lowes.com
Ratings may include incentivized customer reviews.
What Customers Are Saying
The ReliaBilt windows have mixed reviews. Some customers report the windows are of good quality and energy-efficient, with features like low-E coating and argon gas. However, many others experienced significant issues, such as windows not being properly squared, leading to air leaks and compromised energy efficiency. Some customers also received damaged or defective windows and screens, and struggled to get the problems resolved. Additionally, some customers reported mold and mildew forming under the window beading within the first year, which the manufacturer claims is not covered by the warranty. Overall, the quality control and customer service issues seem to be a major concern based on the reviews.
Customer review summary generated by AI, including incentivized reviews.Customer Sentiment
I would highly recommend getting windows from Lowe
I was very pleased with how easy the ordering and pick went. Installation of the window went very smooth .
From 3500 Series 31-3_SLASH_4-in x 45-1_SLASH_4-in White Exterior White Interior Vinyl Replacement Double Hung Window Low-E argon Double Pane Glass with Grids (Half Screen Included) Verified Purchaser
Would not reccomend II
Widows delivered oct 7 2024 numerous problems with the windows. returned 3 sections of windows and 4 screens. when the windows finally came in one was not even close to being right. Lowes has lost screens on two different occasions. we have probably spent 10 hours or more trying to get the staff at Lowes to fix the problem but they always pass it on to someone else.Jan 2nd 2025 and we still do not have all of our replacement screens. 3 months to get an undamaged screen is nothing but terribel
Would not reccomend
We purchased these to enclose a screened in porch to say we are not happy is an understatement. 4 out of 5 screens were delivered damaged. Numerous markings that cannot be cleaned to they have to be on the inside of the double pain windows. we bout one double wide and one triple wide thinking it would be better to have the factory put them together... wrong none were put together evenly. after spending nearly 4500 on these windows and have this kind of quality control i will never buy reliabilt ...
Hello Scott. We apologize for the issues with your windows and screens. Please contact our Customer Service Team directly at 800-672-5828 if you need...
Unsquare Windows
My wife and I replaced 13 large windows in our 2001 brick home with double hung Reliabilt Atrium 3500 series windows (mid tier) from Lowe's. I will list some things that I have been forced to learned to keep in mind for any window manufacturer and installer. Hope this helps. 1. Windows are only as good as the installer, and the installer's original measurements. The installer that measured for our windows was off by over 1/4 of an inch on multiple windows. 2. Atrium/Reliabilt are high tech wit...
Window of Decent Quality
I bought 7 of these to replace old wood windows. Overall, decent windows. The pvc welds are a little messy but the window feels solid. I believe I have seen others mention this, but the instructions are just.....not good. I have installed replacement windows before so not a big deal but if you don't have experience just take your time. The only other mention is the sill adapter for those of us with old school sloped sills, it is worthless. I think it is suppose to snap on the bottom of the windo...
Reliabitt 3900
The Reliabitt 3900 double hung, double pane, double strength glass, Ultra Low-E & argon gas filled are poor quality. The frames of the windows are not even and are so rough you could cut your fingers on the frames. When you raise the bottom window sunlight shows through the window frame because the frames are not equally joined in the corners. The person from Lowes who sold me the windows when I called told me that he was leaving Lowes and I should contact Reliabitt. When he sold me the wind...
An expensive mistake
Unfortunately, our experience with Reliabilt windows has been a joke and the most expensive mistake we have made. The only positives to come out of this is that the installer was very thorough and professional and the outside of the windows look more "finished' with the trim that he added compared to before. In May '15 we were to have 18 special order replacement windows installed in our house, three being double windows. When we had first spoke with the salesman, the display seemed to be of goo...
great windows except,....Oh the howling
We had Lowe's replace all of the windows in our home this past July (2017), 16 windows in all. Backstory: Purchased our first home. Hired a home inspector to go through the home and determine problems/issues.. Somehow the rotting windows missed his inspectorshipness and we bought a home that needed 16 new windows asap. Old windows were Anderson wood windows that had never been sealed and started to rot and mold. Some you couldn't even open without the window falling apart in your hands, I had no...
Already failed
Purchased in April of 2023 and in September of 2023 the window has failed. The bottom window in the double-hung window no longer holds open. Now I'm going to have to fight with the manufacturer to replace it under warranty AND pay the installer to come out and install a replacement windows. I bought the most expensive window they had in that size. JUNK. Probably manufactured in China.
From 3500 Series 27-3_SLASH_4-in x 61-1_SLASH_2-in White Exterior White Interior Vinyl Replacement Double Hung Window Low-E argon Double Pane Glass with Grids (Half Screen Included) Verified Purchaser
Hello, Phil. We apologize for the issues with your window. If you would like further assistance, please contact our Customer Service Team directly at...
Very poorly made

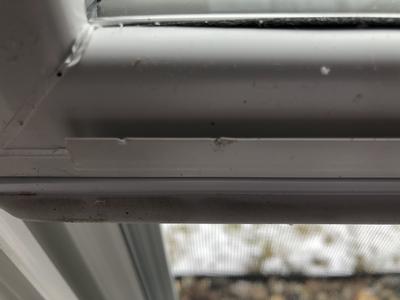

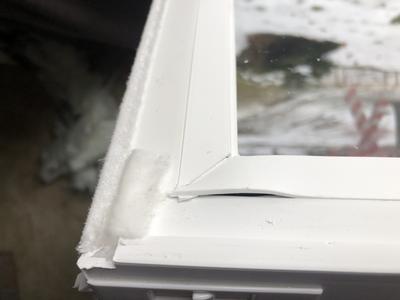

This is a cheap window. You get what you pay for on this one. Make sure you test complete operation of this window before taking out your existing windows. Insulation sticking out of the moulding, and pool cut trim that prevented the window from opening. I already pulled my window so I could not return the new one. See pics. I had to modify the window by cutting the trim to get it to work. Window latches line up very poorly. Had to bend out the tabs to get them to work as well.
