KOHLER Rely 34.0-in W x 48.0-in L Center Biscuit Rectangle Shower Pan Base with 1.625-in H Threshold
Item #1153939 |
Model #K-8461-96
Product Dimensions
Low-threshold design for easy entry and exit
Molded-in textured floor
Water containment bead incorporated into the threshold design provides an optimum barrier, eliminating water escaping from the shower space
Single threshold for alcove installation
Durable acrylic construction
Center drain
Coordinates with Choreograph shower walls and other KOHLER collections
General | |||
|---|---|---|---|
Collection Name | Rely | Shape | Rectangle |
Color/Finish Family | Off-white | Items Required for Standard Installation | Safety glasses, drill, screwdriver, pencil, tape measure, level, silicone sealant, shims, furring strips, drop cloth or protective liner, common woodworking tools and materials, mortar, galvanized truss-head screws, polyethylene sheet |
Manufacturer Color/Finish | Biscuit | Drain Location | Center |
Type | Shower pan base | Threshold Profile | Low threshold |
Material | Acrylic | ||
Dimensions | |||
|---|---|---|---|
Actual Height (Inches) | 4.1875 | Opening Size in Inches | 48-in |
Actual Length (Inches) | 48 | Threshold Height (Inches) | 1.625 |
Actual Width (Inches) | 34 | Weight (lbs.) | 53 |
Common Measurement (W x L) | 34-in x 48-in | ||
Features | |||
|---|---|---|---|
Drain Included | No | Lowe's Exclusive | No |
Hardware Included | No | Slip Resistant | No |
Integrated Seat | No | Tile Ready | No |
Compatibility | |||
|---|---|---|---|
Compatible Drain | K-9132 | ||
Warranty | |||
|---|---|---|---|
Warranty | Limited lifetime | ||
Certifications | |||
|---|---|---|---|
CA Residents: Prop 65 Warning(s) | No | ADA Compliant | No |
Miscellaneous | |||
|---|---|---|---|
UNSPSC | 30181500 | ||
Check out the Best Selling Shower Pans on Lowes.com
Ratings may include incentivized customer reviews.
High quality acrylic shower pan.
Great quality acrylic shower pan. I purchased this to use with the compatible shower door in the Rely model.
From kohler.com
Dimensions are not correct
As mentioned by Joe in March 2023, the base I purchased was also 48 1/4 inches wide, despite what the manufacturer shows in the specs. Please beware if your opening is only 48-inches.
From Rely 34.0-in W x 48.0-in L Center White Single Threshold Square Shower Pan Base with 1.625-in H Threshold
Warped
Sturdy fiberglass base with nice finish that was warped on all 4 edges.
From Rely 34.0-in W x 48.0-in L Center White Single Threshold Square Shower Pan Base with 1.625-in H Threshold Verified Purchaser
Hello, my name is Meli with Kohler Co. I am sorry to read your Rely shower base arrived warped. This is nothing you should expect when you purchase a...
Expect better QC from Kohler
The first one we received has a crack on the corner. We returned it to the stored and ordered a new one which was fine. We had no issue with returning it, but for such a heavy and large product I expected better quality control from Kohler before shipping out their products. It was obvious that it was cracked before packaging and I am sure it didn't happen on the way. The problem was that we had to pay the contractor to go and pick it up for us, prepping everything and upon opening the box we sa...
From Rely 34.0-in W x 48.0-in L Center White Single Threshold Square Shower Pan Base with 1.625-in H Threshold Verified PurchaserIncentivized
Should be familiar with installing shower bases

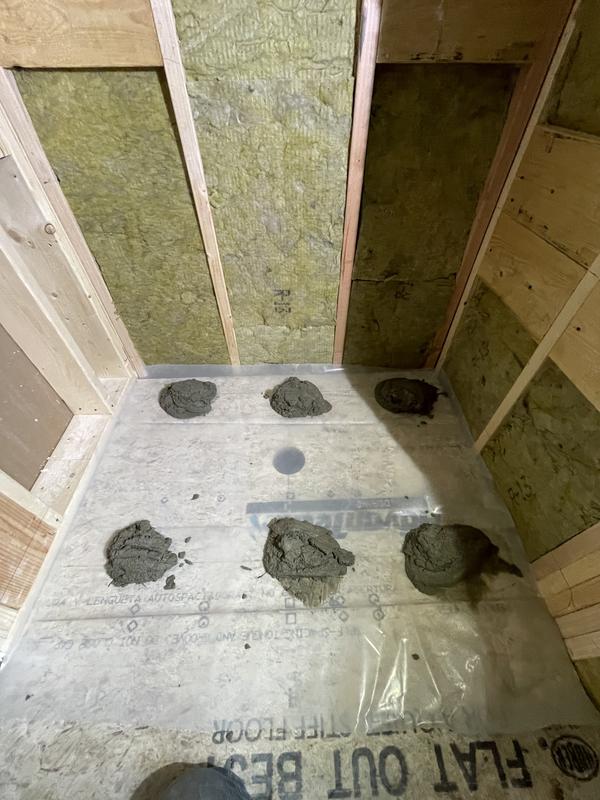

Unit is sturdy and well built but the support pads on the bottom would work better if the depth actually matched the front of the unit. Always put in mortar base but would be easier to install if unit set level on floor.
From Rely 34.0-in W x 48.0-in L Center White Single Threshold Square Shower Pan Base with 1.625-in H Threshold Verified PurchaserIncentivized
Wrong specifications !!!!!
This shower pan is 48 1/4 inches wide, despite what the manufacturer shows!!!! Please beware if you purchase this pan and plan for a 48-inch opening. Come on Kohler and Lowes get your act together!
Always open box at store upon delivery.
Product is broken in 4 places. Will be returned to shop today.
From Rely 34.0-in W x 48.0-in L Center White Single Threshold Square Shower Pan Base with 1.625-in H Threshold Verified Purchaser
Hello John D., my name is Kassi with Kohler Co. I am sorry to hear that your Rely shower base was broken. As a leader in the plumbing industry, Kohle...
kohler rely k-8461-0 shower pan 48x34
Picked up shower pan today. Pan bowed in left corner. Returning to Lowes. Looks to be 2nd complaint about bowed pan in 2 weeks.
From Rely 34.0-in W x 48.0-in L Center White Single Threshold Square Shower Pan Base with 1.625-in H Threshold
Shower base 48x34
Do not buy this pan. It was delivered twice and was bowed/not flat. I only purchased this because it was the only size I could find that was correct. Stay away from this pan. Poor quality. Only put it down because I had to finish the job. What happened to Kohler quality.
Hello Joel, my name is Meli with Kohler Co. I am sorry to read your Rely shower base arrived bowed twice. As the manufacturer, we are very interested...
7 Questions
7 Questions
1
Answer
1
Answer
1
Answer
1
Answer
1
Answer
1
Answer
1
Answer
Hi David, this is Sarah with Kohler Customer Service. I am very sorry to hear your Rely shower base is out of specification. The tolerance on this mo...
