JELD-WEN V-2500 Single-hung Vinyl New construction White Bay Window
Item #96961 |
Model #LOWOLVYSH30DBA8251
Get It Installed
You'll buy materials after the consultation.
Shipping
Unavailable
Delivery
5,000+ available
Check Fee in Cart.
One large vinyl window with a smaller vinyl single-hung window on either side, angled to extend a room; comes with a wood head and seat board
SunResist Low-E insulating glass with argon provides more protection against heat gain by blocking harmful infrared rays, as well as providing greater energy savings
Top sash is stationary; bottom sash slides open vertically
Built with high-quality extruded white vinyl that won't chip or peel and resists fading, mildew and condensation
Block and tackle balance system supports the vertical operation of the sash in single-hung and double-hung styles, so the sash will not slam shut
Weatherstripping creates a tight seal against outdoor elements
Optional tilt assist feature lets you tilt the sash in for convenient cleaning from inside your home
Lifetime limited warranty on window; 10-year warranty on exterior finish
General | |||
|---|---|---|---|
Exterior Color/Finish | White | Project Type | New construction |
Hardware Color/Finish | White | Frame Material | Vinyl |
Interior Color/Finish | White | Venting Type | Single-hung |
Series Name | V-2500 | Lock Type | Cam |
Type | Bay | Glazing Type | Double pane |
Dimensions | |||
|---|---|---|---|
Actual Height (Inches) | 50 | Projection Depth Measurement | 12-1/2-in |
Actual Size (W x H) | 81-in x 50-in | Rough Opening Height (Inches) | 50.5 |
Actual Width (Inches) | 81 | Rough Opening Size (W x H) | 81-1/2-in x 50-1/2-in |
Clear Opening Height (Inches) | 20.9 | Rough Opening Width (Inches) | 81.5 |
Clear Opening Size (W x H) | 18-5/8-in x 20-29/32-in | Wall Depth (Inches) | 4.56 |
Clear Opening Width (Inches) | 18.6 | Wall Depth Measurement | 4-9/16-in |
Common Size (W x H) | 82-in x 51-in | Weight (lbs.) | 135.25 |
Projection Depth (Inches) | 12.5 | Clear Opening Sq. Ft. | 2.7 |
Features | |||
|---|---|---|---|
Argon Gas Insulated | Yes | Lowe's Exclusive | No |
Clear Opening Sq Ft | 2.7 | Mounting Hardware Included | Yes |
Design Pressure (DP) Rating | 20 | Screen Included | Yes |
Grid Included | No | Solar Heat Gain Coefficient (SHGC) | .23 |
High Altitude Rated | No | ||
Certifications | |||
|---|---|---|---|
CA Residents: Prop 65 Warning(s) | Meets CA Forced Entry Requirements | No | |
ENERGY STAR Certified North/Central Zone | No | Meets Title 24 | No |
ENERGY STAR Certified Northern Zone | No | Meets Wildland Urban Interface | No |
ENERGY STAR Certified South/Central Zone | No | Miami Dade Approved | No |
ENERGY STAR Certified Southern Zone | No | Sound Transmission Control (STC) Rated | No |
Florida Product Approved | No | Texas Department of Insurance Approved | No |
Hurricane Approved | No | U Value | .29 |
Warranty | |||
|---|---|---|---|
Warranty | Limited lifetime | ||
Miscellaneous | |||
|---|---|---|---|
UNSPSC | 30171600 | ||
Check out the Best Selling Bay & Bow Windows on Lowes.com
Ratings may include incentivized customer reviews.
Customer Sentiment
I love this window. It is beautiful and more then I expected.
From V-2500 Single-hung Vinyl New construction White Bow Window Verified Purchaser
Good overall. Screens too small
The construction is good. Following the directions the install went well. The screens are too small for the window and bugs are entering through the gaps.
From V-2500 Single-hung Vinyl New construction White Bow Window Verified Purchaser
Thank you for your feedback on JELD-WEN. We apologize for your disappointment and can assure you we take your product concerns seriously. If you woul...

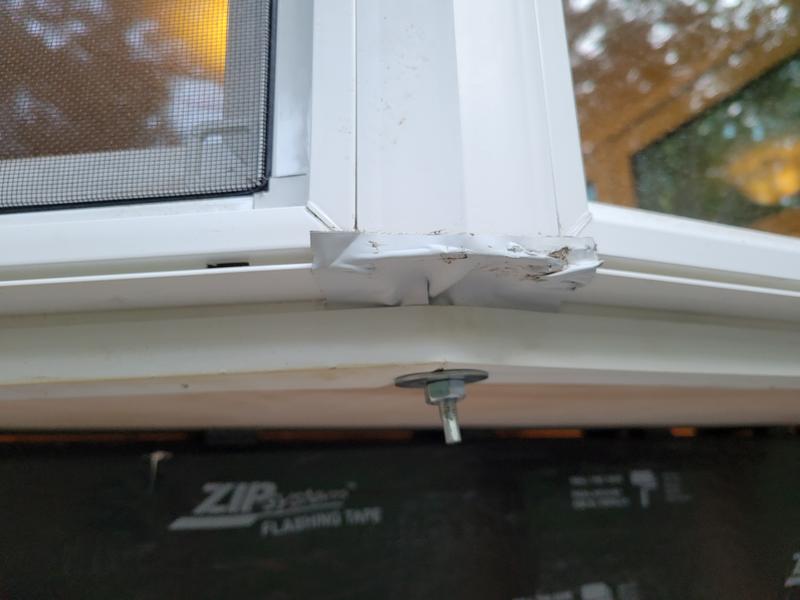

Low quality, dirty, lack of attention to detail
This is the lowest price bay window you'll find online, but you get what you pay for with it. Pretty disappointed in the product I received, but not enough to send it back. One of the fins arrived bent, and the whole thing was covered in dirt and dust, as if it had been sitting in a warehouse for months. It had excess silicone caulking and sticky glue all over the place from a sloppy manufacturing process. Apparently Jen-Weld thinks two pieces of metal flashing tape is an acceptable part of the ...
Verified Purchaser
Thank you for taking the time to provide this review. We appreciate your feedback. If you have additional information you’d like to share, please con...

Disappointed with quality or lack of.
Poorly constructed window. Inferior materials compared to Anderson. Would not recommend
Verified Purchaser
Thank you for your feedback on JELD-WEN. We apologize for your disappointment and can assure you we take your product concerns seriously. If you have...

It works nice!
Very nice window
From V-2500 Single-hung Vinyl New construction White Bow Window Verified Purchaser
We work with JELD-WEN customers every day and are delighted when a customer is inspired to call or write about their JELD-WEN experience. Your kind w...

Nice window great price
Very nice window for the price, delivery is a month plus, so plan ahead. Install was straight forward. Very happy with the product.
Verified Purchaser
We work with JELD-WEN customers every day and are delighted when a customer is inspired to call or write about their JELD-WEN experience. Your kind w...

what, no screens for side windows.
Can't really review the window at this time since we only had it delivered to be installed in our new construction. I noticed there were no screens for the two side windows that open. What gives? I paid over $1,200 for this window and expected screens so you can open the windows. Anybody know where I can get screens for this particular window??
Thank you for your feedback on JELD-WEN. We apologize for your disappointment and can assure you we take your product concerns seriously. If you have...

Not Anticipated for 4 months
Shipping time is 4 months. We will update the review of the windows when we get them!
Verified Purchaser
Thank you for taking the time to provide this review.

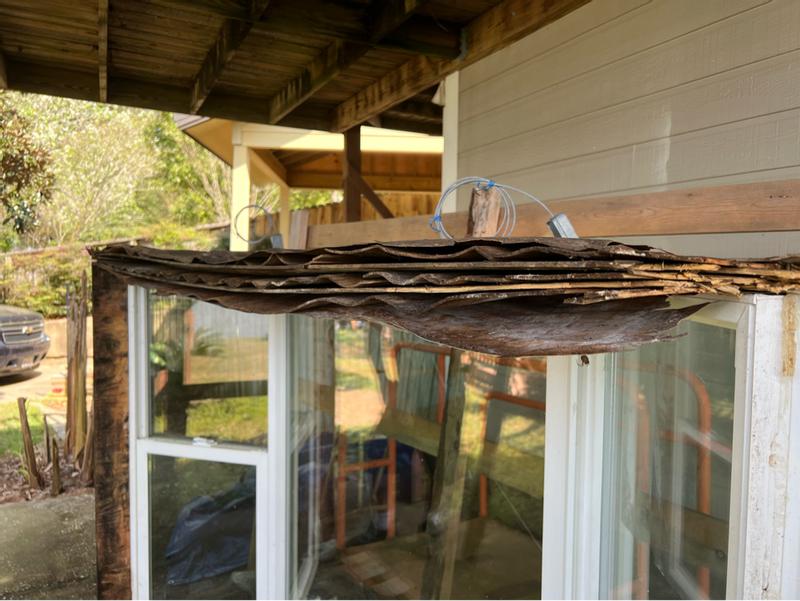

Wood Rotted Before Install
I purchased this window and stored it covered and protected in its manufactured shipping shrinkwrap and crate. When we got ready to install it, the wood used throughout manufacturing was completely rotted. Do not buy this window until Jeldwen uses better treated wood. It is a window! An exterior mounted item should always have good solid treated wood not basic pine sheets of wood pressed together that can deteriorate and seperate.
Thank you for your review of JELD-WEN and for bringing this to our attention. We’re sorry to hear your expectations were not met and assure you we ta...
