Harfington rotary tool Motor Shaft Coupler M10 8mm Sleeve Saw Blade Connecting Saw Chuck Adapter Arbor Mandrel Connector Rod with L Shape Wrench

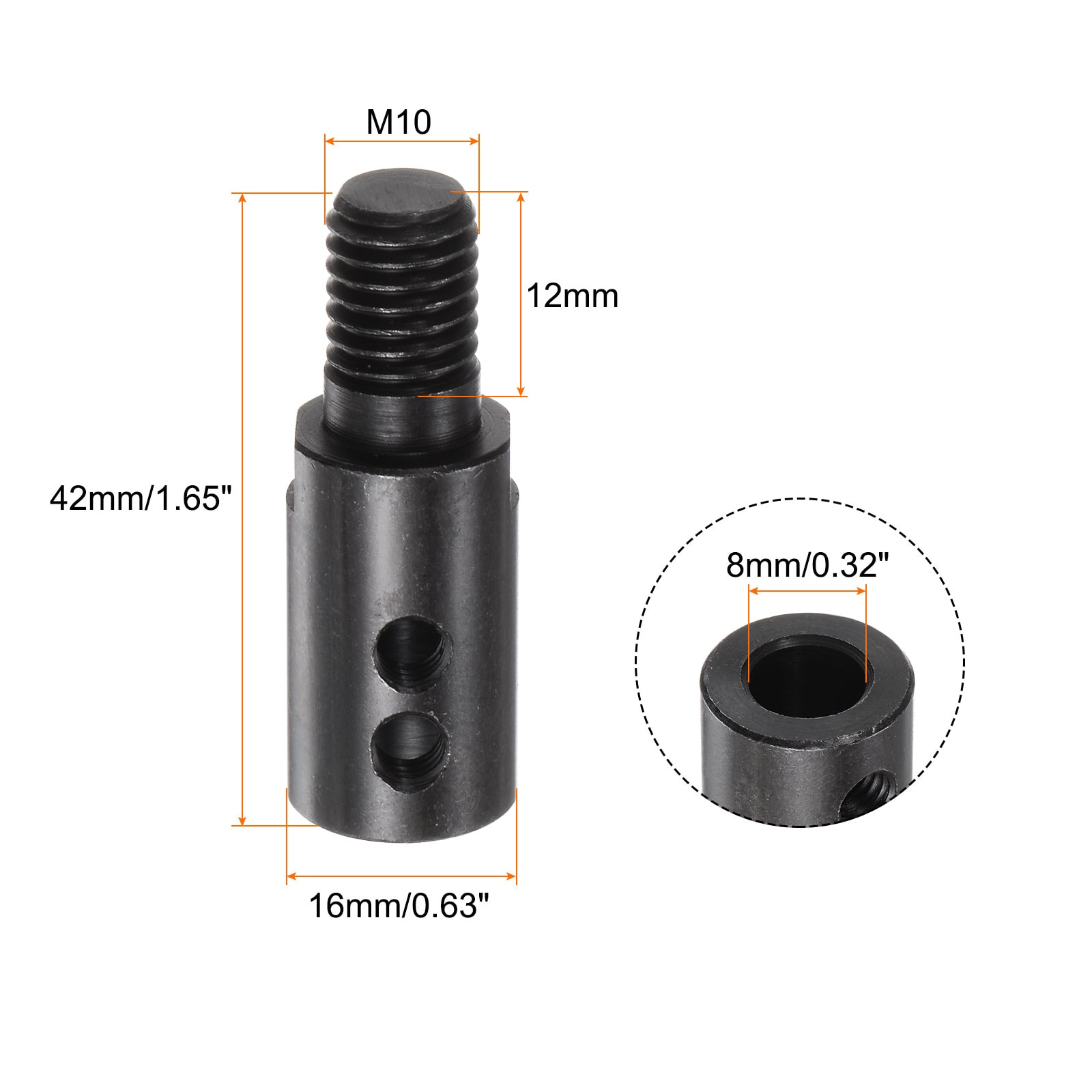

Size - Length: 42mm/1.65"; Outer Diameter: 16mm/0.63"; Inner Diameter: 8mm/0.31"; Thread specification: M10x1.5mmx12mm

Material - Made of #45 steel, good wear resistance, and fine precision thread can help you work easily and assemble easily; Smooth grinding, no looseness, long service life.

Usage - Put the black splint into the connecting rod, put in the saw blade, and screw on the silver splint so that the two splints clamp the saw blade, use a wrench to clamp the two holes of the pressure plate and the connection the clamping position of the rod is tightened and reinforced, and then the connecting rod is screwed onto the shaft.

Application - The saw blade connection shaft is suitable for 16mm aperture cutting blades, saw blades, grinding wheels and other polishing tools, and can be used to connect 8mm shaft or 8mm motor shaft; (The saw blade needs to be used with the spacer.)

Note - Please choose according to the size of the motor shaft diameter; If the motor shaft diameter is 5mm, choose a 5mm inner hole.
