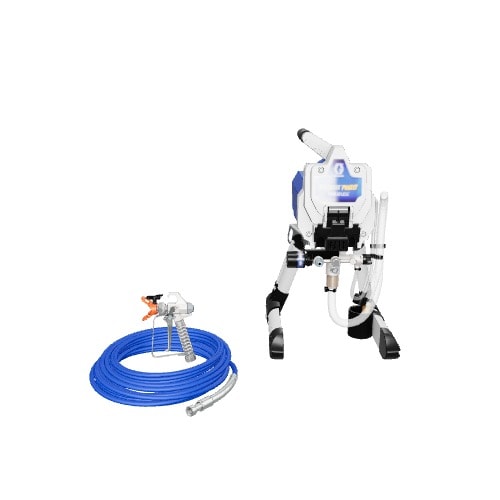

Graco Magnum ProX17 Electric Stationary Airless Paint Sprayer
Item #786230 |
Model #17G177
This item is unavailable for purchase online
Sprays unthinned paint and a variety of other coatings
ProXChange Pump System for easy, tool-free pump replacement
Great for remodelers and contractors who paint frequently
Ideal for Property Maintenance Pros and Remodelers looking for higher performance to tackle midsize projects
Ideal for jobs up to 20 gallons in size, allowing you to take on more projects every year
Fully adjustable pressure control to give you ultimate control to spray paints or stains unthinned at any pressure
Flexible Suction Tube allows you to spray directly from a 1 or 5-gallon paint bucket
Supports up to 150 ft of paint hose to reach peaks or second stories and leave your sprayer in one place without diminishing performance
Supports 12 TrueAirless Spray Tips giving you the flexibility to complete a number of projects with ease
General | |||
|---|---|---|---|
Gun Trigger Type | 4-finger | Type | Stationary |
Spray Gun Material | Metal | Filter Type | 30-mesh |
Cup Fed | No | Grade | Residential |
Direct Syphon | Yes | Pump Type | Piston |
Material Flow Control | Yes | Power Source | Electric |
Airflow (CFM) | 0 | Use Location | Indoor/Outdoor |
Collection/Series Name | Magnum ProX17 | Series Name | Magnum ProX17 |
Housing Material | Plastic | ||
Dimensions | |||
|---|---|---|---|
Diameter of Hose Included | 1/4-in | Tip Size Code | 515 |
Maximum Hose Length Capability (Feet) | 150 | Depth (Inches) | 15.1 |
Direct Syphon Capacity | 1-5 gallon | Height (Inches) | 21.2 |
Minimum Tip Size (Inches) | 0.009 | Weight (lbs.) | 27.3 |
Maximum Fan Pattern Width (Inches) | 10 | Width (Inches) | 13.2 |
Minimum Fan Pattern Width (Inches) | 4 | Hose Length (Feet) | 50 |
Maximum Hose Length (Feet) | 150 | Maximum Tip Size (Inches) | 0.017 |
Tip Size | 0.015-in | Battery Amp Hours | 0 |
Features | |||
|---|---|---|---|
Actual Gallons per Minute | .34 | Project Size | Large |
Built-In Hose Swivel | Yes | Voltage (Volts) | 110 |
Multi-Directional Spray | Yes | Pressure Rating (PSI) | 3000 |
Spray Gun Filter | Yes | Adjustable Spray Pattern | Yes |
Variable PSI | Yes | Engine Horsepower | .75 |
Adjustable Fan Pattern Control | Yes | Cordless | No |
Pump Replaceable | Yes | Wheeled | No |
Battery(s) Included | No | ||
Compatibility | |||
|---|---|---|---|
For Use with Latex Paints | Yes | For Use with Furniture & Cabinets | Yes |
For Use with Oil Paints | Yes | For Use with Decking | Yes |
For Use with Oil-Based Stains | Yes | For Use with Fencing | Yes |
For Use with Primer | Yes | For Use with Acrylic Paints | Yes |
For Use with Urethanes and Varnishes | Yes | For Use with Lacquers | No |
For Use with Doors | Yes | For Use with Water-Based Paints | Yes |
For Use with Walls | Yes | For Use with Elastomerics | No |
For Use with Floors & Ceilings | Yes | Use with Material Flash Point (Degrees) | 100 |
For Use with Woodworking Projects | Yes | For Use with Stains | Yes |
Certifications | |||
|---|---|---|---|
CA Residents: Prop 65 Warning(s) | Safety Listing | ETL safety listing | |
Warranty | |||
|---|---|---|---|
Warranty | 1-year limited | ||
Miscellaneous | |||
|---|---|---|---|
UNSPSC | 31211900 | ||
Check out the Best Selling Airless Paint Sprayers on Lowes.com
Ratings may include incentivized customer reviews.
What Customers Are Saying
The Graco Magnum ProX17 is a versatile paint sprayer that delivers excellent spraying performance and finish quality. It is lightweight and portable, with a simple setup and operation that works well even for first-time users. While the cleaning and maintenance can be time-consuming, the sprayer is generally effective. However, some users experienced occasional clogging or malfunctions, especially when using thicker paints, as well as significant overspray that required extensive masking and cleanup. Overall, the sprayer is capable for most DIY and small-scale professional painting tasks, but may require some trial and error to achieve the best results.
Customer review summary generated by AI, including incentivized reviews.Really like the sprayer
Painted our house roof which is metal worked great sprayed even did a great job even when wind picked up didn’t notice any overspray.
From magnum.graco.com
Graco
Was expecting a better sprayer for the price. The price is to high
From magnum.graco.com
Cool tool !
I was a little intimidated but no worries . It’s a dream machine easy to set up and clean . Love having it. .
From magnum.graco.com
Great sprayer used in on 6 jobs so far couldn't be happier.
From magnum.graco.com
Actually enjoyed painting with this machine
The Graco Magnum X17 is an awesome paint sprayer! Initial set up is quick and easy. Spraying is super easy…as a first time paint sprayer, it took a little time to get used to spray patterns (tip size, pressure, etc) in order not to waste paint. But it cut painting time by 80% for my outdoor projects…20 foot gazebo and ceiling, 1 acre of horse fencing, outdoor wood furniture, 800 ft2 deck. Clean up is easy too…just hook a water hose up and flush it out. This thing is awesome and that’s coming...
From magnum.graco.com
hose
The hose burst the second time i used the sprayer.
From magnum.graco.com
Hello gary55, We’re sorry to hear your sprayer hose didn’t work as expected and burst on your second use. Please reach out to 888.541.9788 M–F 7:30–...
Prime
Pretty good my second time using it could not get it to prime took me probably an hour to prime was disappointed I’ve only had it 1 week
From magnum.graco.com
Normal
I like the quality of the work, but there's one small issue: when you close the return valve, paint or water (if you're flushing) flows into the high-pressure hose to the gun.
From magnum.graco.com
Solid airless, worked seamlessly
Purchased a few months ago and used for a fence staining project last week. The airless worked fabulously with 311 tip. Easy to use, consistent, steady spray. When I resume, will use a 411 tip. Cleanup takes time but it's not difficult. Great product and will paint house next.
From magnum.graco.com
