Culwell Flange 7-14/25-in dia PVC Closet Flange Fitting

Item # 758131 Model # P43

No reviews
  • Product 360 View
  • Product Video
  • Product Image 1
  • Product Image 2
  • Product Image 3

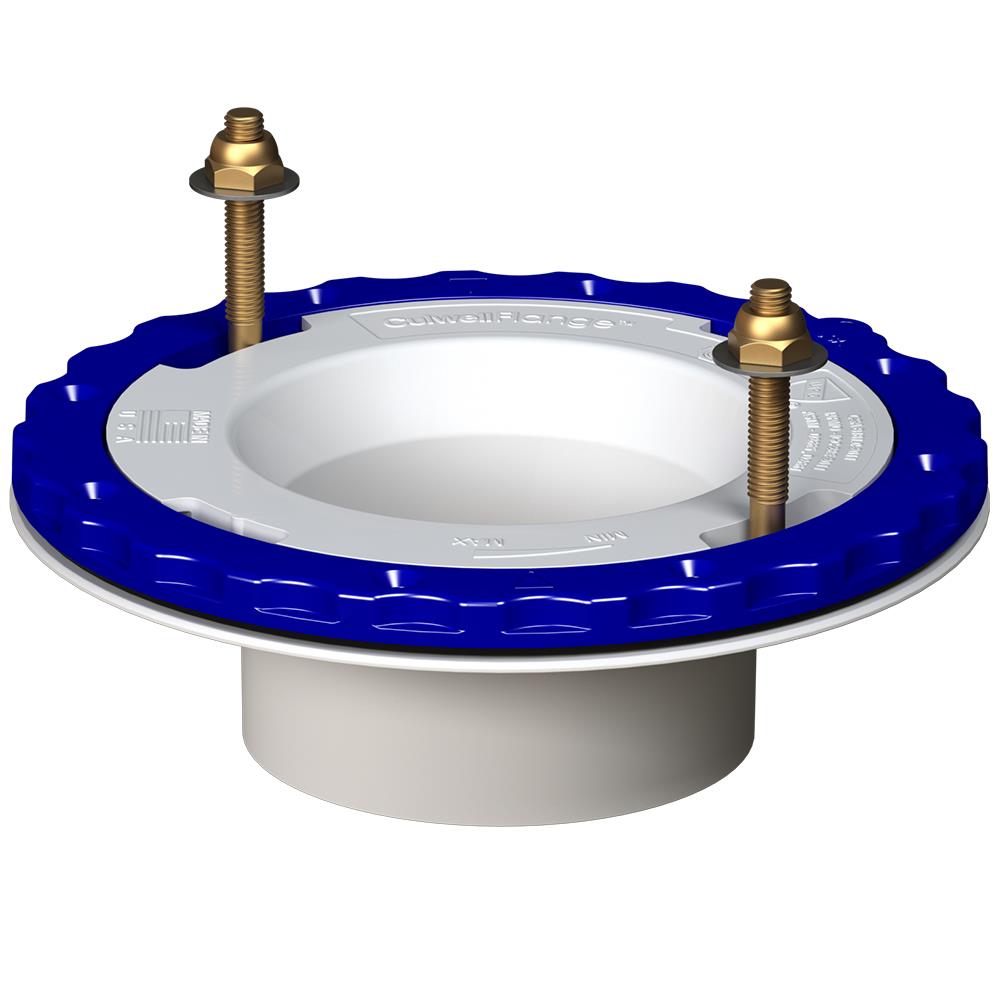

Culwell Flange 7-14/25-in dia PVC Closet Flange Fitting

Includes 5/16-in closet bolt kit, 2 elastomeric sealing gaskets, and instructions; wax ring and screws are not included


Please enter your zip code. Submit This Form

Product Information

  • The solution to a fatal flaw that no other toilet flange has ever resolved- preventing surface leaks, water damage, and costly repairs that traditional toilet flanges fail to protect against
  • Solvent welds inside 4-in or over 3-in PVC Schedule 40 DWV pipe
  • Premium floor protecting with a flat sealing surface that sits flush to the floor, prevents damage to the subfloor and ceiling below from wax ring failures, toilet overflows, or bathroom floods; also protects concrete from eroding
  • Clamping ring secures closet bolts in place; attaches to the flange by threading on clockwise while compresses 1 elastomeric sealing gasket against a floor-covering membrane to create a water-tight seal; 2 gaskets used when installed without a membrane
  • Nylon ring has superior strength, durability, and corrosion resistance that prevents the need for repair or replacement in the future; withstands over 500 lbs from each bolt; meets ADA weight requirements; exclusive limited lifetime warranty
  • Guidance points, bolt indicators and arrows are displayed on flange and blue ring to aid in toilet alignment and bolt placements
  • 8 countersunk screw holes for secure attachment to the floor
  • Inspired the creation of a new standard in toilet flanges (IAPMO IGC 285) in US and Canada
  • Proudly engineered and manufactured in the USA; 5/16-in closet bolts included
Type Flange
Sub Type Closet flange
Degree of Angle N/A
Inlet Thread Type Hub
Outlet Thread Type N/A
Common Uses New or remodel/Tile use with or without impermeable floor-covering membrane(30-100 mils)/when flange is recess below finished floor/concrete subfloor/multi-floors/wet-rooms/small spaces/bariatric, disability and heavy weight transfers/mobile homes
Code Approvals UPC, IAPMO IGC 285, NSF/ANSI 14, ASTM D2665, ASTM D4066(Clamping Ring)
Package Quantity 1
Minimum Working Temperature (Fahrenheit) -4
Maximum Working Temperature (Fahrenheit) 140
Diameter (End 1) 7-14/25-in
Diameter (End 2) 0
Diameter (End 3) 0
Series Name N/A
Schedule 30 No
NSF Safety Listing Yes
