Bosch 800 Series 24-in Top Control Built-in Dishwasher ( Custom ) With Third Rack, PowerControl and CrystalDry , 46-Decibel
Item #5980983 |
Model #SGV78C53UC
ADA compliant and compact size, designed for small spaces and customers with lower dishwasher height requirements
Standard 3rd rack provides the perfect space for silverware and large utensils, while its V shape leaves room below both sides for taller items like stemware; also includes a lower rack silverware basket
Requires installation of custom panels and handle (not included)
General | |||
|---|---|---|---|
Appliance Color/Finish | Custom panel ready | Series Name | 800 Series |
Manufacturer Color/Finish | Custom | Tub Material | Stainless steel |
Control Panel Color | Stainless | Control Type | Electronic |
Control Panel Style | Hidden (Top) | Number of Cycles | 5 |
Dishwasher Sound Level | Very quiet (43-50 dB) | Rack Material | Nylon |
Sound Rating (Decibels) | 46 | Rack Options | Culinary and utility racks |
Handle Type | Bar handle | ||
Dimensions | |||
|---|---|---|---|
Common Dishwasher Size | 24 inch | Maximum Assembled Height (Inches) | 34.44 |
Actual Depth Excluding Handle (Inches) | 21.65 | Minimum Assembled Height (Inches) | 32.09 |
Actual Depth Including Handle (Inches) | 22 | Tub Height | Standard |
Actual Depth with Door Open (Inches) | 48 | Weight (lbs.) | 84 |
Actual Width (Inches) | 23.54 | Hose Length (Feet) | 6.5 |
Adjustable Height | Yes | ||
Included | |||
|---|---|---|---|
Custom Door Panel Included | No | Junction Box Included | No |
Drain Hose Included | Yes | Power Cord Included | Yes |
Fill Hose Included | No | ||
Features | |||
|---|---|---|---|
Third Rack | Yes | Removable Silverware Basket | Yes |
Adjustable Upper Rack | Yes | Removable Top Rack | Yes |
Automatic Temperature Control | Yes | Self-Cleaning Filter | Yes |
Child Safety Locks | No | Silverware Basket Covers | No |
Customizable | Yes | Stemware Holder | No |
Direct Feed | Yes | Voice Controlled | No |
Fingerprint-Resistant | No | Water Filtration | Yes |
Fold-Down Tines | Upper and lower racks | Leak Detection | Yes |
Hard Food Disposer | No | Removable Filter | Yes |
Hard Food Filtration | Yes | Automatic Open | No |
Hub Required | No | Enhanced Drying Cycle | No |
Lowe's Exclusive | No | Enhanced Cleaning Cycle | No |
Pet Bowl Safe | Yes | Luxury | Yes |
Wash & Dry Cycle Features | |||
|---|---|---|---|
Cycle Status Lights | No | Rinse Aid Dispenser Indicator | Yes |
1/2-Rack Wash Option | No | Rinse and Hold Cycle | No |
Advanced Sensor Wash Cycle | Yes | Sensor Wash Cycle | Yes |
Bottle Wash Feature | No | Steam Option | No |
Delay Wash | Yes | Targeted Scouring Module | No |
Delay Wash Time (Hours) | 24 | Targeted Silverware Wash Module | No |
Gentle Wash Cycle | Yes | Unique/Exclusive Cycle(s) | PowerControl and CrystalDry |
Heavy/Pots and Pans Cycle | Yes | Wash System | PrecisionWash, Power Control |
Hi-Temp Wash Option | Yes | Air Dry | No |
Normal Cycle | Yes | Condensation Dry | Yes |
NSF Certified Sanitization Option | Yes | Fan Assisted Dry | No |
Pre-Soak Cycle | No | Heated/Hi-Temp Dry | Yes |
Quick Rinse Cycle | Yes | Mineral Assisted Dry | No |
Quick Wash Cycle | Yes | ||
Certifications | |||
|---|---|---|---|
CA Residents: Prop 65 Warning(s) | Safety Listing | Not safety listed | |
ENERGY STAR Certified | No | ADA Compliant | Yes |
Compatibility | |||
|---|---|---|---|
App Compatibility | Yes | Works with Apple HomeKit | No |
Bluetooth Compatibility | Yes | Works with iOS | Yes |
Smart Compatible | Yes | Works with SmartThings | Yes |
Wi-Fi Compatibility | Yes | Works with Sonos | No |
Works with Amazon Alexa | Yes | Works with the Google Assistant | Yes |
Works with Android | Yes | ||
Warranty | |||
|---|---|---|---|
Warranty | 1-year limited | ||
Miscellaneous | |||
|---|---|---|---|
UNSPSC | 52141500 | ||
Check out the Best Selling Built-In Dishwashers on Lowes.com
Ratings may include incentivized customer reviews.
What Customers Are Saying
Customers overwhelmingly praise exceptional cleaning performance and remarkably quiet operation, with many noting dishes come out squeaky clean and water spots are eliminated. Long-term users highlight consistent reliability over 16 to 20 years, driving strong brand loyalty and repeat purchases. However, a notable group expresses frustration with redesigned rack systems—silverware doesn't fit securely, the third rack feels impractical, and larger items often won't fit without obstruction. Some mention disappointment with plastic components in what they expected to be premium engineering, and a few report confusing app interfaces and installation challenges. Despite these drawbacks, most customers consider the cleaning power and quiet operation worthwhile.
Customer review summary generated by AI, including incentivized reviews.Lacks some features I'd expect
[This review was collected as part of a promotion.] There aren't many panel-ready dishwashers, in any size, and this was pretty much our only choice. It's OK. There are no particular eco features to save energy. It doesn't allow you to skip the drying cycle--"express wash" is the only setting that doesn't waste electricity drying, and that's not suitable for every load. There's no cycle that's a middle ground between fast and interminably long. The door is difficult to prop open for air circulat...
From bosch-home.com
Truly Horrible
After tax, this is a more-than $1,600 machine and it DOES NOT WORK straight out of the box. Altho the installers, maintenance techs, manuals, online forums and Bosch themselves assure me it is working exactly as designed. I will grant, it does all this (not working very well at all) quite quietly. Not only does this machine refuse to actually clean the dishes, it takes as much as 7 consecutive hours to do so—so long any allegations of "power saving energy star" certifications. And only then if y...
1
1
4
Hi ChoryF, thanks for sharing your review. We’re truly sorry to hear about your experience with your Bosch dishwasher. Your feedback is valuable to u...

Bosch Going Downhill
Bought this dishwasher (800 series) to replace the Bosch dishwasher we had only had for three years (800 series and THREE REPAIR visits in that time). This one is not even a year old and the water pump has gone out. This model is shorter and the configuration of the silverware basket makes it almost impossible to put bigger bowls and other into the lower rack. I have loved my Bosch dishwashers in the past, but my last two purchases have been duds. Won't buy again.
From 800 Series 24-in Top Control Built-in Dishwasher ( Stainless steel ) With Third Rack, PowerControl and CrystalDry , 42-Decibel Verified Purchaser
Thank you for sharing your feedback. We’re truly sorry to hear that your dishwasher has not lived up to the high standards of performance and excelle...

Impossible to load, hate it
Just got this and hate it already. Sure it's quiet, but it's impossible to load. The tines for plates on the bottom will only hold plates straight on one side. The other side holds them incorrectly, as if the tines don't line up. The silverware basket is short and the holes are too small. Can't fit anything but skinny handle silverware. Knives don't fit either. If you remove the basket top, you find the basket is too short, and open. No sections to contain things, just a big basket where...
2
1
5
Hi Theodosia, Thanks for your review. We are sorry to hear of your disappointment with the rack designs. The following link provides tips on how to m...

Bosch dishwashers are the best
[This review was collected as part of a promotion.] This is our third Bosch dishwasher over the past 30 years serving our family of 6. First unit replaced another brand. Second unit was in a new home and we used it for almost 20 years and gave it away in working condition as the new kitchen remodel caused us to need a different size dishwasher. Consistently clean results with a machine that just keeps working. This latest model we now have with our kitchen remodel is very smart, tunable...
From bosch-home.com
Very good dishwasher!

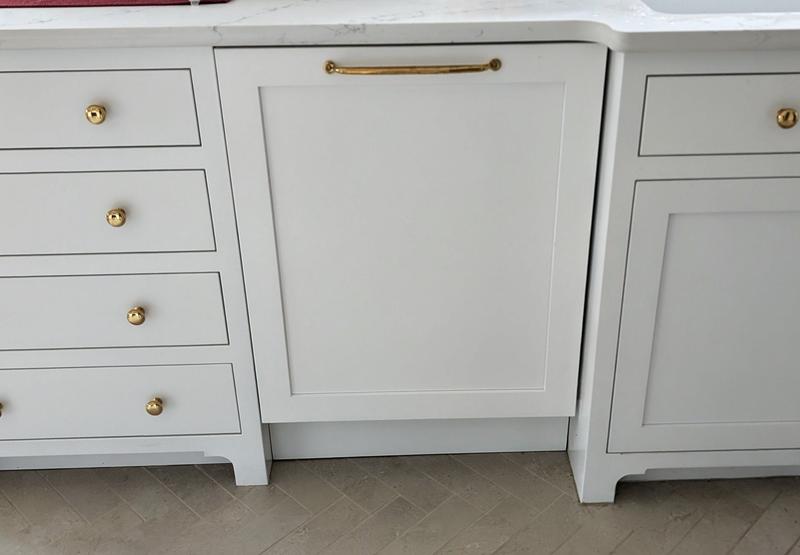

[This review was collected as part of a promotion.] We recently rennovated our kitchen and installed this Bosch dishwasher with the option for a custom front to blend in with our cabinetry. The dishwasher was exterremly easy to install and worked perfectly with the included custom face template. The wash quality of the Bosch is great - much better than the Dacor model we had in our last renovation before moving. The wifi interface was not a reason for us to purchase, but I've appreciated t...
From bosch-home.com
Bosch Dishwasher 800 Series
[This review was collected as part of a promotion.] I had a Bosch dishwasher for 16 years and I loved it! When it died, I replaced in with the 800 Series Custom so I would have the wood panel on the front that matches my cabinetry. The installer showed me that the dishwasher had to be lower than the old one, so when the door is open you see the top of the dishwasher and the bottom piece of wood would not fit, so now I look at the metal bottom of the dishwasher.
From bosch-home.com
Thank you for your review! It's wonderful that you loved your previous Bosch, but we regret to hear about the aesthetic issue with your new 800 Series...
Water softening system essential with well water
We have hard well water and have replaced two dishwashers in 8 years (even while using descaler). Our water tests 425 PPM (4.3 mmol/l). I am impressed so far with the water softening system on this machine. No more film on glasses, cups and pots. OUR SETTINGS Water hardness H06 Rinse aid level 4 Sensor setting (can only be set by the app) standard The Home Connect app is useful but not essential. COMMENTS: 1) There is no dedicated button for the rinse cycle, but the FAVORITE button comes ...
From 800 Series 24-in Top Control Built-in Dishwasher ( Stainless steel ) With Third Rack, PowerControl and CrystalDry , 42-Decibel Verified Purchaser
5
Not as good as my kitchen aid I had previously
The only good thing about this dishwasher is that dishes generally get clean. The pull out trays are horrible for loading dishwater. The silly, tiny top drawer is useless and it makes the middle drawer so short not much fits into the middle drawer. Then the bottom drawer has horrible prongs in it for bigger
From bosch-home.com
Hi, thanks for your review. We are sorry to hear of your disappointment with the rack designs. The following link provides tips on how to maximize the...
Outstanding Dishwasher
[This review was collected as part of a promotion.] Most importantly, our Bosch Dishwasher cleans exceptionally well! On top of that it has been designed very well to facilitate loading and unloading. Lastly, it is very quiet!
From bosch-home.com
