BHI SmartAir 1 zone 22000 Ductless Mini Split Air Conditioner Heat Pump Included with 230-Volt
Item #6290795 |
Model #BHI-T17-24K230V-US-A
We'll notify you once this item is back in stock.
BHI 22,000 BTU 230-Volt, 17 SEER2, 1,200-Sq-Ft Ductless Mini Split Air Conditioner with Heat Pump, 1.83-Ton,16.4ft (5M) lineset,Wall Mount
I-SET : Automatically memorize your preferences settings
I-FEEL : The temperature sensor built in the remote controller can sense the surrounding temperature, so the unit can adjust room temperature more accurately and make you more comfort.
Outdoor Unit has “Heating Belt” that works by the temperature sensor, if temperature lower than 32°F (0°C) degree, it would start to heat and when over than 32°F (0°C) degree then it would stop working automatically to ensure that Outdoor Unit does not freeze
DC Inverter : BHI DC inverter air conditioner has wide range frequency conversion, cooling & heating, after turning on, it can make the compressor and turbo into the high-frequency operation to achieve maximum operation speed and instantly reach the maximum input cooling & heating volume
Louver Position Memory: The louver will be restored to the previous position when the unit is restarted
ECO Mode: The air-con cools the room much faster and then operates at low frequency
4 way air flow - vertical horizontal auto swing and Self-cleaning - quick-drying and sterilization
Pre-Charged with R-410A Refrigerant and Not Included Power Cable
General | |||
|---|---|---|---|
Color/Finish Family | White | Control Type | Electronic |
Manufacturer Color/Finish | WHITE | Filter Type | Mesh |
Series Name | SmartAir | Mounting Location | Wall |
Type | Flare line set | Refrigerant Type | R-410A |
Application | Heating/Cooling | Number of Tons | 2 |
Dimensions | |||
|---|---|---|---|
Air Handler Depth (Inches) | 12.4 | Height (Inches) | 32.36 |
Air Handler Height (Inches) | 8.66 | Line-set Connection Size | 1/4-in x 1/2-in |
Air Handler Width (Inches) | 39.76 | Line-set Length | 16-2/5-ft |
Compressor Depth (Inches) | 5.9 | Maximum Coverage Area (Sq. Feet) | 1200 |
Compressor Height (Inches) | 11.25 | Weight (lbs.) | 101.41 |
Compressor Width (Inches) | 7.67 | Width (Inches) | 73.34 |
Cord Length (Feet) | 19 | Zone Capacity | 1 zone |
Depth (Inches) | 26.14 | Amperage | 12 |
Features | |||
|---|---|---|---|
24 Hour Timer | Yes | Minimum Outdoor Temperature (Fahrenheit) | 5 |
Annual Fuel Utilization Efficiency % (Percentage) | 0 | Multi-Directional Air Control | Yes |
Auto Cool | Yes | Noise Rating | Standard (46 decibels or above) |
Automatic Shut-Off | Yes | Number of Speeds | 7 |
Cooling BTU Rating | 22000 | Oscillation | Yes |
Decibel Rating (Highest Setting) | 49 | Overload Protection | Yes |
Decibel Rating (Lowest Setting) | 41 | Pre-Charged Line Set | No |
Fan Only Option | Yes | Quiet Mode | Yes |
Full Load Amperage Requirement (Amps) | 20 | Remote Control Included | Yes |
Heat Pump Included | Yes | Sleep Mode | Yes |
Heating BTU Rating | 22000 | Thermostat | Yes |
Hub Required | No | Timer | Yes |
Kit | Yes | Voice Controlled | No |
Low Voltage Compensation | Yes | Voltage (Volts) | 230 |
Lowe's Exclusive | No | ||
Compatibility | |||
|---|---|---|---|
Bluetooth Compatibility | No | Works with Apple HomeKit | No |
Smart Compatible | No | Works with iOS | No |
Wi-Fi Compatibility | No | Works with SmartThings | No |
Works with Amazon Alexa | No | Works with the Google Assistant | No |
Works with Android | No | ||
Warranty | |||
|---|---|---|---|
Warranty | 1-year limited | ||
Certifications | |||
|---|---|---|---|
AHRI Certified | Yes | ENERGY STAR Certified | No |
CA Residents: Prop 65 Warning(s) | Safety Listing | cETLus safety listing | |
Energy Efficiency Ratio (E.E.R.) | 8.5 | AHRI Certification Number | 210610097 |
Miscellaneous | |||
|---|---|---|---|
UNSPSC | 40101700 | ||
Check out the Best Selling Ductless Mini Splits on Lowes.com
Ratings may include incentivized customer reviews.
High Efficiency and Quiet.

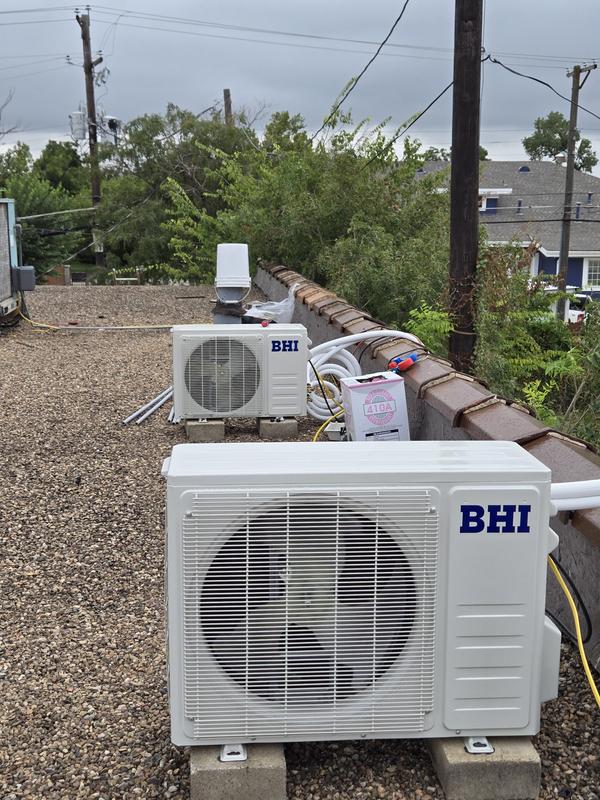

Installed 2units instead of complicated duct HVAC.
100% recommend!
upgraded from a 12k btu to this 22k btu and couldnt be happier! this thing works great
3 Questions
3 Questions
What is the lowest outdoor temp this unit can handle. I live in Wyoming and get a few weeks a year of extreme cold -15 at times
RonA on August 1, 20250
Answers
How much would it cost to have this installed?
Kindofhandy on May 26, 20250
Answers
What power cord is not included
Reenie on February 2, 20250
Answers
