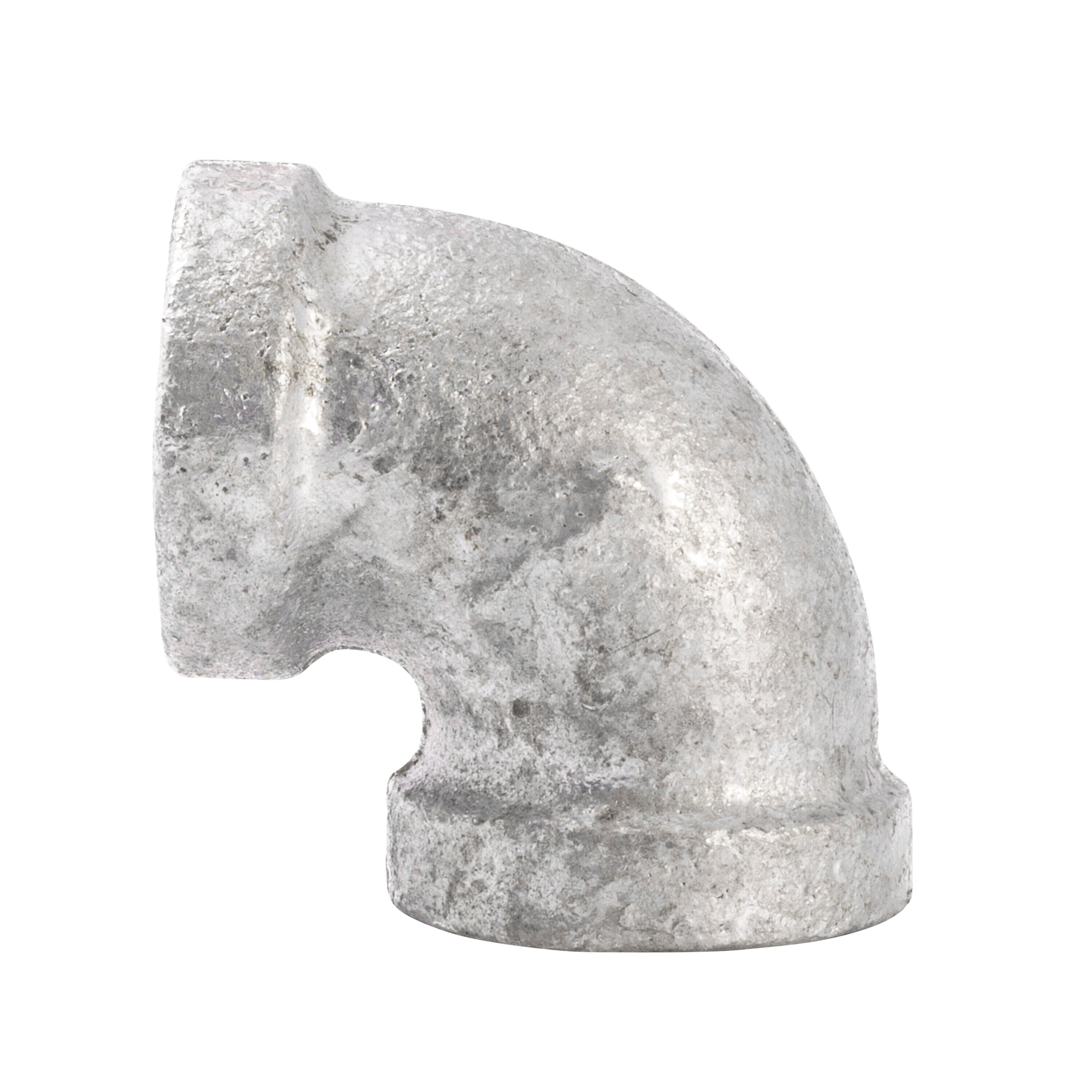

RELIABILT 1/4-in 90-Degree Galvanized Elbow
Item #276807 |
Model #510-001LW
Used for hot and cold water systems, refrigeration, sprinklers, compressed air, gasoline, diesel, alcohol, and some other applications where conducted fluid needs inner rust-proof protection
Galvanized malleable iron construction with zinc coating
150 lb class malleable fittings
This fitting works up to 500 PSI at 150-degrees F
Relative softness of metal helps provide a sure seal
Threaded ends meeting with ANSI/ASME B1.20.1 standards
General | |||
|---|---|---|---|
Sub Type | Elbow | Connection Type (End 1) | Female |
Type | Fitting | Connection Type (End 2) | Female |
Material | Galvanized malleable iron | Common Use | Potable water |
Package Quantity | 1 | Pipe Schedule | Schedule 40 |
Maximum Working Temperature (Fahrenheit) | 185 | ||
Dimensions | |||
|---|---|---|---|
Diameter (End 1) | 1/4-in | Weight (lbs.) | 0.11 |
Diameter (End 2) | 1/4-in | ||
Features | |||
|---|---|---|---|
Degree of Angle | 90 | Minimum Working Temperature (Fahrenheit) | -20 |
Maximum Working Pressure (PSI) | 300 | Threaded | Yes |
Certifications | |||
|---|---|---|---|
CA Residents: Prop 65 Warning(s) | Safety Listing | NSF safety listing | |
Warranty | |||
|---|---|---|---|
Warranty | 1-year limited | ||
Compatibility | |||
|---|---|---|---|
For Use with RVs | No | Code Approvals | Threads: ASME B1.20.1; Malleable Fittings: ASME B16.3 |
Miscellaneous | |||
|---|---|---|---|
UNSPSC | 40171600 | ||
