A.O. Smith Signature 100 12-Gallon Compact 6-year Warranty 1500-Watt 1 Element Point Of Use Electric Water Heater
Item #816147 |
Model #E6-12C15SV
Delivers the ideal amount of hot water for specialized applications and small capacity needs
Features one 1,500-watt copper heating element that delivers 7 gallons per hour at a recovery rate at 90 degrees Fahrenheit
Low-profile 22.75-in high x 16-in diameter design for easy installation under counters or vanities and inside cabinets
Optional side or top water connections available
Provides superior tank protection and extends water heater life with premium heating elements, anode rod and fused ceramic tank shield
Reduces heat loss with non-CFC polyurethane foam insulation for maximum efficiency and energy savings
Features easy temperature control with adjustable thermostat you can set higher or lower for dishwashers and laundry machines
Factory-installed temperature and pressure relief valve and tamper-proof drain valve ensure safe operation
Provides peace of mind with a 6-year limited tank and parts guarantee and a 1-year limited labor warranty
General | |||
|---|---|---|---|
Series Name | Signature 100 | Grade | Residential |
Type | Tank | Use Location | Indoor |
Power Source | Electric | ||
Dimensions | |||
|---|---|---|---|
Depth (Inches) | 16 | Nominal Capacity (Gallons) | 12 |
Diameter (Inches) | 16 | Rated Storage Capacity | Not applicable |
Family Size | 1 | Water Connection Size | 3/4-in |
Height (Inches) | 22.75 | Weight (lbs.) | 52 |
Insulation Thickness (Inches) | 1 | Width (Inches) | 16 |
Features | |||
|---|---|---|---|
Annual Fuel Utilization Efficiency % (Percentage) | 0 | Scale Prevention | No |
Foam Insulation | Yes | Super High Efficiency | No |
GPH Recovery at 90 Degrees F (Gallons) | 7 | Temperature and Pressure Relief Valve | Yes |
Grid Capable | No | Uniform Energy Factor | Not applicable |
Hybrid Heat Pump Technology | No | Voltage (Volts) | 120 |
Installation Location | N/A (Portable) | Water Connection Location | Top |
Point of Use | Yes | Water Heater Style | Mini tank |
Compatibility | |||
|---|---|---|---|
Bluetooth Compatibility | No | Works with iOS | No |
Smart Compatible | No | Works with SmartThings | No |
Wi-Fi Compatibility | No | Works with the Google Assistant | No |
Works with Amazon Alexa | No | For Use with Mobile Homes | Yes |
Works with Android | No | For Use with RVs | No |
Works with Apple HomeKit | No | ||
Warranty | |||
|---|---|---|---|
Warranty | 6-year limited | ||
Certifications | |||
|---|---|---|---|
CA Residents: Prop 65 Warning(s) | AHRI Certified | No | |
ENERGY STAR Certified | No | AHRI Certification Number | 0 |
Safety Listing | UL safety listing | ||
Miscellaneous | |||
|---|---|---|---|
UNSPSC | 40101800 | ||
Check out the Best Selling Water Heaters on Lowes.com
Ratings may include incentivized customer reviews.
What Customers Are Saying
This electric water heater generally performs well, heating water quickly and providing sufficient hot water for most customers' needs. Many highlight its compact size and good value. However, some customers encountered minor installation issues or experienced quality concerns like leaks. Overall, the water heater meets the needs of most users, though a small number had negative experiences.
Customer review summary generated by AI, including incentivized reviews.Quick hot water from faucet
Happy with it so far. Only had it a day or two set up close to my faucet and got hot water immediately
From aosmith.com
Poor quality control.
Cold water inlet on top of heater had damaged threads; had to buy a 3/4 NPT tap to repair threads in order to either use or plug that port. So in the middle of an installation, choice is call 1800-AO Smith and wait a week for whatever they decide to do or get back in car, spend more time and money fixing someone else' problem.
Verified Purchaser
sent a return?

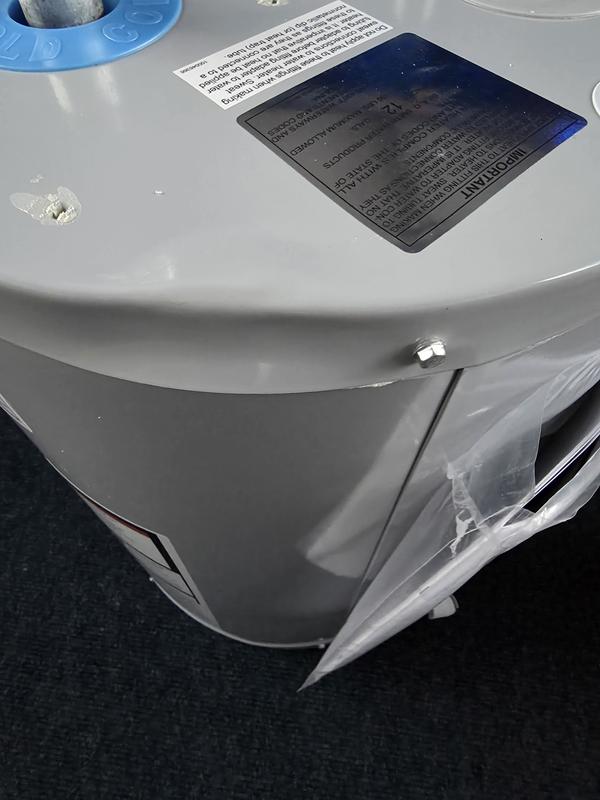

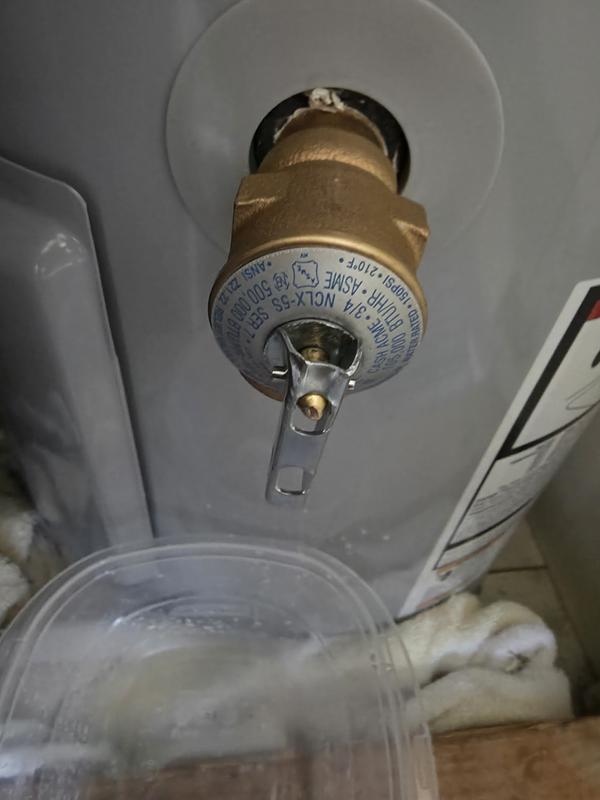

I guess the unit is got had been either a return, display model or something. box was damaged, unit had a good size dent and the kicker the pressure relief valve is defective. Started leaking during filling the tank. no pressure not even full and heat was nit even turned on yet.
We are sorry to hear of your experience.
We recommend reaching out to Lowe's Customer Care at 1-800-445-6937 or Text 84109.
Great buy
Very easy to install at least for me I’m a retired contractor, welder fabricator. Got tired of the old 6 gallon in the rv so put this one in. The fit was great! No complaints.
From aosmith.com
The right size for my application.
It's a good fit for my application . It was a perfect replacement
From aosmith.com
buy
Works great
Verified Purchaser
Super disappointed. Lasted 10 months
After 10 months the heating element blew. Replaced element and will not heat, replaced thermostat and still will not heat at all. Unit is getting proper voltage. Super disappointed.
We are sorry to hear of your experience. We want to ensure the issue is resolved.
Please send your phone number to [email protected]...
Not made to be mounted outside.
I bought this one2 gallon OA Smith water. Heater for my R. V.. i mounted it outside. Of my R. V. And then Weatherproofed. It from the elements. Easy to install and has been working great.
Verified Purchaser
size fits my need as 2nd H2O heater in series
The product is likely to be good- I can only tell after use. There is one initial quality issue -The inlet connection on the top was not perpendicular to tank, it was inclined slightly, it is causing installation problem- and also slight leak when connecting inlet pipe nipple to tank even with teflon tape, hope this is not due to a crack in the electrical isolation female threaded part. I can send a photo. I would appreciate a cross section drawing of the inlet pipe - it said it is going th...
From aosmith.com
No nipples.
Nice tank. No nipples with the tank. Had to buy and had difficulty installing so they wouldn't leak.
Verified Purchaser
This water heater does not include nipples. They must be purchased separately.
