KitchenAid 24.3-cu ft Counter-Depth French Door Refrigerator & 30-in 5 Burners Slide-In Convection Oven Electric Range 4pc Customizable Juniper Suite
Collection Items
When should I expect to get my items?
See availability by item
Enter your dimensions and we’ll check if it fits in your space.



Items Included in this Collection
Refrigerator includes Juniper handles.
Range includes Juniper handles and knobs.
Dishwasher includes Juniper handle.




Item #7161973 |
Model #KRFC236SJP
PRESERVA Cooling System helps keep food fresh and flavorfu
FRESHCHILL Temperature-Controlled Full-Width Pantry Drawer has digital presets for wine, deli, drinks and meat
True Counter Depth lets your refrigerator blend seamlessly into your kitchen
FRESHSEAL Humidity-Controlled Crisper Bins seal and lock in humidity to help keep ingredients fresh
Designed to be Personalized with a curated palette of finishes and handles
Interior Water Dispenser maintains the refrigerator's sleek exterior design
True Clearance Hinges allow doors to open up to 135°
Signature Platinum Interior wows with wood-look trim and metallic accents
PRINTSHIELD Finish resists smudges and fingerprints
General | |||
|---|---|---|---|
Appliance Color/Finish | Green | Number of Doors | 3 |
Cabinet Color | Gray | Ice Type | Cubed |
Handle Color | Green | Door Style | Contoured |
Manufacturer Color/Finish | Juniper | Appliance Type | French door refrigerator |
Toe Grille Color | No toe grille | Door Texture | Textured |
Bulb Type | LED | Freezer Door Style | Pull-out drawer |
Handle Type | Standard | ||
Dimensions | |||
|---|---|---|---|
Actual Width (Inches) | 36 | Height to Top of Case (Inches) | 68.87 |
Common Width (Inches) | 36 | Height to Top of Door (Inches) | 68.87 |
Popular Widths | 36-in | Height to Top of Door Hinge (Inches) | 69.93 |
Depth (Excluding Handles) (Inches) | 29.43 | Overall Capacity (Cu. Feet) | 24.3 |
Depth (Including Handles) (Inches) | 32.12 | Refrigerator Capacity (Cu. Feet) | 17.7 |
Depth (Less Door) (Inches) | 25 | Freezer Capacity (Cu. Feet) | 6.57 |
Depth Type | Counter-Depth | Refrigerator Size | Medium (33 - 36-in) |
Depth with Door Open (Inches) | 44.25 | Weight (lbs.) | 340 |
Features | |||
|---|---|---|---|
Air Filtration | No | See-Thru Door | No |
Automatic Door Sensor | No | Shelf Options | Adjustable glass shelves |
Automatic Drawer Sensor | No | Snack/Deli Drawer | Yes |
Built-In | No | Soft Close Drawers | No |
Child Safety Locks | Yes | Temperature Controlled Drawer | Yes |
Customizable | Yes | Touch Screen | No |
Dispenser Light | No | Voice Controlled | No |
Door Alarm | Yes | Frost-Free | Yes |
Door Shelves | 6 | Space-Saving In-Door Ice | No |
Door within Door | No | Water Filtration | Yes |
Electronic Temperature Control | Yes | Water Filter Indicator | Yes |
Fingerprint-Resistant | No | Reversible Freezer Door | No |
Gallon Door Storage | Yes | Built-in Water Pitcher | No |
Garage Ready | No | Ice Maker | Single |
Hidden Hinge | Yes | Ice and Water Dispensers | Water only |
Hub Required | No | Ice/Water Location | Internal dispenser |
Humidity-Controlled Crispers | 2 | Freezer Baskets | 2 |
LED Light | Yes | Freezer Door Bins | 0 |
Lowe's Exclusive | No | Freezer Shelves | 0 |
Panel Ready | No | Freezer Light | Yes |
Pantry Drawer | Temperature-controlled | Freezer Drawers | 2 |
Professional | No | Evaporative Cooling System | Single |
Refrigerator Interior Lighting | LED | Luxury | Yes |
Compatibility | |||
|---|---|---|---|
App Compatibility | No | Works with Apple HomeKit | No |
Bluetooth Compatibility | No | Works with iOS | No |
Custom Door Kit Compatible | No | Works with SmartThings | No |
Smart Compatible | No | Works with Sonos | No |
Wi-Fi Compatibility | No | Works with the Google Assistant | No |
Works with Amazon Alexa | No | Matching Replacement Water Filter Model | EDRARXD1 |
Works with Android | No | ||
Warranty | |||
|---|---|---|---|
Warranty | 1-year limited | ||
Certifications | |||
|---|---|---|---|
Approved for Outdoor Use | No | ENERGY STAR Certified | Yes |
CA Residents: Prop 65 Warning(s) | Safety Listing | UL safety listing | |
CEE Tier Qualified | CEE Tier I | ADA Compliant | Yes |
Miscellaneous | |||
|---|---|---|---|
UNSPSC | 52141500 | ||
Ratings may include incentivized customer reviews.
What Customers Are Saying
Customers praise the refrigerator's generous interior storage, counter-depth design, and smart layout that accommodates large items like gallon milk jugs. Many highlight the side-mounted ice maker, adjustable shelves, deli tray, and beverage drawer as thoughtful features. The sleek, modern exterior and premium finishes earn consistent compliments. However, a notable group reports recurring ice maker failures, excessive noise, and water dispenser breakdowns requiring repeated repairs. Some mention doors failing to close properly and control panels being easily bumped. Despite these reliability concerns, most customers find the design and storage benefits outweigh the drawbacks.
Customer review summary generated by AI, including incentivized reviews.30Min. From instal BROKEN & filter stuck
Been a long time kitchen Aid house. Every appliance we have for well over 25 years has been and currently is KA. Our old fridge wasn’t cooling so we bought this pretty fridge. Installers came did their work and left us to unpack the inside of the fridge(tape, styrofoam and install the filter etc), 30 min later the water is not coming out to flush the water filter and the filter is STUCK inside the housing unit(yes I installed it correctly as I have in our other fridge for 10 years). Called LOWES...
Great Refrigerator
I love the bright interior and the pull out shelf. The frig part is more spacious because the ice maker is in the bottom freezer. First time ever i am concerned because it makes too much ice!
From Counter-Depth 24.3-cu ft 3 -Door 36-in Wide with Ice Maker ( PrintShield Stainless ) ENERGY STAR Certified Verified Purchaser
Junk hidden behind fancy color
Pretty disappointed with this fridge and the KitchenAid brand. The new color is very cool and sets it apart from other typical black, white and stainless appliances. That's where the positives end. The thing is a cheap fridge with a fancy color wrap. The sides are cheap looking black that you expect on a budget item, it really takes away from the higher end look of the juniper color. The water dispenser is extremely loud and leaks intermittently. Since it is in the fridge you don't know ...
From kitchenaid.com
Thank you for sharing your experience with us. We sincerely apologize for any concerns you are experiencing with your Refrigerator. We value our cust...
There is plenty of room, even for a counter depth!
What a great fridge! I love the full width design that offers so much more storage than my previous side-by-side. The pull out tray and water dispenser inside is a welcome feature. I didn’t want an exterior dispenser for ice and water as they were problematic. This is so much better. The freezer is very accessible and has a space for frozen pizza storage which was a surprise. Love it!
From Counter-Depth 24.3-cu ft 3 -Door 36-in Wide with Ice Maker ( PrintShield Stainless ) ENERGY STAR Certified Verified Purchaser
DO NOT BUY THIS KITCHENAID PRODUCT
Whirlpool Customer Relations is the worst! My 3-month old refrigerator failed five days ago. There is no cooling whatsoever. They assigned to a local service company "J&H Appliance". J&H came out within two days. The refrigerator had two major failures - the evaporator (not available locally so will be coming from East Coast 7-10 days) and the UI system (back ordered and at least three weeks minimum) to get this. We have family members that rely on insulin and other meds that need refrigera...
We truly appreciate you reaching out and sharing your experience with us. We're very sorry to hear about the trouble you're having with your ...

its ok

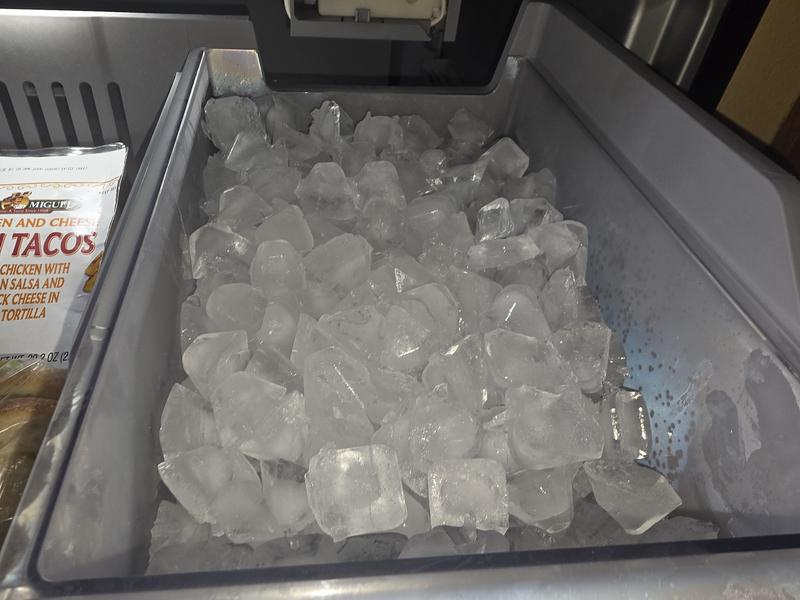

[This review was collected as part of a promotion.] Although it works perfectly fine as a fridge there are some design flaws that are head scratching. Mostly the ice maker. Why in the world isn't there a shutoff when it's full? At least some sort of flap to keep the ice overflow from being pushed out of the back shelf down into behind the shelves. I'll never understand how a product can go through endless R&D and no one notice or care about something like this. Also it seems like having the deli...
From kitchenaid.com
Looks amazing, some poor design choices and more
[This review was collected as part of a promotion.] This is our second unit. The first one's water dispenser broke within 5 minutes of use. Second units water dispenser had a constant drip and required an immediate repair. 2 brand new refrigerators, both with immediate water dispenser issues. Ergonomics are questionable. Control panel is on left door, which is the same side as water dispenser. People open the door with their left hand and hold water cup with the right. The left hand reg...
From kitchenaid.com
Great except for one design flaw with ice maker!
[This review was collected as part of a promotion.] Mostly very happy with this refrigerator. Happy not to have external water and ice dispenser that no one can every use except the owners who know the refrigerators "touch". Internal water dispenser is great. Love the size of ice cubes and speed, but when you open the freezer drawer, the ice bucket has to pull past the maker above it and it scrapes the top ice cubes backwards. It's new and not sure the sensor to stop making ice is accurate so I ...
From kitchenaid.com
counter depth and sleek front
We wanted a counter depth fridge without an external ice /water dispenser. This unit fits the bill perfectly! Four inches shorter in depth than our last KitchenAid.
From Counter-Depth 24.3-cu ft 3 -Door 36-in Wide with Ice Maker ( PrintShield Stainless ) ENERGY STAR Certified Verified Purchaser

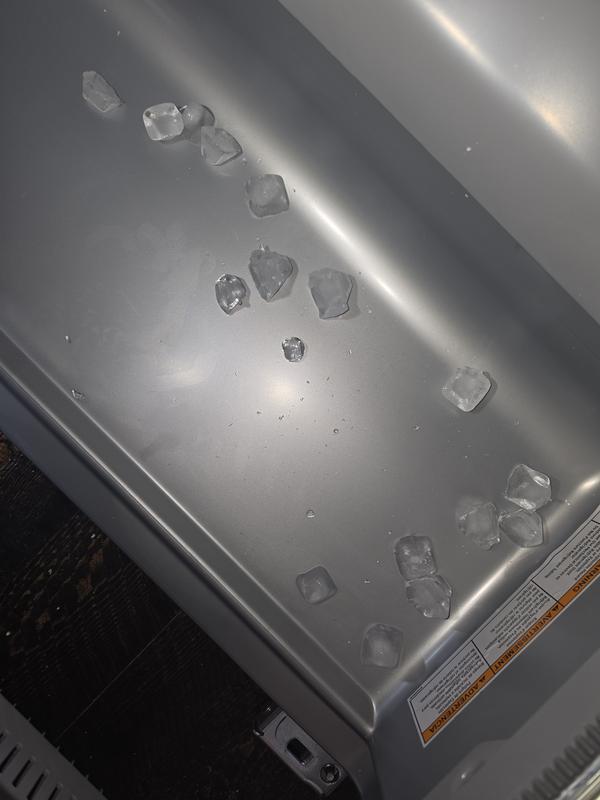

Ice maker is annoying - showstopper
Every time you open the freezer ice falls into the bottom of the freezer. There isn't any way to adjust it. I would not have bought this model if I had known this.
