Arrow Arrow Carports Galvanized Steel Carport, Full-Size Metal Carport Kit, 12' x 24' x 9', Charcoal Collection
Collection Items
SUCCESSWhen should I expect to get my items?
See availability by item









Item #4981852 |
Model #CPHC122409
Built strong with a 2x2 inch 15-gauge wall thickness
An all-weather carport that will protect your vehicle or outdoor space all-year long: the Arrow Carport is built to take on even tough weather
A heavy-duty, galvanized steel roof that's built to last - features a 29-gauge painted galvanized steel for corrosion resistance
Roof in an attractive charcoal finish, with a black powder coated steel frame
Perfect for car storage and shelter, truck shelter, vehicle shelter, boat shelter or as a multi-use shade and picnic area
ASSEMBLY MADE EASY FOR THE DIYer- The Arrow carport is designed for easy assembly and installation with slip-fit connections and self-taping screws for long lasting protection
Comes with a 10 year warranty
Disclaimer- Wind and snow loads given are for reference only and assume a standalone unit without enclosure kit, and a securely anchored frame according to local building codes and ordinances - These loads have been calculated using combined snow and wind load provisions in accordance with ASCE 7-05 and these calculations are based on an unoccupied structure - Local building code requirements vary by location; conformance to local codes is the responsibility of the purchaser
This Unit Contains 6 Packages - You will receive 4 Frame Cartons 2 Roof Panel Cartons
General | |||
|---|---|---|---|
Trim Color | Black | Frame Material | Metal |
Manufacturer Color/Finish | Charcoal | Roof Style | Peaked |
Color/Finish Family | Black | Series Name | Arrow Carport |
Type | Carport | ||
Dimensions | |||
|---|---|---|---|
Exterior Peak Height (Feet) | 11 | Actual Interior Peak Height (Feet) | 10.4 |
Package Length (Inches) | 70.87 | Actual Interior Length (Feet) | 24.23 |
Package Height (Inches) | 25.32 | Roof Length (Feet) | 24 |
Package Width (Inches) | 30.25 | Size | Single car |
Interior Peak Height (Feet) | 10.4 | Frame Width (Feet) | 12 |
Actual Exterior Peak Height (Feet) | 10.56 | Actual Interior Width (Feet) | 11.83 |
Actual Exterior Length (Feet) | 24.23 | Weight (lbs.) | 711 |
Actual Exterior Width (Feet) | 12.17 | Roof Width (Feet) | 12 |
Frame Height (Feet) | 9 | ||
Features | |||
|---|---|---|---|
UV Protection | Yes | Gutter Included | No |
Collapsible | No | Wind Load (MPH) | 100 |
Water Resistant | Yes | Enclosure Side Panels | None |
Hardware Included | Yes | Cover Included | No |
Rust Resistant | Yes | Enclosure Side Panels Included | No |
Portable | No | Snow Load Capacity (lbs./Sq. foot) | 35 |
Package Weight (lbs.) | 812 | Anchors Included | Yes |
Warranty | |||
|---|---|---|---|
Warranty | 10-year limited | ||
Certifications | |||
|---|---|---|---|
CA Residents: Prop 65 Warning(s) | No | ||
Miscellaneous | |||
|---|---|---|---|
UNSPSC | 30191700 | ||
Ratings may include incentivized customer reviews.
Not as wind resistant as stated...

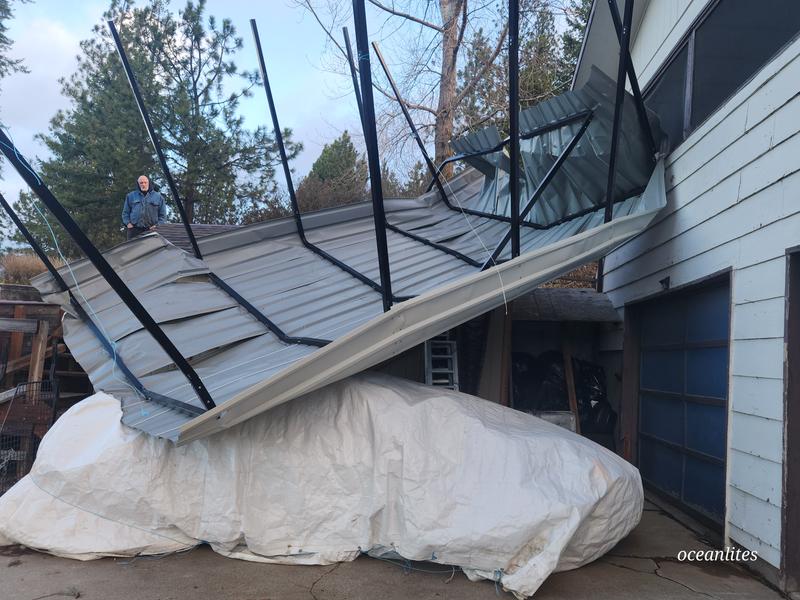

Weputchsed and had put this up June 2025,looked great...was happy. In mid Dec 2025 we had high winds of about 50 mph in OUR area. I happened to be up at 6 a.m when I heard a loud bang against the house,went to see what the heck it was. Saw that the whole 700 lb carport got launched up and back about 25 ft towards the house....then landed on TOP of my sports car( under white tarp). As we are putting another engine in my car..I may add the body was..well used to be.. in perfect cond.It was not c...
Carport
set up was easy and manual and tutorial was very clear and easy to follow.
From BILT
Not up yet..
have not assemybeld yet, but I dont understand why you do center roof panel first. then you have to get the next panel, under the edge of the first. it will ruin the weather striping.
From BILT
Amazing quality
I have owned 2 other car ports that collapsed under the weight of heavy snow. When I unboxed this carport I could see the differences, from the high quality steel square tubes big round bars and the quality of the tin for the roof. Once it was assembled the sturdiness of the structure was unmatched with any carport I’ve owned or seen
From shelterlogic.com
More Realistic Models
Eventually it would be cool to see the actual object constructed. I think at this point with the help of AI, the model could be more realistic.
From BILT
Carport
I did not get all the parts, so I can nit build the carport. I have not heard back from customer support on the missing parts.
Hi there,
We are very sorry to hear about this. Please call our customer service line so that we can gather more information and offer th... Read More

Roof leaks
It is sturdy and easy to assemble. However, the roof has 38 seams and water pours through every one of them with the lightest rain. I had to spend an extra $700.00 to buy new metal to roof it without leaking seams. It would make an ok metal sunshade but it doesn't keep anything dry.
Hello,
We are sorry to hear about this. Please submit a warranty claim to gather more information and offer the best solution we possibly... Read More

Keep an eye out for the delivery truck
Stated I had to be here, dropped off the pallet and never knocked on the door to alert me
Verified Purchaser
Hi Dandy,
Thank you for your feedback! If you have any questions regarding the product or need assembly support, please call us at 1-800-... Read More

Great carport, reasonable price.
Went together easy enough, does the job at an affordable price. No missing or damaged parts. Pick a nice day, take your time and have some help.
Hello JTL123,
Thank you so much for taking the time to leave us a 5-star review.

Inspect material before accepting
Decent quality material, the charcoal colored painted sheet metal was scratched very badly on three of the panels which was disappointing.
Verified Purchaser
Hi there,
We are sorry to hear about this. Please submit a warranty claim to gather more information and offer the best solution we possi... Read More















Hi Annette,
We’re sorry to hear about the issues you described. Please submit a warranty claim so we can gather more information and prov... Read More
