A.O. Smith Signature 100 40-Gallon Tall 4500-Watt Double Element Electric Water Heater Installation Bundle
Collection Items
SUCCESSWhen should I expect to get my items?
See availability by item


Items Included in this Collection



Item #2483226 |
Model #E6-40H45D TTP
Delivers the ideal amount of hot water for households with 2 to 3 people when sized appropriately
Features two 4,500-watt copper heating elements that provide a first hour delivery of 53 gallons
Operates at a 0.92 Uniform Energy Factor for maximum energy-efficiency and cost savings
Tall, slim 61.25-in H x 18-in diameter profile enables easier installation in narrow spaces
Provides superior tank protection and extends water heater life with premium heating elements, anode rod and fused ceramic tank shield
More efficient and longer lasting than conventional elements, with higher recovery
Features easy temperature control with adjustable thermostat you can set higher or lower for dishwashers and laundry machines
Comes with temperature and pressure relief valve for top installation
Provides peace of mind with a 6-year limited tank and parts guarantee and a 1-year limited labor warranty
General | |||
|---|---|---|---|
Type | Tank | Use Location | Indoor |
Grade | Residential | Series Name | Signature 100 |
Power Source | Electric | ||
Dimensions | |||
|---|---|---|---|
Nominal Capacity (Gallons) | 40 | Weight (lbs.) | 118 |
Rated Storage Capacity | 36-Gallon | Width (Inches) | 18 |
Depth (Inches) | 18 | Family Size | 3 |
Diameter (Inches) | 18 | Water Connection Size | 3/4-in |
Height (Inches) | 61.25 | Insulation Thickness (Inches) | 2 |
Features | |||
|---|---|---|---|
Hybrid Heat Pump Technology | No | Voltage (Volts) | 240 |
Point of Use | No | Foam Insulation | Yes |
Annual Fuel Utilization Efficiency % (Percentage) | 0 | GPH Recovery at 90 Degrees F (Gallons) | 20.7 |
Uniform Energy Factor | 0.92 | Temperature and Pressure Relief Valve | Yes |
Super High Efficiency | No | Water Connection Location | Top |
Grid Capable | No | Water Heater Style | Tall |
Scale Prevention | No | ||
Compatibility | |||
|---|---|---|---|
For Use with RVs | No | Works with Android | No |
Works with Apple HomeKit | No | Wi-Fi Compatibility | No |
For Use with Mobile Homes | Yes | Works with the Google Assistant | No |
Works with SmartThings | No | Bluetooth Compatibility | No |
Works with Amazon Alexa | No | Smart Compatible | No |
Works with iOS | No | ||
Warranty | |||
|---|---|---|---|
Warranty | 6-year limited | ||
Certifications | |||
|---|---|---|---|
CA Residents: Prop 65 Warning(s) | AHRI Certified | Yes | |
ENERGY STAR Certified | No | Safety Listing | UL safety listing |
Miscellaneous | |||
|---|---|---|---|
UNSPSC | 40101800 | ||
Ratings may include incentivized customer reviews.
What Customers Are Saying
The water heater appears to have mixed reviews. Many customers report that it heats up quickly, is well-made, and provides good value. However, some customers experienced issues like long heat-up times, leaks, and premature failure within a couple of years. The reliability of the product seems to be a concern for some buyers.
Customer review summary generated by AI, including incentivized reviews.This is not good product
I been taking cold showers with a new hot water heater and that I changed my heating element and it still doesn’t work right now. So I need for someone to come in and fix this problem or order me a new one because it should not be broken with in three weeks of work time. Lowe’s you need to own up to this and everyone problems they have with this.
From Signature 100 50-Gallon Tall 6-year Warranty 4500-Watt Double Element Electric Water Heater
Works.
It does not take up much space. Ir was easy to wire. Only 3 wires required
From aosmith.com
Revise warranty disclaimer
This product, installed 1/5/2026, replaced a 2-1/2 year old AO Smith W/H, serial number 231113335574, model number EE12-50H55DVF-A 100, installed by a Lowes contractor on 5/1/2023. [Return Authorization Number R14713754; case number 19405991]. The EE-12 had a 12 year tank warranty, 12 year parts warranty, and 3 year labor warranty. The Lowes contracted plumbing company charged me close to $1,000 for installation of the unit. What I disliked about the original unit is: (1) it developed a leak...
From Signature 100 50-Gallon Tall 6-year Warranty 4500-Watt Double Element Electric Water Heater Verified Purchaser
We are sorry to hear of your experience. We want to ensure the issue is resolved.
Please send your phone number to talktous@aosmith.co...
Piece of Junk
The first one was installed by a plumber and never worked. You have to go through I.O. Smith instead of Lowes if you have issues with the product. My plumber called I.O. Smith and provided all the readings. They gave him a hard time and tried to say it was his fault the defective water heater didn't work. Finally gave authorization to get a replacement. Installed the new water heater. It only provided 3 minutes of hot water. It worked for 3 weeks (01/18/26 to 02/09/26) and then the top element b...
From Signature 100 50-Gallon Tall 6-year Warranty 4500-Watt Double Element Electric Water Heater
We are sorry to hear of your experience. We want to ensure the issue is resolved.
Please send your phone number to talktous@aosmith.co...
Forced to replace 24 yr old perfectly functioning
I was forced to replace my perfectly functioning 24 year old AOSmith water heater by my homeowners insurance company in order to keep my policy. I hope that this new one lasts as long. Didn't have any problems with the old one and even though it probably didn't have any maintenance (the condo was a vacation rental previous to my purchase) it didn't even have much sand on the bottom of the tank. I can only hope for the same performance with the new one.
From aosmith.com
We are installing it this weekend. I will let you know
From Signature 100 50-Gallon Tall 6-year Warranty 4500-Watt Double Element Electric Water Heater Verified Purchaser
See above
I picked this item up at your NE location. The most enjoyable part of this purchase was your employee (Henry) what a most pleasant, helpful and professional person. If all people had the attitude of this young man the world would be a much better place. Most Excellent experience!!!
Verified Purchaser
Terrible
I purchased a 50 gallon hot water heater at Lowes in Ormond Beach Florida. When i got it home and unboxed it, it was dented. I put it back in the box and returned it to the store. I had to go through the return process which took a while because they were busy. Then i went back it the department to get a different one. I picked one out and made sure the box wasn't damaged like the one i just returned. There did not appear to be any damage. I took it home and opened the box the next morning....
From Signature 100 50-Gallon Tall 6-year Warranty 4500-Watt Double Element Electric Water Heater Verified Purchaser
We are very sorry to hear of your experience. We recommend reaching out to Lowe's Customer Care at 1-800-445-6937 or Text 84109 for further assis...
Best In Class
Replaced original AO Smith hot water heater that was 22 years old and still working. I will only buy AO Smith tank heaters and my plumber City Plumbing will only install AO Smith due to quality and relability.
From aosmith.com
Lowes lostthis Customer

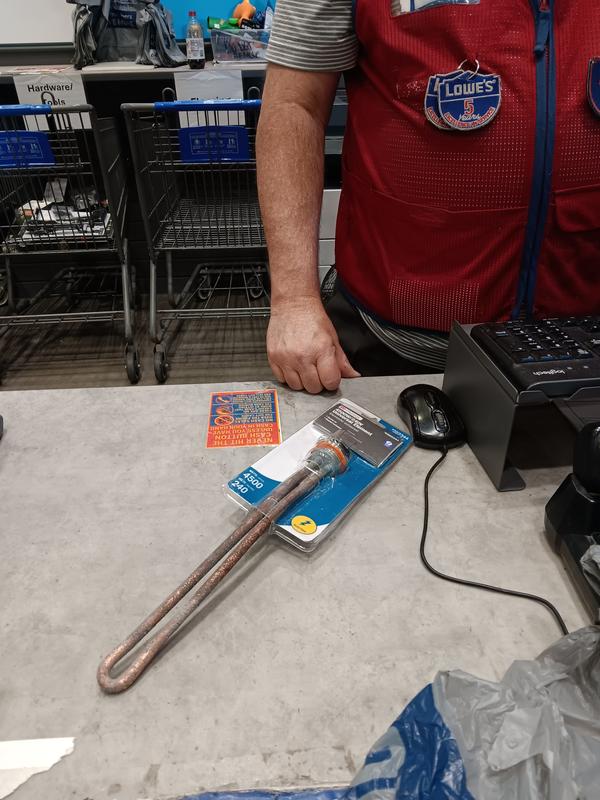

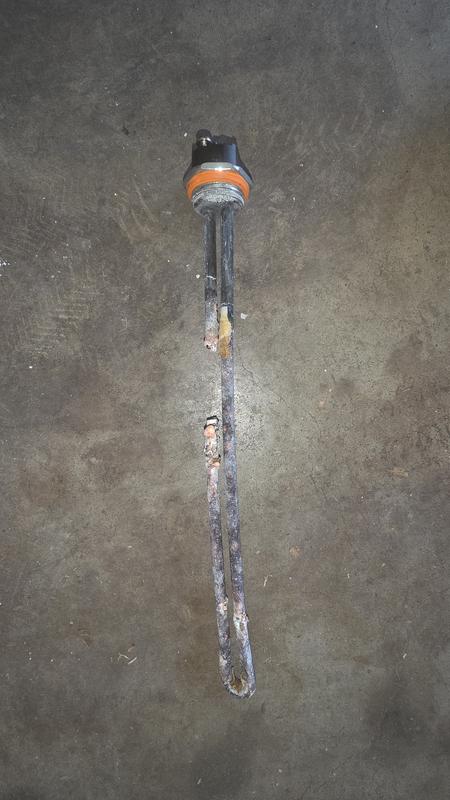

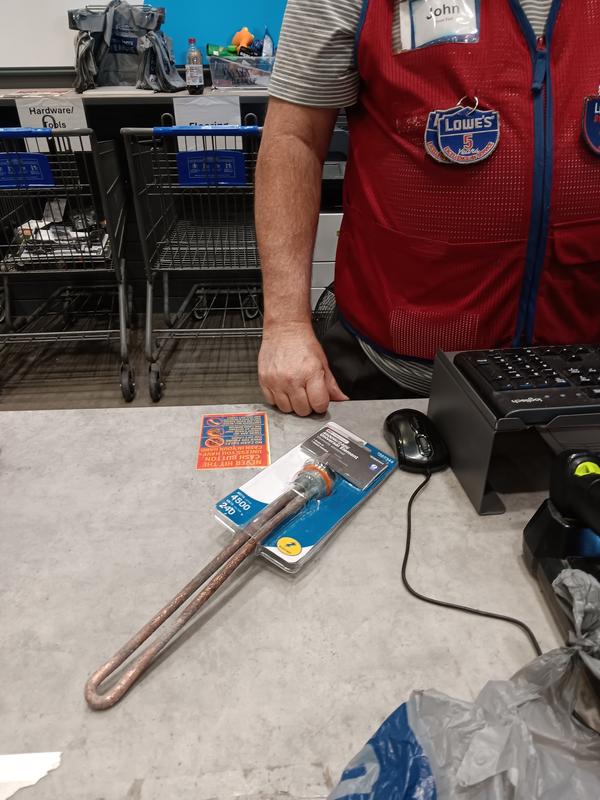

Heater didnt work after install....called Manufacture and they told me they would pay for a heat e.e emt and moneyfor labor to fix the part...after draining water to replace part....old part was worn...how fro. A new unit? Part fixed unit....Now problems getting labor money . Ibought a new used unit ....very disappointed...no more Lowes or AO products...selling used items as new.
From Signature 100 50-Gallon Tall 6-year Warranty 4500-Watt Double Element Electric Water Heater Verified Purchaser
We are sorry to hear of your experience. We want to ensure the issue is resolved.
Please send your phone number to talktous@aosmith.co...




We are sorry to hear of your experience. We want to ensure the issue is resolved.
Please send your phone number to talktous@aosmith.co...
